HICAS SF1000
Fully Automatic EPAL / EUR Wood Pallet Production Line
═══════════════════════════════════════════════════════════
Built for pallet manufacturers who demand industrial-scale output without compromise on quality.
✅ 2,000 pallets per 8-hour shift — 600 pcs per operator
✅ Compatible with EPAL 1200×800, EUR 1200×1000, US 1219×1016 & custom sizes
✅ CE Certified — full compliance documentation provided

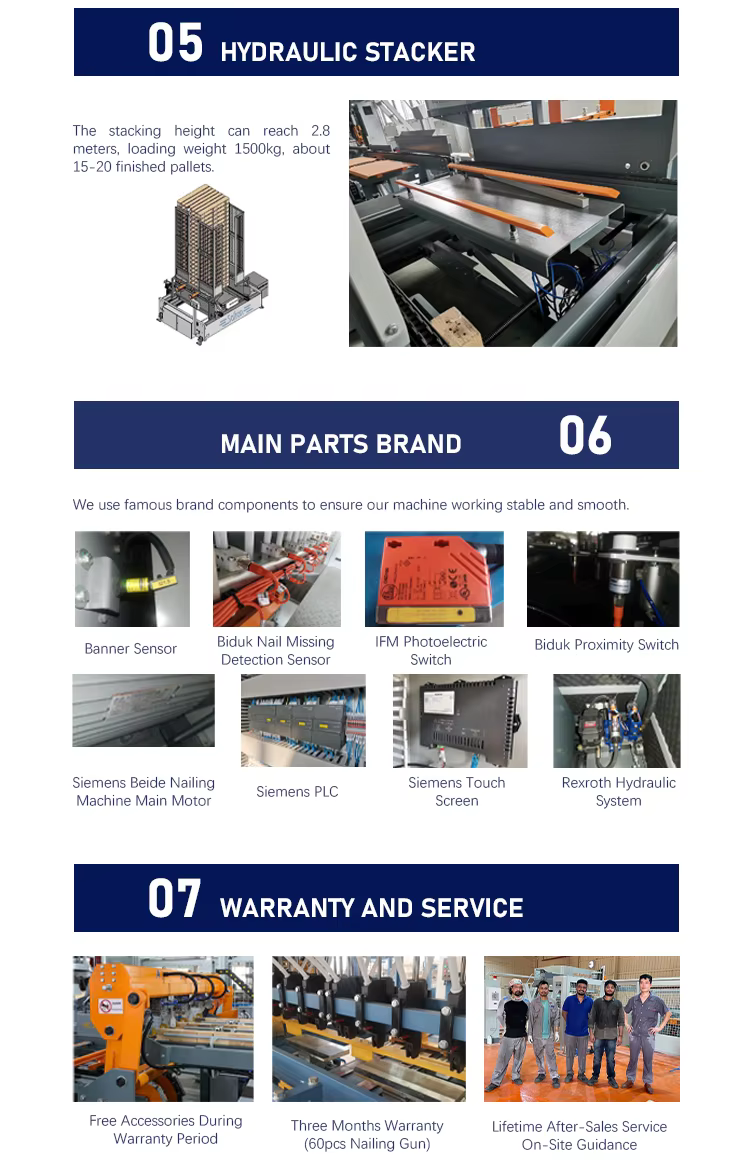

✅ Core components: Siemens PLC · Schneider Electric · AirTac Pneumatics
✅ Installed in South Korea, Greece, Saudi Arabia, Mexico, the United States, Chile etc.
[Request CE Certificate & Reference List →] [Download Technical Datasheet (PDF) →]
═══════════════════════════════════════════════════════════
Why Quality-Conscious Manufacturers Choose HICAS SF1000
═══════════════════════════════════════════════════════════
⚡ INDUSTRIAL-SCALE THROUGHPUT
2,000 pallets per 8-hour shift — equivalent to 6 conventional semi-auto lines. Annual capacity reaches 500,000 pallets(single shift, 250 days)The entire machine line can be operated by as few as 3 operators, helping to reduce labor costs.
🇪🇺 Pallet Size Customization & Conversion

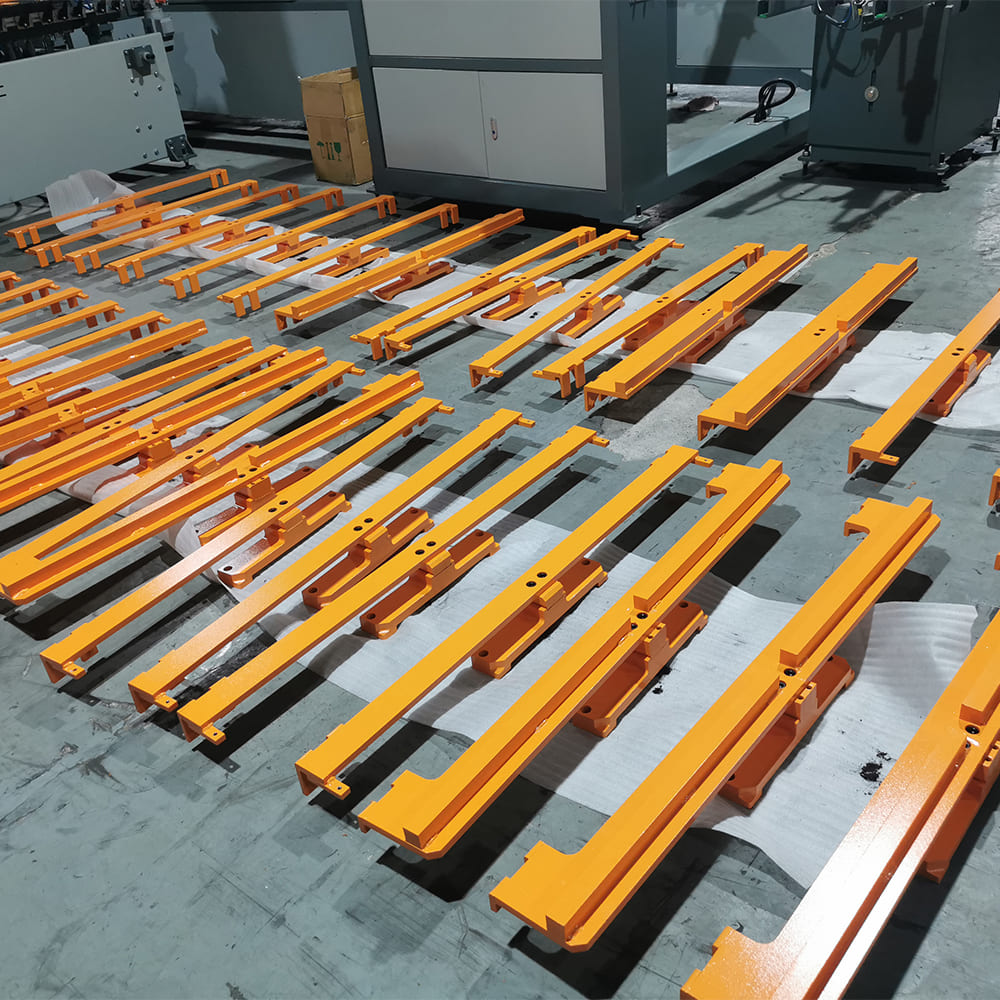

The SF1000 supports multiple pallet standards and custom sizes, please send us your pallet drawings for our evaluation.Use mold to positioning pallet, one pallet one mold, machine offer with one mold, time to change mold & adjust machine need 2-6 hours.
🛡️ CE CERTIFIED & TRANSPARENT COMPONENTS
CE certificate, covering Machinery Directive 2006/42/EC
and Low Voltage Directive 2014/35/EU. Full certificate PDF provided
on request. No hidden generic parts — complete brand list disclosed:
Siemens PLC, Schneider Electric breakers and contactors,
AirTac pneumatic valves and cylinders.
🌍 GLOBAL TRACK RECORD
Active installations across four continents — Europe (Greece, Italy), North America (Mexico, USA)Middle East (Saudi Arabia) andAfrica (South Africa),Asia(South Korea). Multilingual service engineers(EN /ES / CN) available for on-site commissioning and training.
| Model | SF1000 |
| Pallet type | Stringer/block pallets |
| Pallet width | 800-1500mm |
| Pallet length | 800-1500mm |
| Pallet height | 80-160mm |
| Wood accuracy | -2mm max. |
| Labor | 5 operators |
| Nailing gun quantity | 36pc in first nailing head |
| 24pc in second nailing head | |
| Bulk nails | 35-100mm length |
| body diameter 2.8-3.2mm | |
| head diameter 6.5-8.0mm | |
| 1st Nailing head with 3 nail boxes can use 3 different size nails in one pallet. | |
| 2nd Nailing head with 2 nail boxes can use 2 different size nails in one pallet. | |
| Total power | 96.25KW |
| Voltage | 380v 50 Hz 3 phase |
| Air pressure | 0.65-0.8MPa |
| PRODUCTION CAPACITY | |
| Output | 2,000 pcs / 8h shift |
| Per-operator | 600 pcs / shift (industry-leading) |
| Operators required | 5 (1 loader + 2 monitoring + 1 stacker + 1 QC) |
| Annual capacity |
500,000 pcs (single shift, 250 days) |
| Cycle time | < 10 seconds per pallet |
| MACHINE SPECIFICATIONS | |
| Air pressure | 0.6 – 0.8 MPa |
| Machine weight | 20,000 kg |
| Footprint | 37.8 × 5 × 3.5 m (L × W × H) |
| Power supply | 380V / 50Hz / 3-phase (60Hz / 220V / 440V customizable) |
| CONTROL SYSTEM | |
| PLC | Siemens |
| Electrical | Schneider Electric (main breakers, contactors) |
| Pneumatics | AirTac (valves, cylinders) |
| HMI | 7" color touchscreen |
| Languages | English / German / Spanish / Russian / Chinese |
| Remote diagnosis | Built-in 4G module for HICAS remote support |
| CERTIFICATION | |
| CE Certificate | covers Machinery Directive 2006/42/EC and Low Voltage Directive 2014/35/EU |
| Safety standard | EN ISO 12100 (machinery safety principles) EN ISO 13849 PLd (safety control systems) |
═══════════════════════════════════════════════════════════
5-Year TCO &ROI vs European Top-Tier Lines
═══════════════════════════════════════════════════════════
SF1000 delivers the same 2,000 pallets/shift production benchmark as European well-known brand — with the same Siemens PLC and servo precision — at roughly half the 5-year total cost.
| European Top-Tier | HICAS SF1000 | |
| Output (pcs / 8h) | 1,800 – 2,500 | 2,000 |
| Operators | 4 – 5 | 5 |
| PLC / Servo | Siemens / Allen-Bradley | Siemens ✓ |
| EPAL / EUR compliant | ✓ | ✓ |
| Pneumatics | SMC / Festo |
AirTac (SMC/Festo upgrade available)
|
| Lead time |
|
4-5months
|
| 5-Year TCO | 100% (baseline) |
~50 – 60%
|
| Payback period | 24 – 36 months |
10 – 16 months
|
📌 We don't publish equipment prices because configuration, voltage, options and region significantly affect final cost. Customized quotation within 24 hours of inquiry, including full TCO calculation for your specific production scale.
Get Your Customized ROI Quotation
Within 24 hours you'll receive:
📊 Production-specific 5-year TCO
💰 FOB/CIF quotation
⚡ Voltage configuration cost
🛠️ On-site installation quote
📄 CE certificate + reference customers from your region
[Request Customized ROI Quotation →]
═══════════════════════════════════════════════════════════
