SF7013S High-Productivity Double-Head Stringer Notching Machine

Installation & Support

- English manual + operation video + on-site installation guidance
- Self-install supported with free online engineer support
- Most spare parts in stock, shipped from our warehouse; some sourced locally
- Indexable cutter heads available from us or locally
- 24/7 support by phone / email / WhatsApp / Skype
- CE certified · ISO9001 · 12-month warranty (free parts & online service year 1)
- Flexible payment: T/T 30% deposit · LC at sight · SINOSURE supported

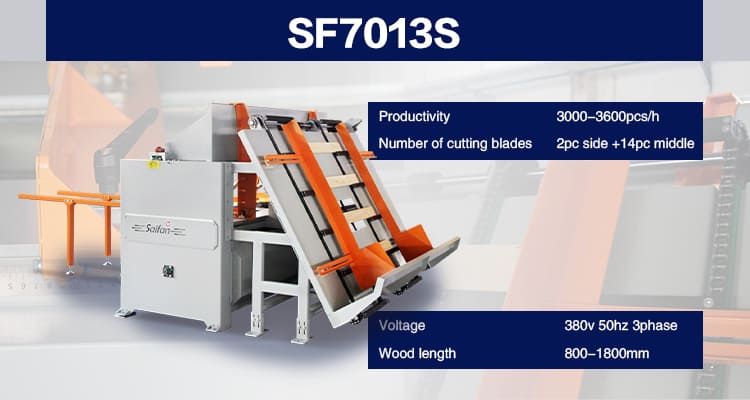

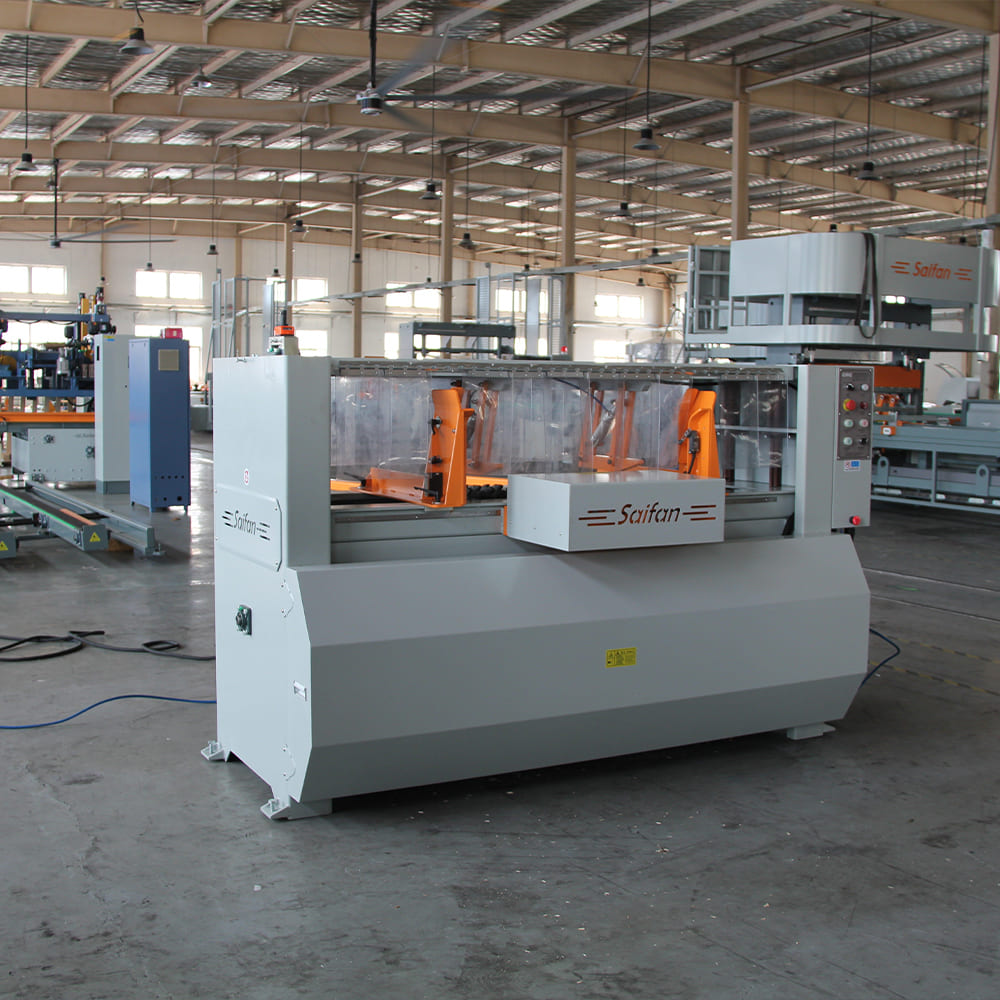

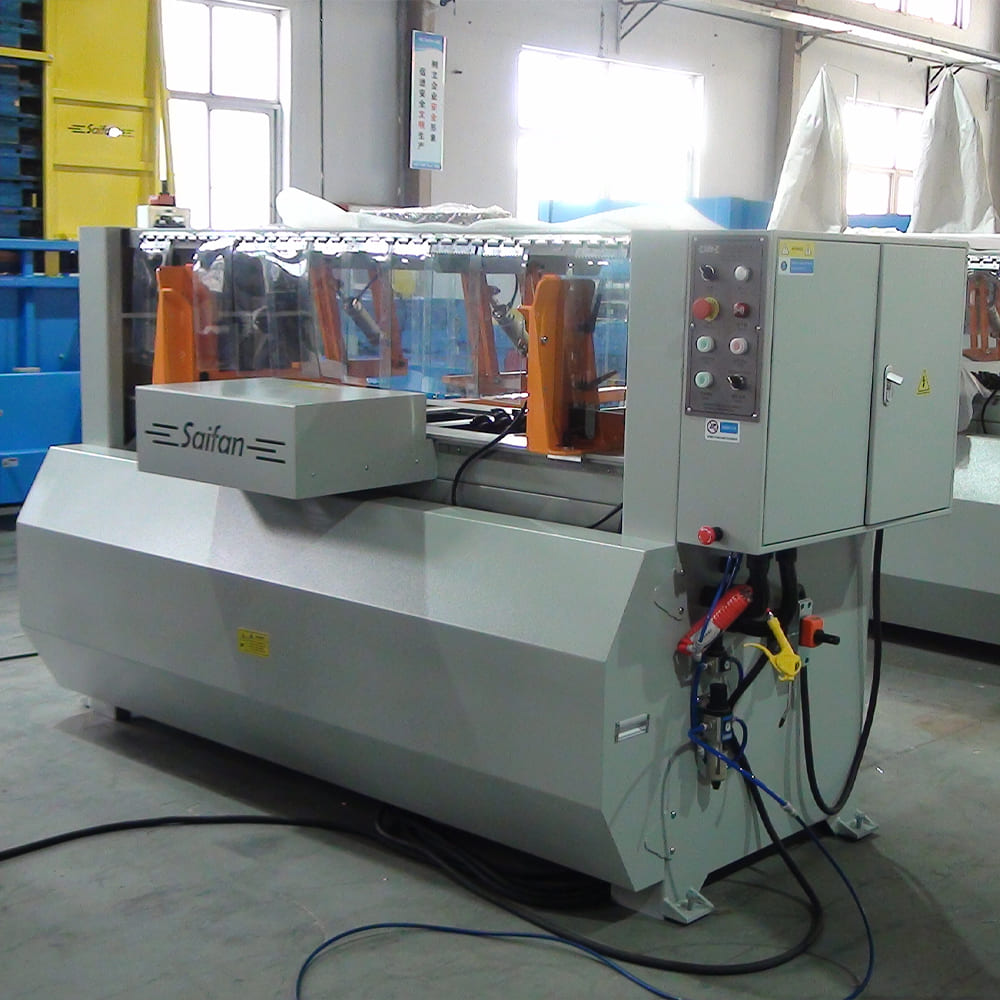

SF7013S HIGH-PRODUCTIVITY DOUBLE-HEAD NOTCHING MACHINE — 3,000-3,600 pcs/h · Siemens PLC · Automatic Feeding

Double the output of standard notchers. The SF7013S notches stringers for four-way-entry American GMA pallets at up to 3,600 per hour — with automatic feeding and just one operator.

Siemens PLC · automatic wood lifting/feeding · 228.6 mm (9") notch width · 31 kW · indexable cutters · ≤1 mm tolerance.

- 3,000-3,600 stringers/hour — high-volume notching
- Siemens PLC control + automatic lifting/feeding
- 228.6 mm (9") notch width — American GMA standard
- Indexable cutters — rotate, don't replace
- Extra-long processing range up to 1,800 mm

[ Request Customized Quotation ]

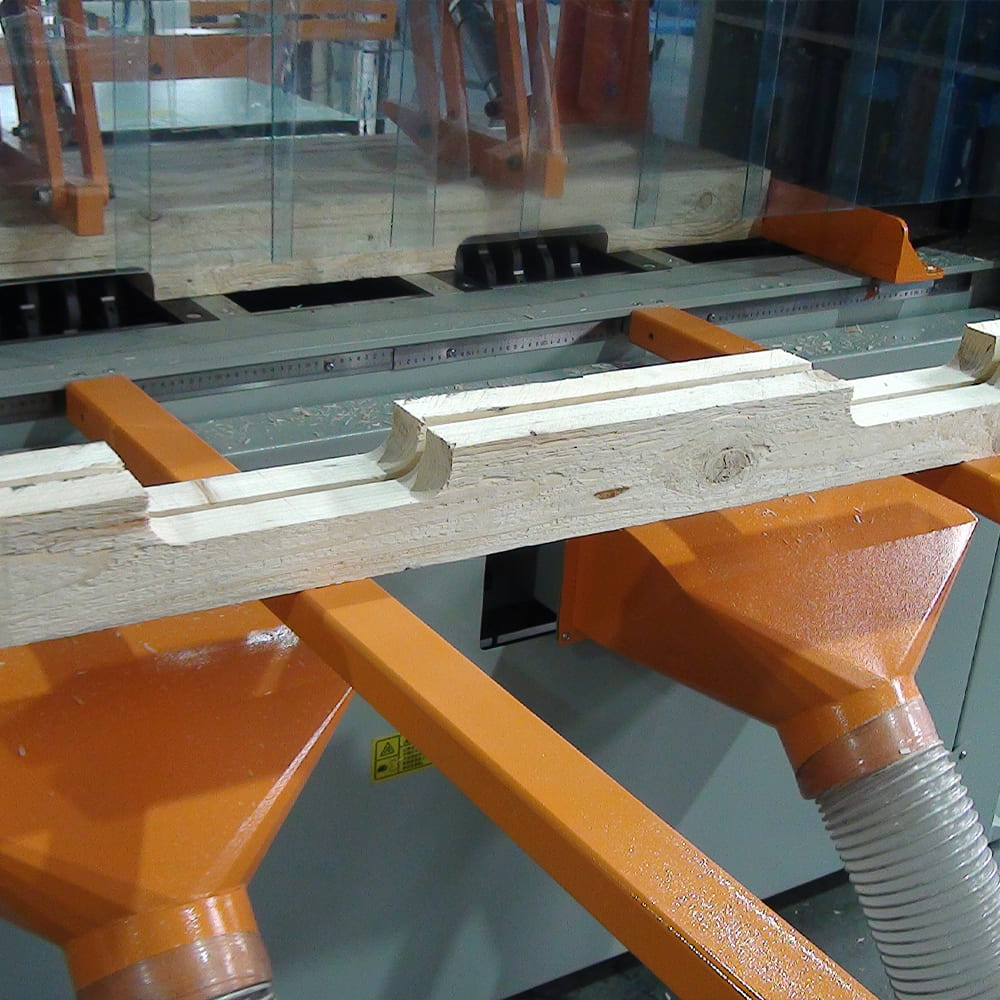

Notches turn a two-way stringer pallet into a true four-way-entry pallet — the format North American and global logistics chains demand.

- ENABLE FOUR-WAY ENTRY: Cut the notches that let forklifts enter from all four sides — essential for GMA 48"×40" and American-style stringer pallets.

- HIGH-VOLUME, IN-HOUSE: At 3,000-3,600 stringers/hour, the SF7013S lets large producers notch in-house at scale — controlling cost, quality and supply.

- 3,000-3,600 PCS/HOUR: Double-head high-speed notching delivers up to 3,600 stringers per hour — built for high-volume pallet producers.

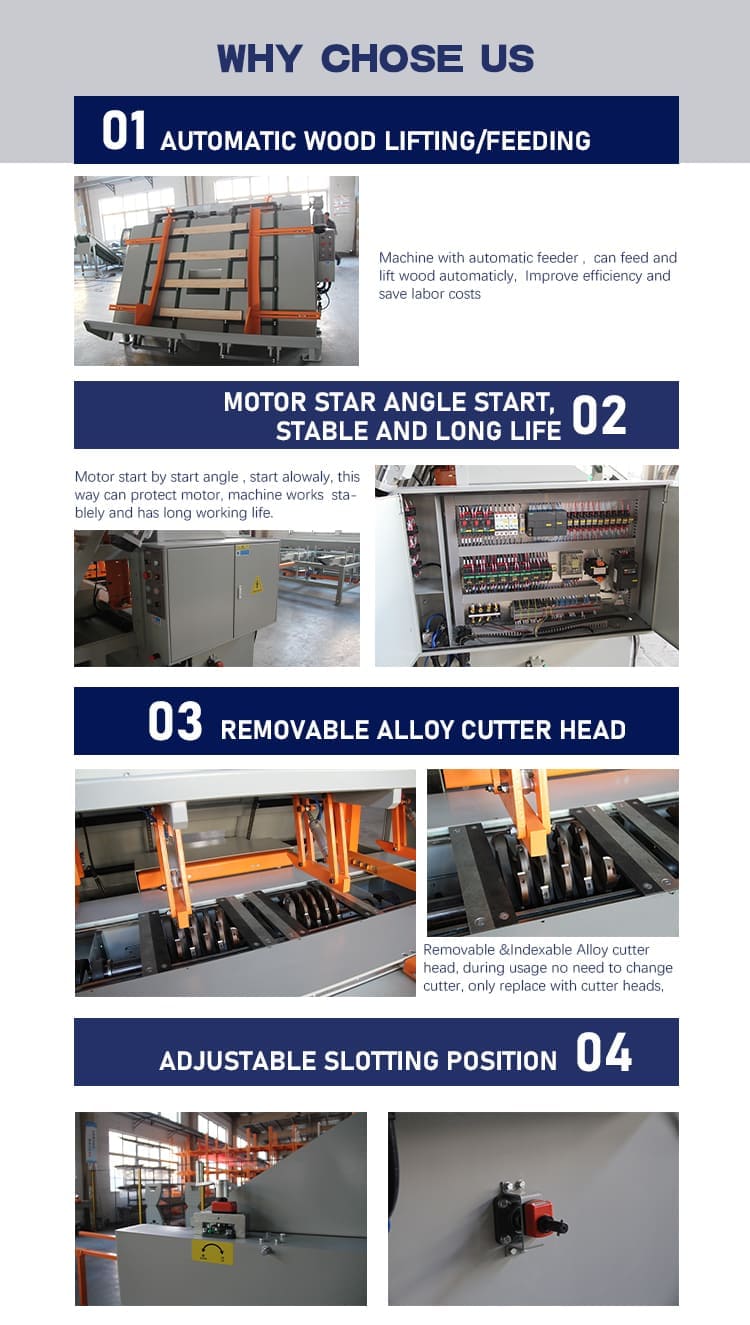

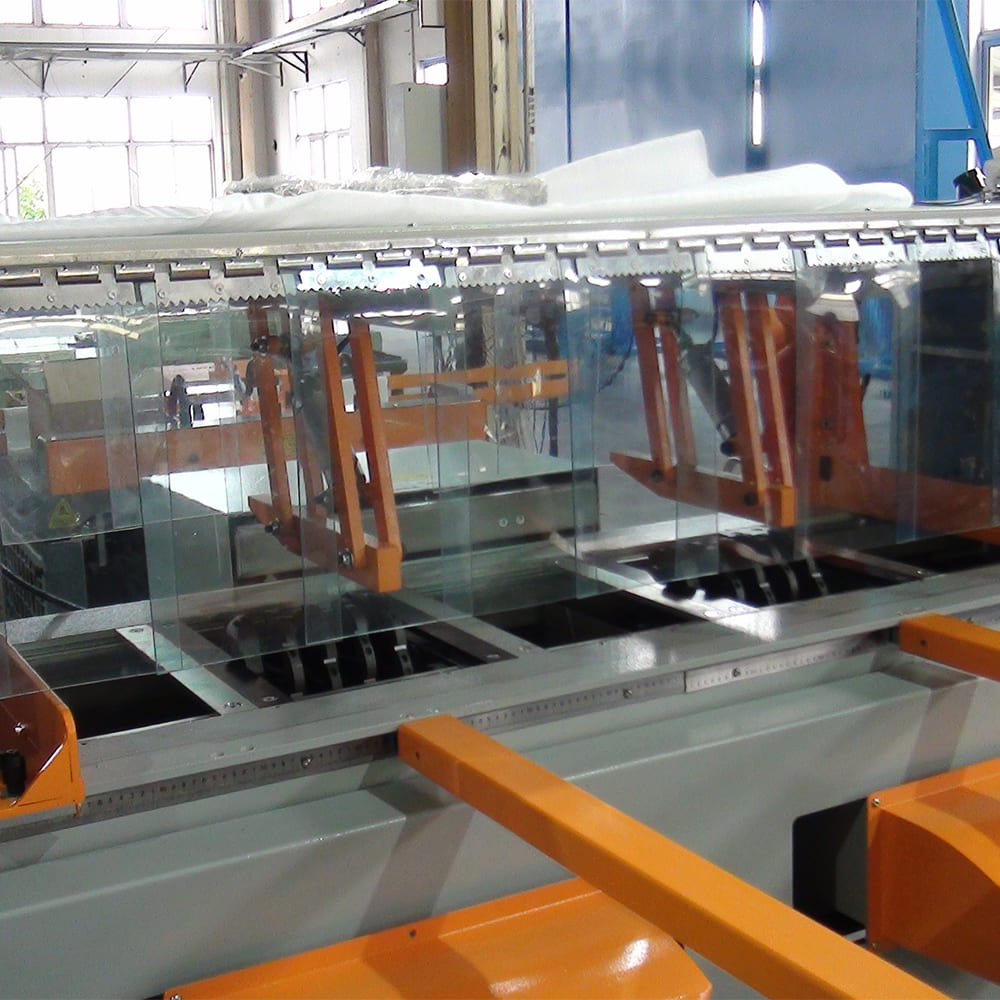

- AUTOMATIC LIFTING & FEEDING: An automatic feeding device lifts and feeds wood automatically — higher efficiency, lower labour cost, one operator.

- SIEMENS PLC CONTROL: Siemens PLC runs the notching cycle precisely and repeatably — consistent notches at high speed.

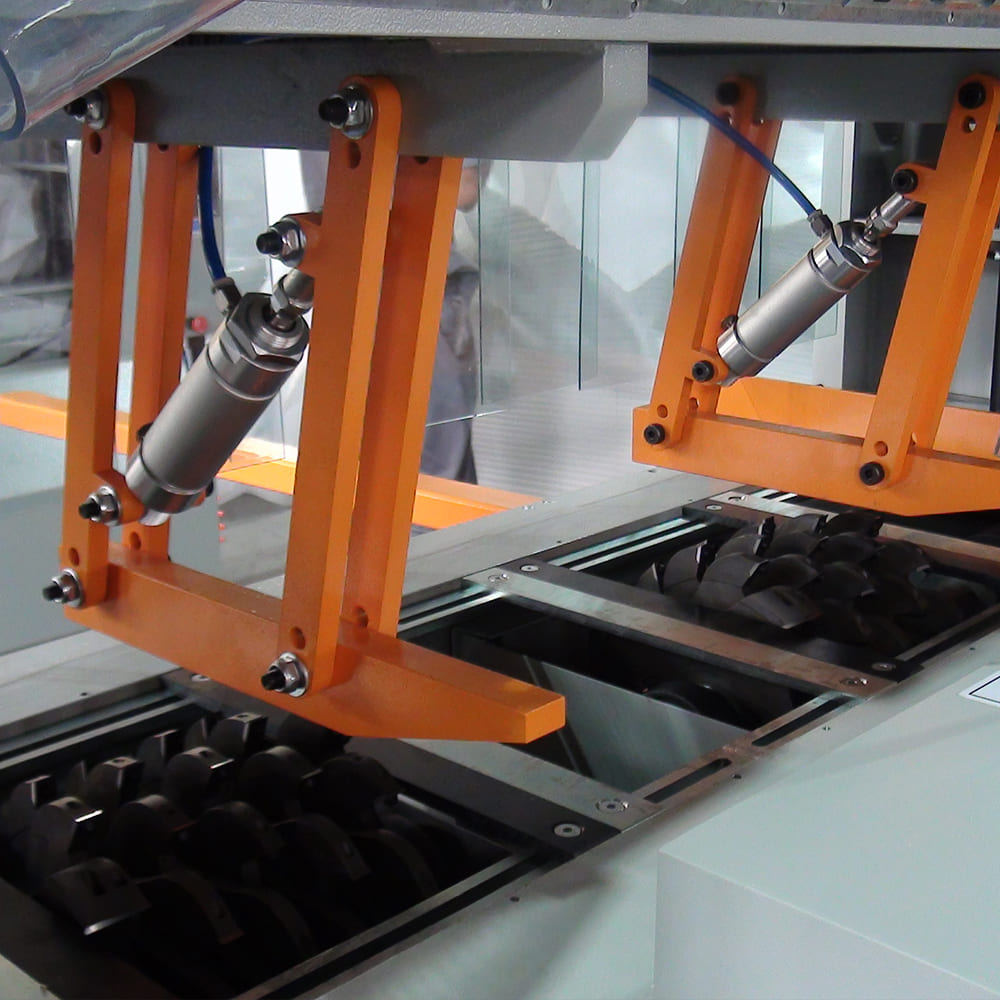

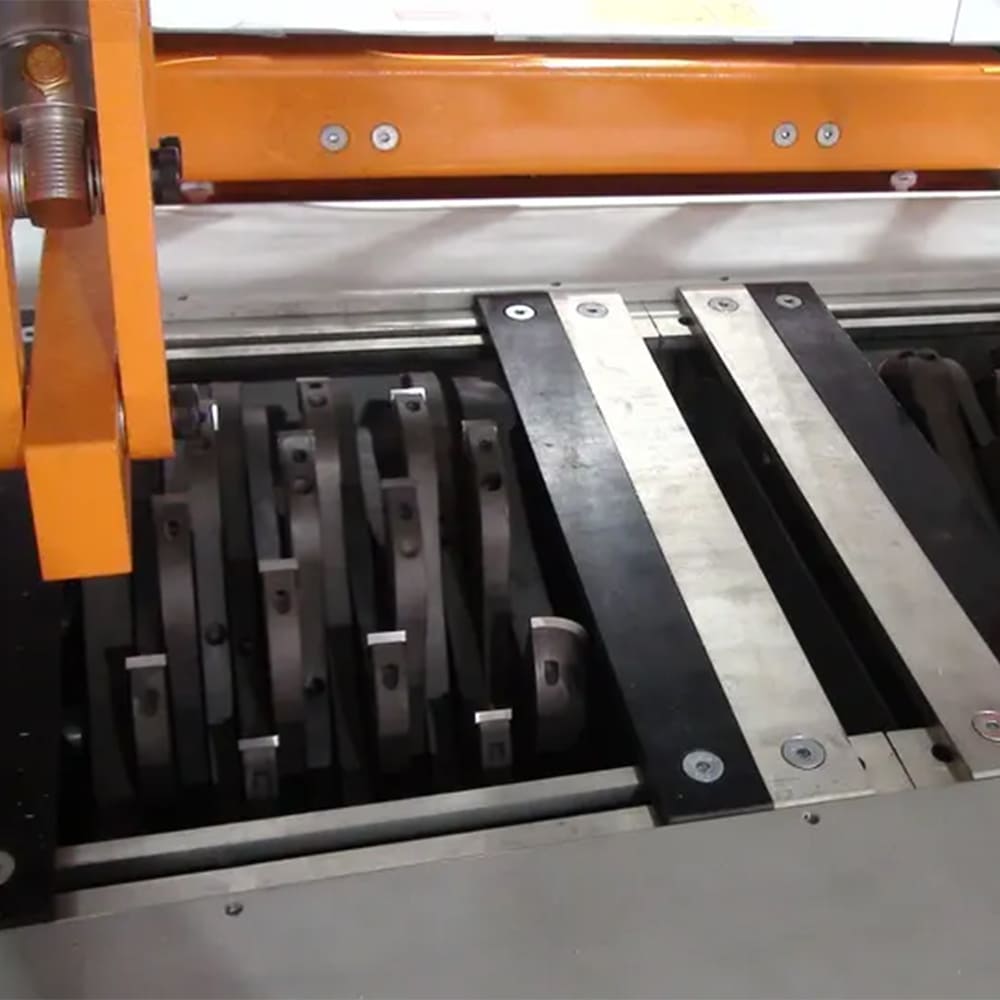

- INDEXABLE ALLOY CUTTERS: Removable, indexable alloy cutter heads rotate to a fresh edge instead of being replaced — lower running cost. Heads available from us or locally.

- 228.6 mm (9") NOTCH, ADJUSTABLE: Notch width up to 228.6 mm (American GMA standard); notch depth adjustable to 60 mm; slotting position adjustable.

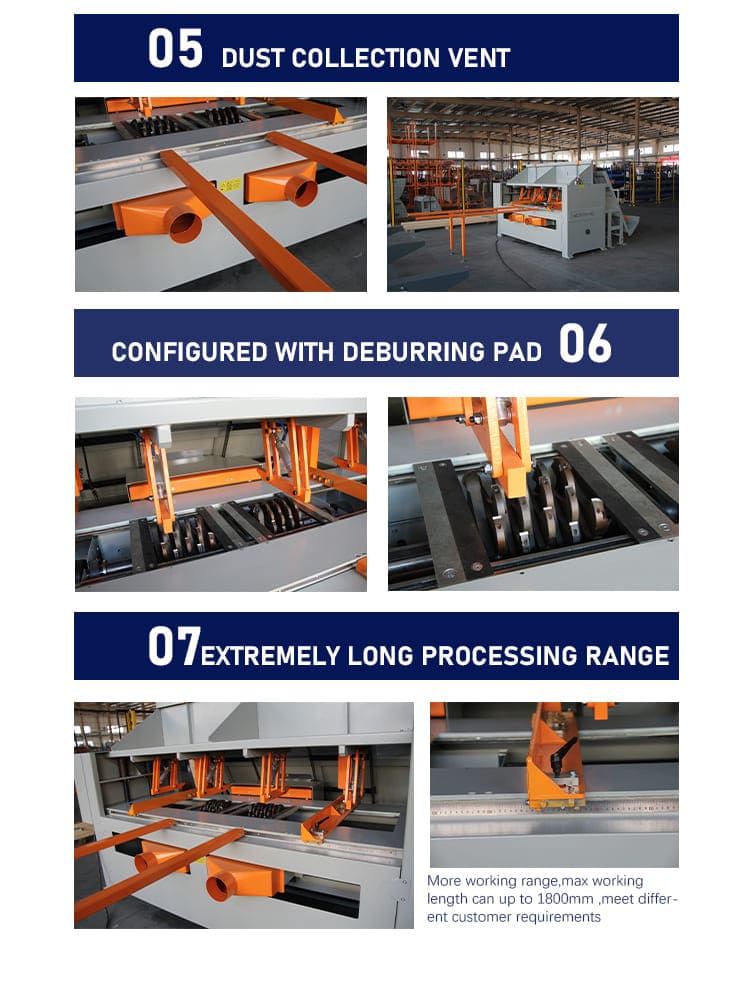

- MOTOR STAR-DELTA START: Soft star-delta starting protects the motor and keeps the machine running stably for a long service life. Includes deburring pad and dust extraction.

At 3,000-3,600 stringers/hour with automatic feeding, the SF7013S lets high-volume producers notch in-house at scale — and the indexable cutter system keeps running costs low.

What this means for you:

- Double the notching output for high-volume pallet contracts
- Automatic feeding — lower labour, steady throughput
- Lower cutter cost via indexable design
- Notch in-house at scale — no bought-in dependency

We don't publish equipment prices because configuration affects final cost. Customized quotation within 24 hours.

[ Request Customized Quotation ]

Proven in Demanding Markets

Delivered to pallet producers in Saudi Arabia, Israel, Mexico, Australia and Ireland — field-proven across diverse climates, power grids and pallet standards.

Voltage Compatibility

Standard 380V/50Hz/3-phase. Voltage configurable to your local power supply on request.

Q: How fast is the SF7013S?

A: 3,000-3,600 stringers per hour — roughly double a standard notcher — with automatic feeding and one operator.

Q: What notch width and depth can it produce?

A: Notch width up to 228.6 mm (9", American GMA standard); notch depth adjustable to 60 mm.

Q: What control system does it use?

A: Siemens PLC, for precise, repeatable high-speed notching.

Q: What are indexable cutters?

A: Removable alloy cutter heads that rotate to a fresh edge instead of being replaced — lower running cost. Heads available from us or locally.

Q: What wood sizes does it handle?

A: Wood length 800-1,800 mm, thickness 20-120 mm, height 80-120 mm.

Q: How does it feed the wood?

A: An automatic lifting/feeding device loads wood automatically, improving efficiency and saving labour.

Q: What voltage does it use?

A: Standard 380V/50Hz 3-phase, configurable to your market.

Q: What support do you provide?

A: On-site installation guidance, English manual + video, 24/7 phone/email/WhatsApp support, and spare parts in stock.
