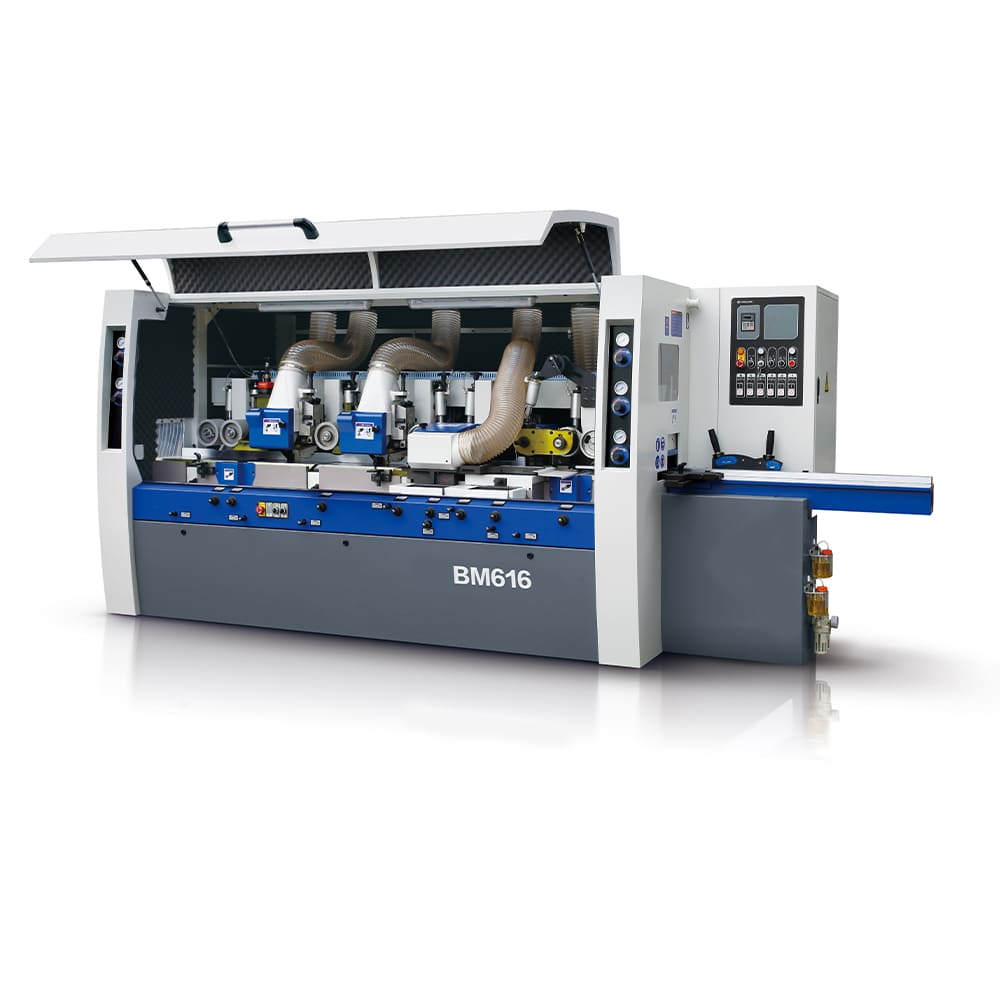

HICAS 3800KG automatic four side moulder machine with 6 spindles, 31.75KW power, and 6-36 m/min feeding speed enhances furniture polishing efficiency by 40%. Complies with CE, ISO, and UL standards. Trusted by global woodworking manufacturers for precision and durability.
Specifications of Four Side Moulder Machine
Model number |
BM616A Industrial Woodworking Machine |
|
Machine parameters (mm)
|
Working width |
25-160 |
Working thickness |
8-120 |
|
n-feed-table length |
1500 |
|
Feeding speed |
6-36 |
|
Spindle diameter |
φ40 |
|
(r/min)Spindle revolution |
6200 |
|
(Mpa)Air pressure |
0.6 |
|
Motor power (kw) |
1st Bottom spindle |
4KW/5.5HP |
Right vertical spindle |
4KW/5.5HP |
|
Left vertical spindle |
5.5KW/5.5HP |
|
1st Top spindle |
5.5KW/7.5HP |
|
2nd Top spindle |
4KW/5.5HP |
|
2nd Bottom spindle |
4KW/5.5HP |
|
Top spindle lifting |
||
Feeding beam lifting |
0.75KW/0.75HP |
|
Feeding motor |
4KW/5.5HP |
|
Universal spindle |
||
Left vertical axis entry and exit |
||
Total power |
31.75KW/43HP |
|
Spindle diameter (mm) |
1st Bottom spindle |
φ125 |
Right vertical spindle |
φ125-φ160 |
|
Left vertical spindle |
φ125-φ160 |
|
1st Top spindle |
φ125-φ160 |
|
2nd Top spindle |
φ125-φ160 |
|
2nd Bottom spindle |
φ125-φ180 |
|
Universal shaft |
||
Feeding wheel diameter |
φ140 |
|
Dust outlet diameter |
φ140 |
|
Overall dimensions |
L3750×W1550×H1720 |
|
Weight |
3800kg |
|
Air volume |
12200M³/h |
A: Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
A: Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
A: Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
A: 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.
A: Our machines have been sold to more than 160 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
A: Our machines can be customized made according to buyers’ request.
A: We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
A: Our system supports common languages like Chinese, English, Russian, Spanish.
