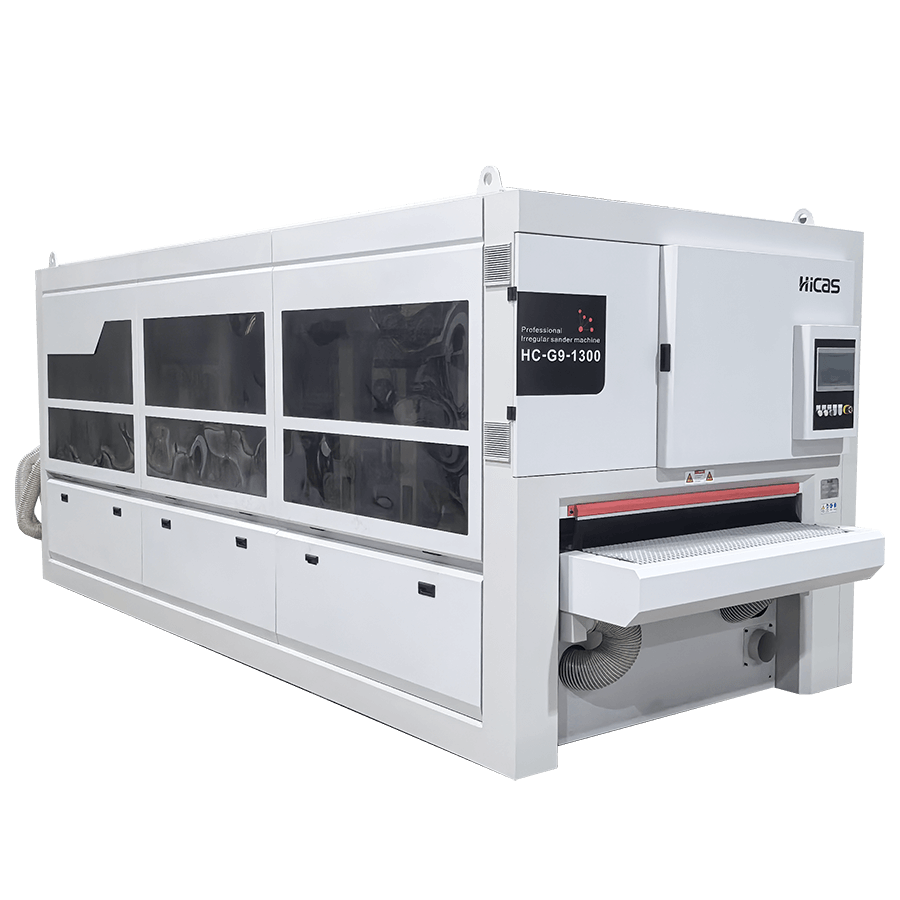

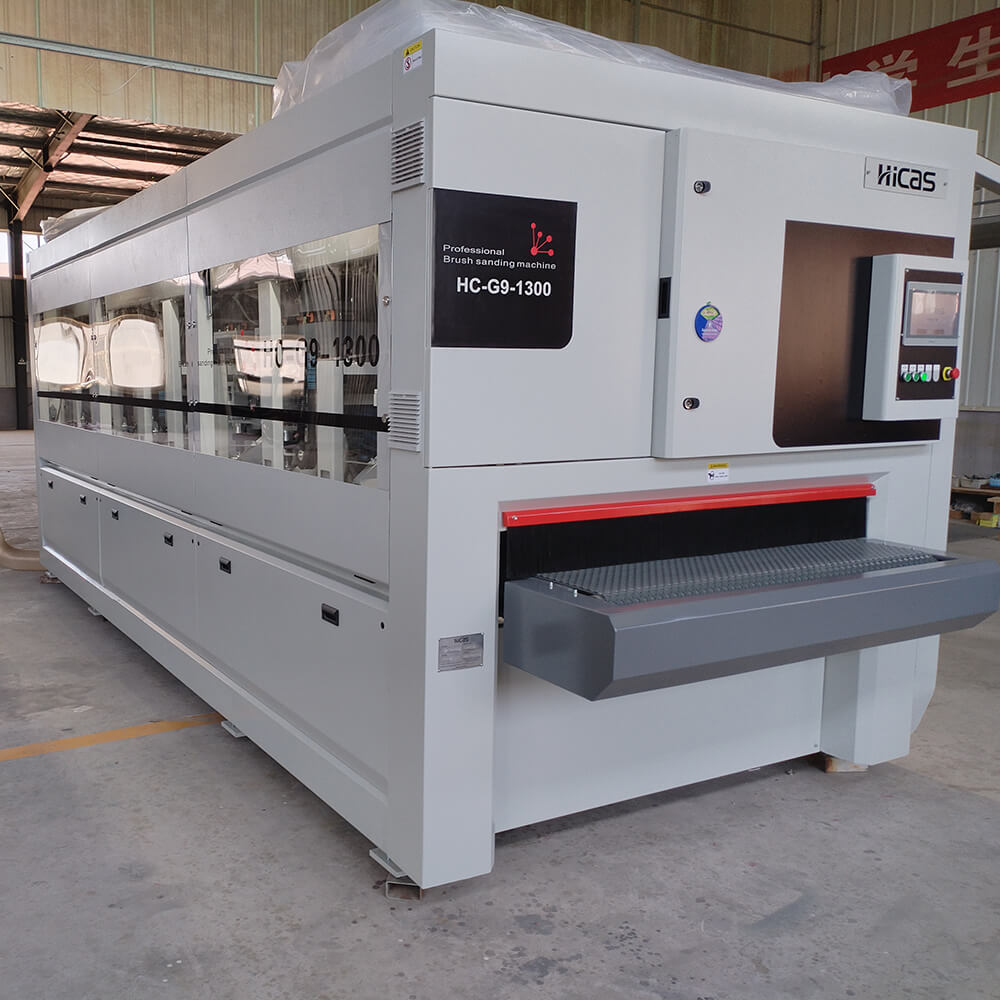

High-precision HC-G7/G9 automatic wood brush sanding machines with 1300mm working width, adjustable 80-450RPM brush speed, and spiral roller technology. ISO 9001 & CE certified. Increases sanding efficiency by 40%, reduces labor costs by 30%. Trusted by 500+ furniture and door manufacturers worldwide. Request technical demo or ROI analysis today.
Model |
HC-G7-1300 |
HC-G9-1300 |
Max working width |
1300mm |
1300mm |
Working thickness |
100mm |
100mm |
Adjustable brush speed |
80-450rpm(can adjust) |
80-450rpm(adjustable) |
Spiral roller speed |
80-550 rpm(can adjust） |
80-550 rpm(adjustable） |
Conveyor speed |
0-10m/min(can adjust) |
0-10m/min(adjustable) |
Each group of the lifting power |
6*0.25kw |
8*0.25kw |
Integral lifting power |
1.1kw |
1.1kw |
Disc brush motor power |
2*0.55kw |
2*0.55kw |
Disc brush motor power |
2*1.5kw |
2*1.5kw |
Spiral roller motor power |
3*2.2kw |
5*2.2kw |
Horizontal roller motor power |
2*1.1kw |
2*1.1kw |
Conveyor motor power |
2.2kw |
2.2kw |
Swing motor power |
6*0.37kw |
8*0.37kw |
Total power |
18.9kw |
25.7kw |
Screw roller qty |
1 set |
5 sets |
Screw roller diameter |
380mm |
380mm |
Disc brush qty in each group |
3*3 set |
18pcs |
Disc diameter |
180mm |
180mm |
Horizontal roller qty |
8 sets |
8 sets |
Horizontal roller diameter |
330mm |
330mm |
Dust outlet |
11*100mm |
17*100mm |
Air speed |
22-30m/s |
17*635m3/h |
The weight |
6500kg |
7200kg |
The overall dimensions |
4960*2140*2325mm |
6200*2150*2300mm |
