Installation & Support

• English manual + operation video + electrical drawings — self-install with our free online support
• Video outgoing-inspection + machinery test report before shipment
• Most spare parts in stock; German Hermes brush stock maintained; common parts shipped within 1 week by express
• 24/7 remote diagnostics support
• Siemens PLC global-service network (parts available in most industrial markets)
• CE certified (Cert. No. M.2025.206.C127538) · ISO9001 · 12-month warranty on core components
• Flexible payment: T/T 30% deposit · LC at sight · SINOSURE supported
• Lead time 35-50 days after 30% T/T deposit; 1×40HQ container

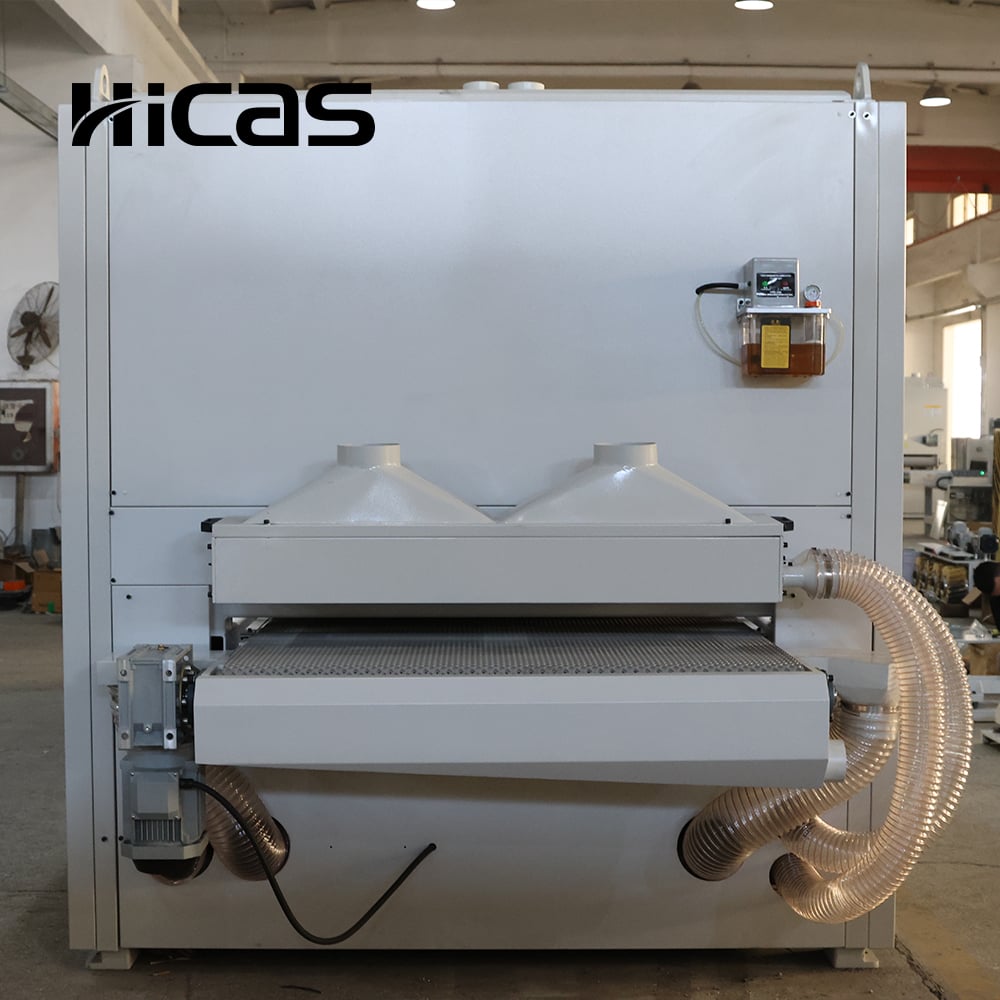

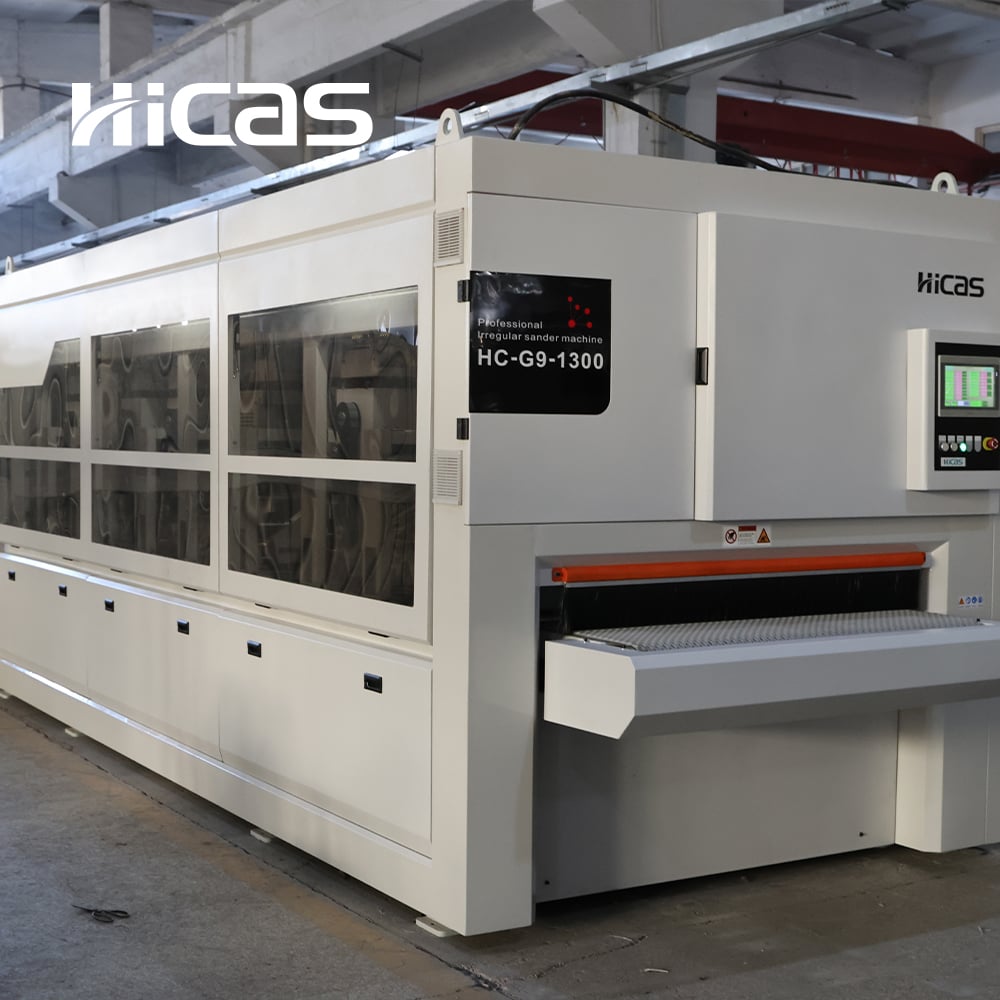

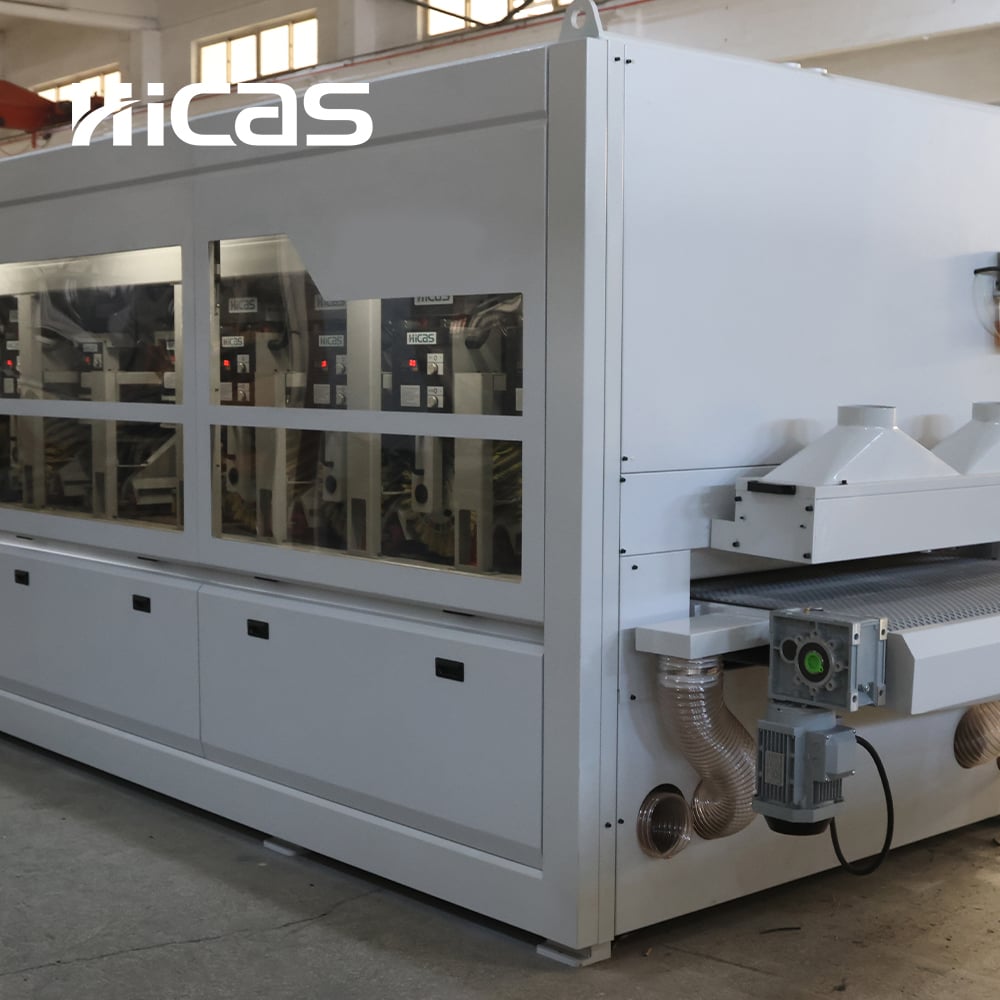

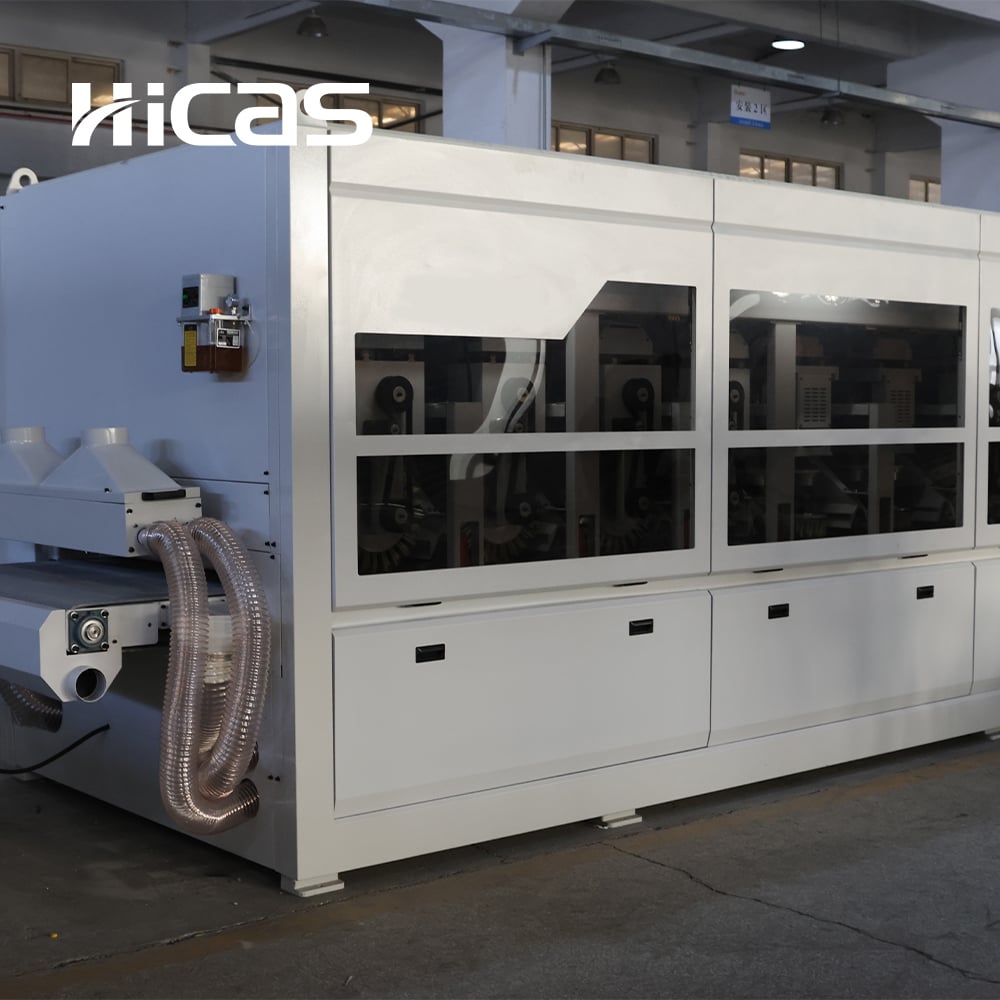

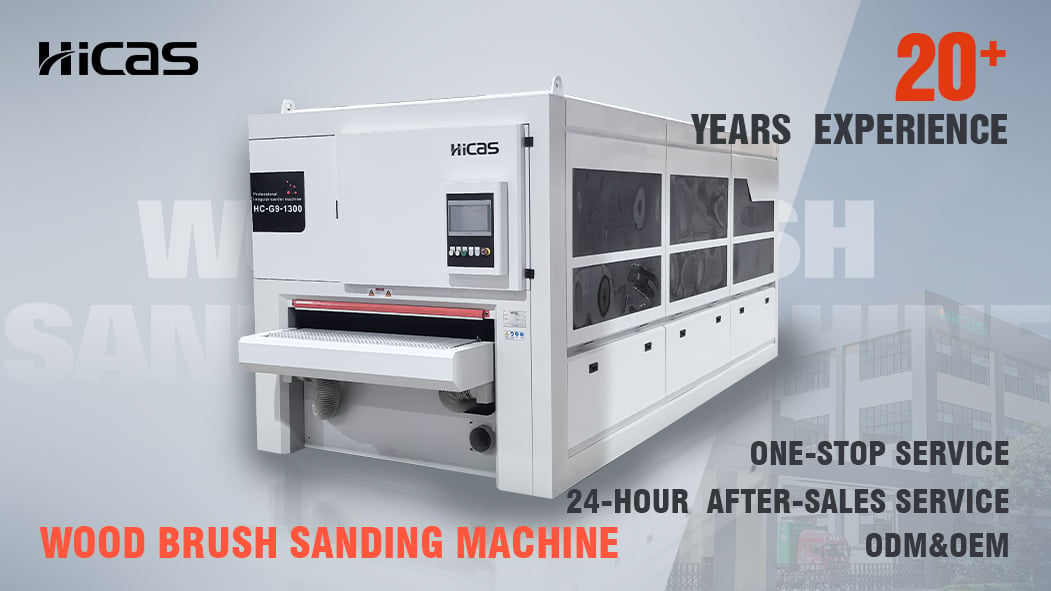

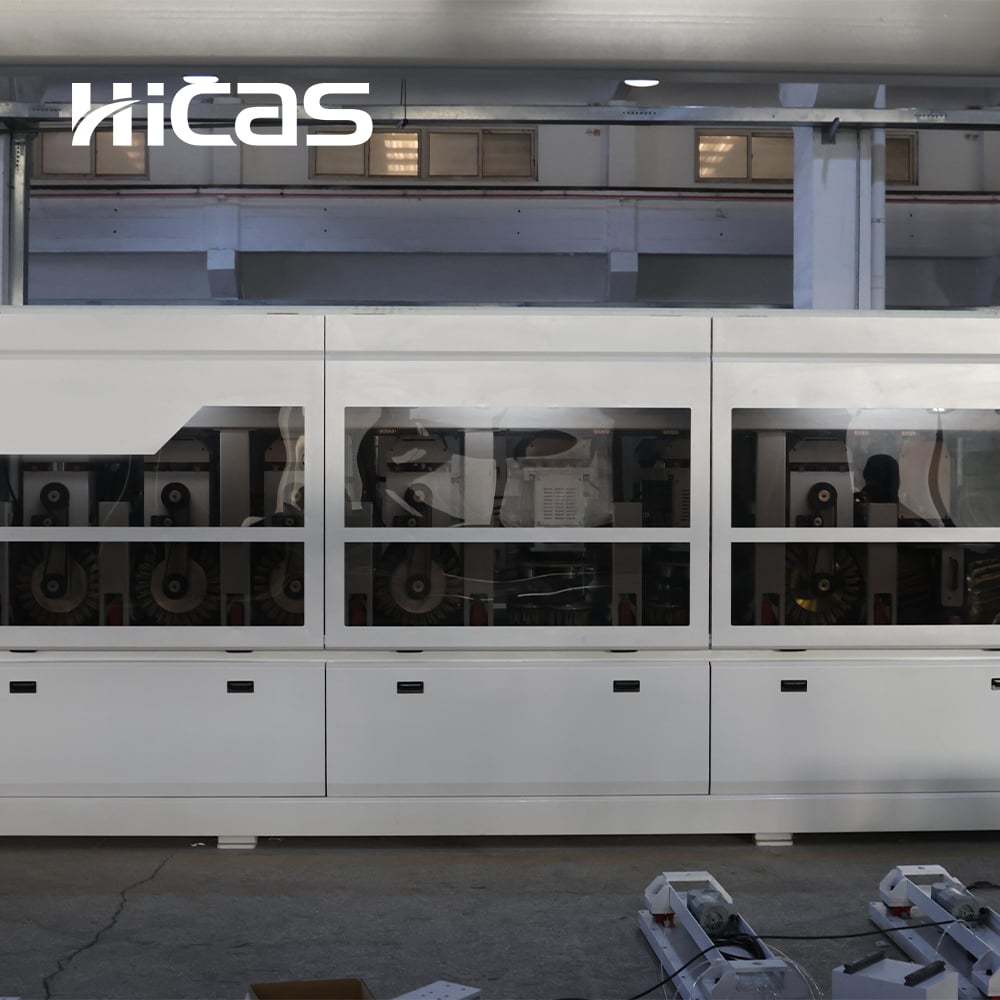

HC-G7 / HC-G9 AUTOMATIC HEAVY-DUTY BRUSH SANDING MACHINES — For Carved Doors & Cabinet Panels · Siemens PLC · German Hermes Brushes

Sand carved, louvered, MDF and cabinet doors that flat sanders can't touch — with a full-coverage brush stack (transverse, disc, spiral) that reaches every carved recess, edge and groove.

Siemens PLC control · German Hermes (Schleifmittel) sanding brushes · 1,300 mm working width · 80-450 rpm brush speed · 0-10 m/min feeding · 800-1,500 doors/shift.

• 1,300 mm working width — full-size door and panel coverage
• German Hermes brushes — the same brand European premium door lines use
• Siemens PLC control — repeatable, low-training-time operation
• Handles carved, louvered, MDF, cabinet & furniture doors
• Replaces 8-10 manual sanders per machine — rework rate 8-12% → <2%

[ Request Customized Quotation ]

Not sure which HC model to specify? Use this quick logic:

By door / panel complexity:

• Standard carved doors, louvered doors, cabinet fronts → HC-G7-1300 (7-head, 18.9 kW)
• Deeply carved doors, ornate furniture panels, premium finishes → HC-G9-1300 (9-head, 25.7 kW, adds 4 extra spiral rollers and 9 extra rotary disc brushes)

By output scale:

• Standard door factory (up to ~1,000 doors/shift) → HC-G7
• High-volume premium factory (1,200+ doors/shift, complex carved surfaces) → HC-G9

The core difference: HC-G9 has 4 additional spiral roller sets and 9 additional rotary disc brushes — designed to reach the deepest carved recesses and produce a uniform premium finish where HC-G7's 1 spiral roller would leave inconsistencies.

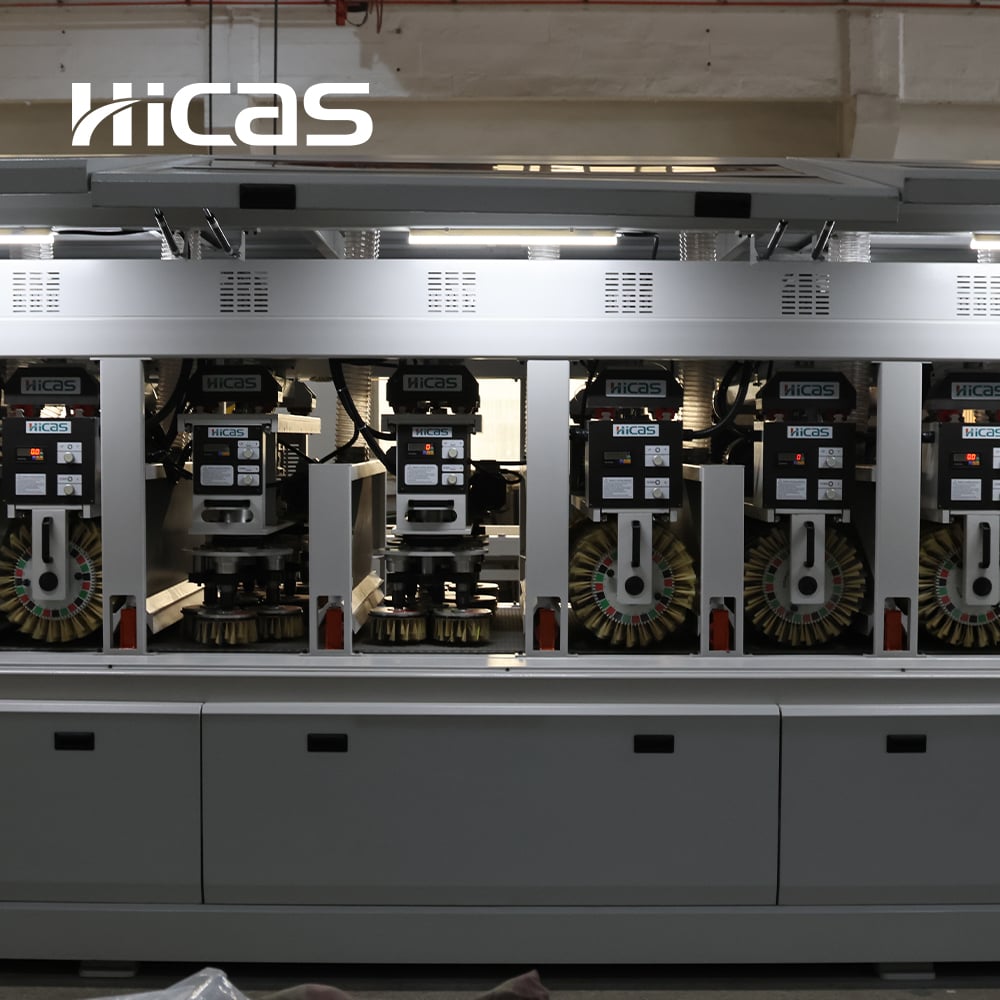

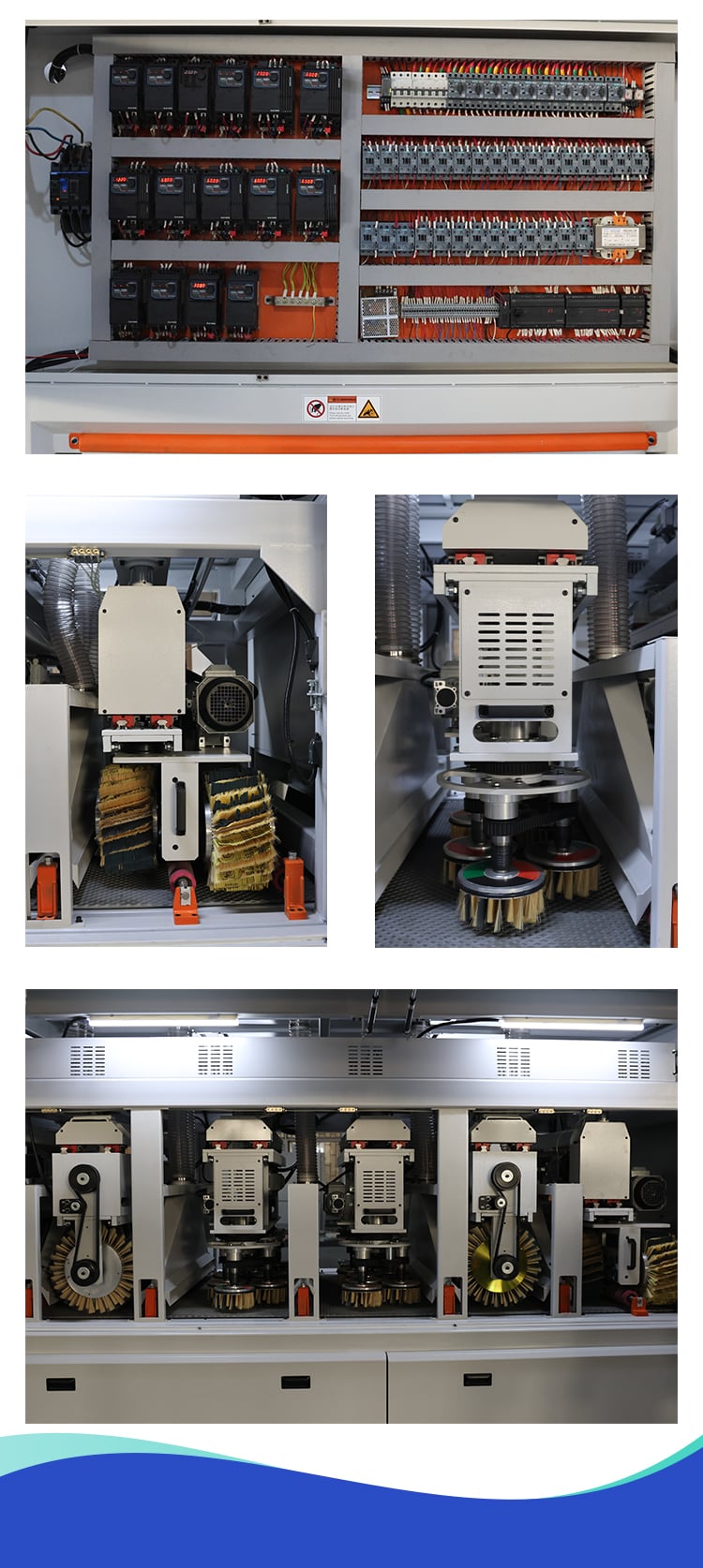

1.BUILT FOR CARVED AND SHAPED PANELS: Unlike flat wide-belt sanders, HC series uses a combined transverse-brush + rotary-disc + spiral-roller stack that follows every carved recess, panel edge and louvered slat — the surface finish is uniform across the whole panel, not just the flat face.

2.GERMAN HERMES SANDING BRUSHES: Hermes Schleifmittel (Germany) — the same premium sanding-brush brand European door and cabinet lines specify. Brush life 200-800 working hours depending on substrate.

3.SIEMENS PLC CONTROL: Premium Siemens PLC + HMI runs the sanding cycle precisely and repeatably — variable feeding speed (0-10 m/min via inverter) and brush speed (80-450 rpm) let you tune the finish to every substrate.

4.REPLACES 8-10 MANUAL SANDERS: One machine + 1-2 operators replaces 8-10 hand-sanding workers on carved door lines — with a rework rate typically dropping from 8-12% (manual) to under 2%.

5.TWO CONFIGURATIONS FOR EVERY LINE: HC-G7 (7 sanding heads, 18.9 kW) for standard carved and louvered doors; HC-G9 (9 heads, 25.7 kW) for deeply carved, complex and premium furniture panels.

6.ROI IN 4-8 MONTHS: Typical medium-scale door factory recovers investment in 4-8 months on labour savings alone — before counting the value of consistent finish quality.

Manual sanding of carved doors is slow, inconsistent and labour-intensive — with a typical rework rate of 8-12% eating margin every shift. HC-G7 / HC-G9 replaces 8-10 hand-sanders with 1 machine + 1-2 operators, and drops rework to under 2%.

What this means for you:

• One machine + 1-2 operators = the throughput of 8-10 hand-sanders
• Rework rate 8-12% → <2% — recover margin lost to rejected panels
• Consistent premium finish on every door — customer complaints drop
• German Hermes brushes + Siemens PLC — premium components serviceable in Europe
• Typical ROI: 4-8 months on labour savings alone

We don't publish equipment prices because model (HC-G7 vs HC-G9) and configuration affect final cost. Customized quotation within 24 hours, including a labour-savings payback calculation for your production.

[ Request Customized ROI Quotation ]

Voltage Compatibility

Standard 380V / 50Hz / 3-phase. Voltage configurable to your local power supply on request.

Proven Worldwide

Delivered to door, cabinet and premium furniture producers in the USA, South Korea, Lithuania, Romania, Australia, Saudi Arabia, Uzbekistan and Brazil — HICAS brush sanding machines are field-proven across 8 countries and 4 continents, from premium European furniture markets to Latin American cabinet lines.

Q: What does the HC-G7 / HC-G9 do?

A: It sands carved, louvered, MDF and cabinet doors (and complex furniture panels) using a combined transverse-brush + rotary-disc + spiral-roller stack — reaching every carved recess and edge that flat wide-belt sanders can't touch.

Q: What's the difference between HC-G7 and HC-G9?

A: HC-G7-1300 has 7 sanding heads (18.9 kW) for standard carved and louvered doors. HC-G9-1300 has 9 sanding heads (25.7 kW) — adds 4 spiral rollers and 9 rotary disc brushes to reach deeper carved recesses and complex premium panels.

Q: What working width and thickness?

A: Both models work up to 1,300 mm wide and 2-100 mm thick.

Q: How fast can it feed?

A: 0-10 m/min via frequency inverter, adjustable to your substrate and finish requirements.

Q: How long do the sanding brushes last?

A: German Hermes brushes typically last 200-800 working hours depending on substrate complexity. We keep brush stock available.

Q: What PLC does it use?

A: Siemens PLC + HMI — with Siemens' global service network for parts and support.

Q: How much labour does it save?

A: One machine + 1-2 operators replaces 8-10 manual sanders. Rework rate typically drops from 8-12% to under 2%.

Q: What's the ROI?

A: Typical medium-scale door factory recovers investment in 4-8 months on labour savings alone — before counting the value of consistent finish quality.

Q: What voltage does it use?

A: Standard 380V / 50Hz / 3-phase, configurable to your market.

Q: Do you inspect before shipment?

A: Yes — every machine ships with a video outgoing-inspection and full machinery test report.

Q: What payment terms do you accept?

A: 30% T/T deposit, LC at sight, and SINOSURE export credit insurance.
