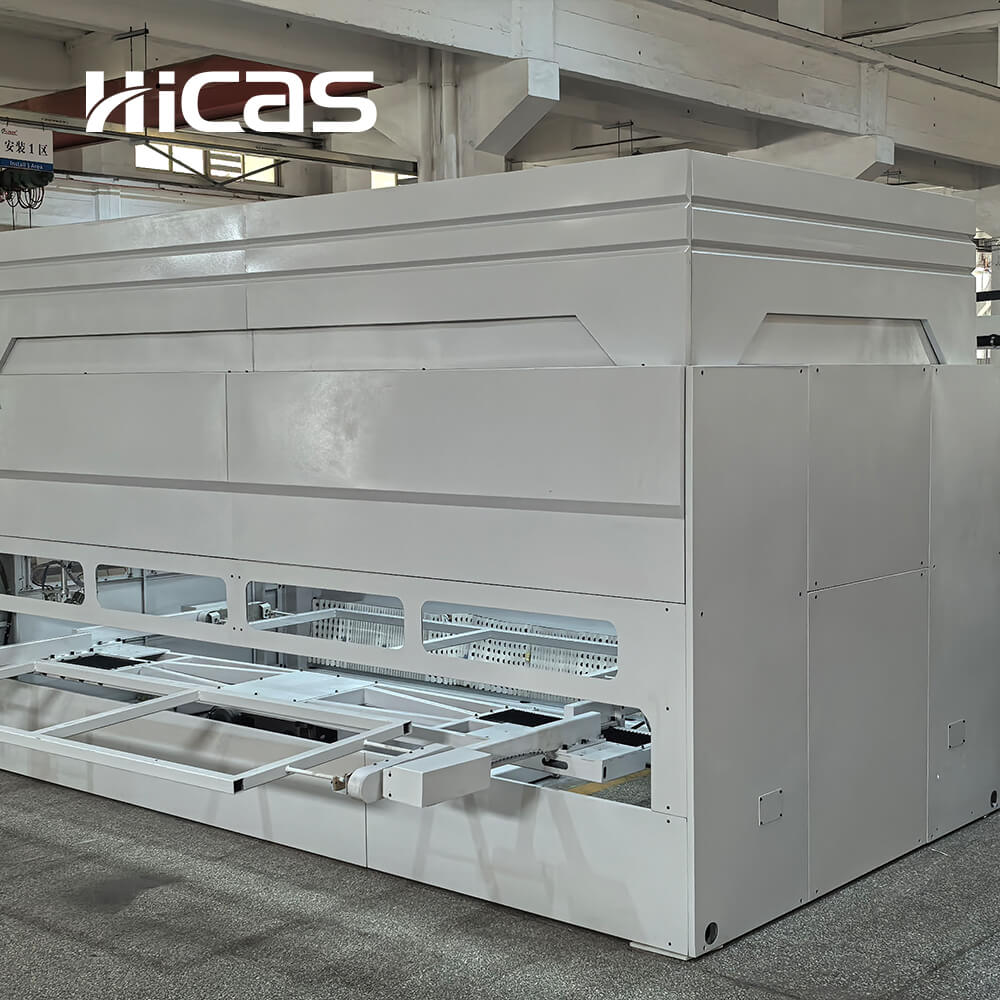

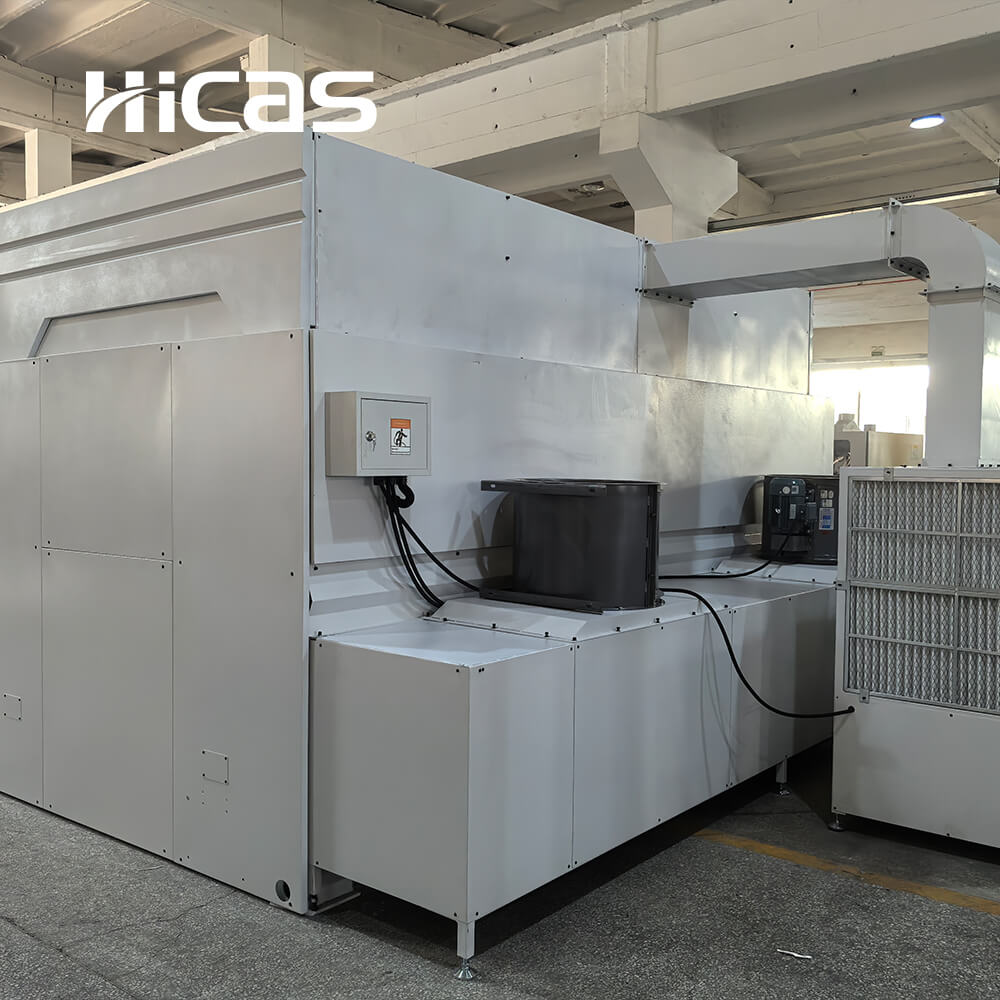

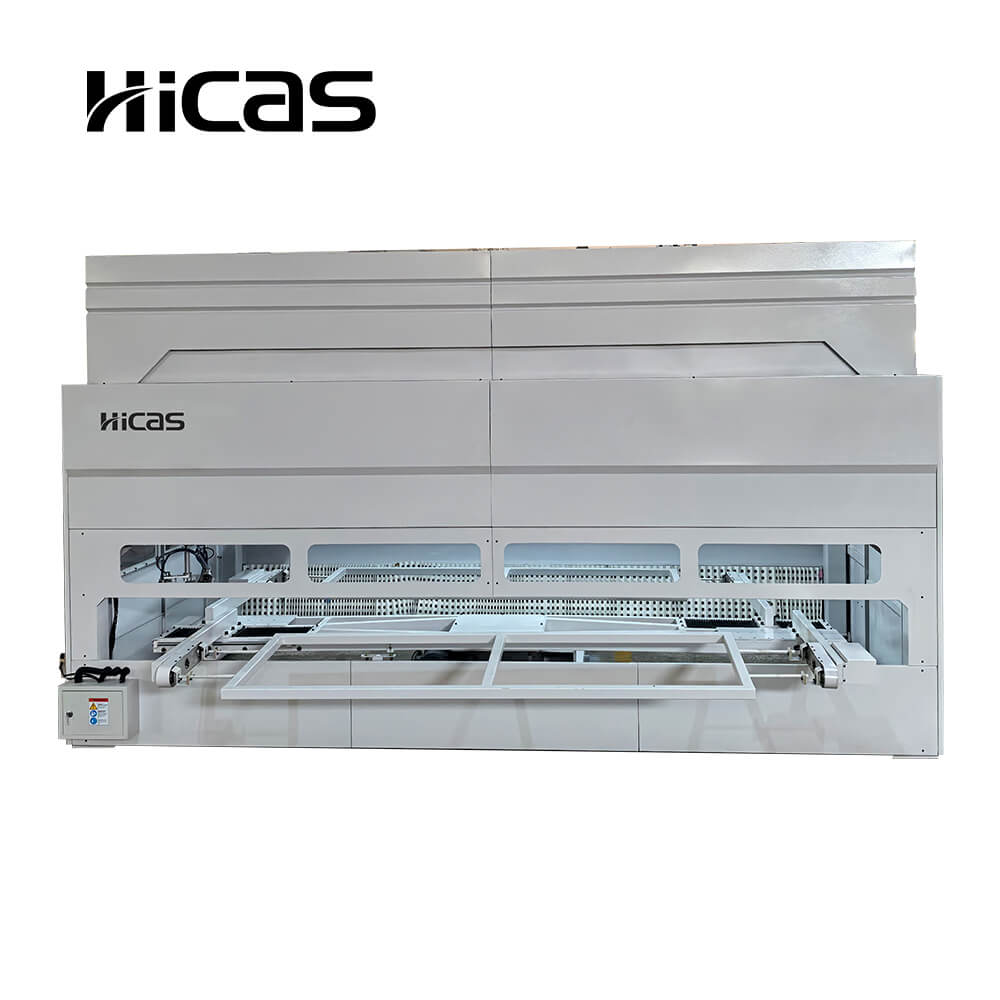

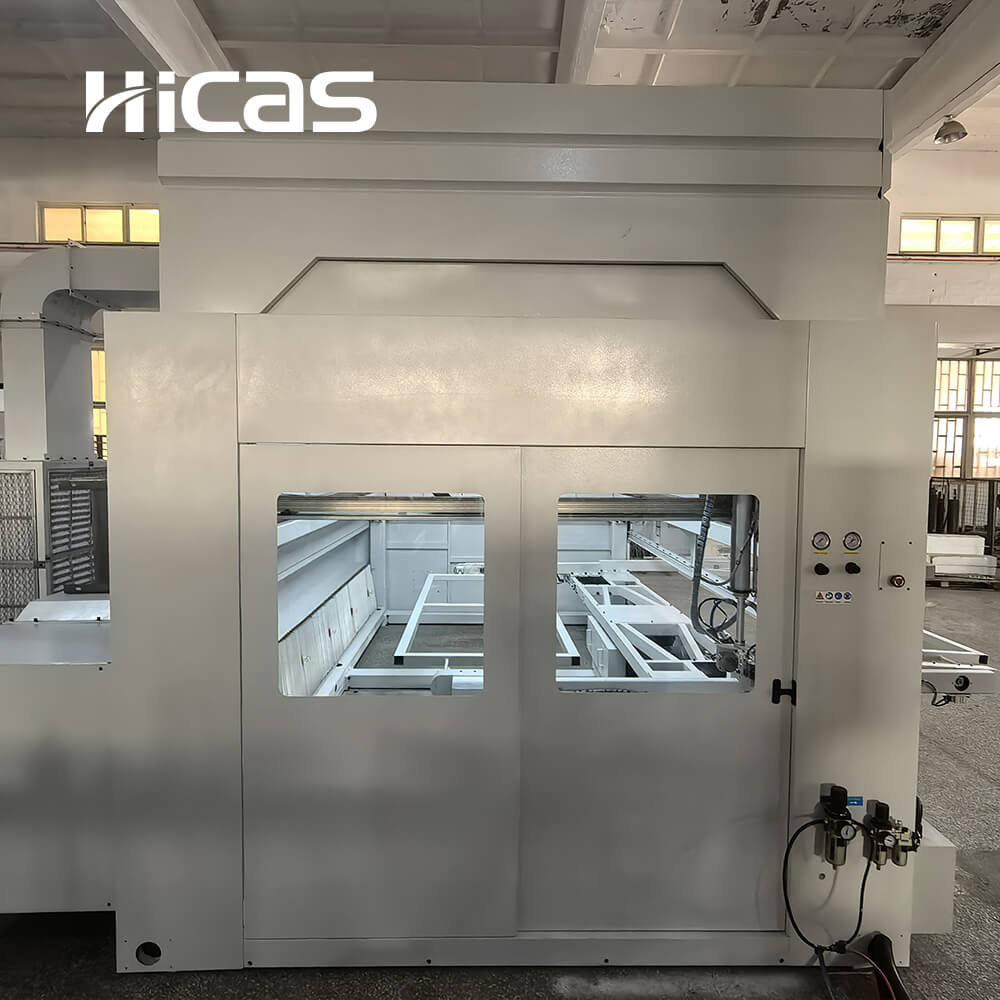

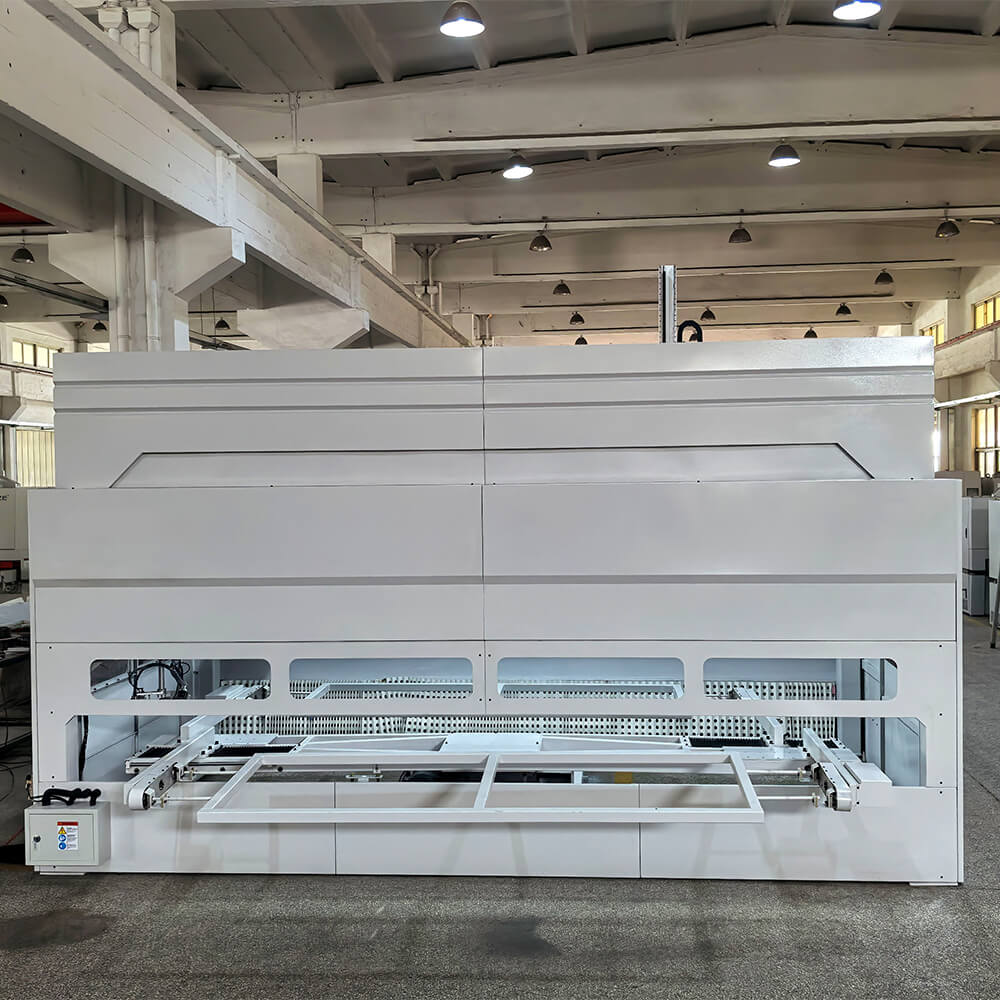

CNC Automatic 5 Axis Wood Door Cabinet Panel Furniture Painting Spraying Machine For Workshop Use

CNC Automatic 5-Axis Wood Door Cabinet Panel Painting Spraying Machine boosts productivity by 40%, reduces paint waste by 30%. ISO & CE certified. Trusted by 100+ furniture manufacturers globally.

  • Product Description
  • Details
  • Video
  • WHY CHOOSE US
  • FAQ

Product Description

CNC Automatic 5 Axis Wood Door Cabinet Panel Furniture Painting Spraying Machine For Workshop Use.jpg

Model HC-PM2500
Max working width 1300mm
Max working length 2500mm
Maxworking thickness 120mm
Spray gun quantity 2pcs
Spray pump 1pcs
Working pressure 0.6-0.8mpa
Gun speed 0-1800mm/s
Servo motor total power 4.3kw
Applicable paint PU.NC.FC.UV.water based paint etc.
Standard voltage 380V 50HZ 3Ph
Dimension 5500*3850*2600mm
Weight 2800kg

Details

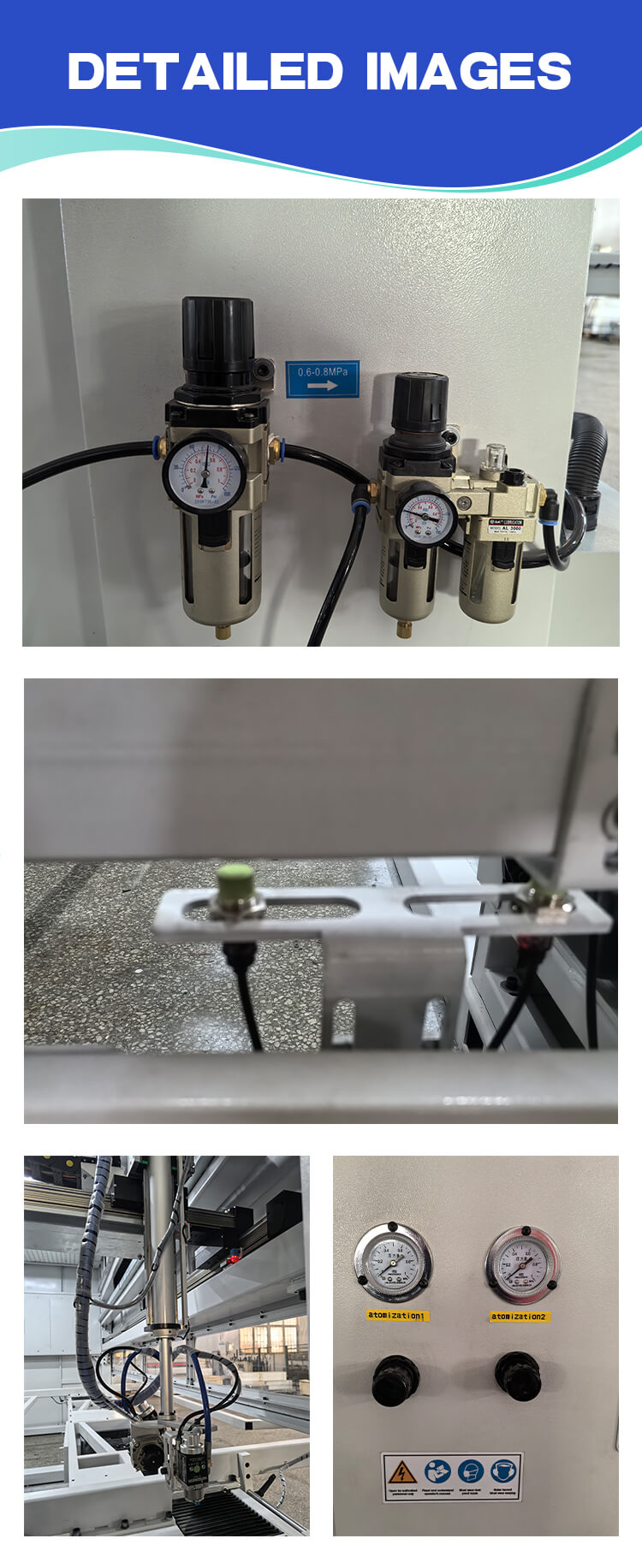

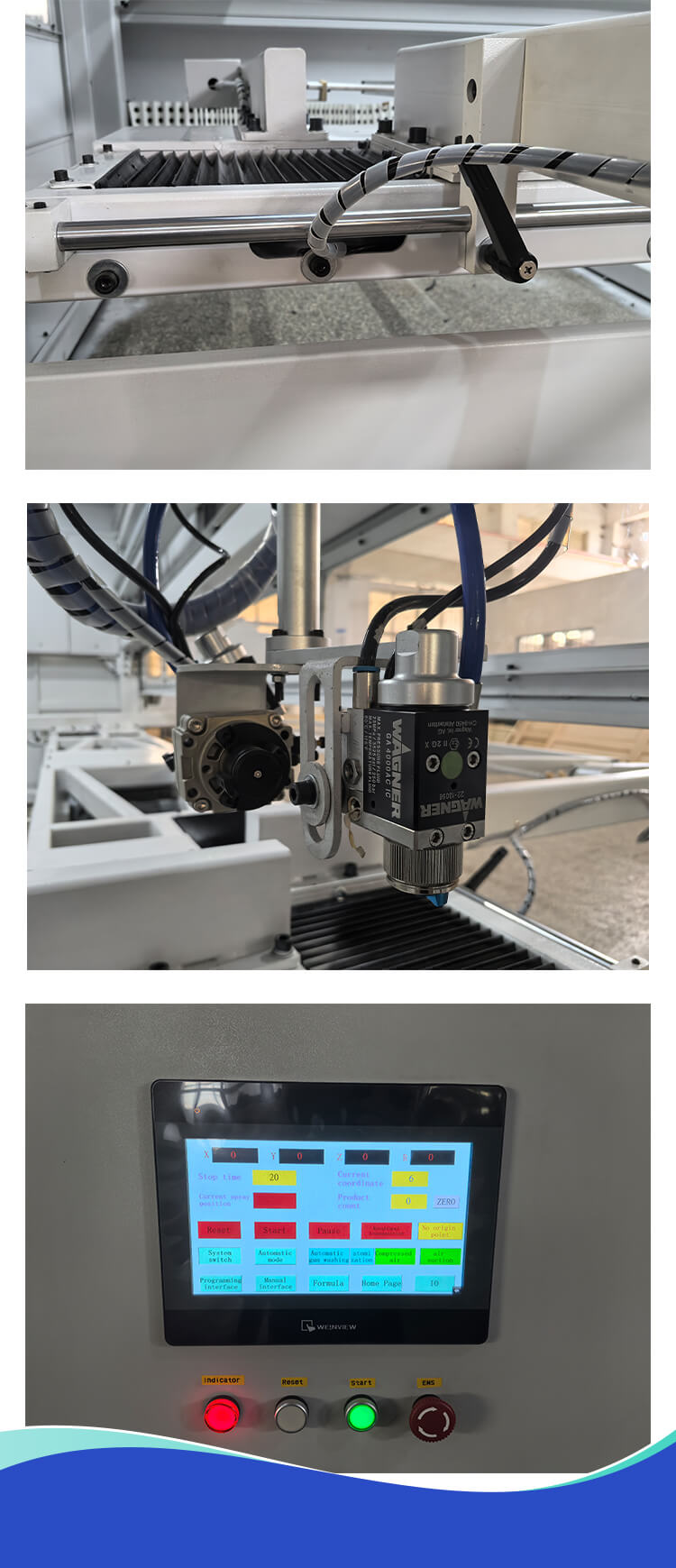

Details of CNC Automatic 5 Axis Wood Door Cabinet Panel Furniture Painting Spraying Machine (1).jpgDetails of CNC Automatic 5 Axis Wood Door Cabinet Panel Furniture Painting Spraying Machine (2).jpg

Video

WHY CHOOSE US

Advantages of CNC Automatic 5 Axis Wood Door Cabinet Panel Furniture Painting Spraying Machine (1).jpgAdvantages of CNC Automatic 5 Axis Wood Door Cabinet Panel Furniture Painting Spraying Machine (2).jpg

1. Bilingual interface

Chinese and English operation interface, easy to operate.

2. Dual-station

Dual-station loading and unloading improves work efficiency.

3. Adjustable spraying

The robot arm can be equipped with two spray guns, and the system can automatically adjust the spray gun angle for spraying according to process requirements.

4. 180° flipping

For wooden doors that need to be sprayed on six sides at one time, the system can automatically flip the workpiece 180°.

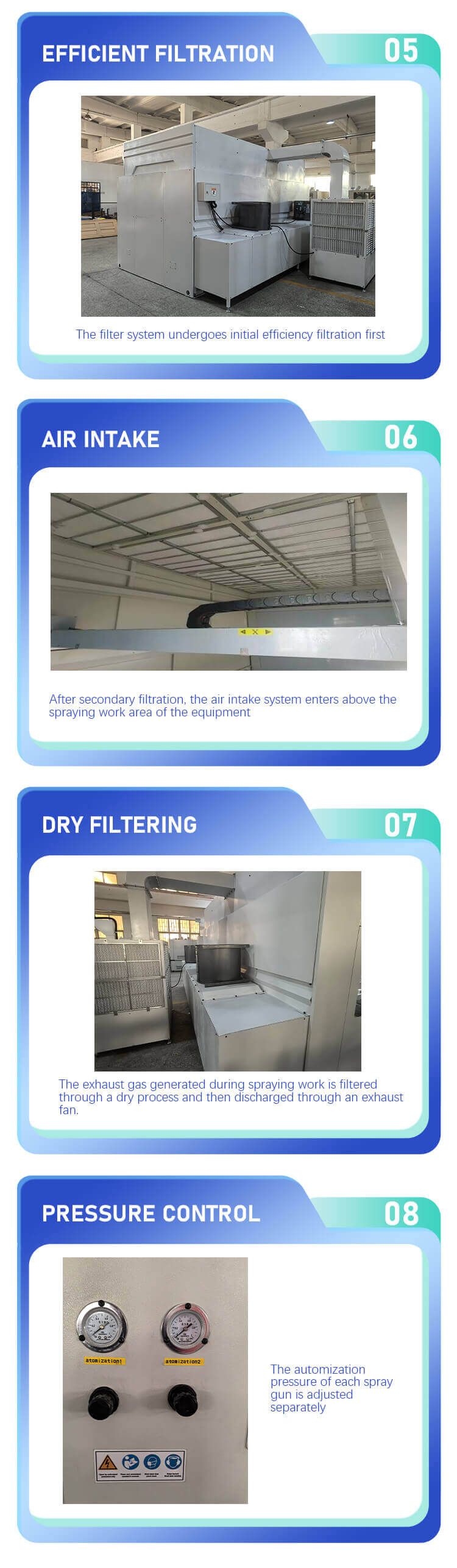

5. High-efficiency filtration

The filtration system first performs primary filtration.

6. Air intake

After secondary filtration, the air intake system enters the upper part of the equipment spraying work area.

7. Dry filtration

The exhaust gas generated during the spraying process is dry filtered and discharged through the exhaust fan.

8. Pressure control

The automatic pressure of each spray gun is adjusted separately

FAQ

  • Q: Do you offer installation?

    A: Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.

  • Q: Where can we get replacement parts?

    A: Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

  • Q: How long can we get replacement parts?

    A: Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

  • Q: What technical support do you offer?

    A: 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.

  • Q: Do you have any machines in our country?

    A: Our machines have been sold to more than 160 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

  • Q: Can you customized the machine?

    A: Our machines can be customized made according to buyers’ request.

  • Q: What other machine do you offer?

    A: We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

  • Q: Can you set the system to our language?

    A: Our system supports common languages like Chinese, English, Russian, Spanish.
