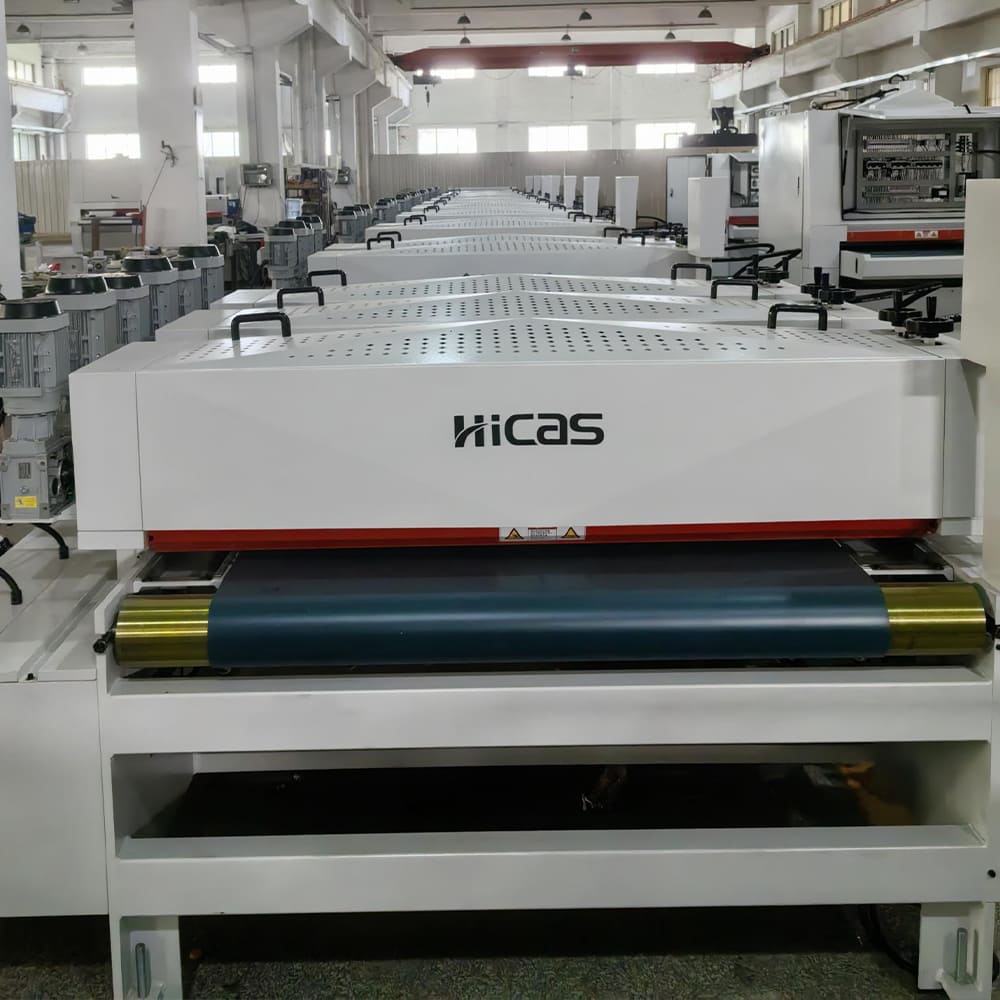

Six models for every scale — HCGT600 & HCGT1300 in 1-roller, 2-roller and 3-roller configurations. Hard chrome-plated rollers (HRC 60+, 5-year life), INOVANCE PLC one-touch start, 0-20 m/min coating speed. For furniture, flooring, doors and cabinet panels.

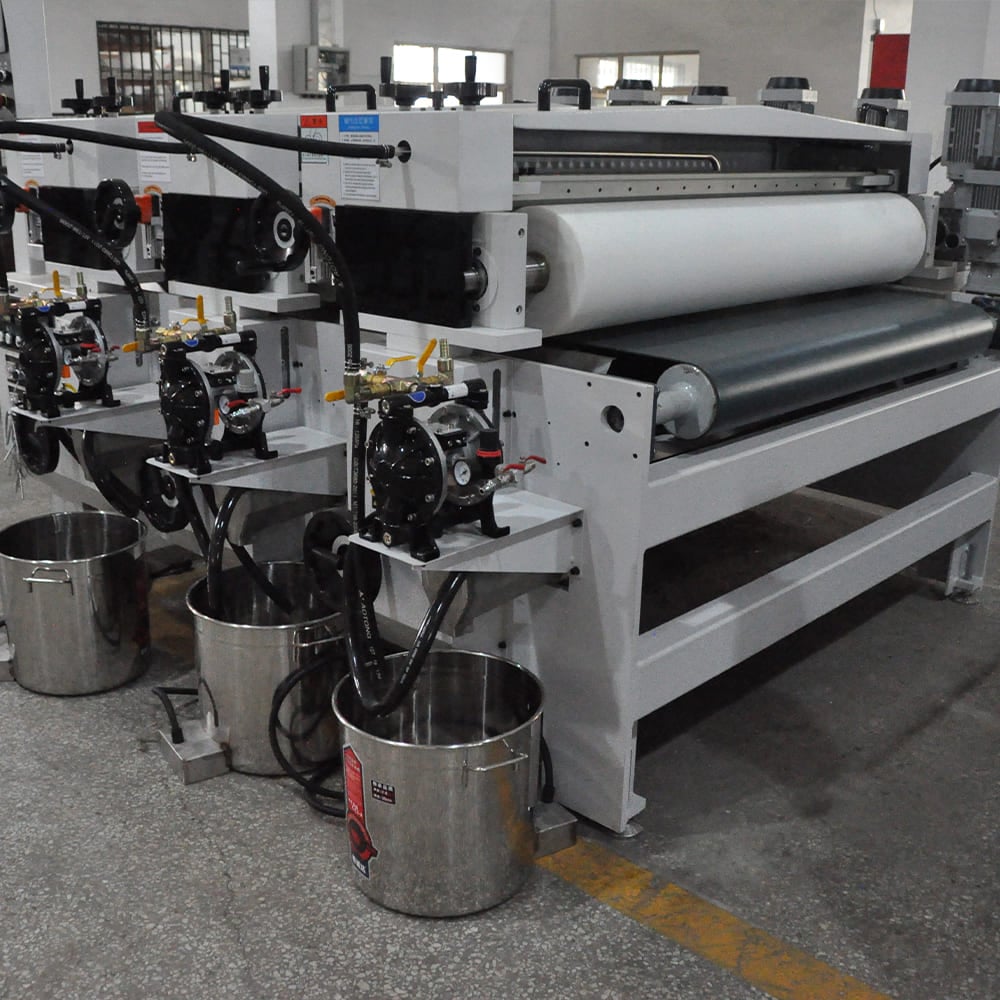

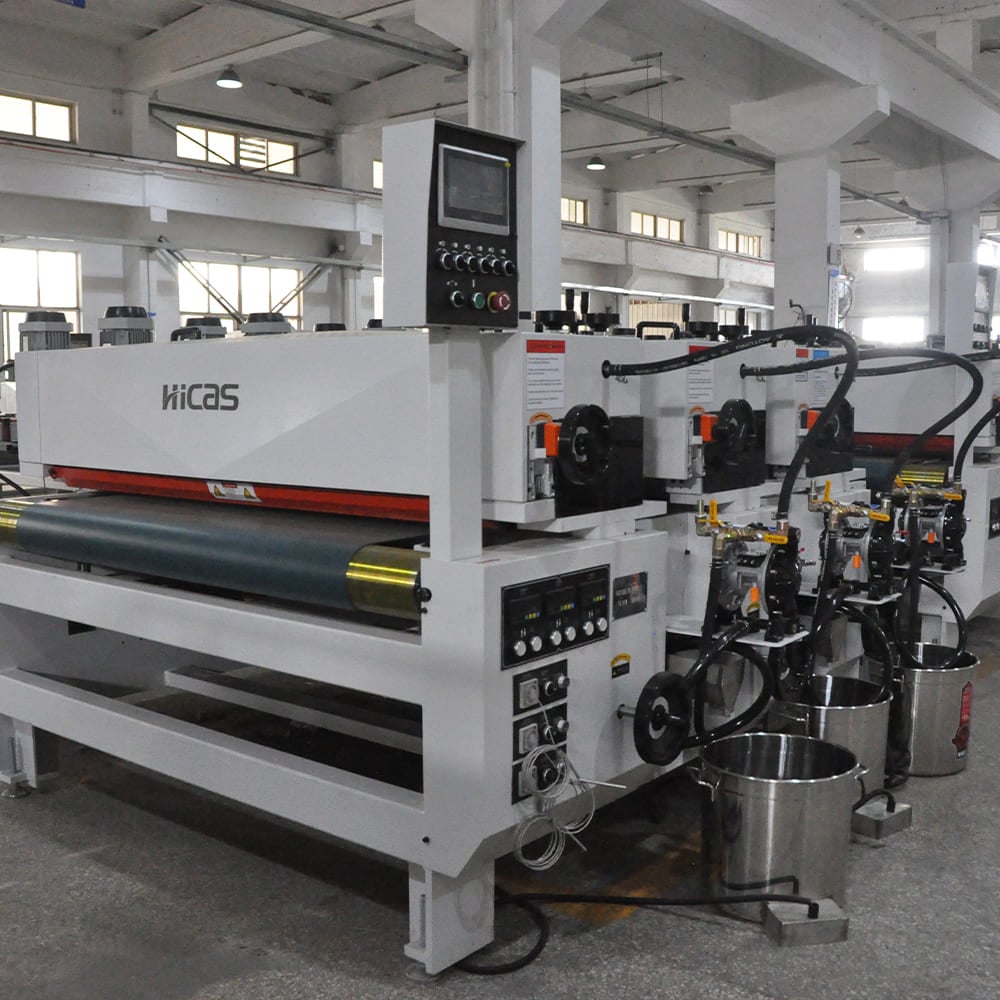

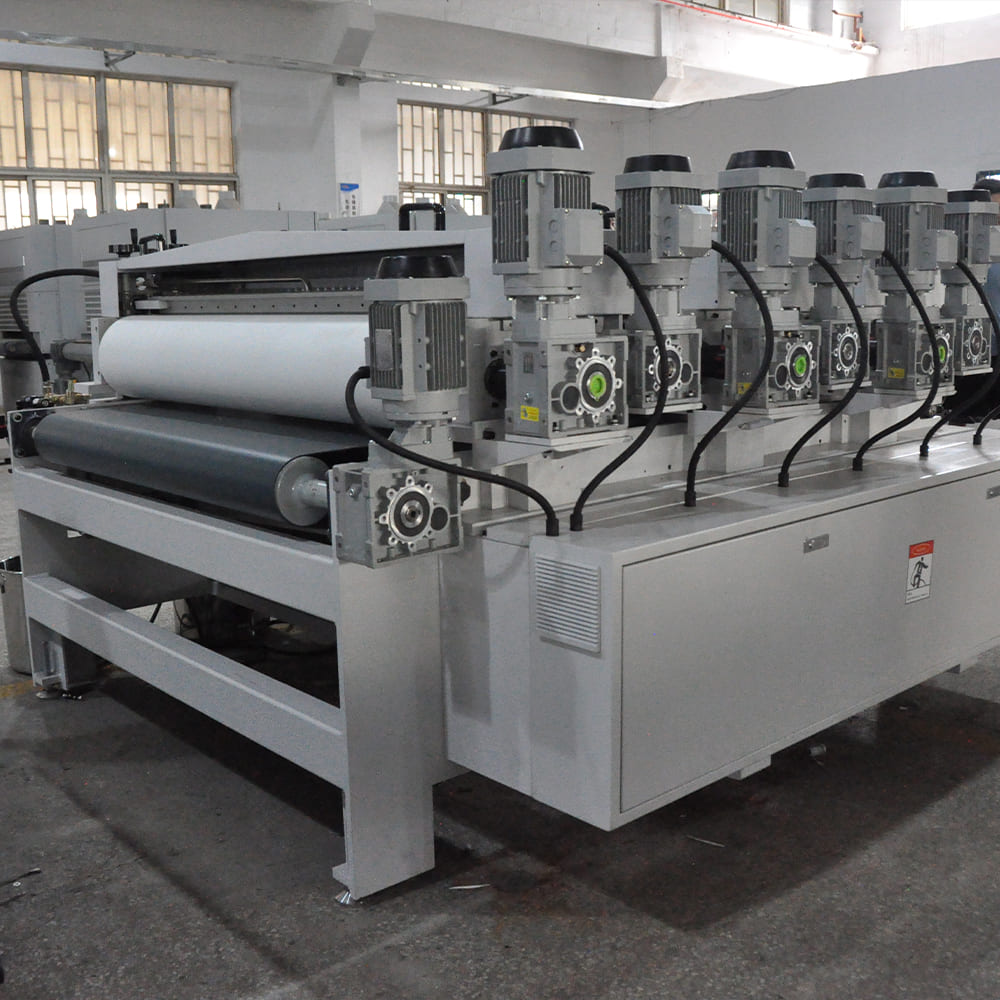

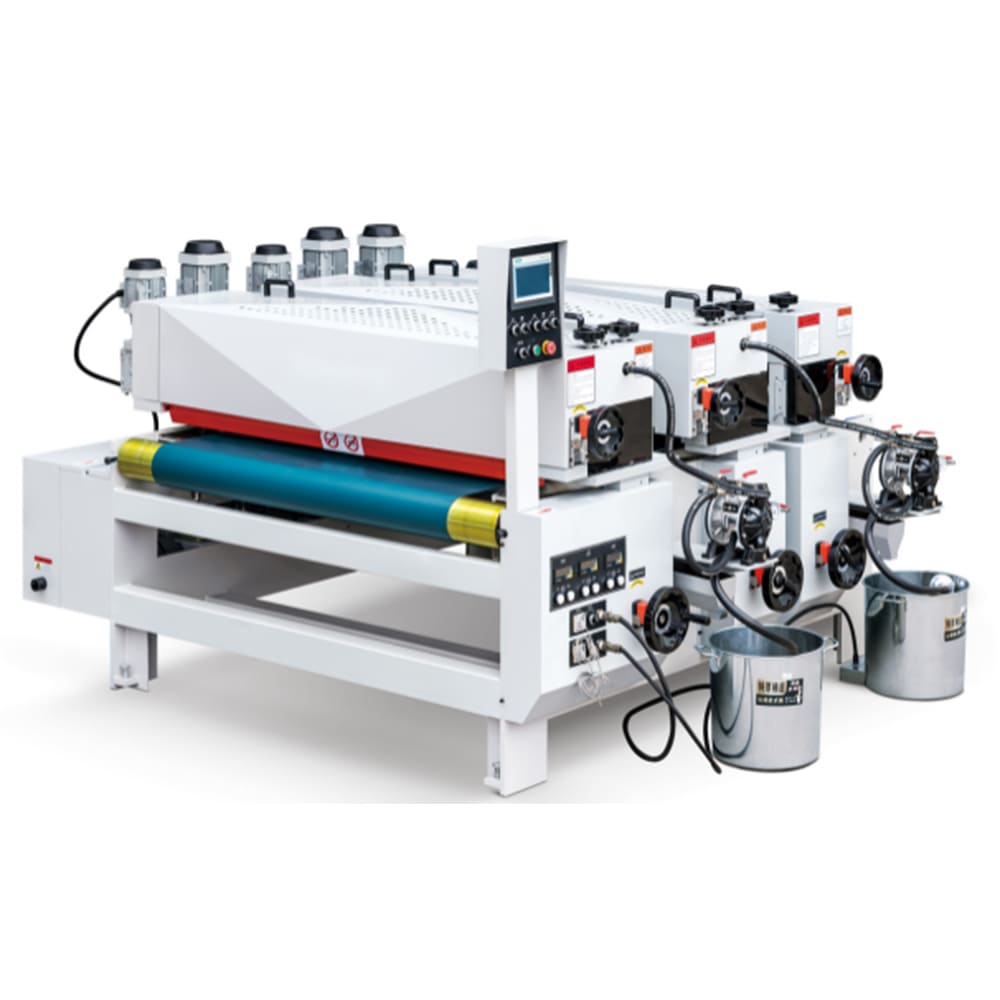

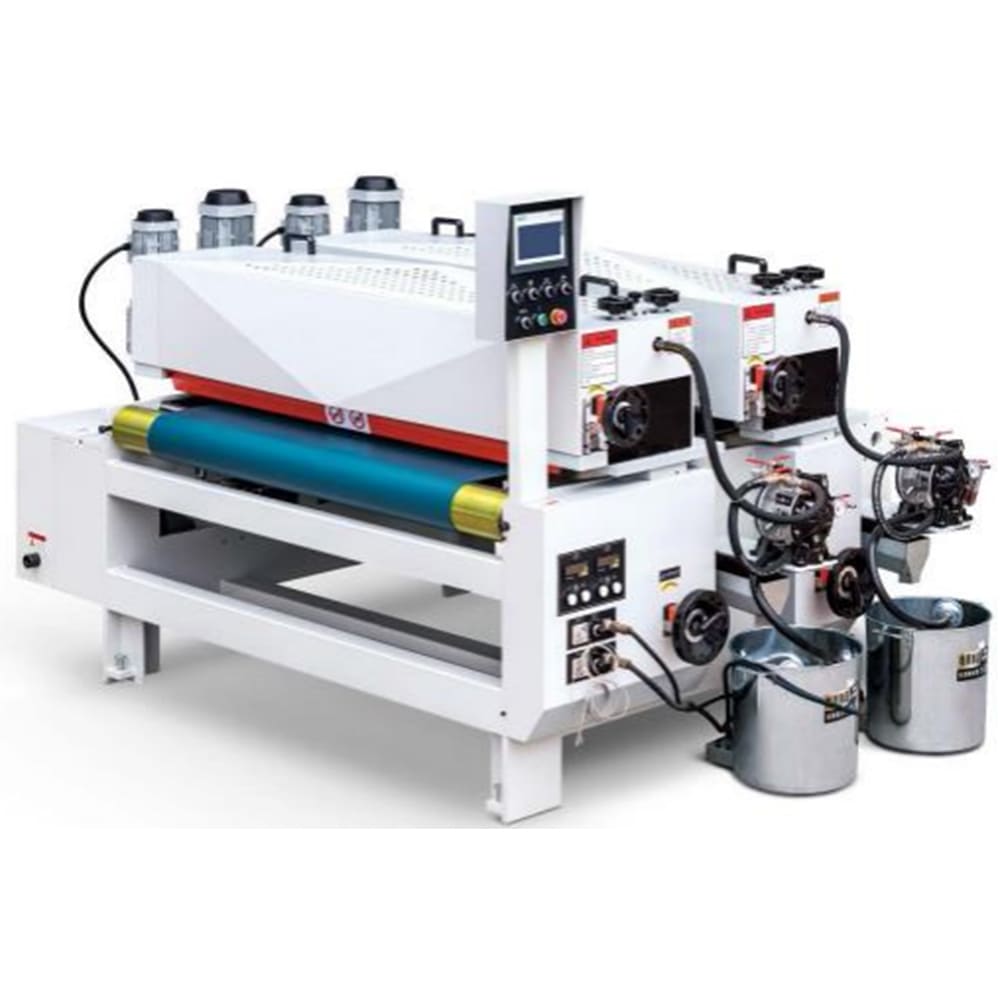

HCGT SERIES AUTOMATIC UV ROLLER COATING MACHINES — 6 Models · Hard Chrome Rollers · INOVANCE PLC
Coat PVC boards, furniture panels, flooring, doors and cabinet parts evenly and fast — with hard chrome-plated rollers rated for 5 years of continuous use and INOVANCE PLC control that trains any technician in 30 minutes.
Hard chrome-plated rollers (HRC 60+) · INOVANCE PLC one-touch start · 0-20 m/min coating speed · CE certified · works in -10°C to +50°C environments.
[ Request Customized Quotation ]
|
Parameter |
HCGT600-1R |
HCGT600-2R |
HCGT600-3R |
HCGT1300-1R |
HCGT1300-2R |
HCGT1300-3R |
|
Panel width |
600 mm |
600 mm |
600 mm |
1,300 mm |
1,300 mm |
1,300 mm |
|
Panel thickness |
2.5 – 100 mm |
2.5 – 100 mm |
2.5 – 100 mm |
2.5 – 100 mm |
2.5 – 100 mm |
2.5 – 100 mm |
|
Coating speed |
0 – 20 m/min |
0 – 20 m/min |
0 – 20 m/min |
0 – 20 m/min |
0 – 20 m/min |
0 – 20 m/min |
|
Rollers |
1 (single coat) |
2 (Primer + Top) |
3 (multi-layer) |
1 (single coat) |
2 (Primer + Top) |
3 (multi-layer) |
|
Total power |
~5.75 kW |
~8.5 kW |
~11.25 kW |
~5.75 kW |
~11.2 kW |
~16.6 kW |
|
Machine weight |
~820 kg |
~1,100 kg |
~1,400 kg |
~1,300 kg |
~1,700 kg |
~2,200 kg |
|
Best for |
Small furniture / entry |
Balanced production (most popular) |
Multi-layer premium finishes |
Small-batch flooring / large panels |
Standard flooring / cabinet lines |
High-volume flooring / multi-layer premium |
Choose HCGT600 for panels up to 600 mm wide (furniture parts, doors, cabinet fronts); choose HCGT1300 for wide panels up to 1,300 mm (flooring, tabletops, decorative boards). Add rollers (1R → 2R → 3R) as your coating layers and throughput grow.
|
Parameter |
Specification |
|
Application |
PVC boards · furniture panels · wood doors · cabinet parts · flooring |
|
Suitable substrates |
Solid wood, MDF, particleboard, PVC boards |
|
Drive |
Electric |
|
Automation |
Fully automatic |
|
PLC |

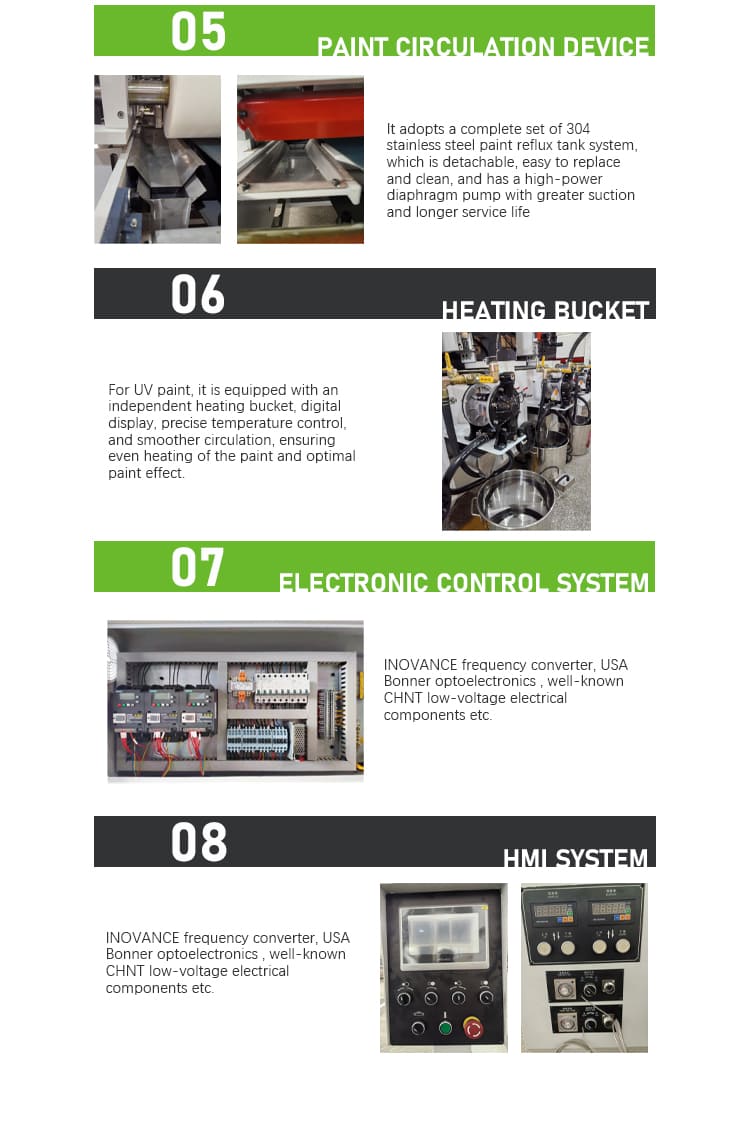

INOVANCE (China) one-touch start |
|
Rollers |
Hard chrome-plated, hardness HRC 60+, ~5-year service life |
|
Heater |
Industrial UV curing heater |
|
Voltage (standard) |
380V / 50Hz / 3-phase |
|
Voltage (US-market option) |
208V / 240V / 480V / 60Hz |
|
Operating environment |
-10°C to +50°C |
|
Certification |
CE certified (Cert. No. M.2026.206.C136262) · ISO9001 |
|
Warranty |
12 months (core components) |
|
Outgoing inspection |
Video inspection available; ships via Maersk (24-31 days transit) |
Not sure which HCGT model to specify? Use this quick logic:
By panel width:
By roller count:
Most common configurations:
1.HARD CHROME-PLATED ROLLERS — 5-YEAR LIFE: Every roller is hard chrome-plated to HRC 60+ hardness — corrosion-resistant and wear-resistant enough for 5 years of continuous coating without replacement. Runs reliably from Central-Asia dry climates to the Americas' humidity swings.
2.INOVANCE PLC ONE-TOUCH START: INOVANCE (Chinese-tier premium) PLC with one-touch start — a regular technician can be trained on the machine in about 30 minutes. Minimal learning curve, minimal downtime.
3.SIX MODELS FOR EVERY SCALE: Two panel widths (600 mm / 1300 mm) × three roller counts (1R / 2R / 3R) = six configurations. Start with a compact HCGT600-1R for a small furniture shop; scale up to HCGT1300-3R for a flooring line.
4.2R DOUBLES 1R OUTPUT: The 2-roller configuration (Primer + Top Coat in one pass) delivers about 80% more output than 1R — and about 40% lower investment than three separate coating lines.
5.WIDE VOLTAGE FOR GLOBAL MARKETS: Standard 380V/50Hz/3-phase, with 208V / 240V / 480V / 60Hz configurable for the US market — one machine family for the world.
6.BUILT FOR HARSH ENVIRONMENTS: Rated -10°C to +50°C operating environment — works in any real furniture or flooring workshop, not just climate-controlled labs.
UV roller coating replaces slow spray coating with an even, fast, low-waste process. The HICAS HCGT range does it with hard chrome-plated rollers rated for 5 years of continuous production — the difference between a machine that pays back and one that becomes a maintenance headache.
|
Item |
Spray Coating / Basic Roller |
HICAS HCGT UV Roller |
|
Coating consistency |
Variable, operator-dependent |
Even, roller-controlled |
|
Speed |
Slow spray |
0-20 m/min continuous |
|
Coating waste |
High overspray |
Minimal, roller-transferred |
|
Roller life |
Variable |
HRC 60+ hard chrome, 5-year life |
|
Control |
Manual / basic |
INOVANCE PLC one-touch start |
|
Operating environment |
Often controlled |
-10°C to +50°C, works anywhere |
What this means for you:
We don't publish equipment prices because model, voltage and options affect final cost. Customized quotation within 24 hours.
[ Request Customized Quotation ]
Q: What does the HCGT do?
A: It applies UV coatings (primer, top coat, or multi-layer) evenly onto wood, MDF, particleboard or PVC panels — for furniture, flooring, doors and cabinet production. The rollers transfer the coating precisely, eliminating spray overspray and giving a consistent finish.
Q: What's the difference between 1R, 2R and 3R?
A: The number of coating rollers on the machine. 1R applies one coat per pass; 2R applies Primer + Top Coat in one pass (about 80% more output than 1R); 3R adds a third layer for premium multi-layer finishes.
Q: What panel width should I choose — 600 or 1300?
A: HCGT600 covers panels up to 600 mm wide (typical for furniture parts, doors, cabinet fronts). HCGT1300 covers panels up to 1,300 mm (typical for flooring, tabletops, decorative boards).
Q: How long do the rollers last?
A: The rollers are hard chrome-plated to HRC 60+ hardness — rated for about 5 years of continuous use without replacement, running in -10°C to +50°C environments.
Q: What PLC does it use?
A: INOVANCE PLC with one-touch start — a Chinese-tier premium PLC with a simple interface. A regular technician can be trained on the machine in about 30 minutes.
Q: What voltage does it use?
A: Standard 380V / 50Hz / 3-phase, with 208V / 240V / 480V / 60Hz configurable for the US market.
Q: What substrates can it coat?
A: Solid wood, MDF, particleboard and PVC panels — anything you'd use in furniture, flooring, doors or cabinet production.
Q: How fast is it?
A: 0-20 m/min coating speed, adjustable to your line rhythm and coating requirements.
Q: Do you inspect before shipment?
A: Yes — video outgoing-inspection is available on request, and every machine ships with a full test report.
Q: What payment terms do you accept?
A: 30% T/T deposit, LC at sight, and SINOSURE export credit insurance.
