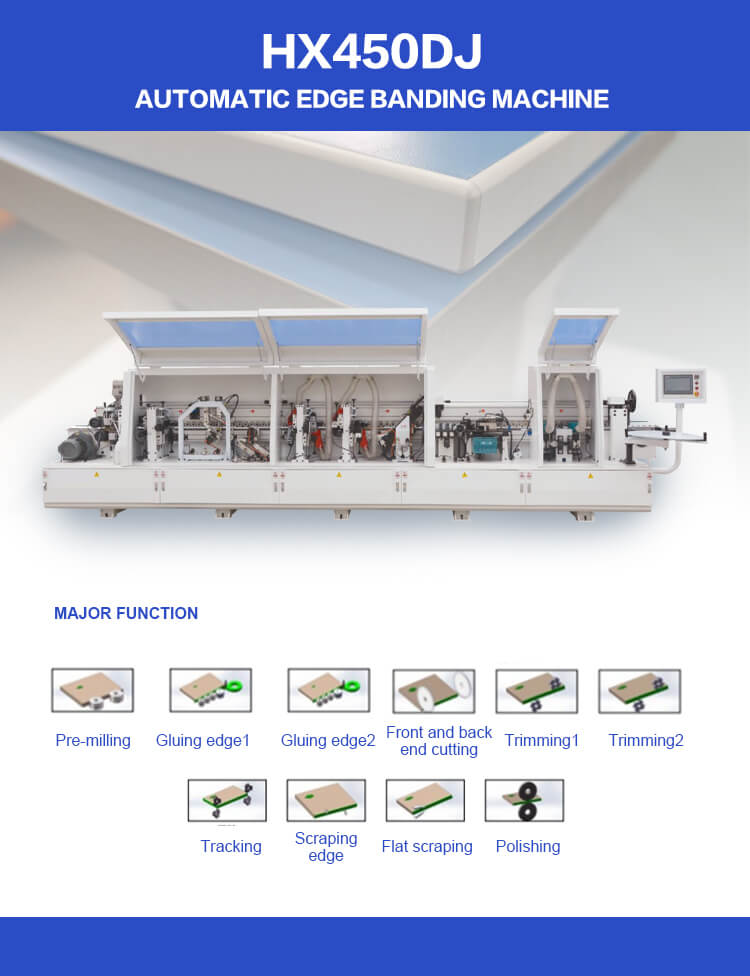

HX450DJ automatic edge banding machine boosts production efficiency by 35%, handles 0.4–3mm edge bands, ISO-certified. Trusted by 500+ furniture manufacturers.
| Model | F450DJ |
| Motor | 16kw |
| Machine size | 7700*1100*1600mmm |
| Working speed | 12-20m/min |
| Edge band thickness | 0.4-3mm |
| Panel thickness | 10-60mm |
| Panel width | ≥80mm |
| Working pressure | 0.8mpa |
| Weight | 2800kg |
| Standard voltage | 230V 50hz 3phase |

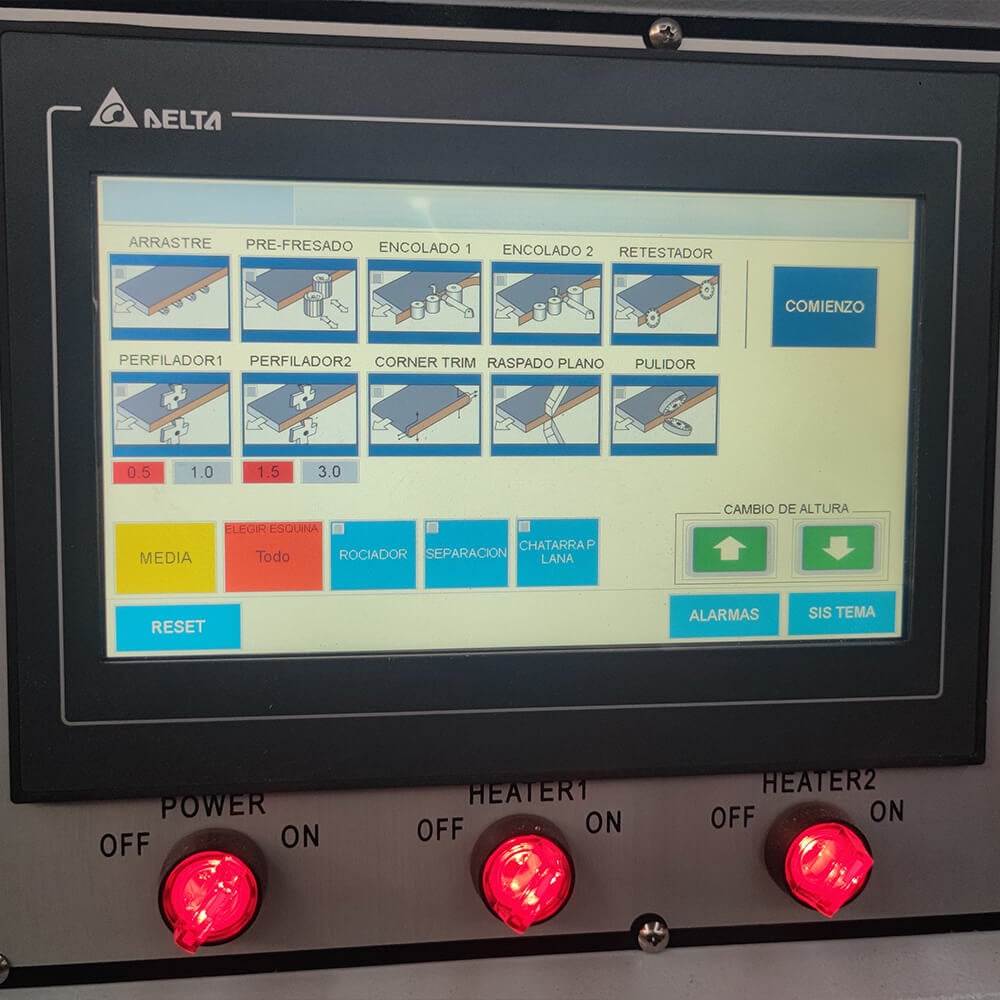

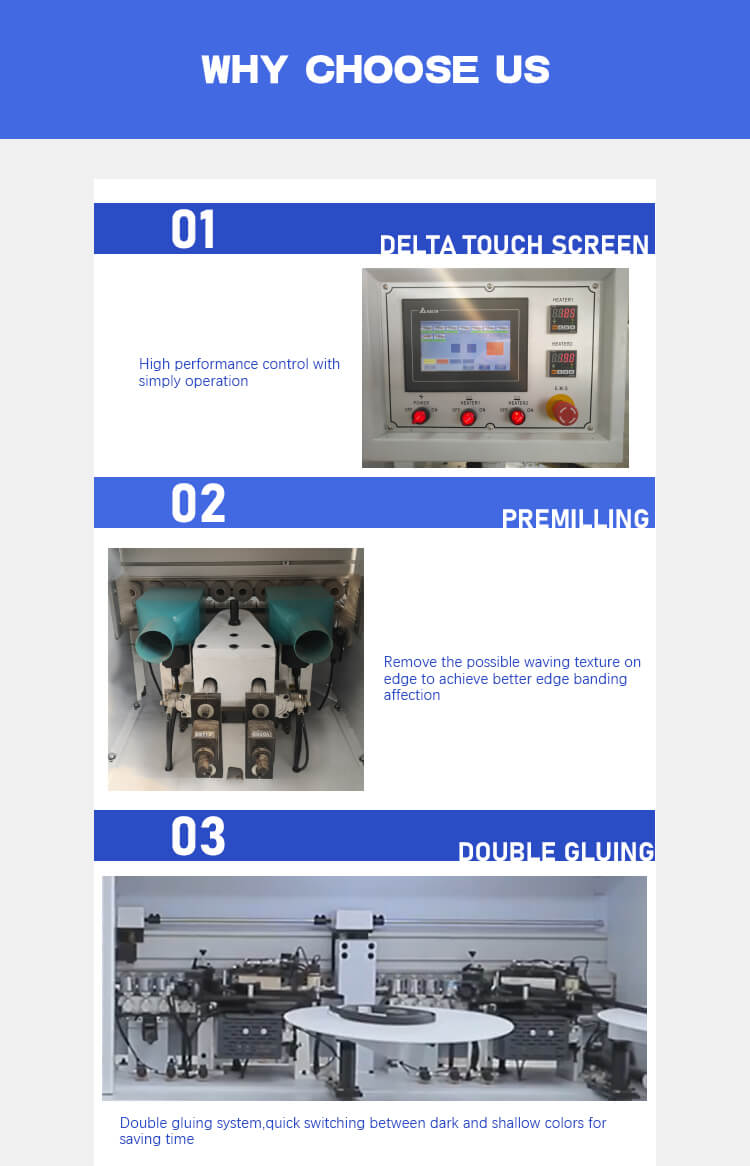

1. Delta touch screen
High-performance control and easy operation
2. Pre-milling
Removes possible ripples on the edge for better edge banding
3. Double glue coating
Double glue coating system, fast switching between dark and light colors, saves time

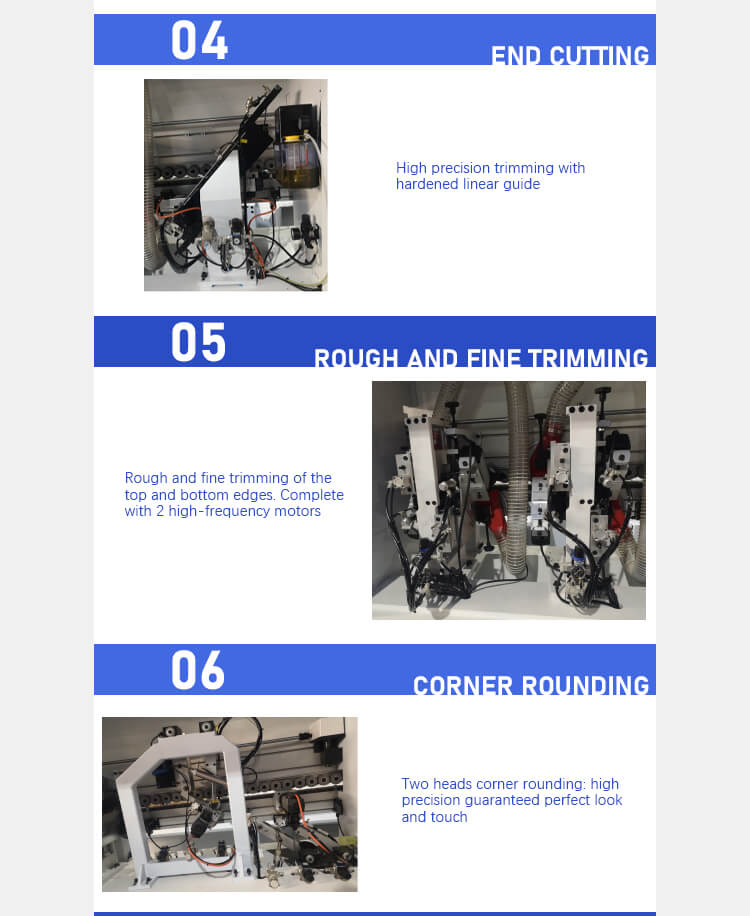

4. End cutting
High-precision trimming with hardened linear guides

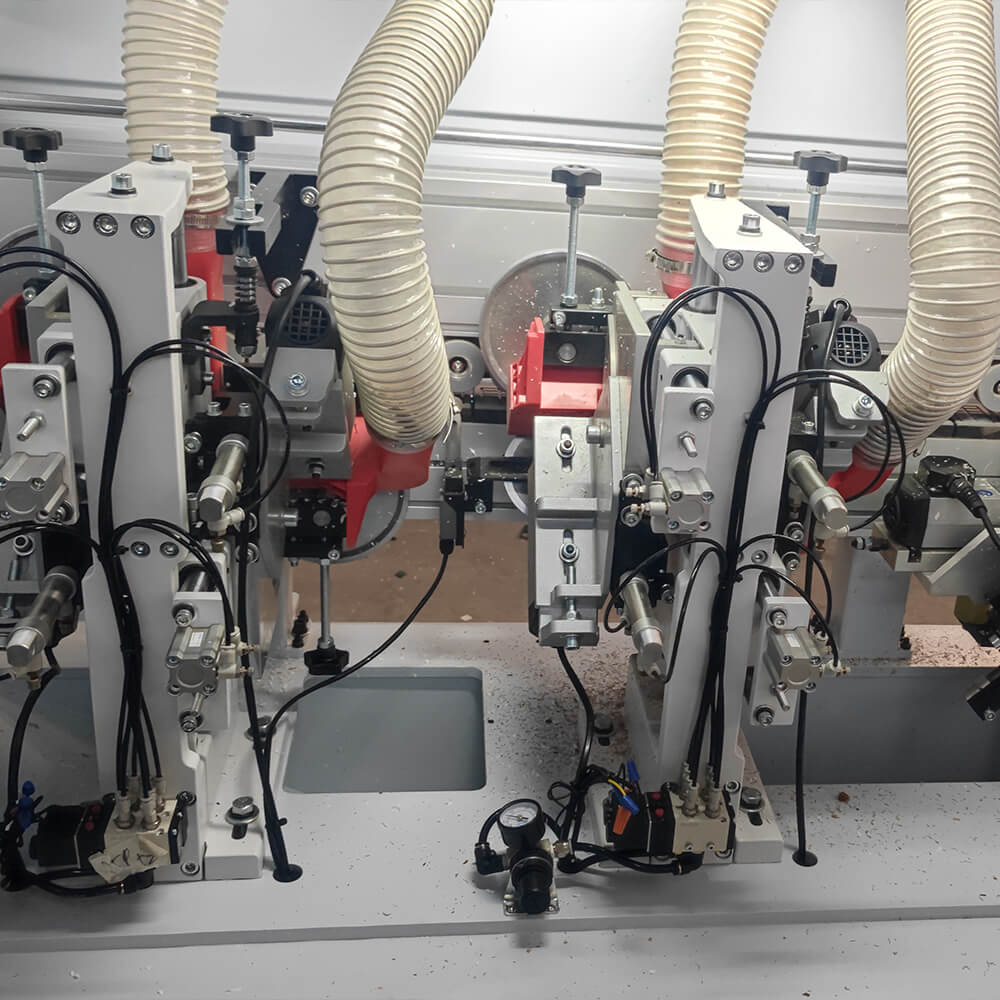

5. Rough and fine trimming
Rough and fine trimming of top and bottom edges. Equipped with two high-frequency motors

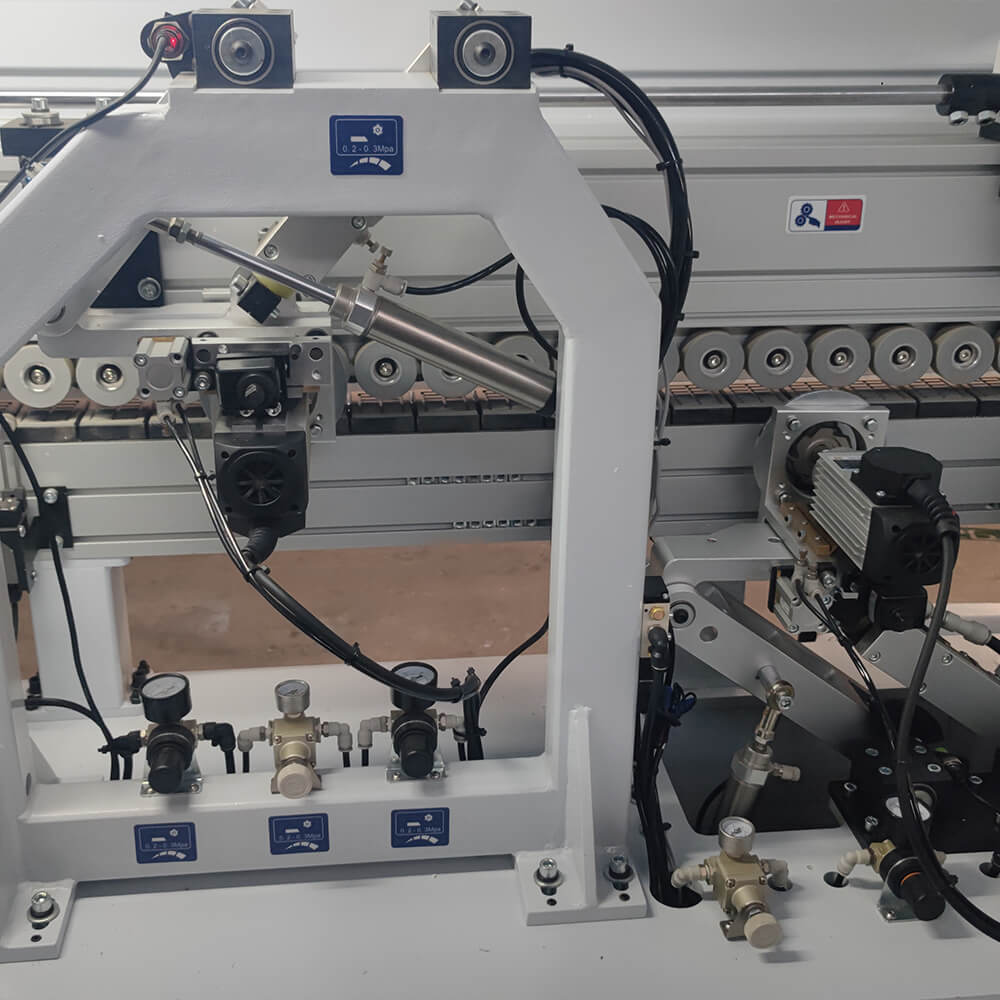

6. Chamfering
Chamfering with two grinding heads: high precision for perfect look and feel

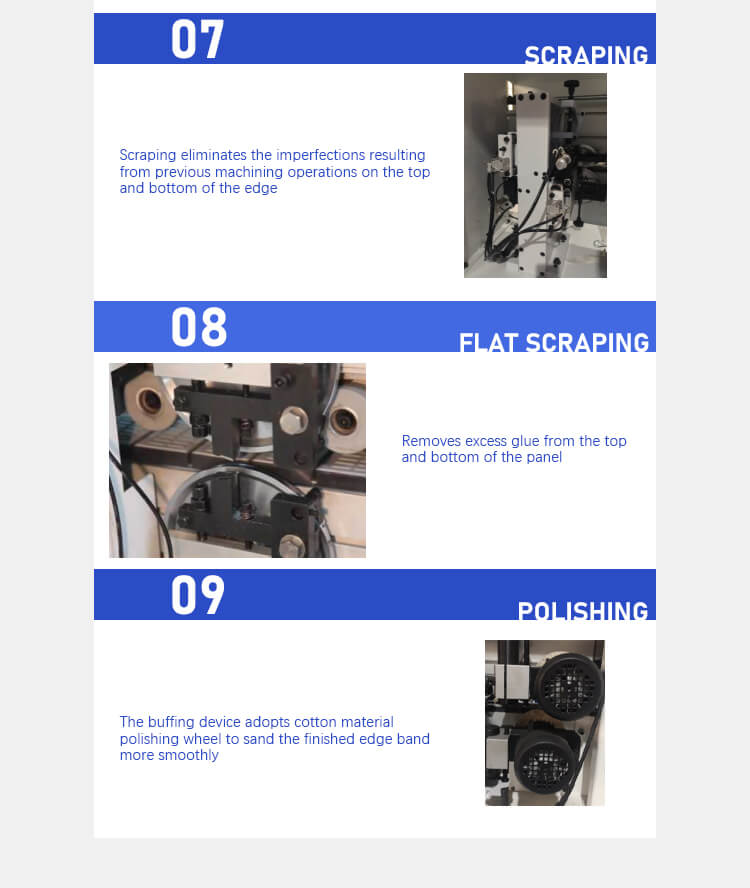

7. Scraping
Scraping removes imperfections on the top and bottom edges caused by previous machining operations
8. Flat scraping
Removes excess glue from the top and bottom of the board

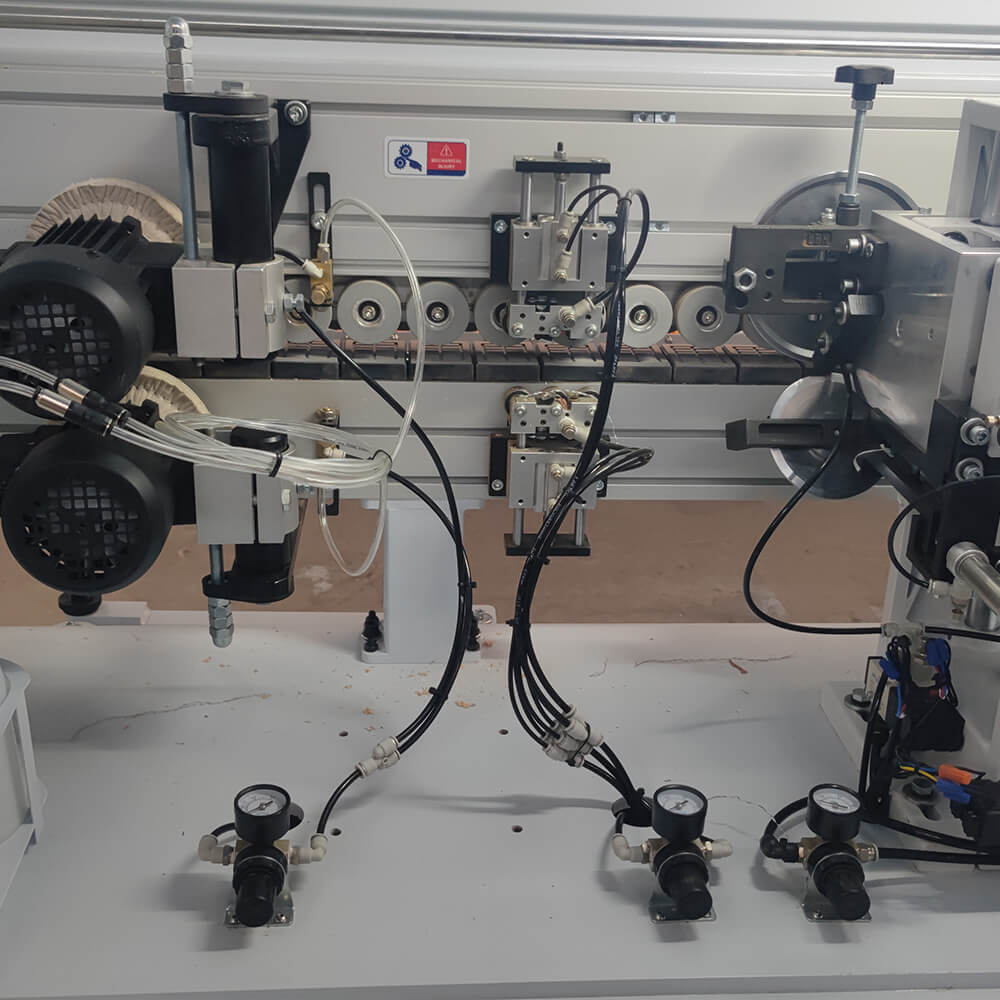

9. Polishing
Polishing unit with cotton polishing wheel for smoother finished edge banding
