HICAS CNC Spray UV Coating Machine for PVC furniture boards improves coating efficiency by up to 40%, with ISO 9001 and CE certifications. Suitable for wood, MDF, and particleboard in furniture, flooring, and cabinets. Trusted by global manufacturers. Request technical demo today.

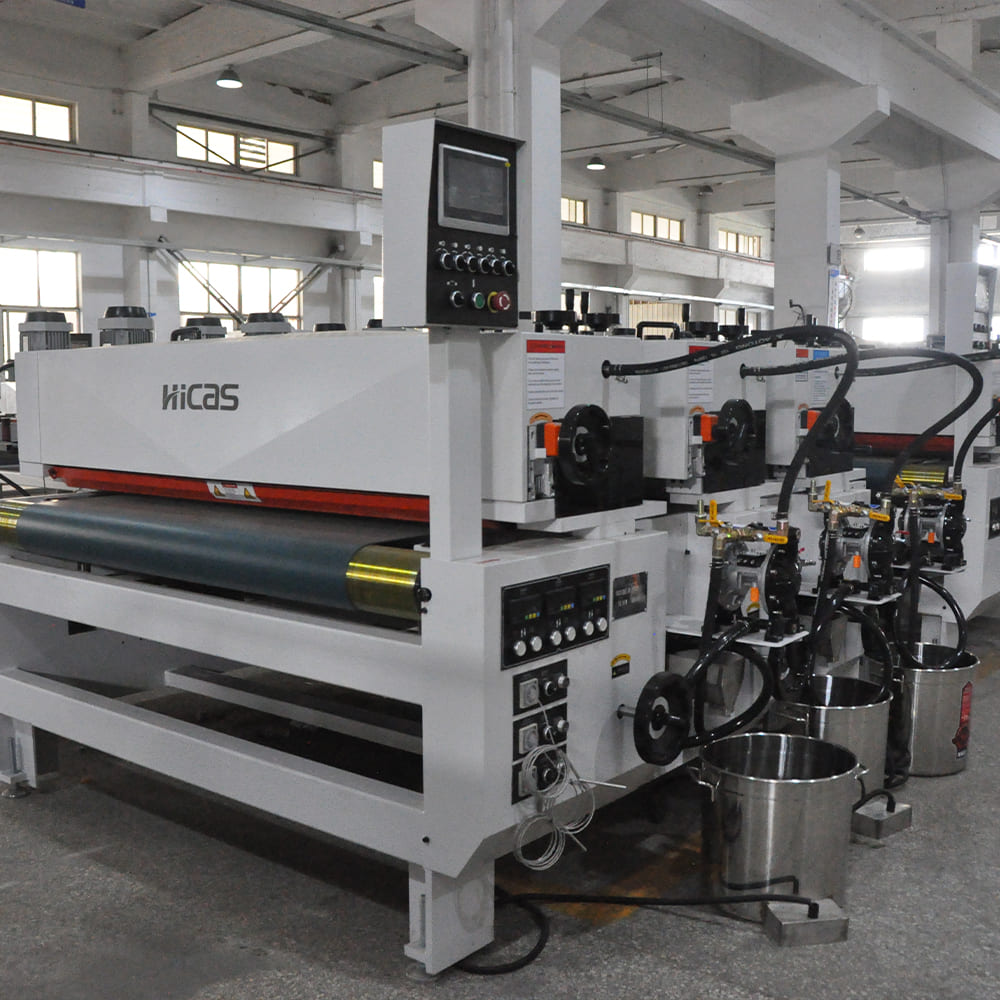

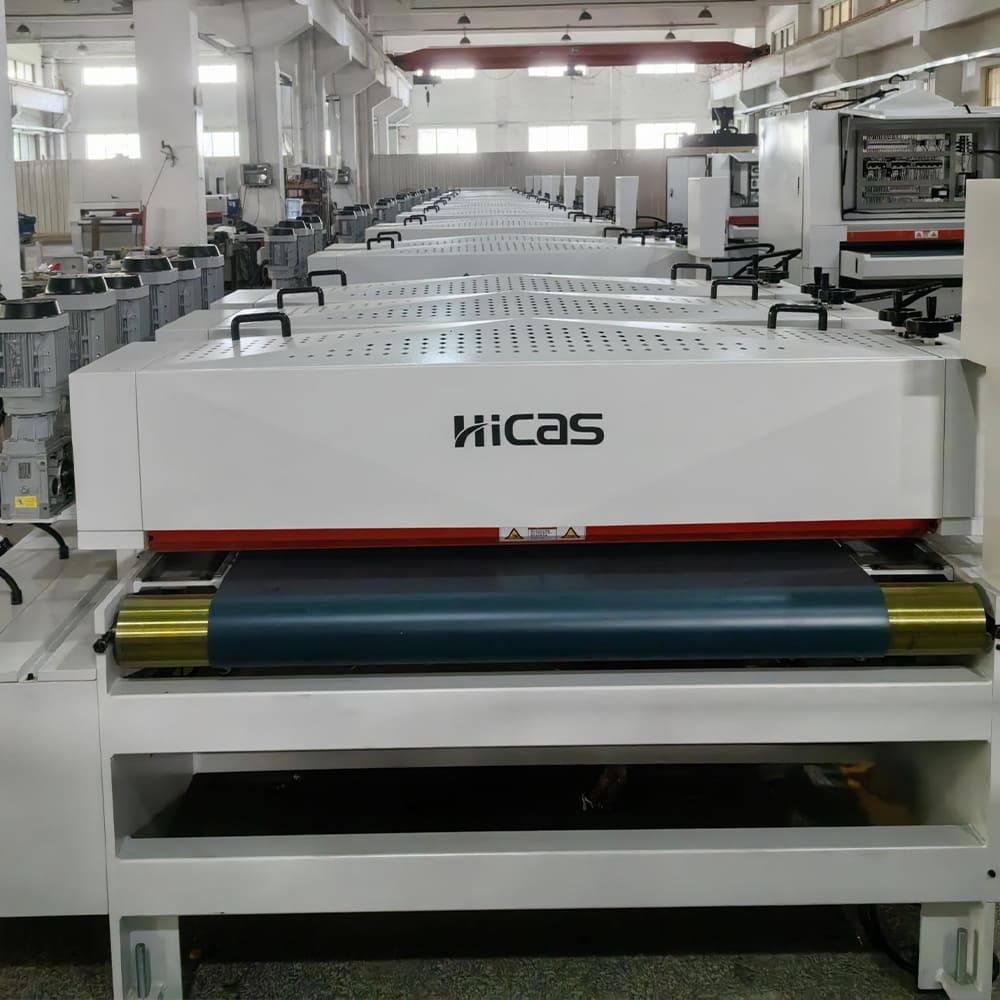

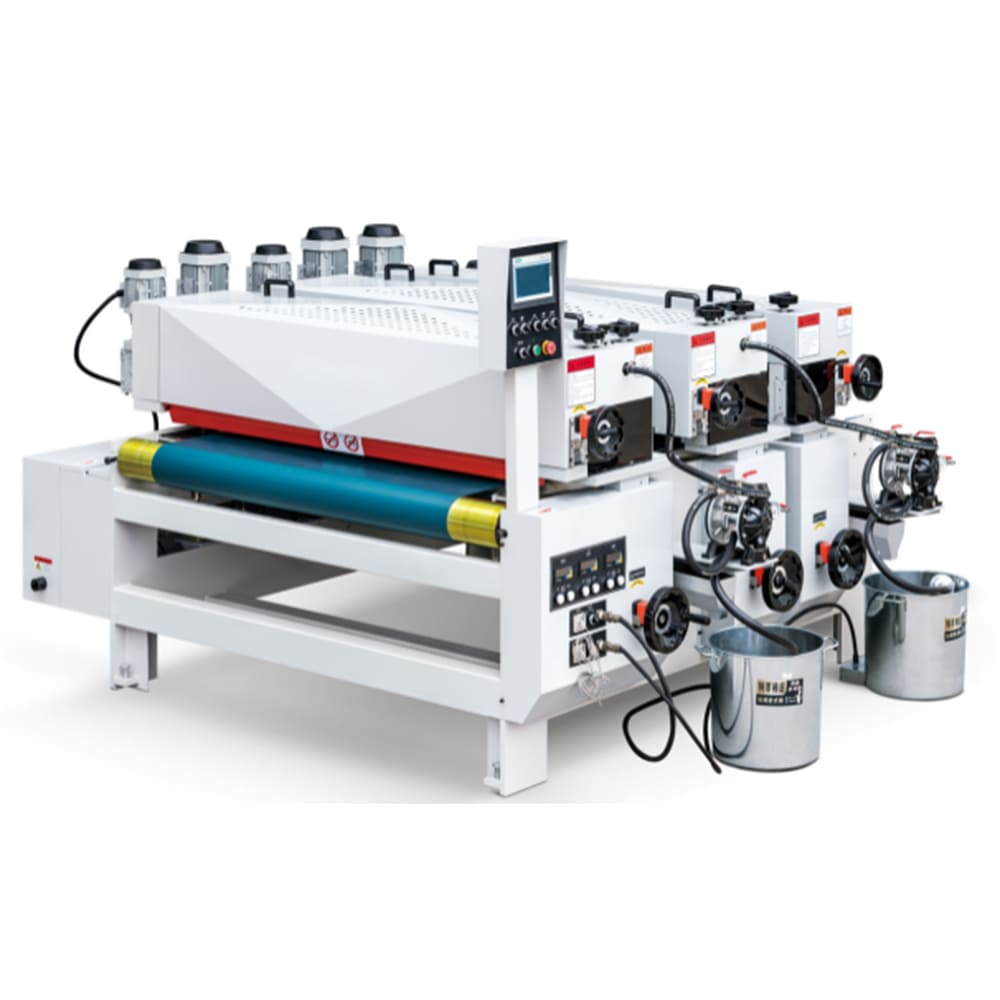

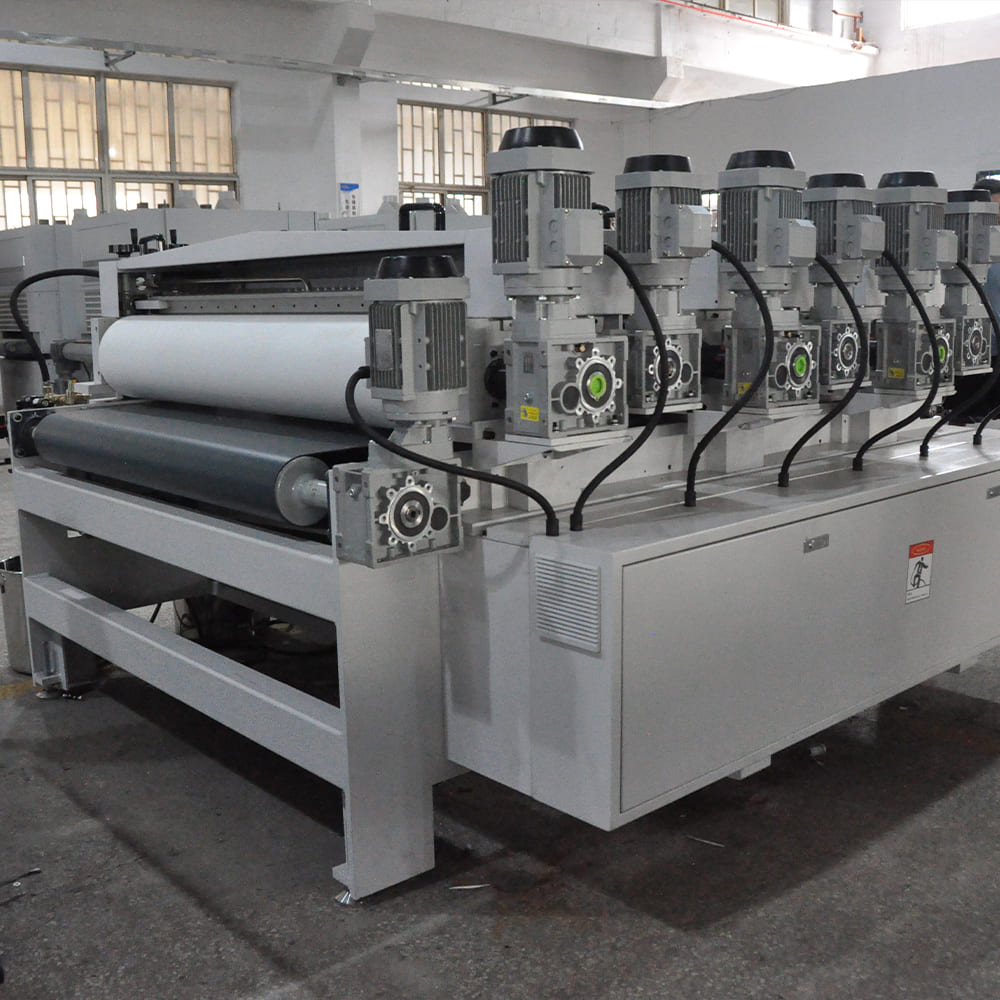

HICAS UV roller coating machine is suitable for primer, topcoat or coloring of solid wood, medium density fiberboard, particleboard, multilayer board and other furniture, flooring, cabinets, decorative boards.
Specifications of UV Roll Coater
Model |
HCGT600-1R |
HCGT600-2R |
HCGT600-3R |
Max working width |
600mm |
600mm |
600mm |
Processing thickness |
2.5-100mm |
2.5-100mm |
2.5-100mm |
Min working length |
80mm |
80mm |
80mm |
Feeding speed |
0-20m/min |
0-20m/min |
0-20m/min |
Feeding power |
1.5kw |
1.5kw |
2.2kw |
Coating roller power |
0.75kw |
0.75kw * 2 |
0.75kw * 3 |
Doctor roller power |
0.75kw |
0.75kw*2 |
0.75kw * 3 |
Heater power |
2kw |
2kw*2 |
2kw*3 |
Total power |
5.75kw |
9.6kw |
11.25kw |
Overall dimension |
1130*1920*1640mm |
1700*1920*1640mm |
2330*1920*1640mm |
Net weight |
820kg |
1400kg |
1500kg |
Standard voltage |
380V 50hz 3phase |
380V 50hz 3phase |
380V 50hz 3phase |
Standard packing |
Plastic film |
Plastic film |
Plastic film |
Model |
HCGT1300-1R |
HCGT1300-2R |
HCGT1300-3R |
Max working width |
1300mm |
1300mm |
1300mm |
Processing thickness |
2.5-100mm |
2.5-100mm |
2.5-100mm |
Min working length |
80mm |
80mm |
80mm |
Feeding speed |
0-20m/min |
0-20m/min |
0-20m/min |
Feeding power |
1.5kw |
1.5kw |
2.2kw |
Coating roller power |
1.5kw |
1.5kw * 2 |
1.5kw * 3 |
Doctor roller power |
0.75kw |
0.75kw*2 |
0.75kw * 3 |
Heater power |
2kw |
2kw*2 |
2kw*3 |
Total power |
5.75kw |
9.6kw |
16.6kw |
Overall dimension |
2615*1130*1640mm |
2615*1700*1640mm |
2615*2330*1640mm |
Net weight |
1500kg |
1900kg |
2200kg |
Standard voltage |
380V 50hz 3phase |
380V 50hz 3phase |
380V 50hz 3phase |
Standard packing |
Plastic film |
Plastic film |
Plastic film |
UV roller coating machine is a kind of equipment used to apply UV (ultraviolet) curing coatings, which is widely used in the surface treatment of wood, metal, plastic and other materials. The above are several common main parts. Understanding its various components and functions will help to better use and maintain the equipment and improve production efficiency.
A: Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
A: Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
A: Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
A: 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.
A: Our machines have been sold to more than 160 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
A: Our machines can be customized made according to buyers’ request.
A: We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
A: Our system supports common languages like Chinese, English, Russian, Spanish.
