2-in-1 collar board processing — 5-drill array sequentially and insert rivets. 450-600 pcs/h, Siemens PLC, Schneider electrics, IFM (Germany) sensors. Matched with SF4051 for automatic riveting machine.

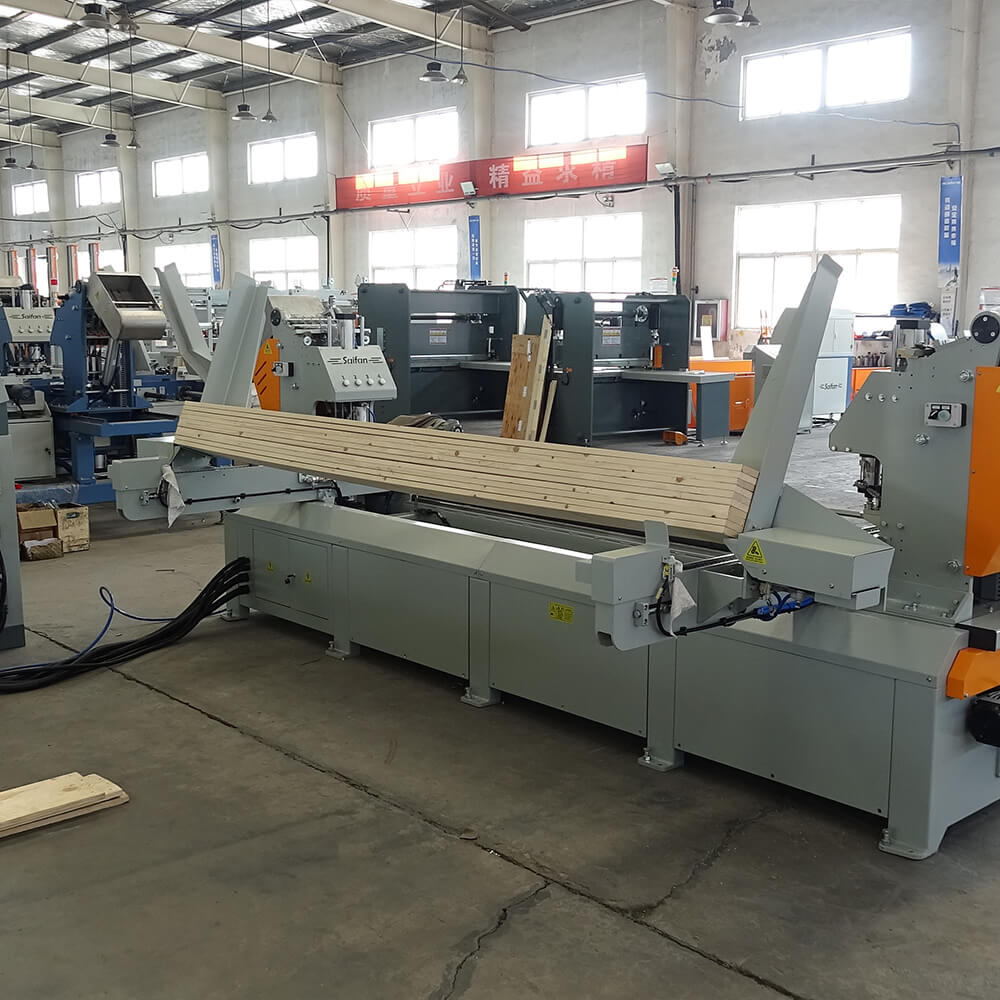

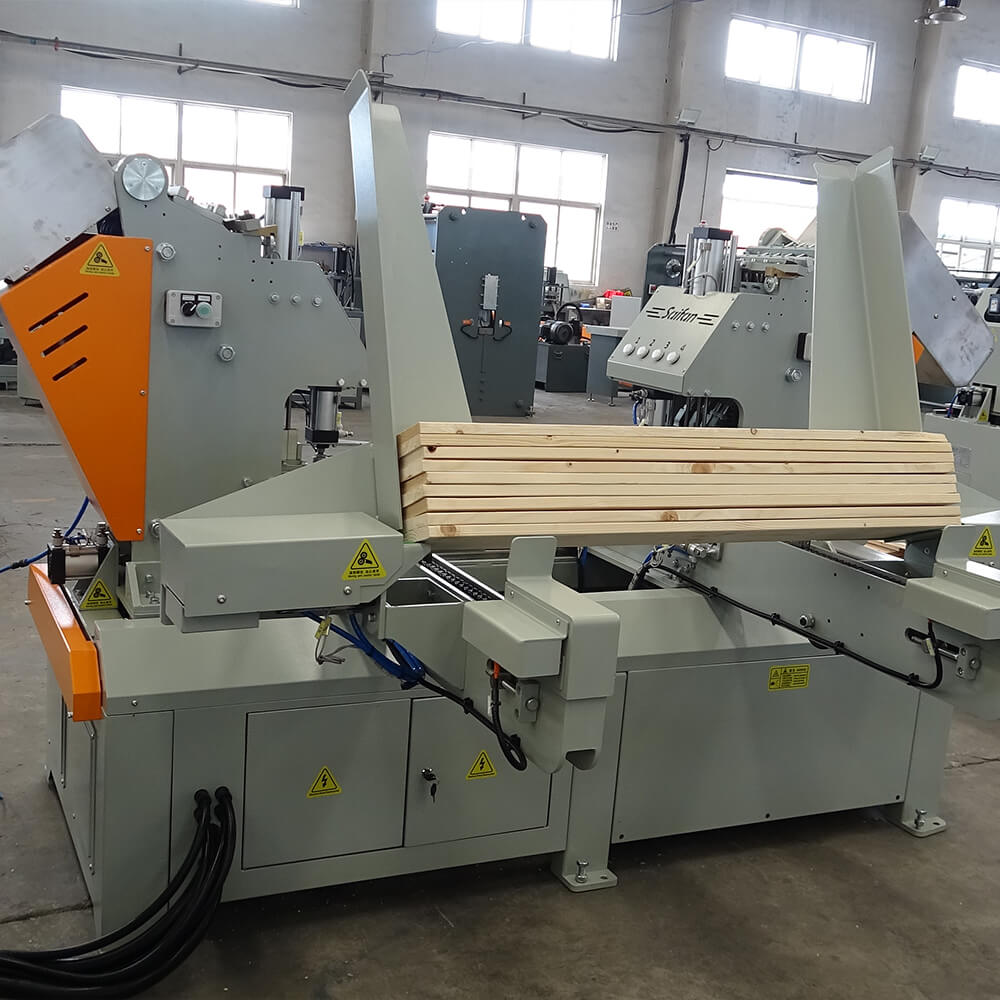

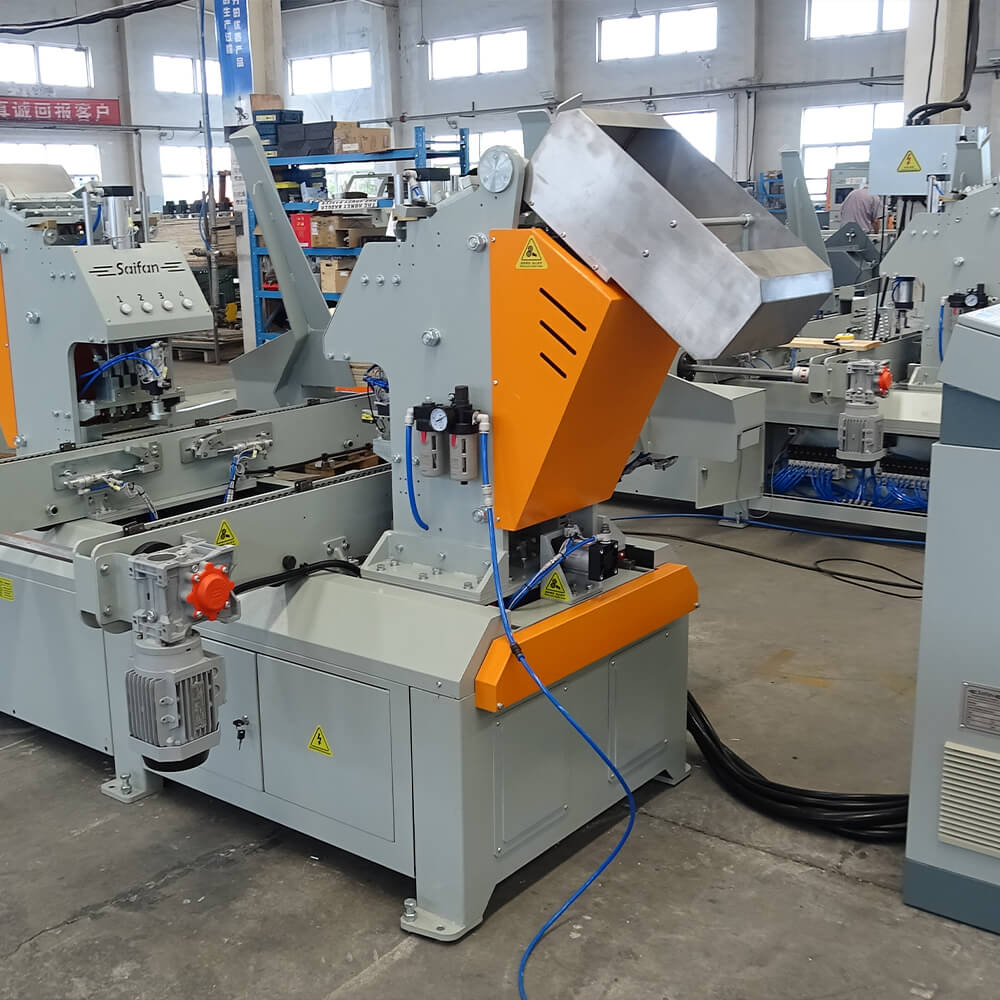

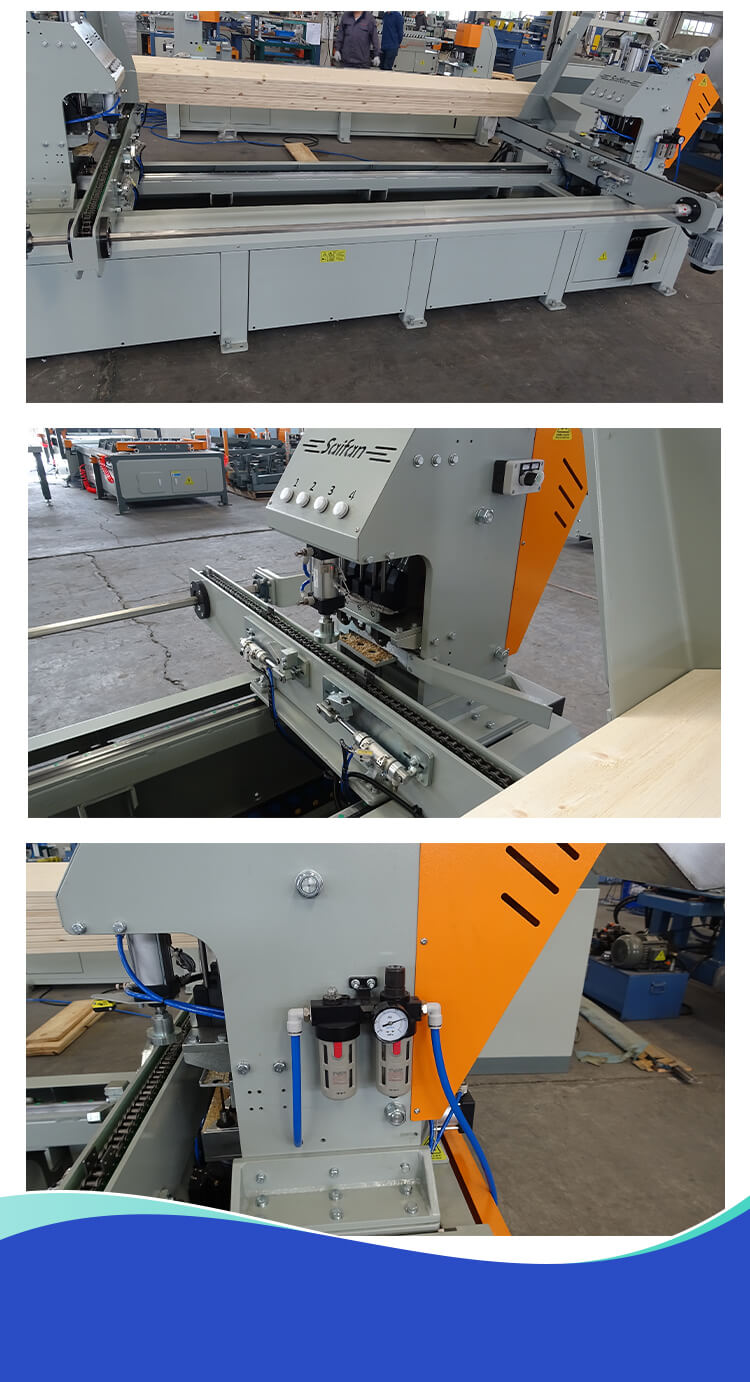

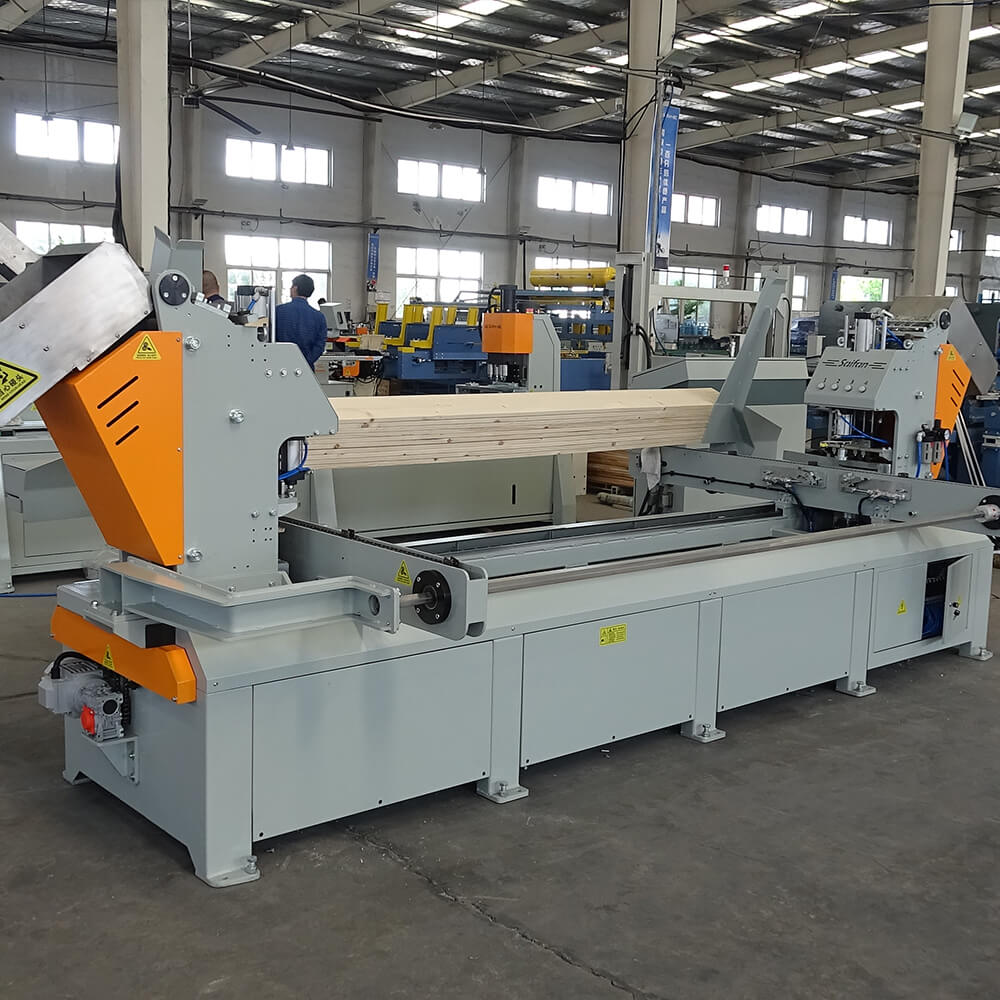

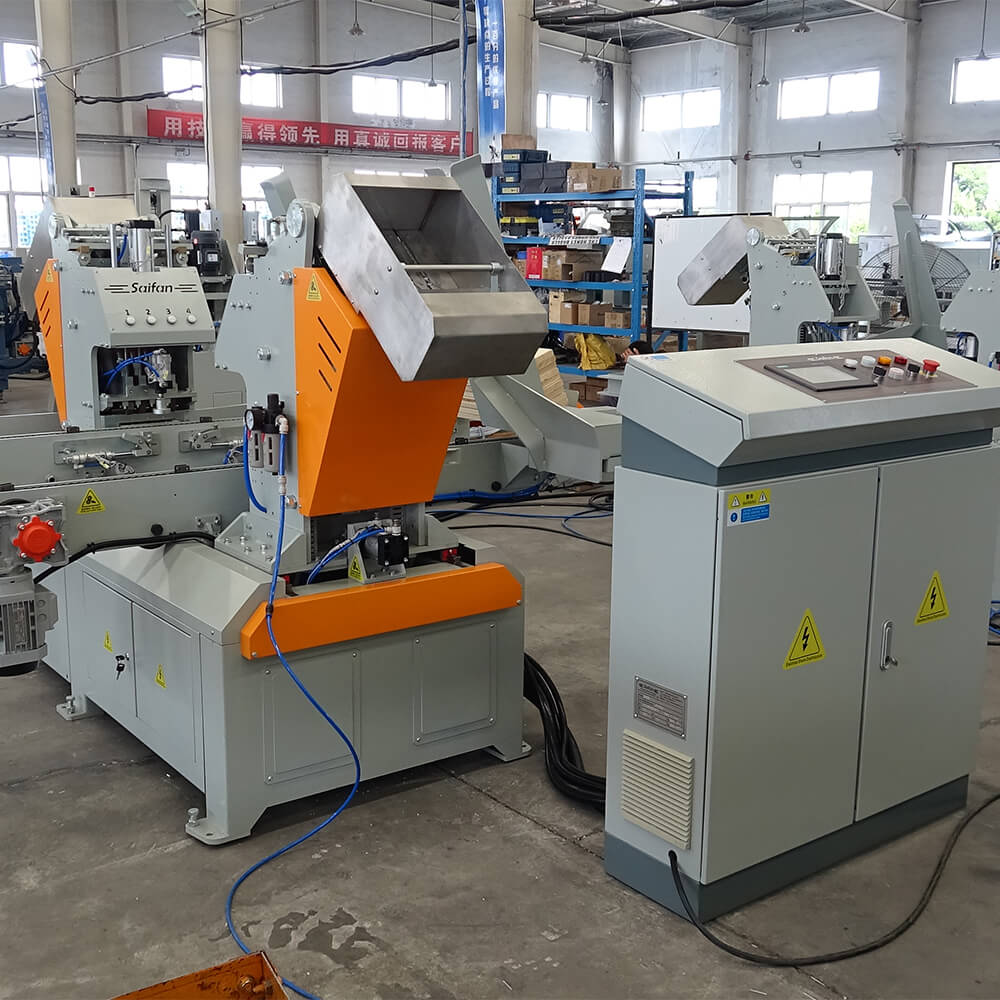

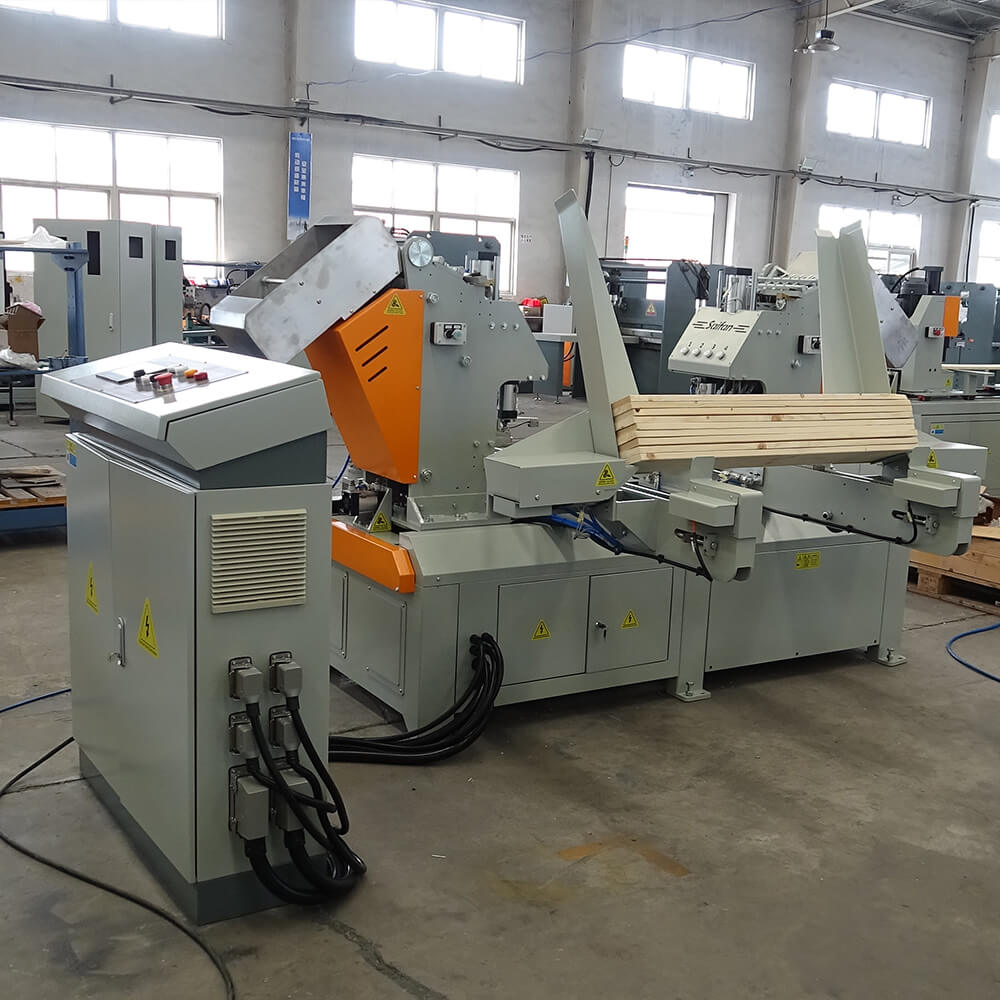

SF4020 AUTOMATIC PALLET COLLAR DRILLING & RIVET INSERTION MACHINE — 5-Drill Array · 450-600 pcs/h · Siemens PLC
Drill hinge holes and drop rivets into holes — 5 drills at once, by one machine, in one cycle. The core unit of a lean EUR pallet collar production cell.
5-drill array simultaneous drilling + rivet insertion · Siemens PLC · Schneider electrics · AirTac pneumatics · German IFM sensors · 2,800 rpm spindle.
- 5 drills at once — 450-600 collar boards per hour
- 2-in-1: drilling + rivet insertion in a single cycle
- Siemens + Schneider + AirTac + IFM (Germany) — etc. such world classs brands Fixed 50mm hole pitch, complies with standard Eur pallet collar spec
- Matched with SF4051 for automatic riveting — a complete 1+1 production unit includes drilling, riverting insertion and rive
[ Request Customized Quotation ]
|
Parameter |
Specification |
|
Model |
SF4020 (automatic pallet collar drilling & rivet insertion machine) |
|
Application |
Drilling and rivet insertion on EUR pallet collar boards |
|
Working length (board) |
540 – 1,200 mm |
|
Working width (board) |
195 – 205 mm |
|
Working thickness (board) |
19 – 22 mm |
|
Fixed hole spacing |
50 mm |
|
Drill array |
5 drills (parallel, synchronous) |
|
Spindle rotation |
2,800 rpm |
|
Productivity |
450 – 600 pcs/h |
|
Cycle |
Drilling + hollow rivet insertion (2-in-1) |
|
Operators |
1 |
|
PLC |
Siemens |
|
Electrical components |
Schneider |
|
Pneumatic components |
AirTac |
|
Sensors |
German IFM |
|
Total power |
11 kW |
|
Voltage |
380V / 50Hz / 3-phase (220V / 415V / 480V configurable) |
|
Air pressure |
0.5 – 0.8 MPa |
|
Machine dimensions |
2,500 × 2,500 × 2,200 mm |
|
Machine weight |
~1,500 kg |
|
Packing dimensions |
4,000 × 2,200 × 2,300 mm |
|
Certification |
CE certified · ISO9001 · SGS |
|
Warranty |
12 months (free non-consumable parts within warranty) |
|
Lead time |
~40 days |
|
Shipping |
Ocean freight (Maersk Or some other shipping lines） |
Separate drilling and rivet-handling stations mean two machines, two operators and two rounds of handling for the same board. SF4020 combines them into one cycle — with premium Sensor to keep quality tight.
|
Item |
Separate Machines / Manual |
HICAS SF4020 |
|
Workflow |
2 stations, 2 handovers |
2-in-1 on one machine |
|
Drills |
1 or 2 |
5 synchronous |
|
Output |
Lower |
450-600 pcs/h |
|
Component quality |
Mixed / unknown |
Siemens / Schneider / AirTac / IFM |
|
Operators |
2-3 |
1 |
|
Footprint |
Larger |
Compact 2.5 × 2.5 m |
What this means for you:
- Combine two production steps into one machine — cut labour and floor space
- 5 drills at once at 50 mm spacing — consistent, EUR-spec collar boards
- Premium brand components — serviceable in Europe, built for 24/7 duty
- Matched with SF4051 to complete drilling, riveting insertion, riveting
We don't publish equipment prices because configuration and voltage affect final cost. Customized quotation within 24 hours.
[ Request Customized Quotation ]
1.450-600 COLLAR BOARDS PER HOUR: Production output for real EUR pallet collar lines, with a single operator.
2. 2-IN-1 DRILL + IMPLANT: Drill the hinge holes and drop rivets into holes sequentially.
3.STANDARD EUR COLLAR SPEC: 50 mm hole spacing, board thickness 19-22 mm, width 195-205 mm, length 540-1,200 mm — complies EUR pallet collar standards directly.

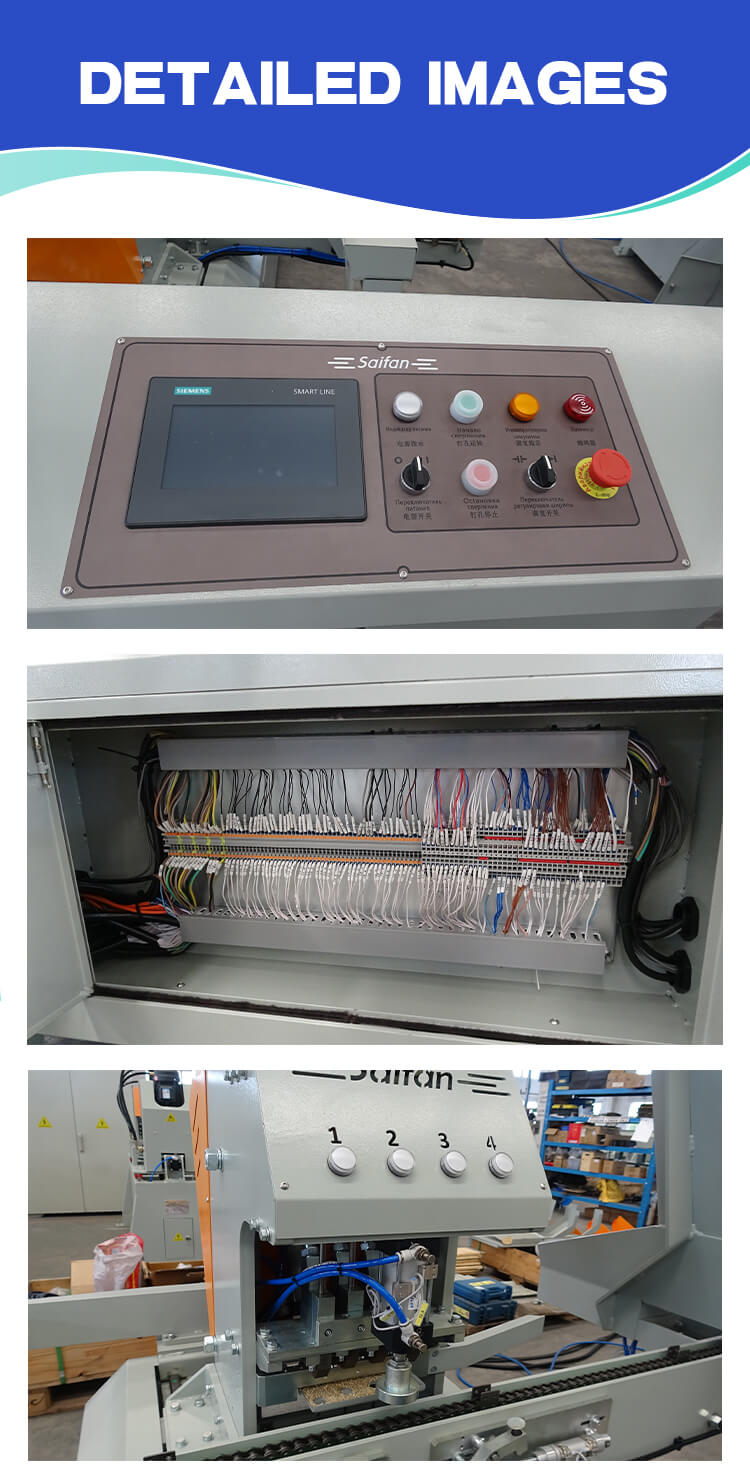

4. SIEMENS PLC + CNC-STYLE POSITIONING: The 5-drill array is positioned and cycled under Siemens PLC control for repeatable, spec-true output.
5.MULTI-VOLTAGE COMPATIBLE: Standard 380V/50Hz, with 220V / 415V / 480V configurable at order — fits European, Asian and Australian power grids.
6. MATCHED WITH SF4051: SF4020 drilling, rivet insertion the rivets; SF4051 automatic riveting. Together they form a compact drilling, rivet insertion, riveting — the "1+1" configuration used by many HICAS collar customers.
| Model | Functions | Notes |
| SF4022 | Double-head drilling only | Choose if you only need drilling (no rivet handling) |
| SF4091 | Rivet insertion and Riveting Only hollow rivet |
use after drilling, Paired downstream of SF4022 |
| SF4020 (this machine) | Drilling + rivet insertion | Pairs with SF4051 for full 1+1 automatic riveting unit (drilling, rivet insertion, riveting) |
| SF4051 | Riveting (clinching) For both solid & hollow rivet |
Paired downstream of SF4020 |
| SF4060 | Automatic pallet collar processing line, drilling, automatic rivet insertion + Hinge feeder + riveting + stacker | Including the function of SF4022 SF4020 SF4051, plus automatic hinge feeder, automatic stacker. |
| SF4070 | Pin threading and stacking | Downstream assembly of finished collars |
SF4020 is the drilling +rivet insertion machine.

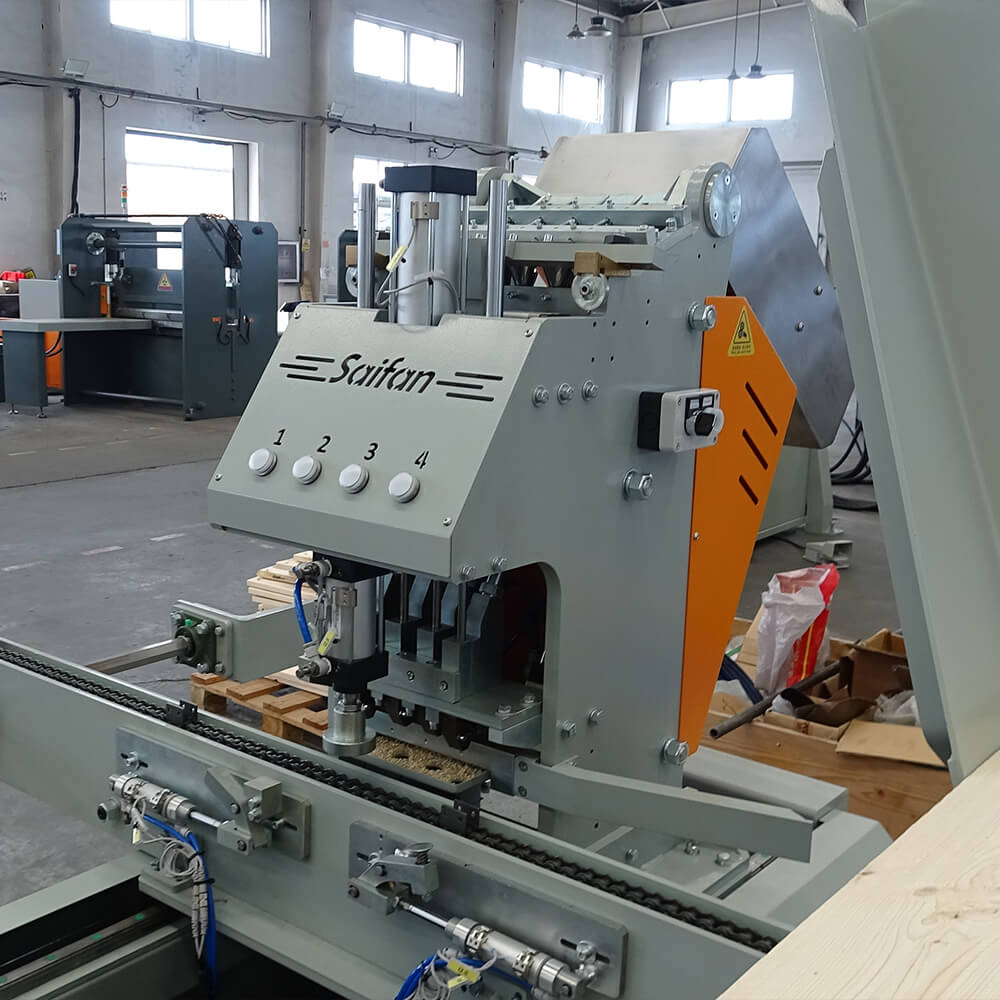

- SF4020 — drills the 5-hole array and drops hollow rivets into holes (this machine, 450-600 pcs/h)
- SF4051 — Riveting for hinge fastening (paired machine)
Matched to form the "1+1" configuration. This compact, cost-effective in-house pallet collar riveting unit cuts costs while boosting productivity and saves 1–2 operators.
Q: What does the SF4020 do?
A: It drills 5 hinge holes and drops hollow rivets into holes on EUR pallet collar boards — a 2-in-1 drilling + rivet insertion cycle, all on one machine.
Q: How fast is it?
A: 450-600 boards per hour, with a single operator.
Q: Does it fix (clinch) the rivets too?
A: No — SF4020 insert the rivets into the holes. The riveting step will be done by the matched SF4051 machine, forming a compact "1+1" riveting Unit.
Q: What's the board sizes does it accept?
A: Length 540-1,200 mm, width 195-205 mm, thickness 19-22 mm — standard EUR pallet collar boards.
Q: What's the hole spacing does it drill?
A: 50 mm fixed hole spacing — the standard EUR pallet collar rivet-hole spec.
Q: What components does it use?
A: Siemens PLC, Schneider electrical parts, AirTac pneumatics and German IFM sensors — Top-tier world-class brands for convenient maintenance throughout Europe
Q: How does SF4020 fit with your other collar machines?
A: Matched with SF4051 for full 1+1 automatic riveting unit (drilling, rivet insertion, riveting).
Q: What voltage does it use?
A: Standard 380V/50Hz 3-phase, with 220V / 415V / 480V available as an order option.
Q: What is the delivery time?
A: About 40 days from confirmed order.
Q: What payment terms do you accept?
A: 30% T/T deposit, LC at sight, and SINOSURE export credit insurance.
