SF4091 Pallet Collar Hollow Rivet Inserting & Fixing Machine

Installation & Support

• English manual + operation video + electrical drawings
• Free online HICAS engineer support throughout installation
• On-site installation & training available (engineer travel at cost)
• Full spare parts package available; common parts shipped within 1 week by express
• CE certified · ISO9001 · 12-month warranty (core components)
• Multi-language CNC interface (English / Spanish / Chinese)

Flexible payment: T/T 30% deposit · LC at sight · SINOSURE supported

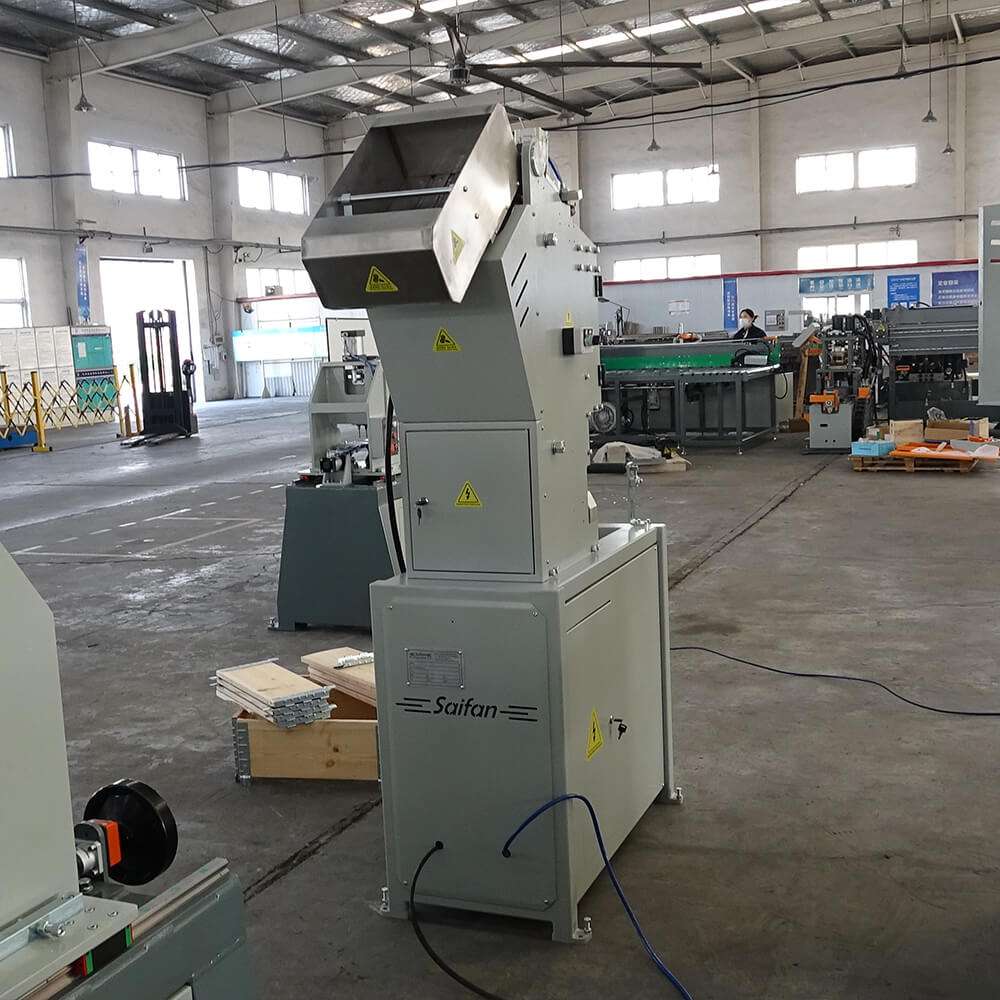

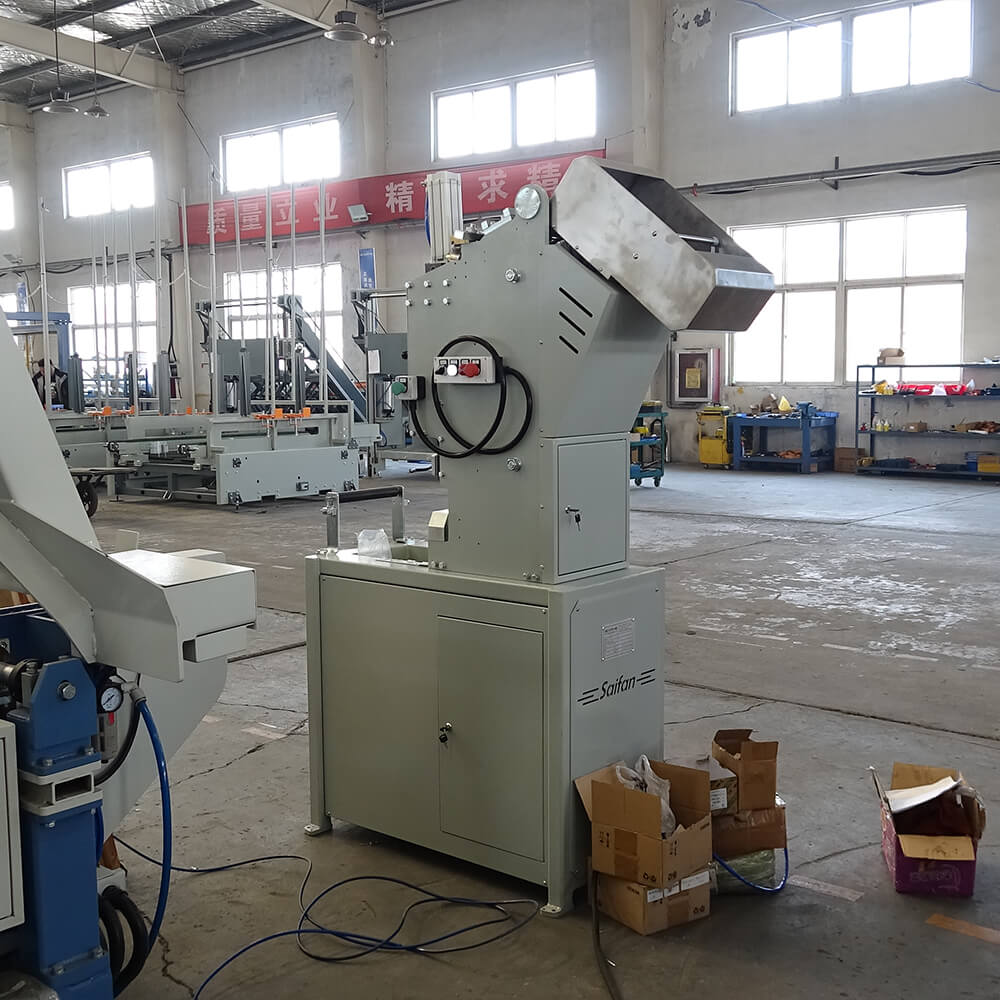

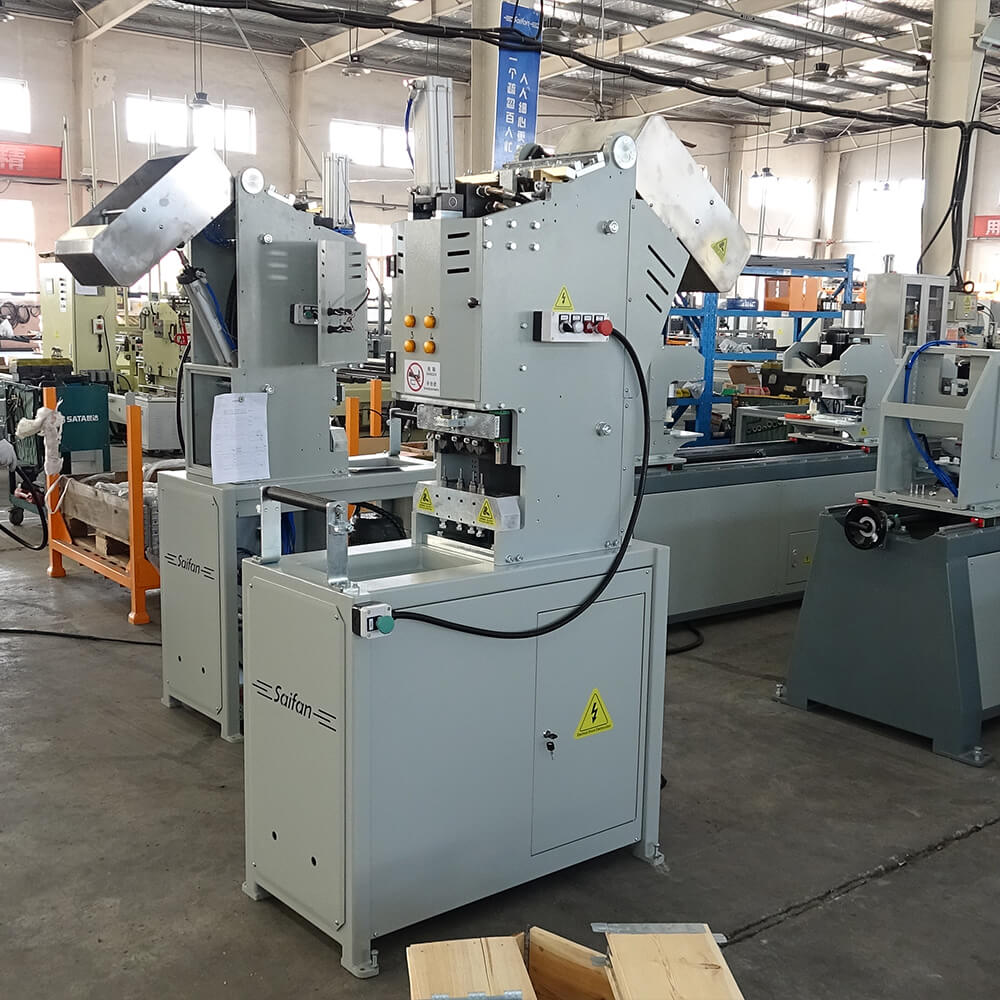

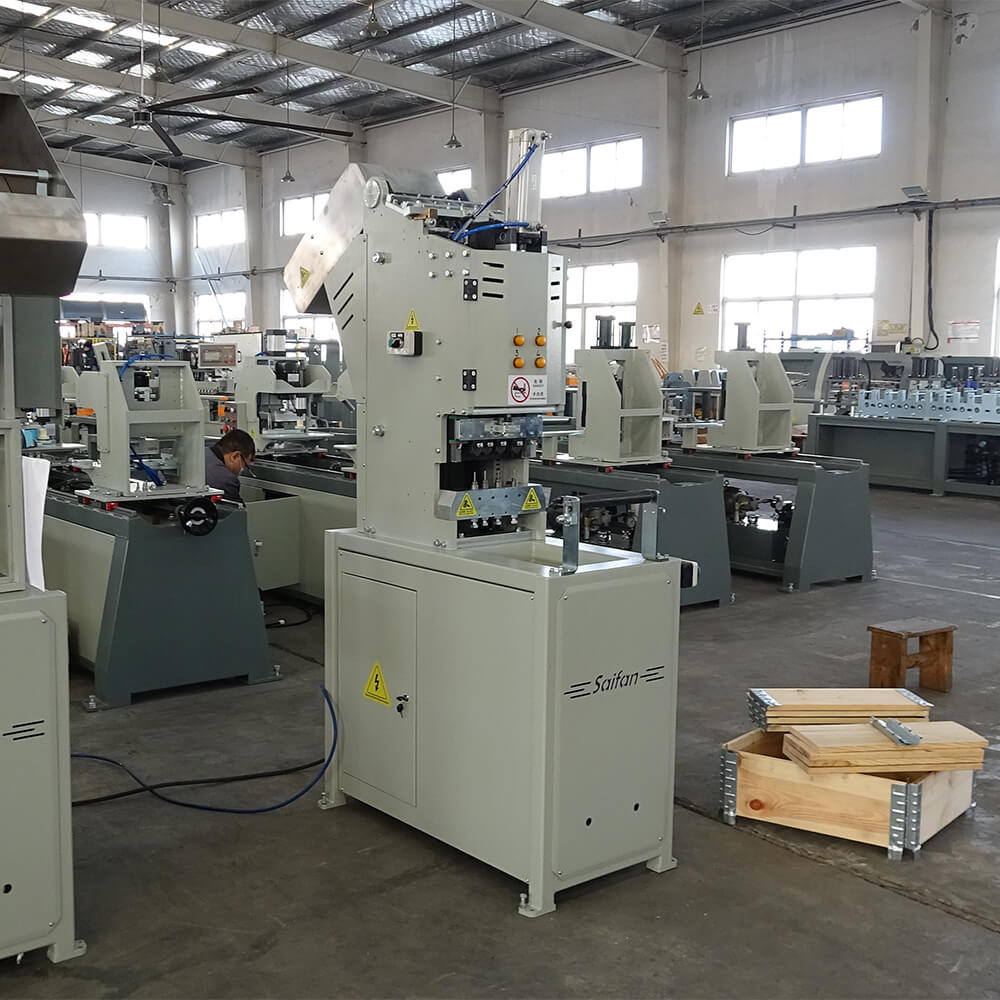

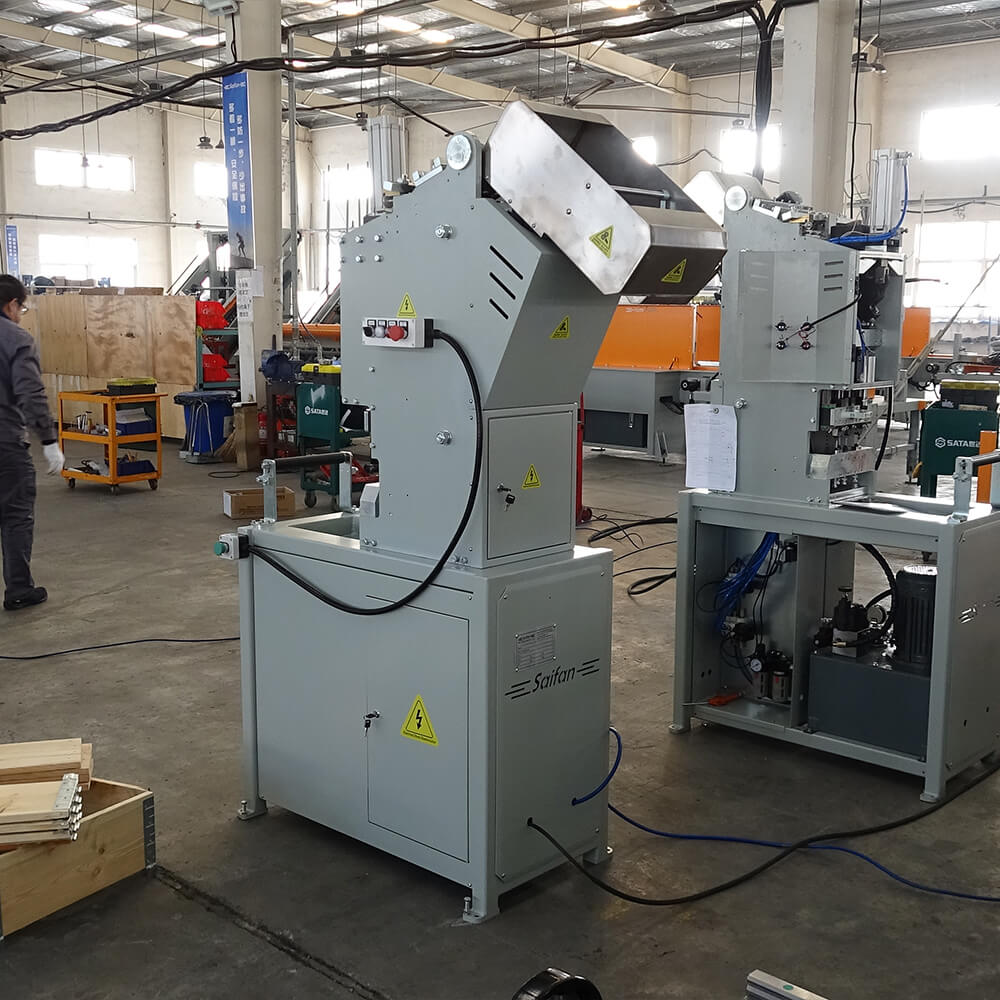

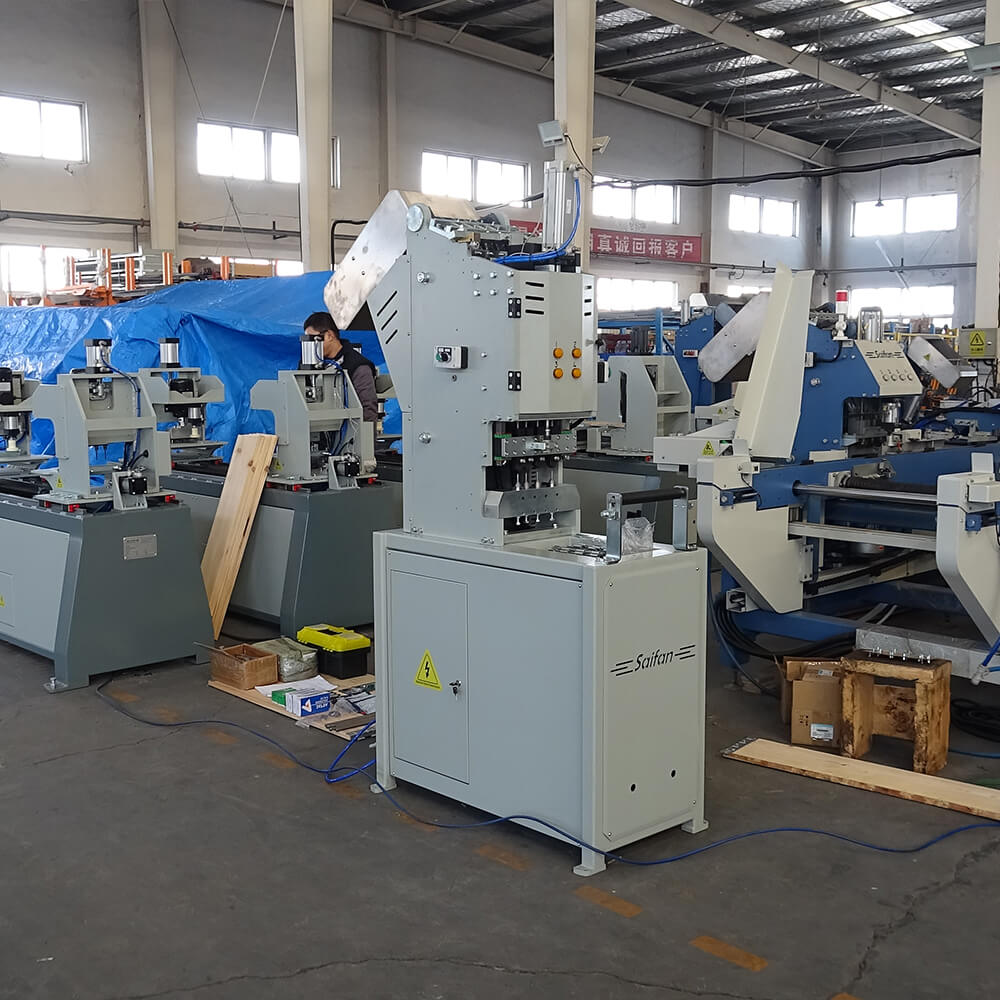

SF4091 PALLET COLLAR HOLLOW RIVET INSERTING & FIXING MACHINE — 180-250 pcs/h · 4-Channel Detection · Siemens PLC

Automatically insert and fix hollow rivets into pallet collar hinges — fast, consistent, and with in-line leak detection that catches missed rivets before they reach your customer.

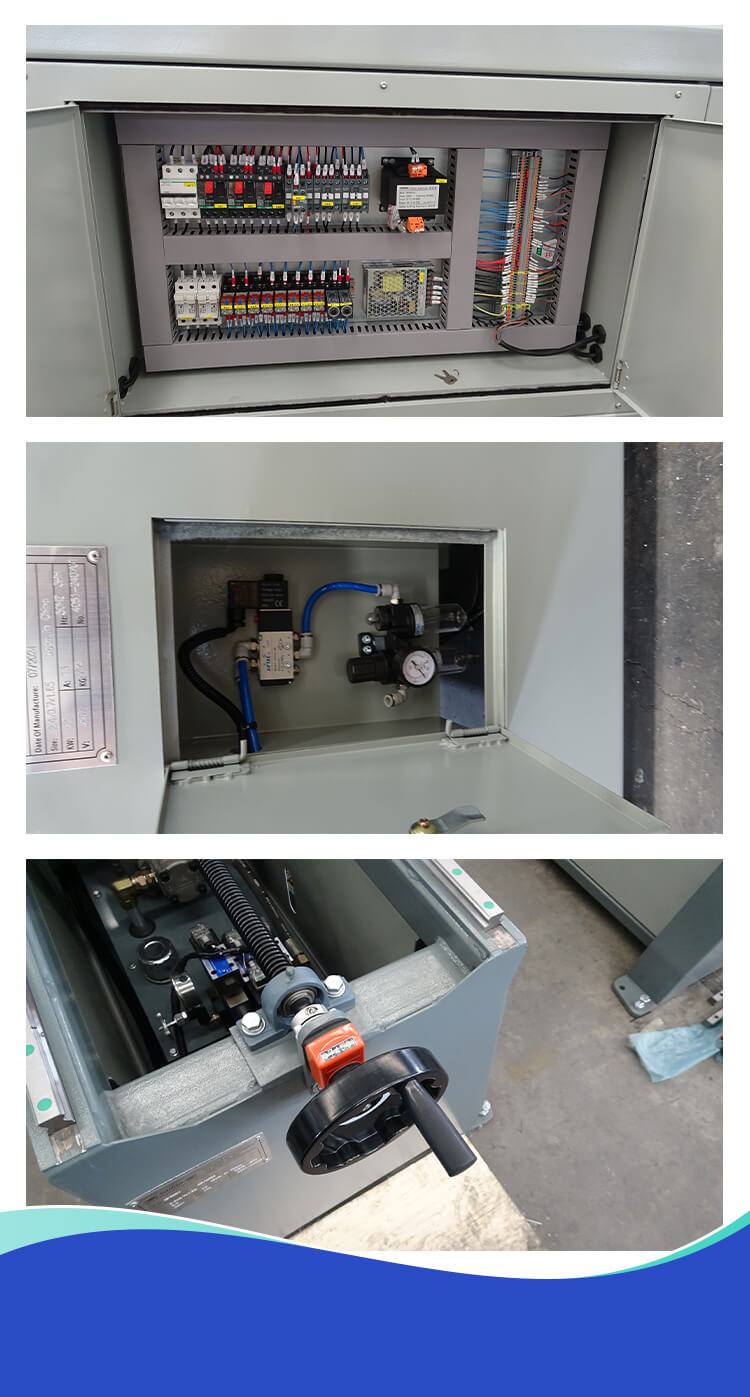

Siemens PLC · German IFM sensors · Schneider electrics · AirTac pneumatics · hydraulic insertion with adjustable speed · vibrating bowl feeder.

• - 180-250 rivets/hour, hydraulic insertion
• - 4-channel rivet-leak detection — full quality coverage
• - Siemens PLC + IFM (Germany) sensors — premium control & sensing
• - Vibrating bowl feeder + CNC control interface
• - Compact 600 kg footprint — integrates into your collar line

[ Request Customized Quotation ]

1.PREMIUM 4-BRAND COMPONENT STACK: Siemens PLC, Schneider electrics, AirTac pneumatics, German IFM sensors — the same component tier opean premium machine builders specify.

2.4-CHANNEL LEAK DETECTION: Four independent detection channels check every rivet position — if any rivet is missing, the machine alarms immediately. No defective collars passed downstream.

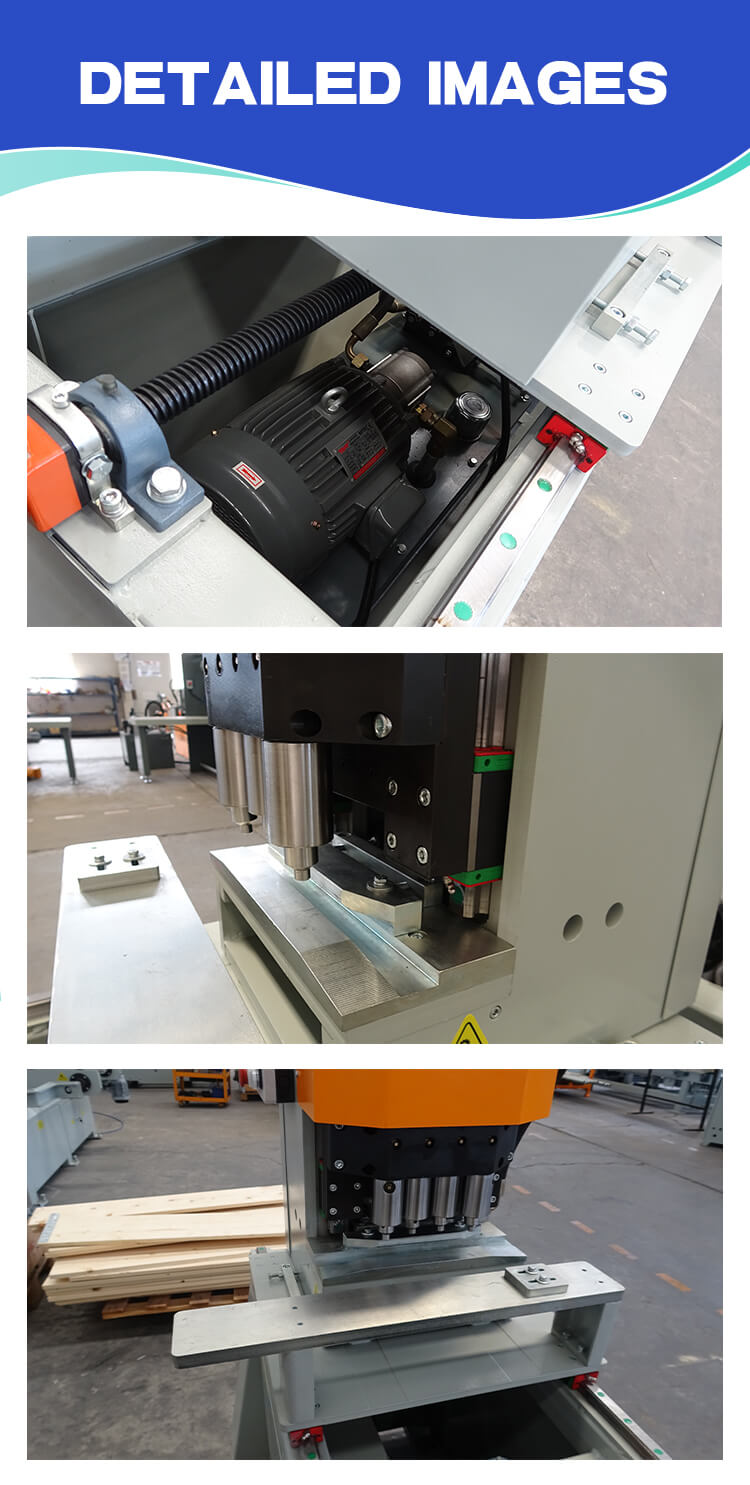

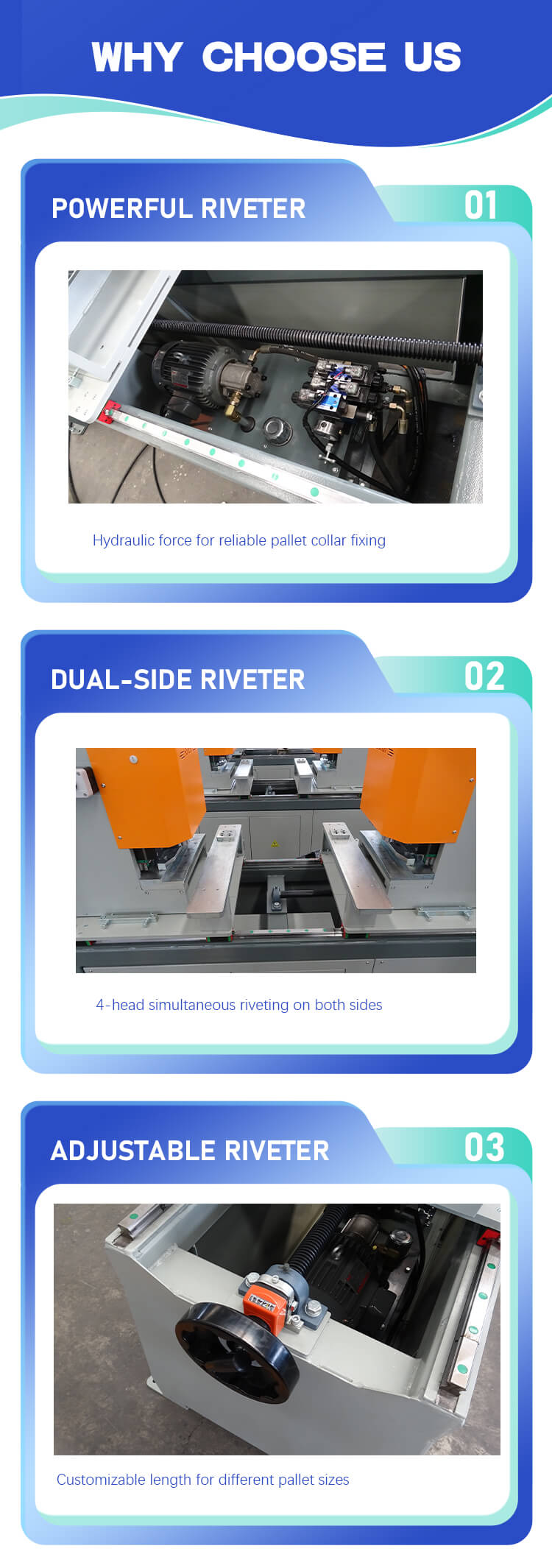

3.HYDRAULIC INSERTION, SPEED ADJUSTABLE: Hydraulic-driven rivet insertion with adjustable speed — consistent, repeatable force every cycle, adaptable to different rivet specs.

4.INDUSTRIAL-GRADE BUILD: Built as an industrial production machine, not a low-end shop tool — engineered for continuous operation without the frequent breakdowns of cheap alternatives.

SF4091 is the natural downstream complement to the SF4070 Pallet Collar Pin Threading Machine.

• SF4070 — threads the long pins through the boards and inserts hinges, then stacks the finished collars (4-5 collars/min).
• SF4091 — inserts and fixes the hollow rivets on the hinges with 4-channel leak detection (180-250 rivets/h).

Together they form a high-quality, in-line pallet collar production workflow — both built on a Siemens PLC + premium-brand control architecture.

Manual riveting is slow, inconsistent, and a major defect source on pallet collars. SF4091 automates rivet feeding and insertion with in-line leak detection — protecting your collar quality and your customer relationship.

What this means for you:

• Catch missing rivets in-line — no defective collars to your customer
• Consistent rivet quality from a hydraulic, speed-adjustable head
• Premium 4-brand components serviceable in ope
• Lower labour vs manual riveting on a high-margin collar product

We don't publish equipment prices because configuration affects final cost. Customized quotation within 24 hours.

[ Request Customized Quotation ]

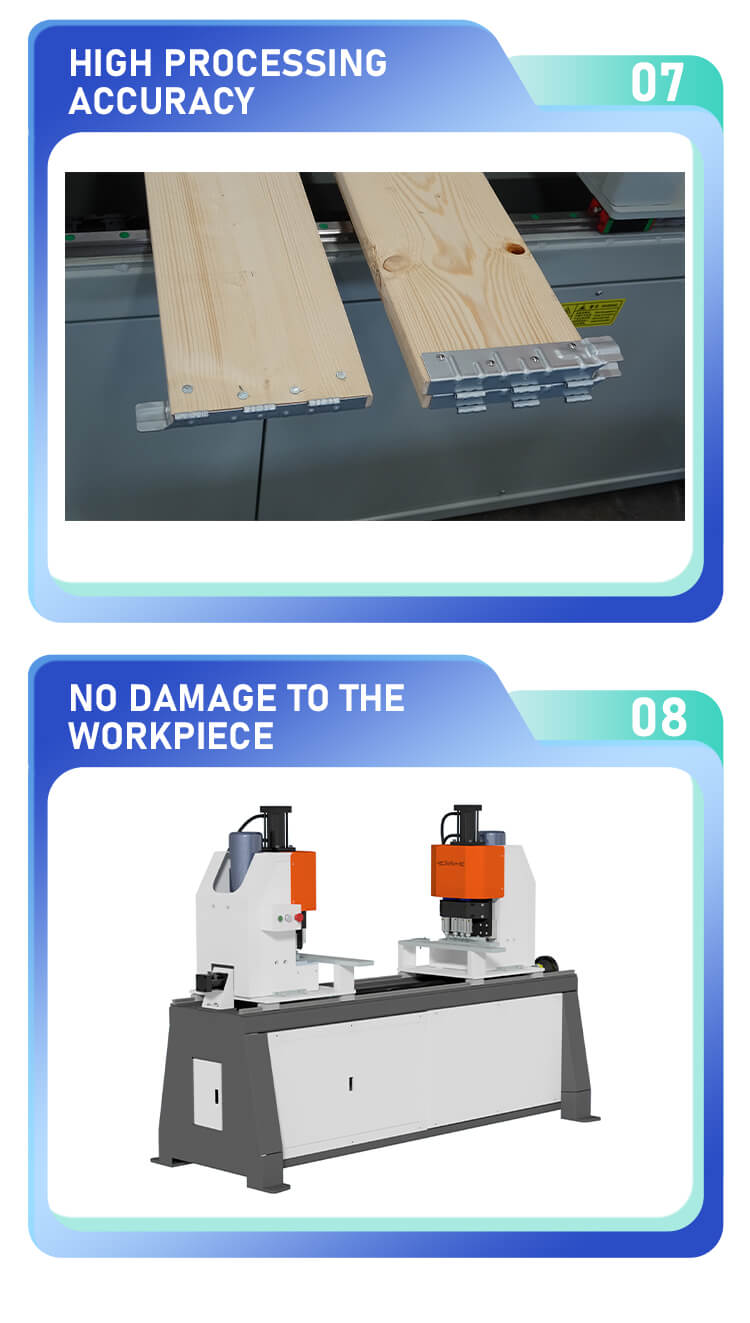

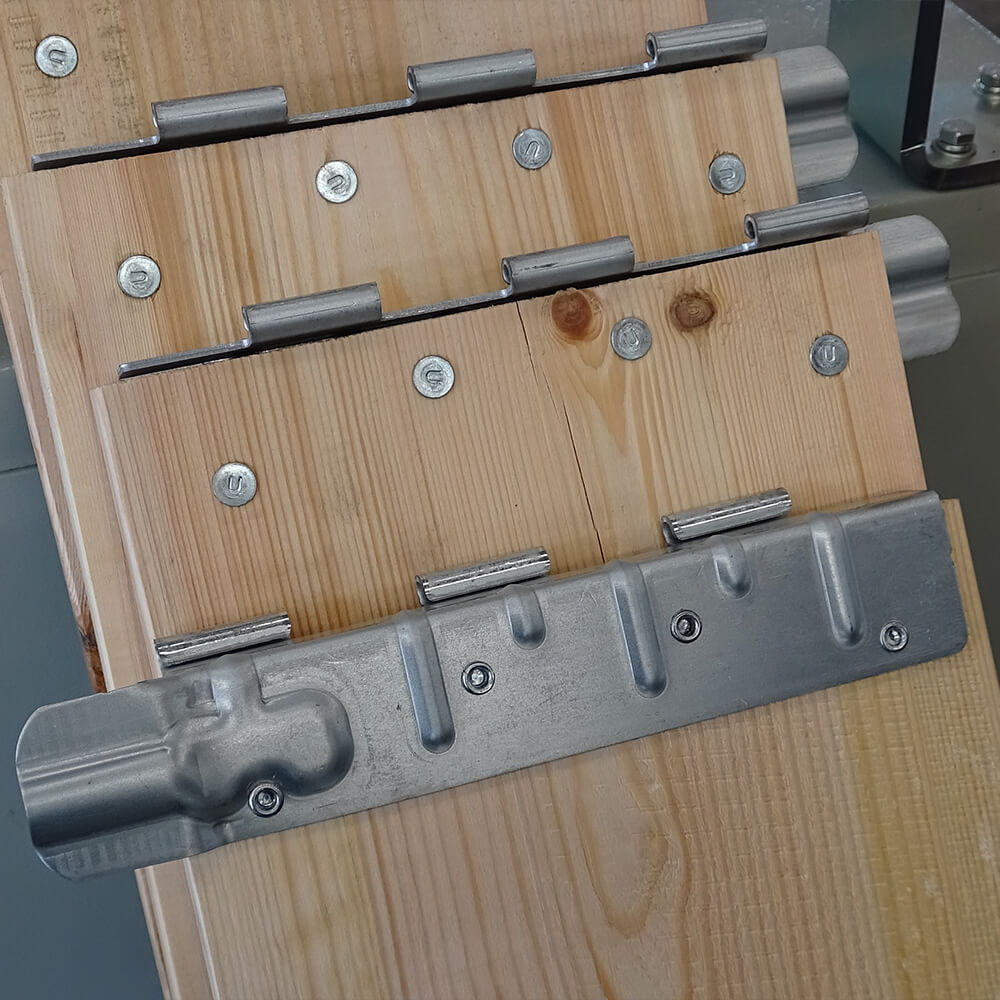

1.PURPOSE-BUILT FOR COLLAR HINGES: Designed specifically to insert hollow rivets into pre-drilled holes on pallet collar hinges — not a generic rivet machine.

2.VIBRATING BOWL AUTO-FEED: A vibrating bowl feeder presents hollow rivets to the insertion head automatically — keeps the line running with minimal operator handling.

3.CNC TOUCHSCREEN CONTROL: A CNC control interface in multiple languages (English, Spanish, Chinese and more) makes operation simple anywhere in the world.

4.IN-LINE QUALITY CONTROL: 4-channel detection ensures every rivet is correctly inserted — quality is verified during production, not after.

5.SPARE PARTS SUPPORT: Comprehensive spare parts package available; common parts deliverable within one week by express.

6.INTEGRATES WITH SF4070 COLLAR ASSEMBLY: A natural downstream addition to the SF4070 pallet collar pin threading machine — automate hinge riveting on the same collar production line.

Q: What does the SF4091 do?

A: It automatically inserts and fixes hollow rivets into pre-drilled holes on pallet collar hinges — a purpose-built machine for the riveting stage of pallet collar production.

Q: How fast is it?

A: 180-250 rivets per hour, with hydraulic insertion and an automatic vibrating bowl feeder.

Q: How does the 4-channel detection work?

A: Four independent detection channels verify every rivet position in real time; if any rivet is missing, the machine alarms immediately so no defective collars pass downstream.

Q: What rivets can it use?

A: Hollow rivets only — the type used on standard pallet collar hinges.

Q: What board sizes does it accept?

A: Length ≥100 mm, width 195-205 mm, thickness 19-22 mm, with 50 mm hinge holes.

Q: What components does it use?

A: Siemens PLC, Schneider electrics, AirTac pneumatics, and German IFM sensors — premium control-tier brands you can service locally in ope.

Q: Does it pair with the SF4070 collar machine?

A: Yes — SF4070 threads pins and inserts hinges; SF4091 then rivets the hinges. Together they form a complete pallet collar production workflow.

Q: What voltage does it use?

A: Standard 380V/50Hz 3-phase, configurable to your market.

Q: What about spare parts?

A: A full spare parts package is available; common parts ship within one week by express.

Q: What payment terms do you accept?

A: 30% T/T deposit, LC at sight, and SINOSURE export credit insurance.
