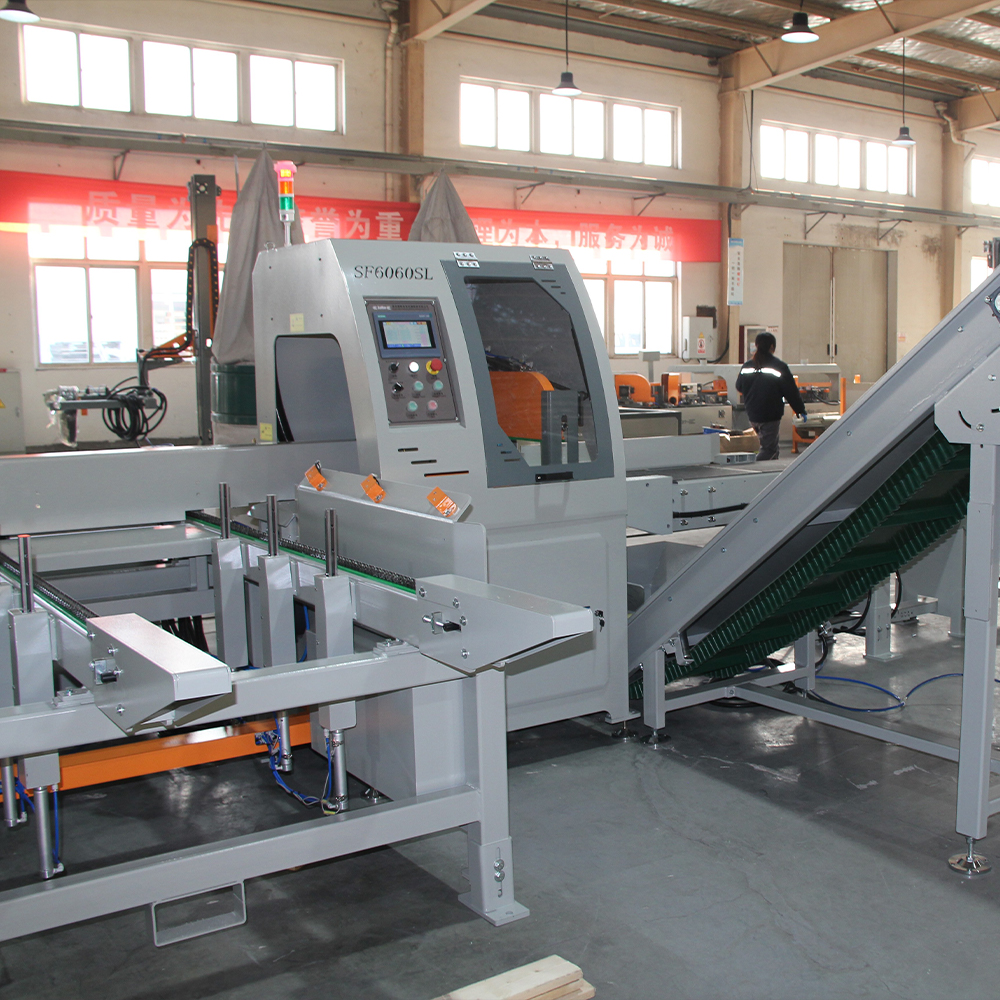

SF6060S Automatic Feeding Cross-Cut Saw

• Free on-site installation, commissioning & operator training by HICAS engineers (buyer covers engineer travel & accommodation, ~3-5 days)
• English manual + instructional videos + electrical drawings
• 12-month full-machine warranty
• SF-series spare parts shipped within 48 hours
• 24/7 remote technical support via video call
• CE certified (2006/42/EC) · ISO9001 · machinery test report + outgoing-inspection video provided
• Flexible payment: T/T 30% deposit · LC at sight · SINOSURE supported

SF6060S AUTOMATIC FEEDING CROSS-CUT SAW — ±1 mm Precision · Clean Burr-Free Cuts · Smart Photo-Eye Detection

Cut pallet and solid-wood boards automatically — precise, clean, and with intelligent length detection that maximizes lumber yield.

Servo cutting head (3 kW) · ±1 mm tolerance · automatic feeding up to 50 m/min · photo-eye smart detection · Siemens PLC · Schneider electrics · dual dust extraction.

• ±1 mm precision with clean, burr-free cuts
• Intelligent photo-eye detection — equal-length presets + smart cut of random-length wood
• Automatic feeding up to 50 m/min
• Siemens PLC + Schneider electrics — serviceable European-tier control
• Expandable to a full sorting & stacking line (10-6000 mm)

[ Request Customized Quotation ]

• ±1 mm PRECISION, CLEAN BURR-FREE CUTS: A servo-driven cutting head holds ±1 mm tolerance and produces clean, burr-free cut surfaces — the quality furniture and pallet production demand.
• POWERFUL SAWING: 11 kW main motor with a high-temperature-resistant multi-slip belt for direct, powerful transmission; cylinder-controlled blade lifting with adjustable cutting speed.
• INDUSTRIAL CONTROL: Siemens PLC and touchscreen with Schneider electrics run the full cut cycle automatically.

SAFE OPERATION: English-language alarms, door-open power-off protection, overload protection and emergency stop — with three start options (screen, push button, remote control).

• INTELLIGENT PHOTO-EYE DETECTION: Two cutting modes — set multiple equal-length presets, OR let the photo-eye detect random-length wood and use smart calculation to cut equal lengths, maximizing lumber yield from every board.
• ±1 mm PRECISION, NO BURRS: Servo cutting head delivers ±1 mm tolerance with clean, burr-free surfaces.

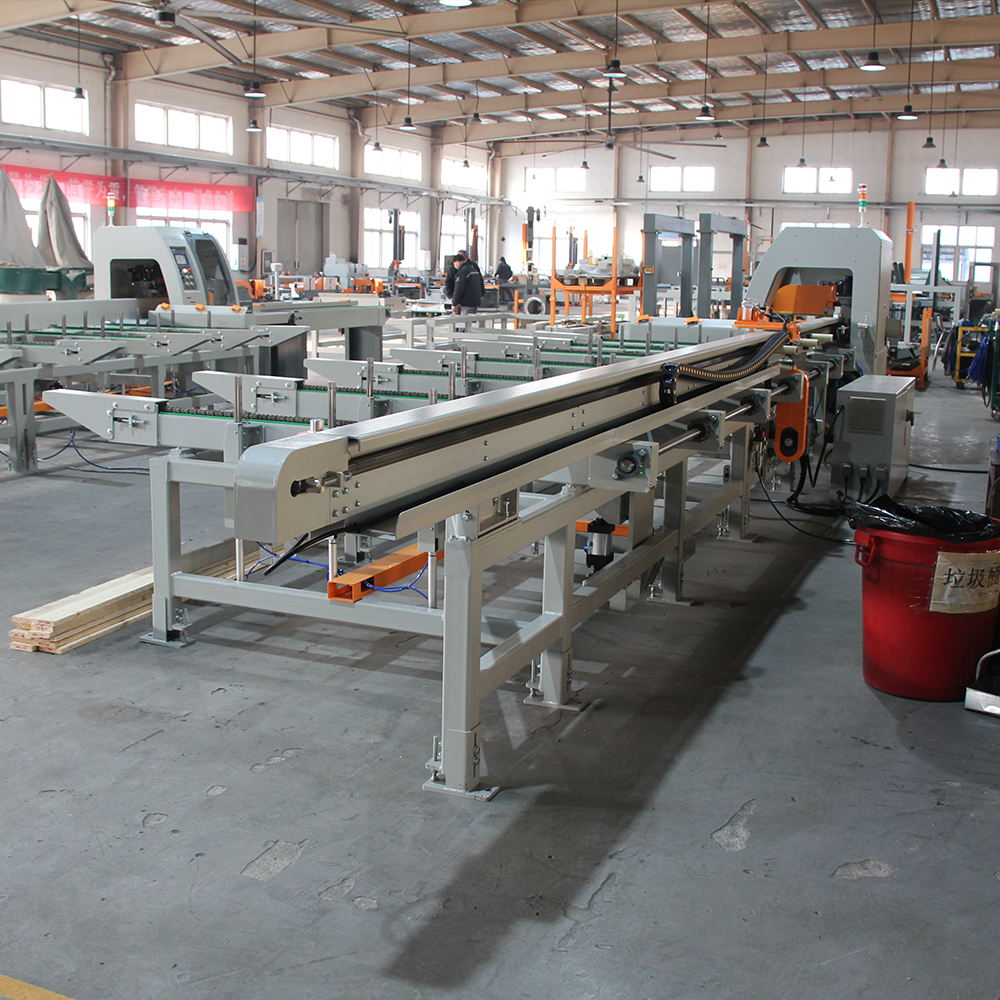

• AUTOMATIC FEEDING UP TO 30 m/min: An automatic feeding platform feeds long timber smoothly and fast — far beyond manual handling.
• DUAL DUST EXTRACTION: Upper and lower 150 mm large-diameter dust ports use the blade's airflow to discharge waste — a cleaner workshop.
• EUROPEAN-TIER CONTROL: Siemens PLC + Schneider electrics — brands you can service and source parts for.

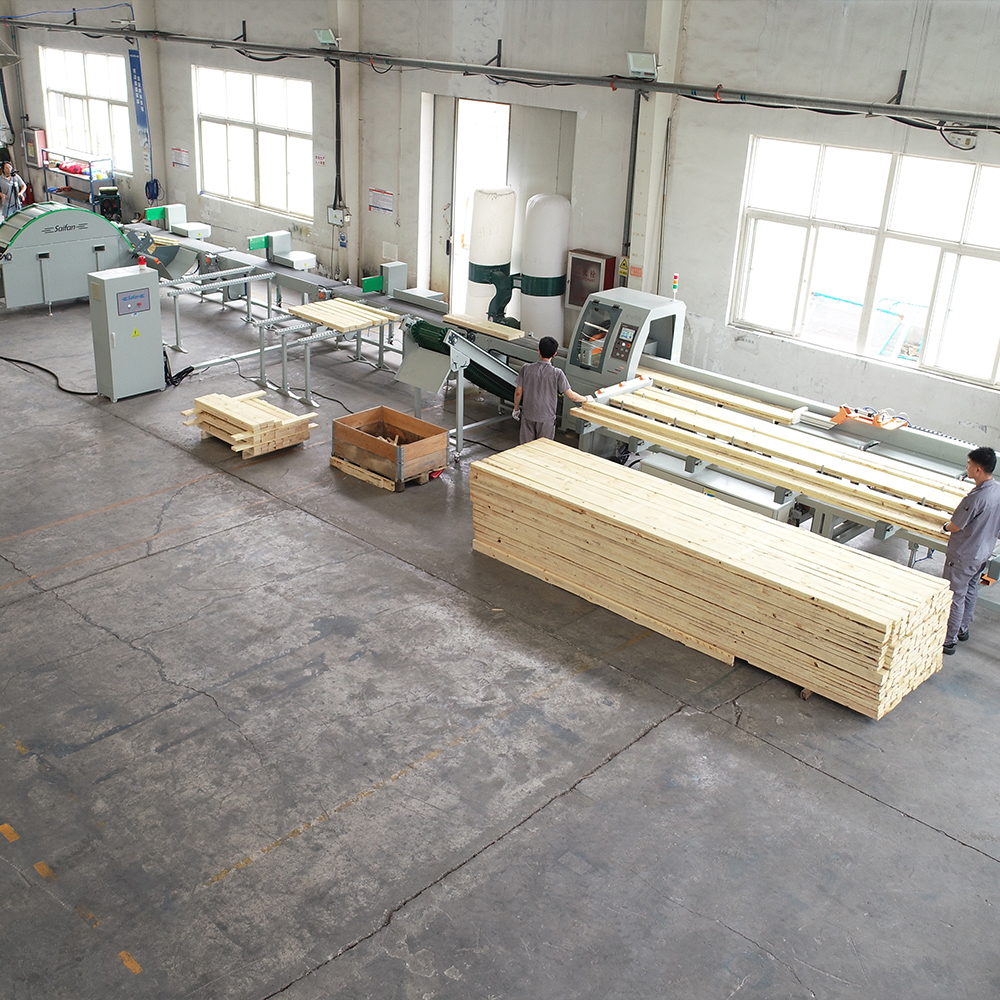

• EXPANDABLE TO A FULL LINE: Add waste elevators, sorting tables, round tables and automatic stackers for a hands-free cutting-sorting-stacking line (processing range 10-6000 mm).

SF6060S delivers ±1 mm servo-controlled cutting with clean burr-free quality, automatic feeding up to 50 m/min and intelligent yield optimization — matching the capability class of premium European cross-cut saws (Salvador, Stromab, Paul), at a fraction of the total cost.

What this means for you:

• ~55-65% lower 5-year TCO at the same precision & automation class
• Higher lumber yield via intelligent photo-eye detection
• Far faster payback + 30-45 day delivery
• Siemens control + Schneider electrics — savings from manufacturing location, not from cutting quality

We don't publish equipment prices because configuration affects final cost. Customized quotation within 24 hours, including a full TCO calculation.

[ Request Customized ROI Quotation ]

Q: How accurate is the SF6060S, and how is the cut quality?

A: ±1 mm cutting tolerance with clean, burr-free cut surfaces, servo-controlled.

Q: How does the smart detection work?

A: A photo-eye detects each board's length; the machine either cuts to your equal-length presets or smart-calculates equal lengths from random-length wood to maximize yield.

Q: How fast is the feeding?

A: Automatic feeding up to 30 m/min, far faster than manual handling.

Q: What's the difference between SF6060 and SF6060S?

A: SF6060 is the basic chop saw (aluminum pusher, 2/4/6 m); SF6060S adds an automatic feeding platform (6 m, 3 kW servo) for higher automation.

Q: What wood and sizes can it cut?

A: Solid wood; cutting thickness 10-150 mm, width 30-300 mm; expandable line handles 10-6000 mm.

Q: Can it be part of a full automatic line?

A: Yes — add sorting tables, waste elevators and automatic stackers for a complete cutting-sorting-stacking line.

Q: What voltage does it need?

A: Standard 380V/50Hz 3-phase — no special electrical upgrade.

Q: What's the delivery time?

A: 30-45 days after order confirmation and deposit.

Q: Do you provide installation?

A: Yes — free on-site installation, commissioning and training by HICAS engineers (buyer covers travel & accommodation, ~3-5 days).

Q: What payment terms do you accept?

A: 30% T/T deposit, LC at sight, and SINOSURE export credit insurance.
