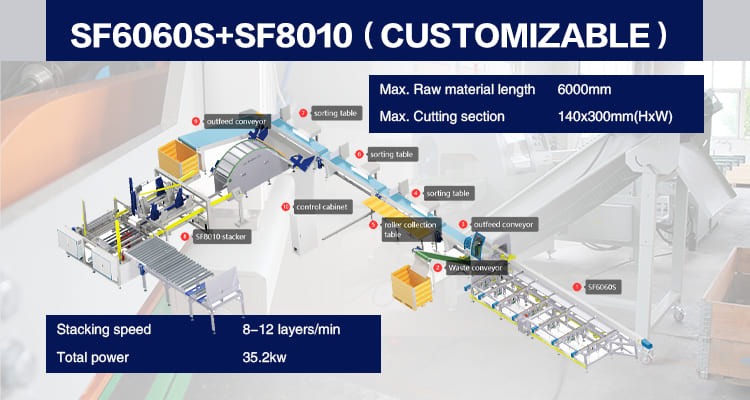

SF6060S+SF8010 high-speed cut-off saw machine delivers precision wood pallet manufacturing with 6000mm max raw material length and 140x300mm cutting section. ISO & CE certified, 35.2kW power for heavy-duty industrial use. Trusted by global manufacturers for efficiency, durability, and seamless integration into production lines. Request technical demo or product specification sheet.
Customized system solutions can be provided according to yourrequirements and floor space.
|
Chain Conveyor for wood stack buffering
|
|
|
Chain conveyor size
|
5000x4300mmx500mm (LxWxH)
|
|
Chain conveyor speed
|
10m/min
|
|
Power
|
4.0kw
|
|

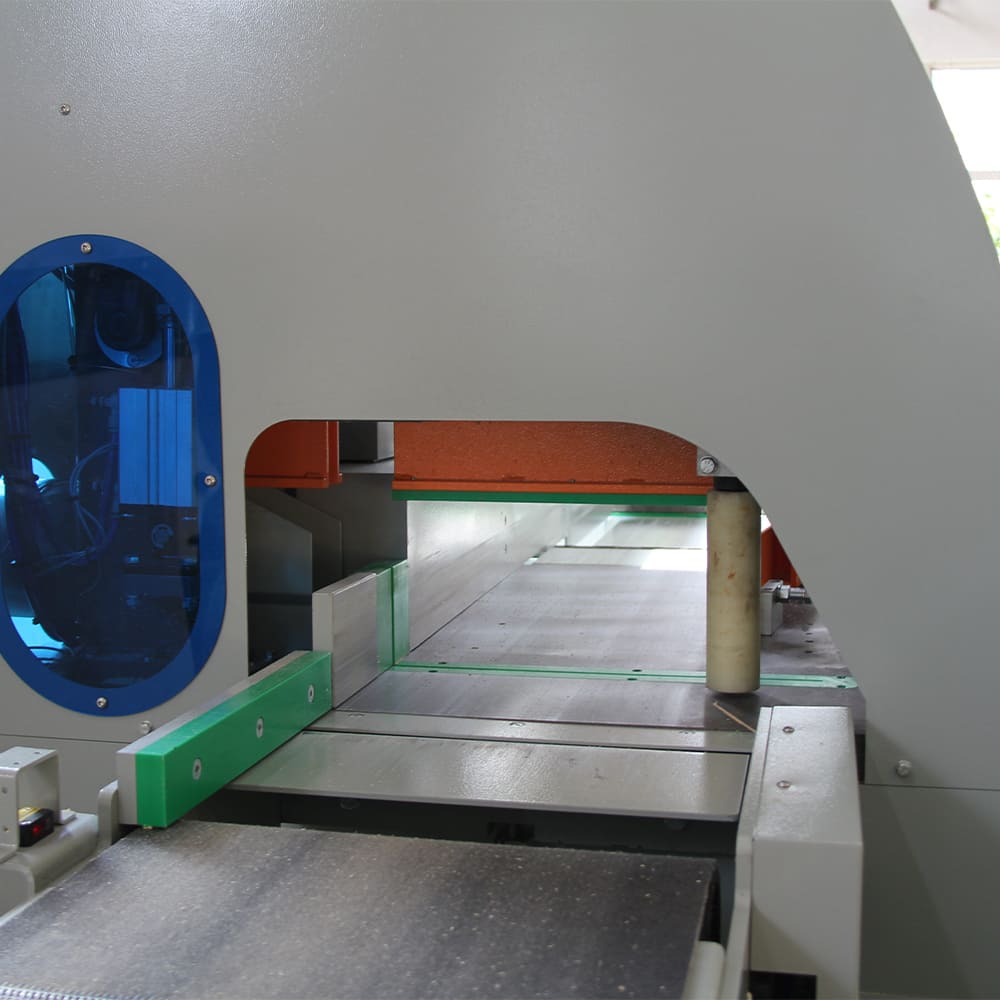

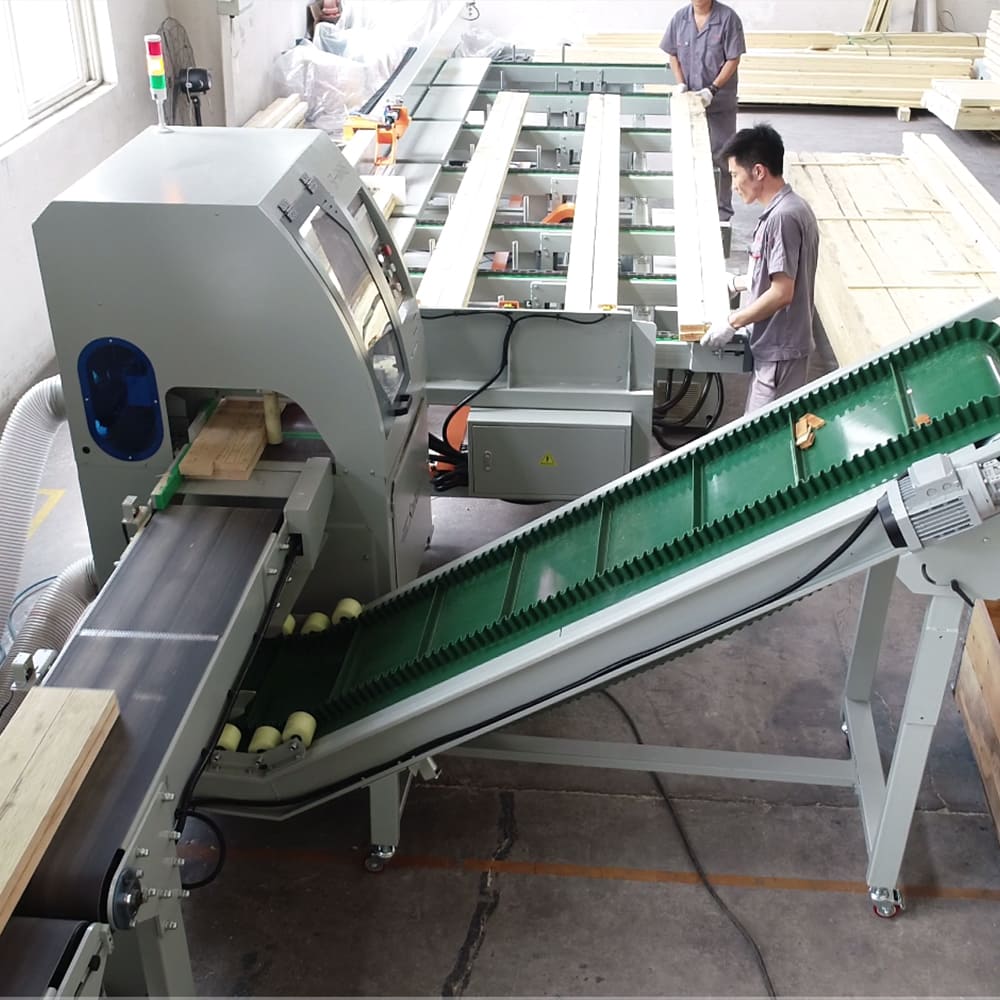

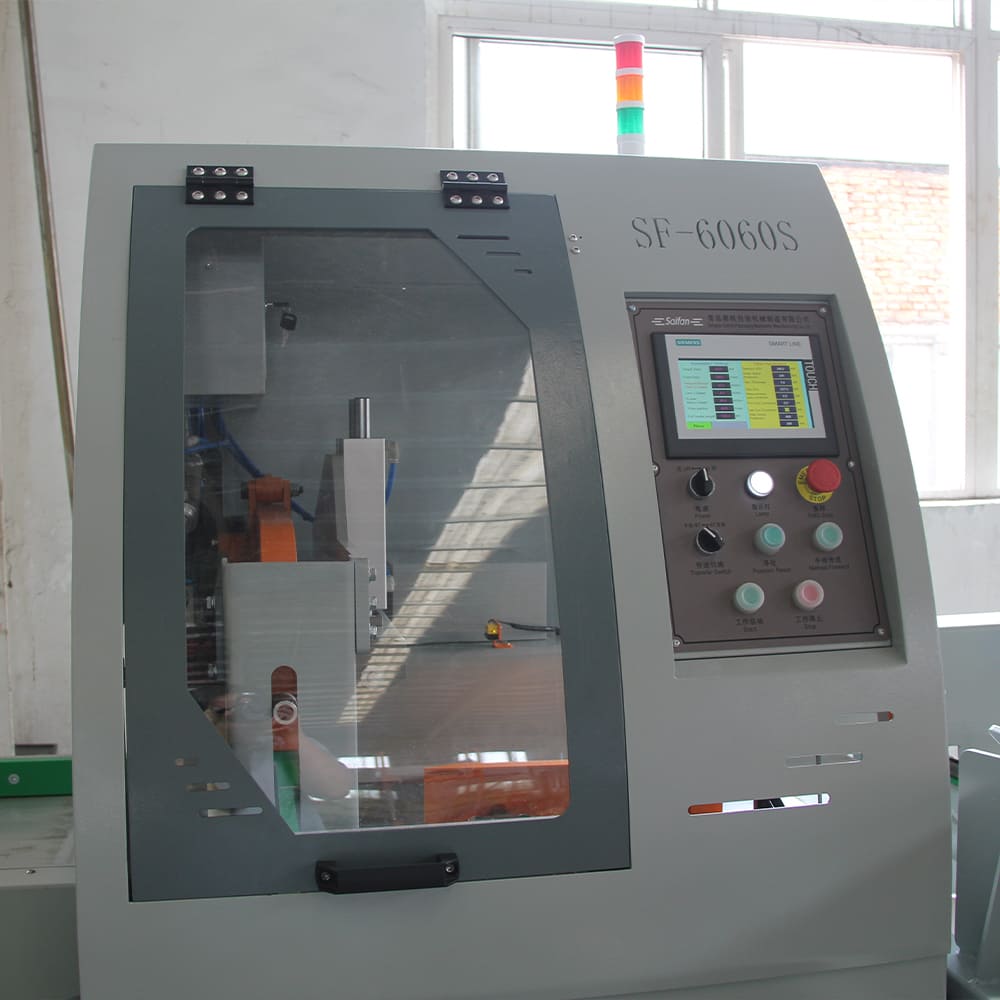

SF6060S automatic cross cut saw with feeding system
|
|
|
Saw blade diameter
|
600*30mm
|
|
Max wood length
|
6000mm
|
|
Cutting thickness
|
10-150mm
|
|
Cutting width
|
30-300mm
|
|
Max Cutting section
|
Max.150*280mm
|
|
(Thickness*width)
|
Max. 140*300mm
|
|
Feeding speed
|
0-30m/min
|
|
Pressing method
|
Cylinder, air pressure 0.6-0.8Mpa
|
|
Cutting tolerance
|
+/-1mm
|
|
Cutter spindle rotation speed
|
2850rpm
|
|
Servo drive motor power
|
3kw
|
|
Feeding motor power
|
2.2kw
|
|
Cutting motor power
|
11kw
|
|
Total power
|
16.2kw
|
|
Voltage
|
380v 50hz 3phase
could customize as per customer local voltage |
|
Dust collection port
|
150mm*2pc
|
|
Electrical components
|
Schneider
|
|
PLC Touching screen
|
Siemens
|
|
Machine space
|
10000*2500*1600mm
|
|
Package&shipment
|
Require 1x20’GP
|
|
Weight
|
3300kg
|
|

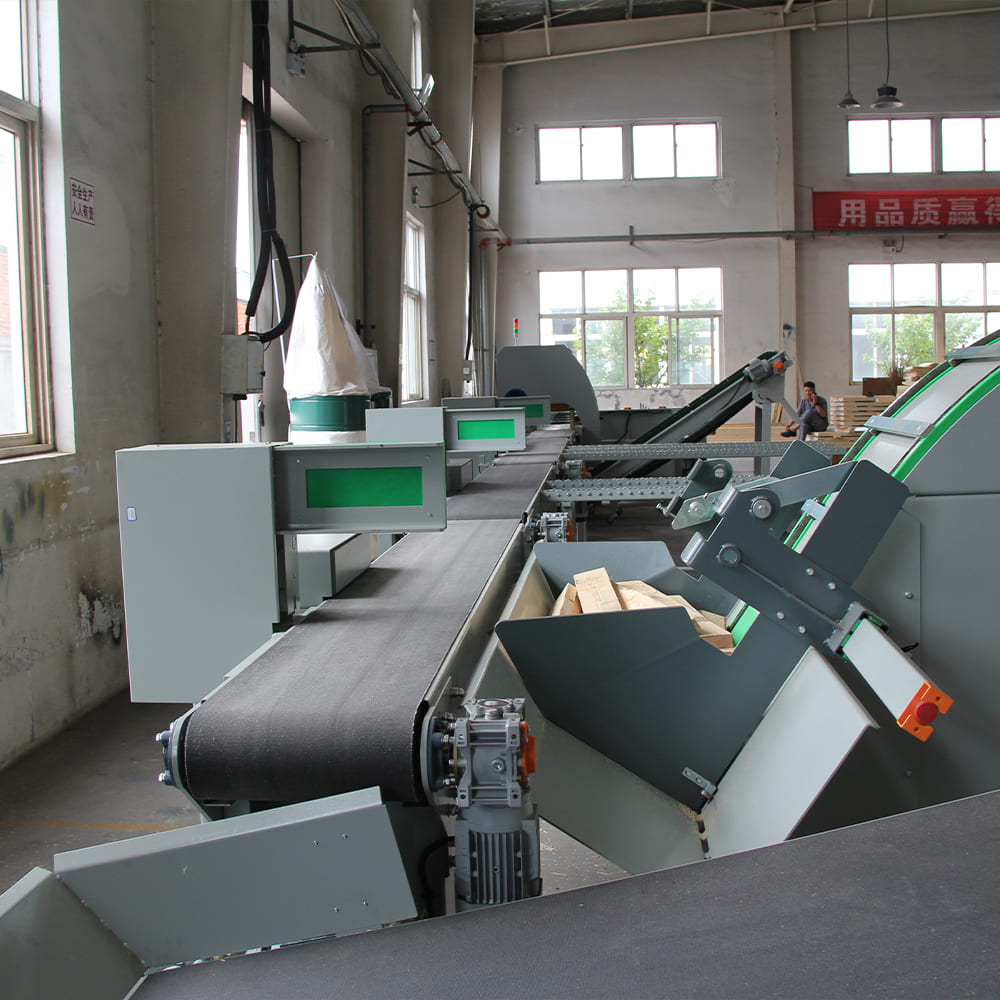

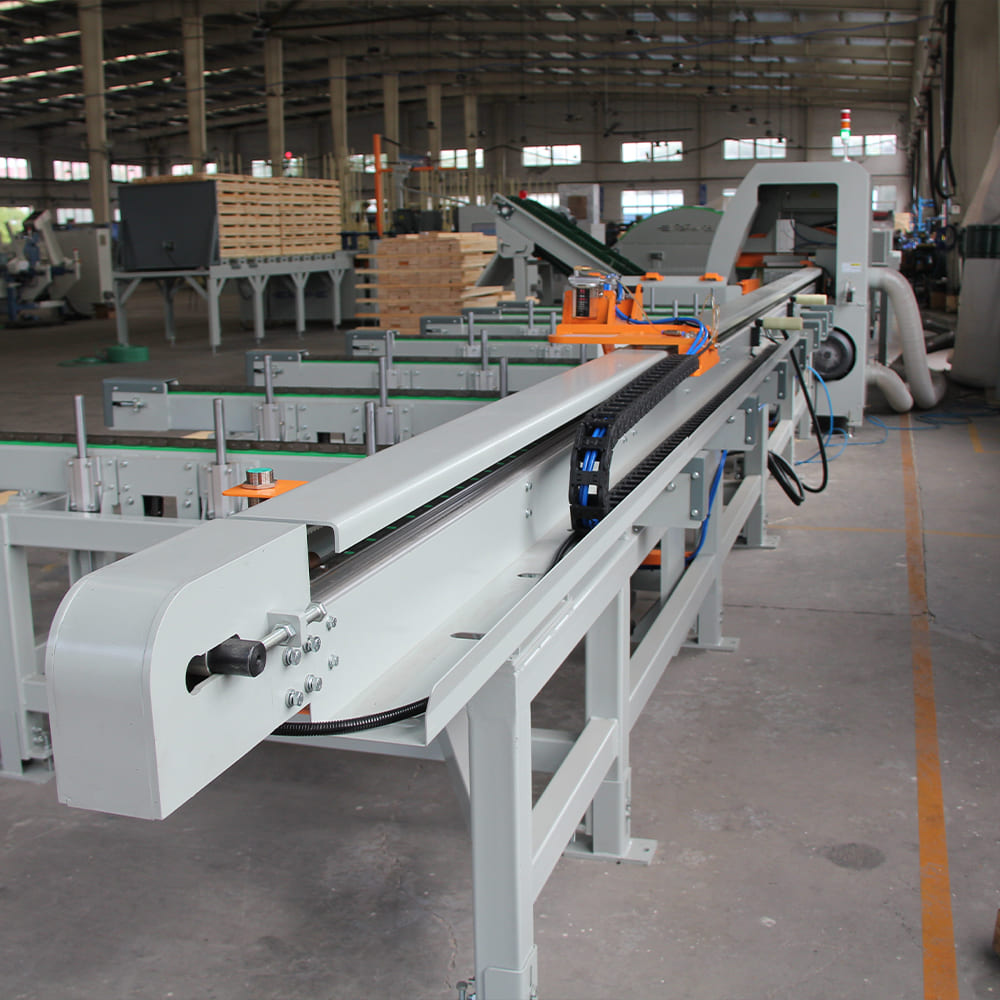

Multi lengths Sorting Belt conveyor
|
|
|
Total Power
|
3.0 kw
|
|
Outfeeding position 1
|
0-150mm the waste wood
|
|
Outfeeding position 2
|
400-3000mm
|
|
Outfeeding position 3
|
400-2000mm
|
|
Outfeeding position 4
|
800-1500mm
|
|
Outfeeding position 5
|
150-600mm
|
|
Belt conveyor width
|
380mm
|
|
Belt conveyor length
|
1.8m for the 1st conveyor and 3m for the following conveyor.
|
|

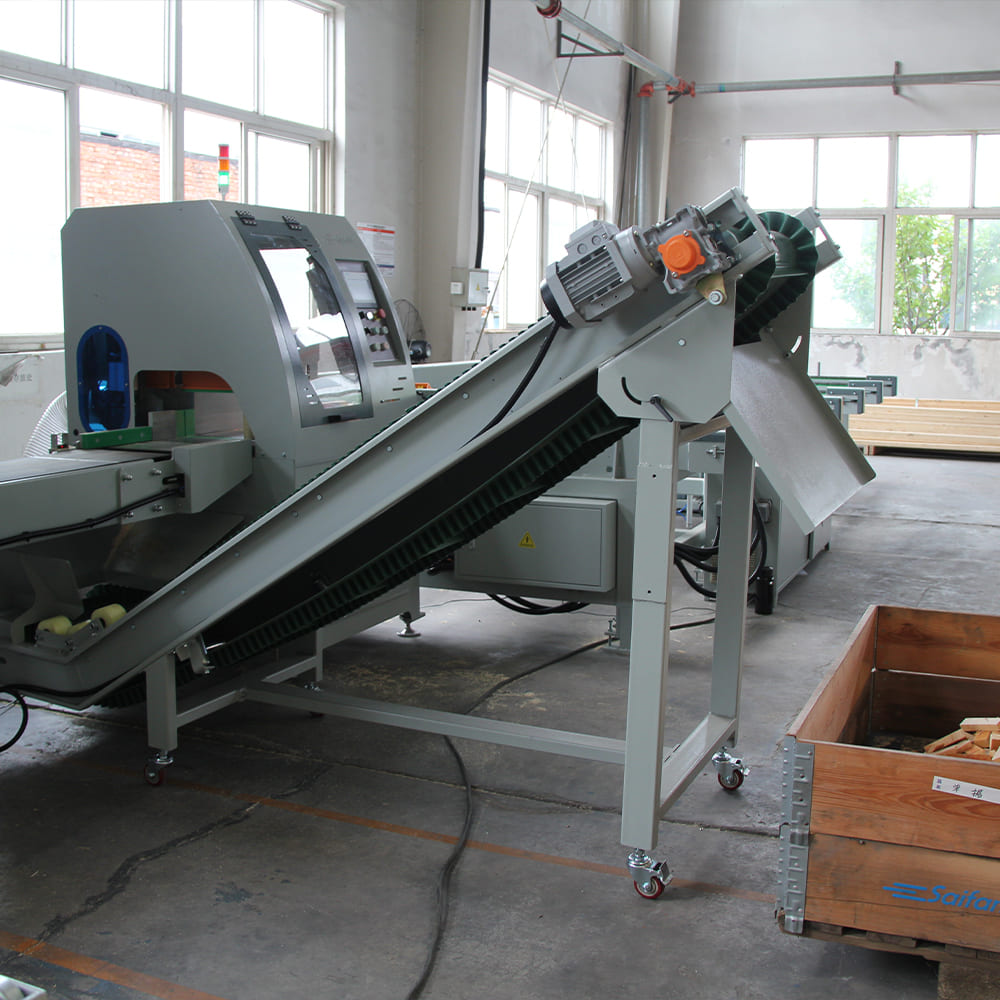

Lifting conveyor for waste size
|
2753x610x1606mm (LxWxH)
|
|
Lifting coveyor at position 5
|
3271x950x1119mm (LxWxH)
|
|
Skate rail size
|
2000x939mm (LxH)
|
|
SF8010/SF8012 Automatic Stacking machine
|
|
|
Wood length
|
800-1500mm SF8010
900-2000mm for SF8012 |
|
Wood width
|
50-200mm
|
|
Wood thickness
|
15-100mm
|
|
strip board thickness
|
10-38mm
|
|
strip board width
|
25-150mm
|
|
strip board length
|
800-1200mm
|
|
Stack height
|
Max. 1100mm
|
|
Stack width
|
800-1200mm
|
|
Stack length
|
800-1500mm
|
|
Power
|
12kw
|
|
Voltage
|
380v 50hz 3phase
could customize as per customer local voltage |
|
Air pressure
|
0.6-0.7MPA
|
|
Strip board feeder
|
3pc
|
|
Outfeeding roller conveyor
|
4m length
|
|
Machine height
|
830-930mm
|
|
Machine space
|
8700*6700*2730
|
|
Machine weight
|
3750kg
|
|
Total line size
|
20.5mx10m
|
|
Total line power
|
35.2kw
|
|
Electrical components
|
Schneider
|
|
PLC Touching screen
|
Siemens
|
1. Automatic Sorting
Wood of different lengths can be automatically sorted and stacked through an integrated program.
2. Flexible Cutting
Each piece of wood can be cut into 8 different lengths, and the number of wood of the same length is unlimited.

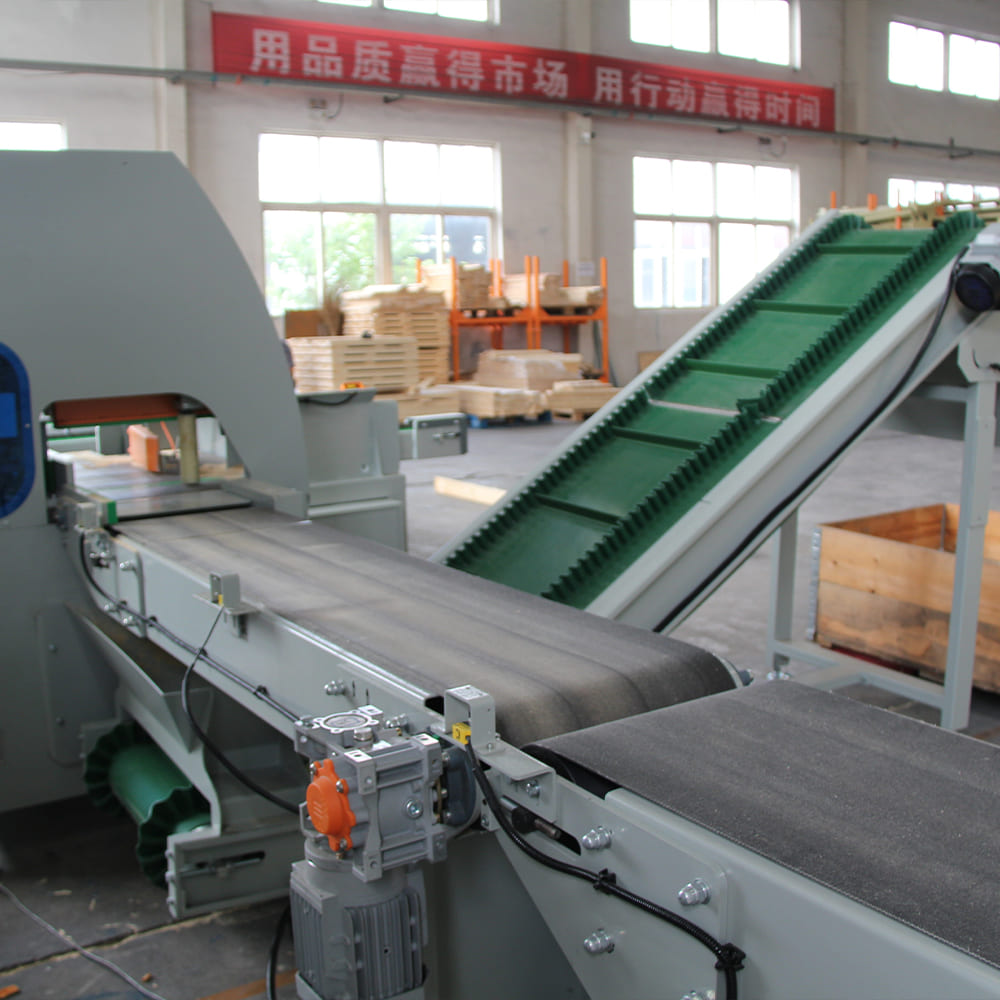

3. Automatic Unloading
Waste is automatically output through a lifting conveyor.
4. Labor Saving
Only 1-2 operators are required for the entire production line.
5. Flexible Configuration
Customized system solutions can be provided according to your needs and floor space.
6. Touch Screen Control
PLC touch screen control unit.
A: Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.
A: Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.
A: Common spare parts can be delivered by express within one week. Some parts can be purchased locally.
A: 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.
A: Our machines have been sold to more than 160 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.
A: Our machines can be customized made according to buyers’ request.
A: We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.
A: Our system supports common languages like Chinese, English, Russian, Spanish.
