SF7013 Double-Head Stringer Notching Machine

Installation & Support

• English manual + operation video + electrical drawings — self-install with free online support
• 12-month warranty (from B/L date); free parts & online service in year 1 (excludes wear parts: blades, cutters, belts, small electricals)
• Optional spare parts package available for minimal downtime
• Indexable cutter heads available from us or locally
• Lifelong technical responsibility
• CE certified · ISO9001
• Flexible payment: T/T 30% deposit · LC at sight · SINOSURE supported

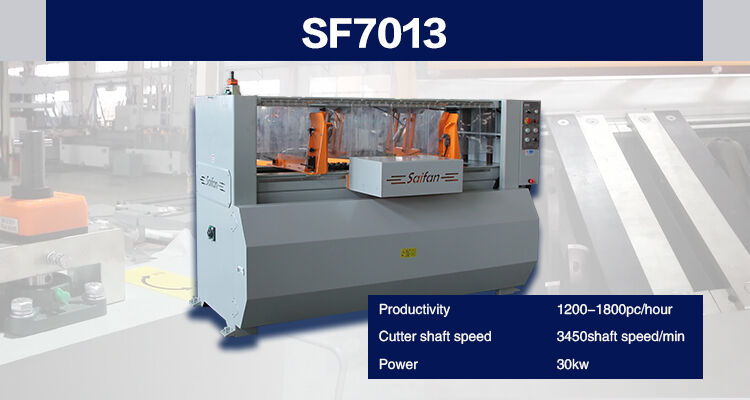

SF7013 DOUBLE-HEAD STRINGER NOTCHING MACHINE — American 9" Notch · 1,200-1,800 pcs/h · ≤1 mm Tolerance

Turn solid stringers into notched stringers for true four-way-entry American GMA pallets — fast, accurate, with a single operator.

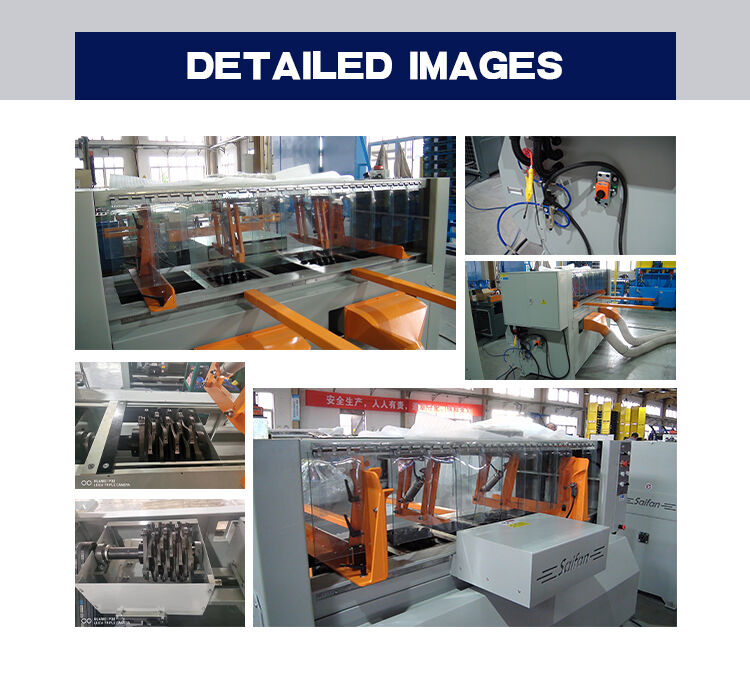

Double-head notcher · 228.6 mm (9") notch width · 30 kW cutting power · indexable cutters · lifting table for adjustable depth.

• 228.6 mm (9") notch width — American GMA standard
• 1,200-1,800 stringers per hour, ≤1 mm tolerance
• During usage no need to change cutter, Only replace with cutter heads
• Notch depth adjustable to 70 mm via lifting table
• One operator, 30 kW dual-motor cutting power

[ Request Customized Quotation ]

Notches are what turn a two-way stringer pallet into a true four-way-entry pallet — the format North American and global logistics chains demand.

• ENABLE FOUR-WAY ENTRY: Cut the notches that let forklifts enter from all four sides — essential for GMA 48"×40" and American-style stringer pallets.
• PRECISION THAT FITS: 228.6 mm (9") notch width and ≤1 mm tolerance mean consistent, spec-compliant notches every stringer.
• IN-HOUSE NOTCHING: Produce notched stringers yourself instead of buying them in — control cost, quality and supply for your stringer pallet line.

• DOUBLE-HEAD, 30 kW CUTTING POWER: Two 15 kW cutting motors (30 kW total) drive double-head notching at 1,200-1,800 stringers per hour.
• INDEXABLE CUTTERS — LOWER RUNNING COST: Each cutter holds 4 heads, each with 2 cutting edges. When an edge dulls, rotate to the next — every head used twice before replacement. Buy heads from us or locally.
• 228.6 mm (9") NOTCH WIDTH: Adjust the number of cutters to set notch width up to 228.6 mm — matching the American GMA stringer standard.
• ADJUSTABLE NOTCH DEPTH TO 70 mm: A lifting work table sets notch depth up to 70 mm — quick, tool-free adjustment.
• INTUITIVE CONTROL PANEL: An operator control panel runs the notching cycle for repeatable, accurate results with a single operator.
• DUAL DUST EXTRACTION: Two 150 mm dust ports keep the work area clean and protect operators.

Notched stringers are the gateway to four-way American pallets. Producing them in-house with the SF7013 controls cost, quality and supply — and the indexable cutter system keeps running costs low.

What this means for you:

• Make four-way pallets — notch in-house, win GMA contracts
• 1,200-1,800 stringers/hour at ≤1 mm precision
• Lower cutter cost via indexable rotate-don't-replace design
• Control supply — no dependence on bought-in notched stock

We don't publish equipment prices because configuration affects final cost. Customized quotation within 24 hours.

[ Request Customized Quotation ]

Voltage Compatibility

Standard 380V/50Hz/3-phase. Voltage configurable to your local power supply on request.

Proven in Demanding Markets

Delivered to pallet producers in the UAE, Russia, Ireland, Saudi Arabia, Mexico, Latvia, Australia, South Korea, Argentina, Oman, Egypt, Peru, Ecuador and Vietnam — field-proven across diverse climates, power grids and pallet standards.

Q: What does the SF7013 do?

A: It cuts notches into stringers, turning them into notched stringers for four-way-entry American (GMA) pallets.

Q: What notch width and depth can it produce?

A: Notch width up to 228.6 mm (9", set by cutter quantity); notch depth up to 70 mm via the lifting work table.

Q: How fast is it?

A: 1,200-1,800 stringers per hour, with a single operator and ≤1 mm tolerance.

Q: What are indexable cutters?

A: Each cutter holds 4 heads with 2 cutting edges each — rotate to a fresh edge instead of replacing the cutter, doubling head life and cutting running cost. Heads available from us or locally.

Q: What wood sizes does it handle?

A: Wood length 800-1,500 mm, thickness 30-50 mm, height 80-120 mm.

Q: How is dust handled?

A: Two 150 mm exhaust ports keep the work area clean.

Q: What voltage does it use?

A: Standard 380V/50Hz 3-phase, configurable to your market.

Q: What's the delivery time?

A: 35 working days after order confirmation and deposit.

Q: What payment terms do you accept?

A: 30% T/T deposit, LC at sight, and SINOSURE export credit insurance.
