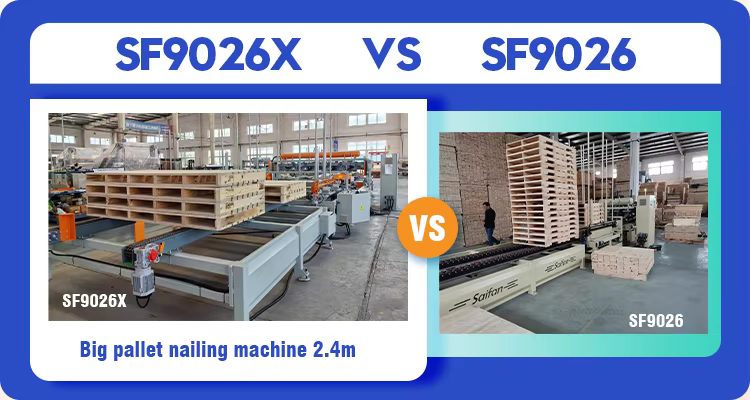

Model
|
SF9026X
|
|
Operator
|
1 operator
|
|

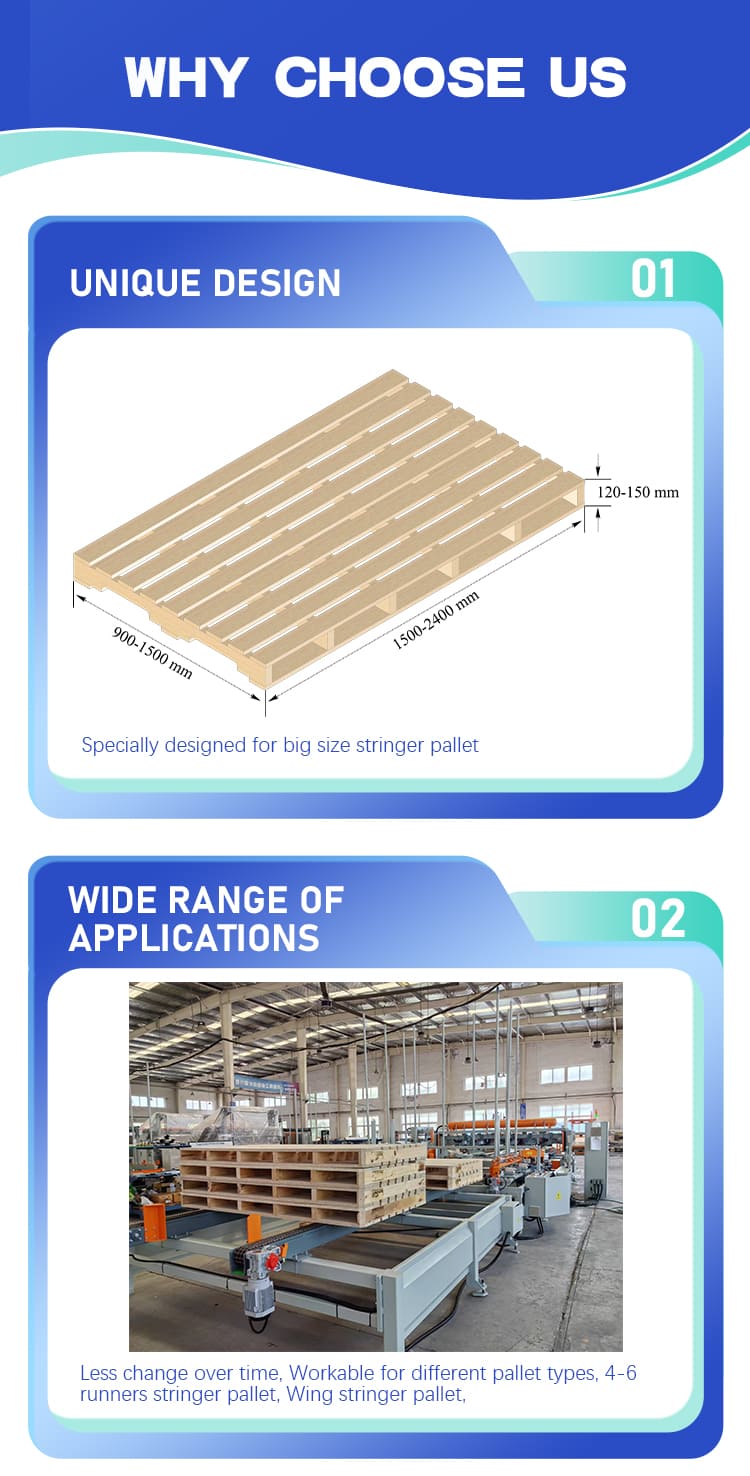

Pallet length
|
900-1500mm
|
|
Pallet width
|
1500-2400mm
|
|
Pallet height
|
120-150mm
|
|
Stringer width
|
35-70mm
|
|
Nailing gun distance
|
Min. 170mm
|
|
Nail distribution
|
Straight line
|
|
Stringer quantity
|
3-6pc
|
|
Stringer height
|
Min. 50mm
|
|
Productivity
|
30-40 pallets/h/2 workers
|
|
Nailing gun
(Brand Everwin or other brand) |
4pc N70/N80 choose one
1-3pcs nails adjustable, Photoelectricity testing for the nailing position. |
|
Coil nails
|
1000-2200 nails/coil
N70: Nail diameter 2.3-2.8mm, length 45-70mm N80: Nail diameter 2.5-3.3mm, length 50-80mm |
|
Stacking table
|
Hydraulic table, max. Loading weight 1500kg.
Max. Stacking height 2800mm Each side 2 heaters for stamping |
|
Out-feeding table
|
4m length
|
|
Total power
|
16.6kw
|
|
Voltage
|
380v 50hz 3phase
|
|
Air pressure
|
0.65-0.8MPa
Max. Distance between air tank (Prepare by buyer min. 1m3 volume) and machine is 5m |
|
Air consumption
|
0.6m3/min
|
|

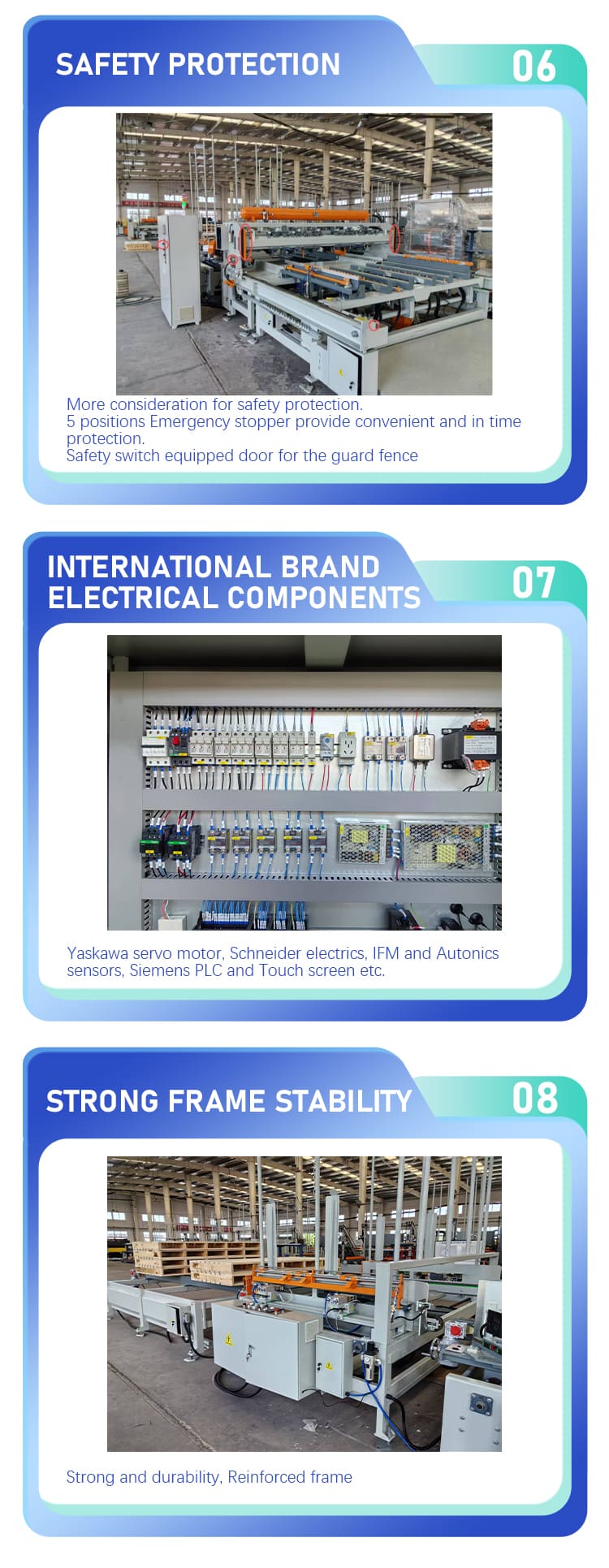

Electric components
|
Schneider brand
|
|
Pneumatic components
|
Taiwan AirTac brand
|
|
Sensor
|
Germany IFM sensors, Korea Autonics detection switches
|
|
Dynamical
|
Japan Yaskawa Servo-motor and Servo Driver
|
|
Machine size
|
11*4*4m
|
