Recommended Applications for SF8010 Panel Stacking Line

Application: Tailored for wooden packaging and pallet material preparation.

Core Features: Auto timber alignment, automatic spacer placement, and layer stacking.

Performance: High-speed stacking (5-10s/layer) with stable, high-efficiency operation.

Value: Essential tool for timber producers to boost efficiency and reduce costs.

Applicable Scenarios:

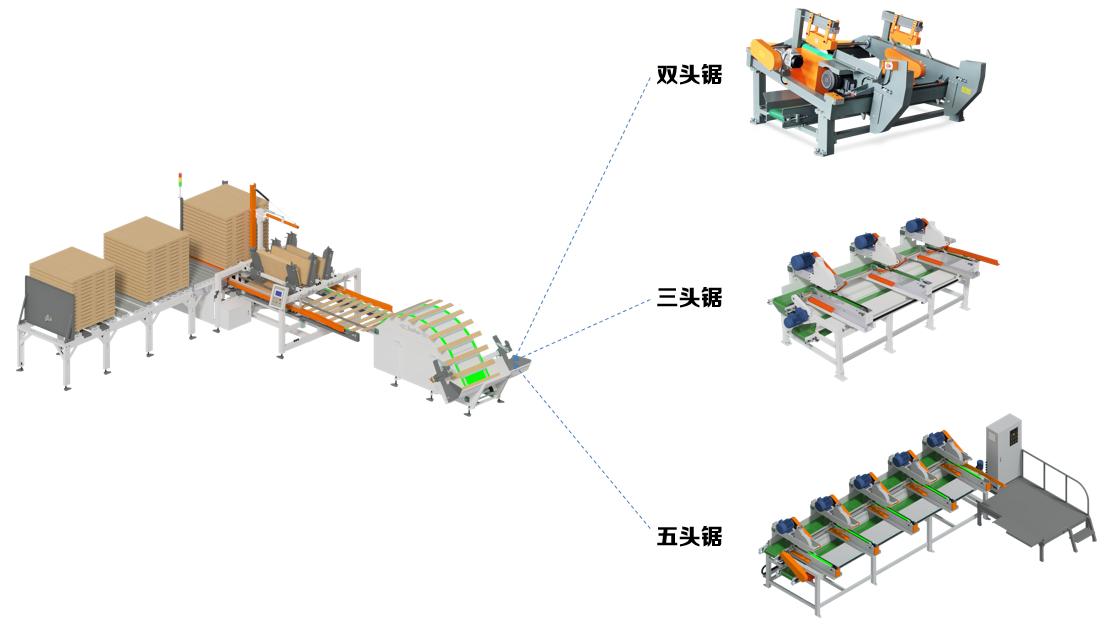

Double-head / Triple-head / Five-head saws, etc.

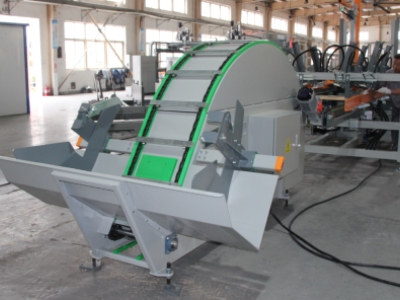

After cutting, the material drops directly into the inlet hopper, where the climbing conveyor automatically organizes and aligns the timber.

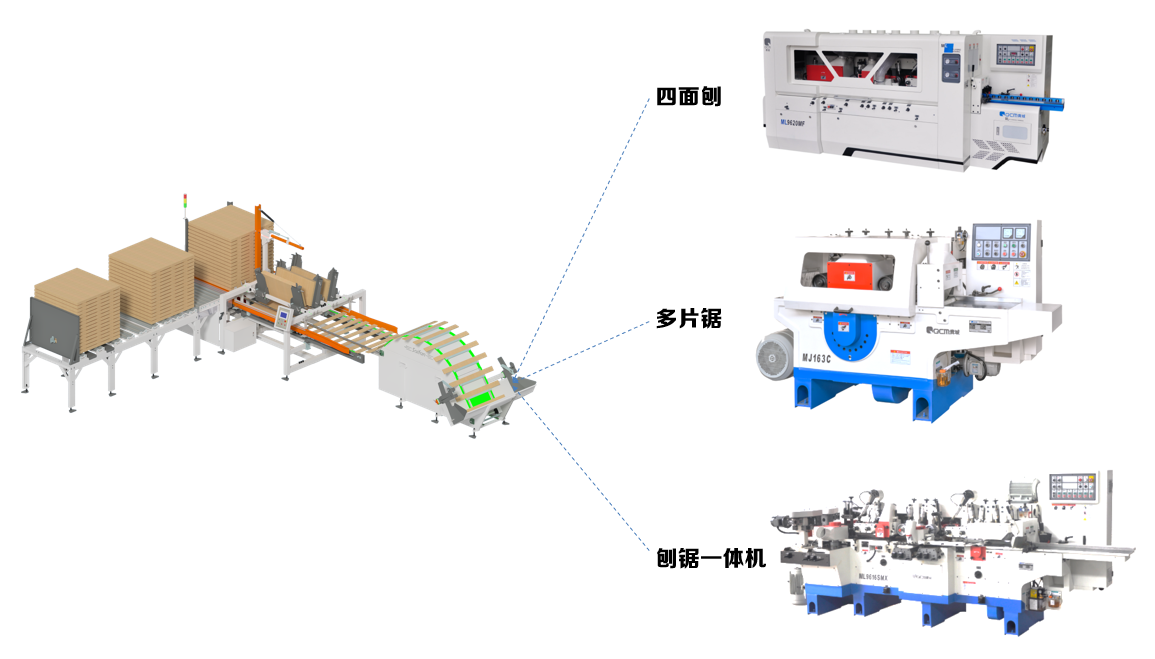

Multi-blade Saws / Integrated Planing & Sawing Machines / Four-side Planers, etc.

Supports standalone or multi-unit linked operation. (Note: Uniform dimensions required for stacking.)

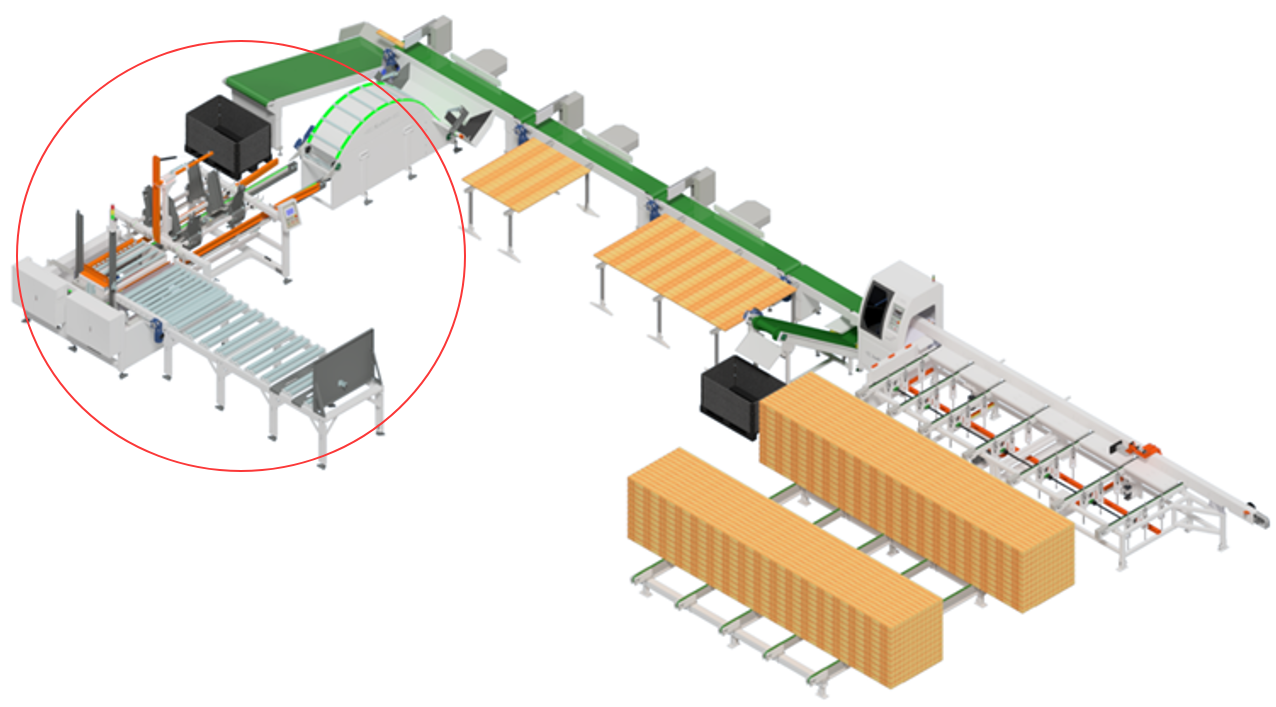

Intelligent Production Line Recommendation 1 (CNC Cut-to-Length Sawing + Automatic Sorting + Stacking)

Automatically sorts the required lengths for stacking based on user requirements; other dimensions can be manually organized.

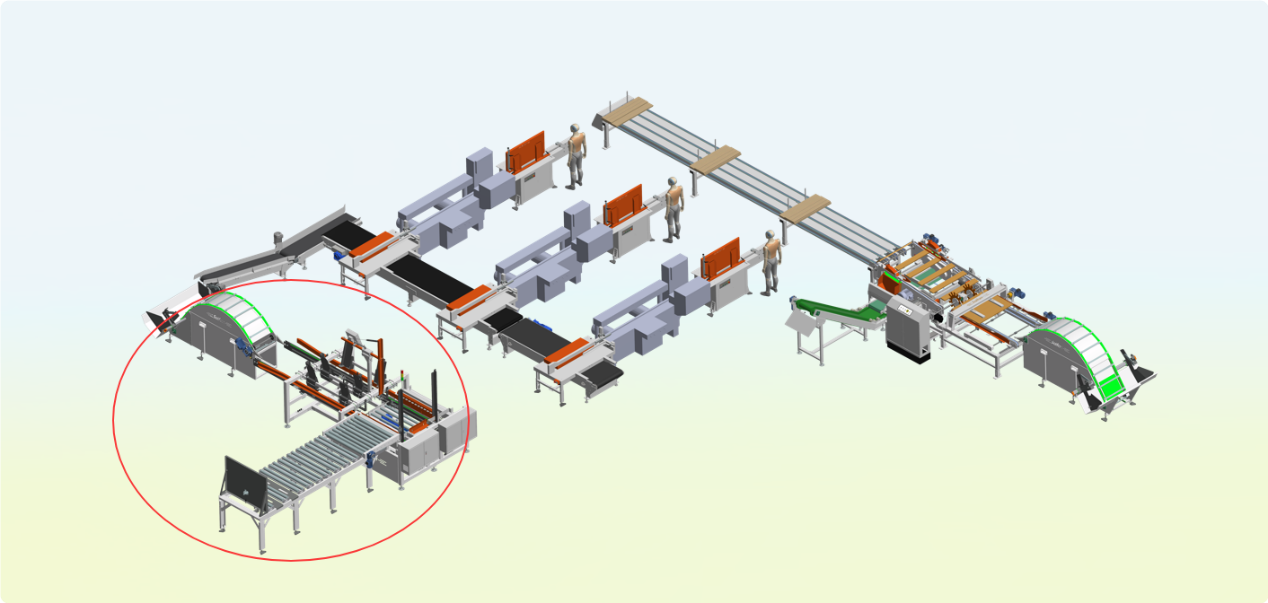

Intelligent Production Line Solution 2 (Double-head Sawing + Four-side Planing + Auto Stacking)

Optional "High-speed Double-end Trim Saw" configuration based on capacity requirements; direct downstream integration with multiple planer units enables continuous inline production.

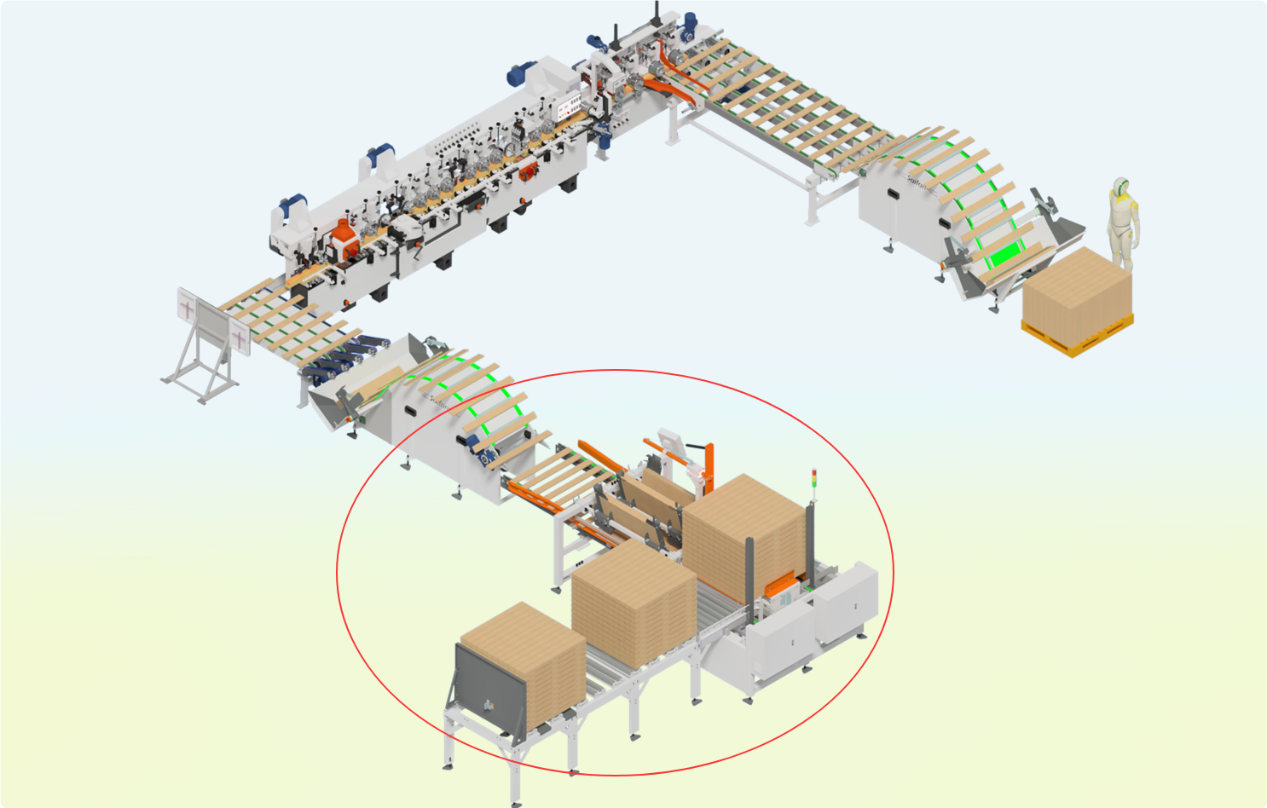

Intelligent Production Line Solution 3 (High-speed Four-side Planing + Auto Stacking)

Compatible with four-side planers (≤150 m/min) for inline operation.

Intelligent Production Line Solution 4 (High-speed Sawing + Auto Stacking)

A double-head sawing efficiency of 1 piece per second paired with an automatic stacker truly reduces labor and increases productivity.

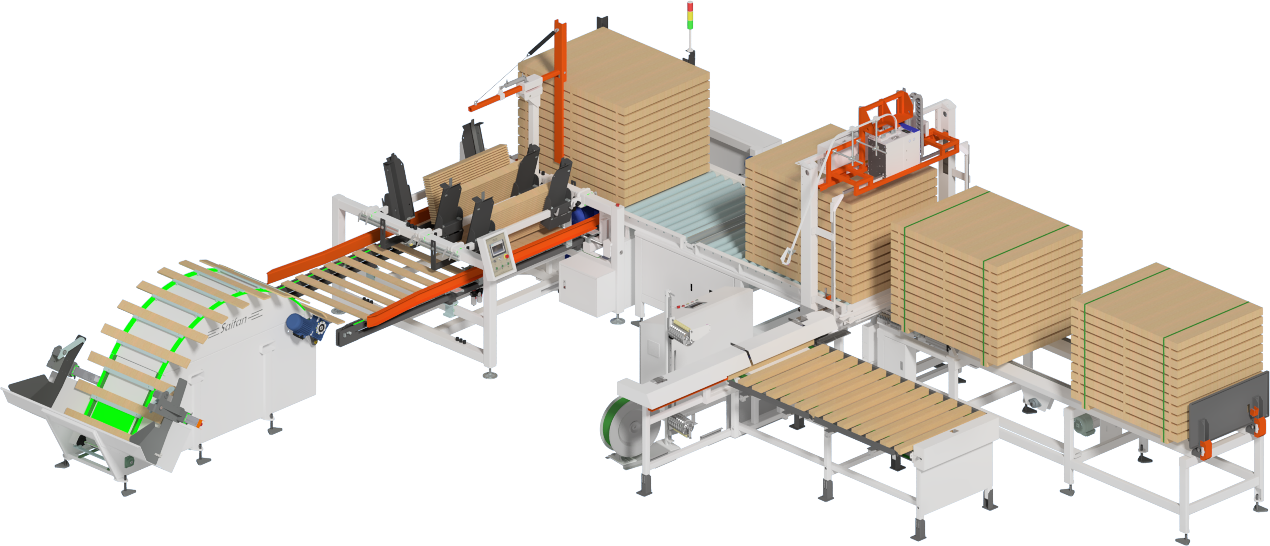

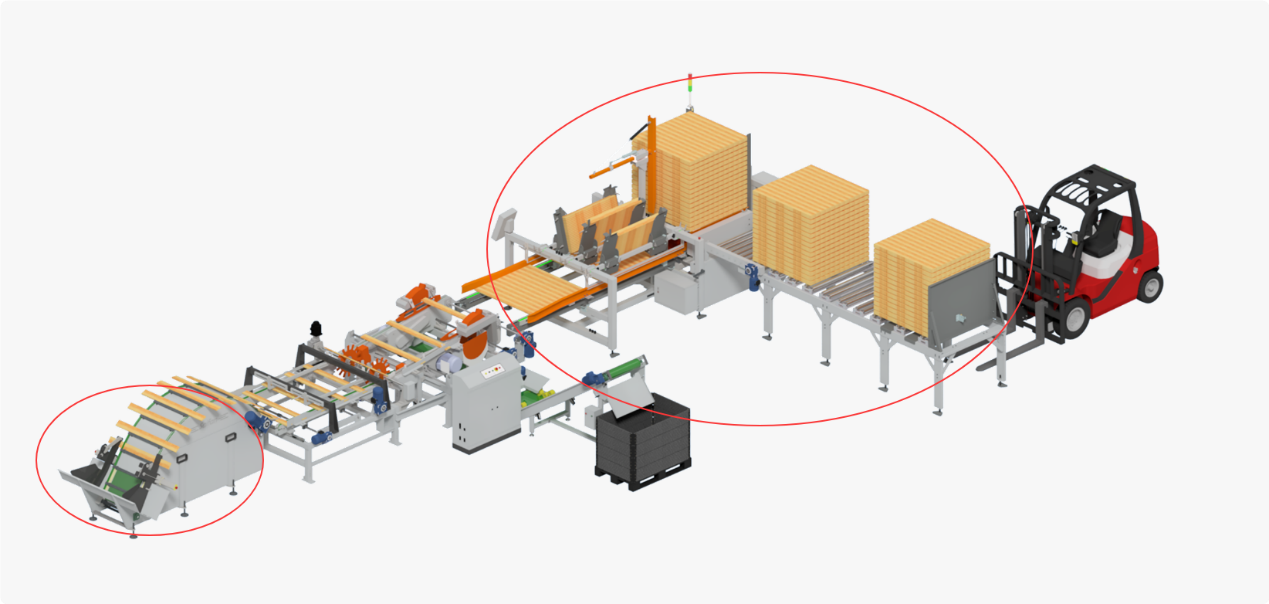

Intelligent Production Line Solution 5 (Auto Stacking + Auto Packing)

Optional automatic strapping system with automatic conveying and strapping.

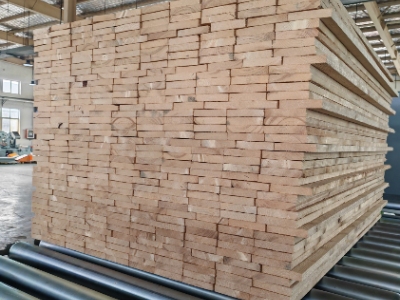

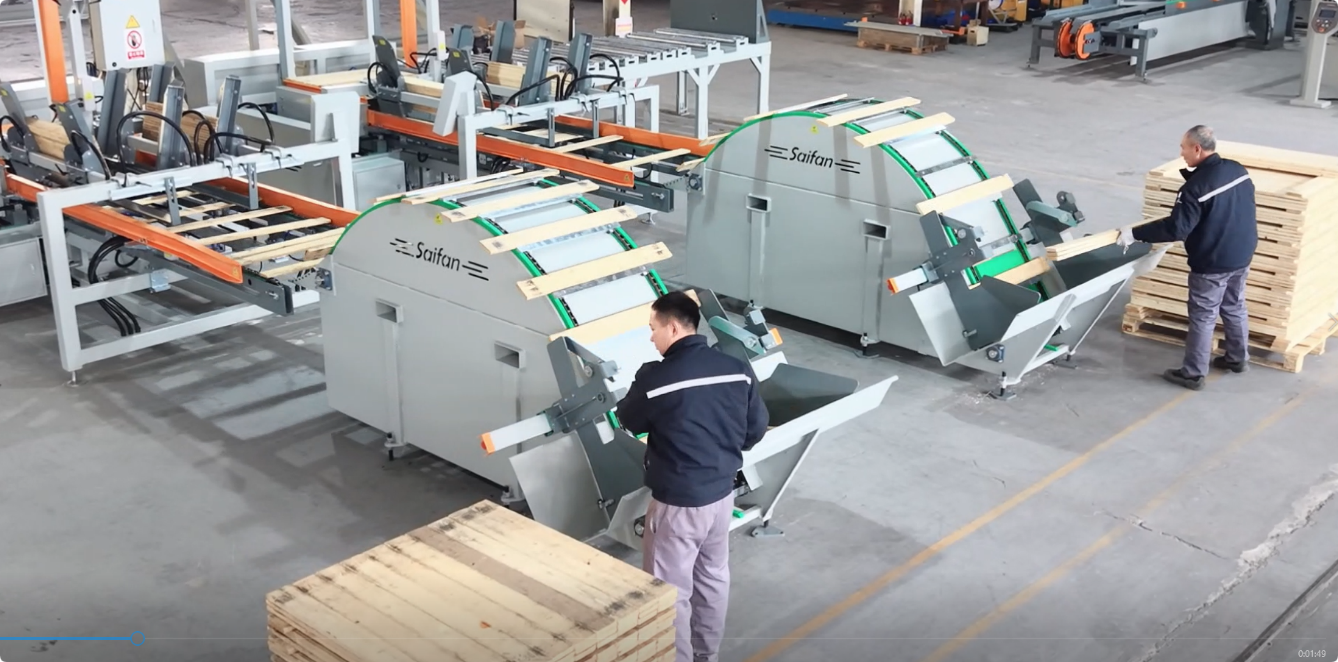

Real-life Demonstration

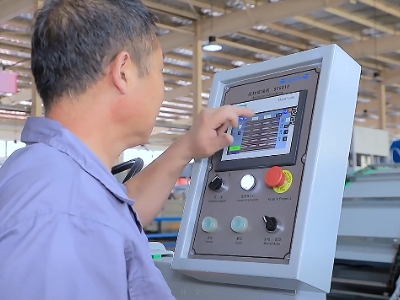

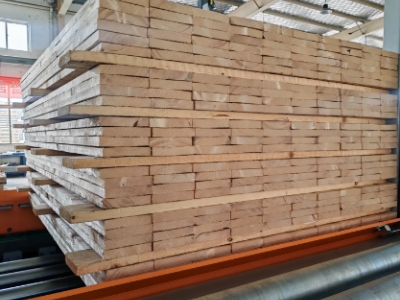

CNC Operation	Spacer Mode	Staggered Mode

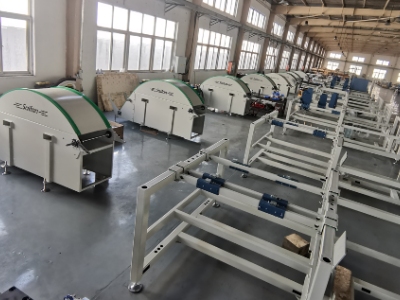

Mass Production	Superior Workmanshi	Quality Guaranteed

Procurement Recommendations ：These are the target applications for the SF8010 Panel Stacker. Please select the appropriate configuration based on the timber specifications below. For more equipment information, please contact us...

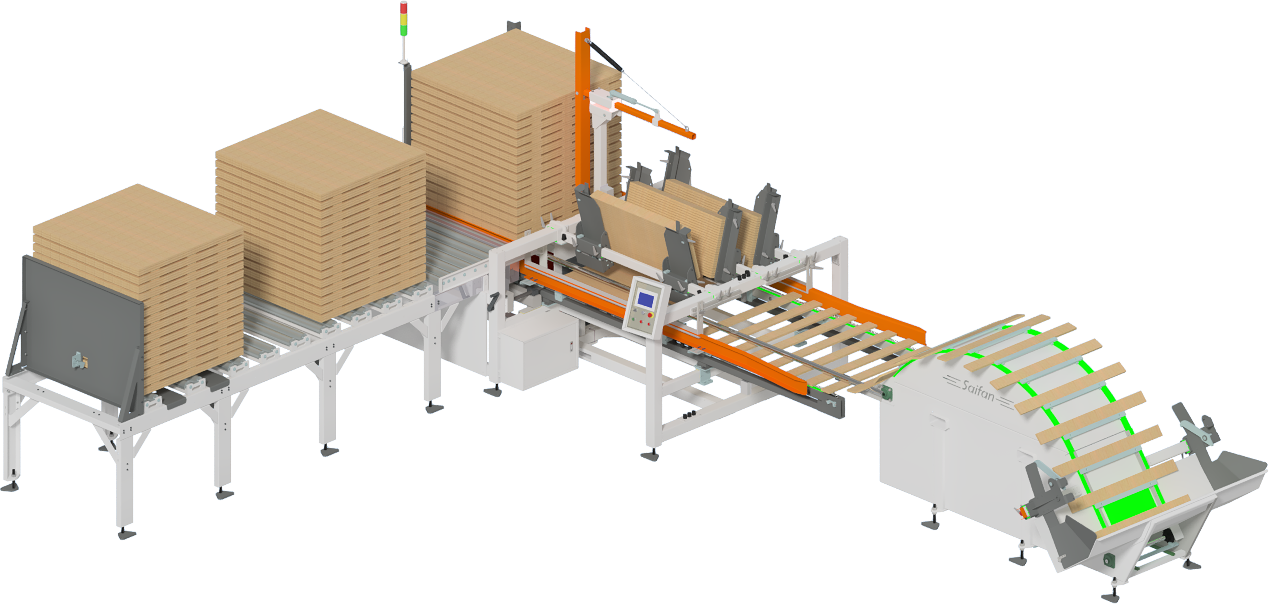

SF8010 Panel Stacker Technical Specifications

• Model: SF8010
• Operation Mode: CNC / Automatic
• Stacking Length: 850–1500 mm
• Stacking Width: 800–1200 mm
• Stacking Height: 0–1100 mm
• Single Plank Length: 800–1500 mm
• Single Plank Width: 50–200 mm
• Single Plank Thickness: 15–100 mm
• Width-to-Thickness Ratio: 3:1
• Efficiency: 3–4 min/m³ (5–10 s/layer)
• Total Power: 12 kW
• Required Operators: 1–2 persons
• Footprint (L×W×H): 8.6 m × 6.3 m × 2.7 m
