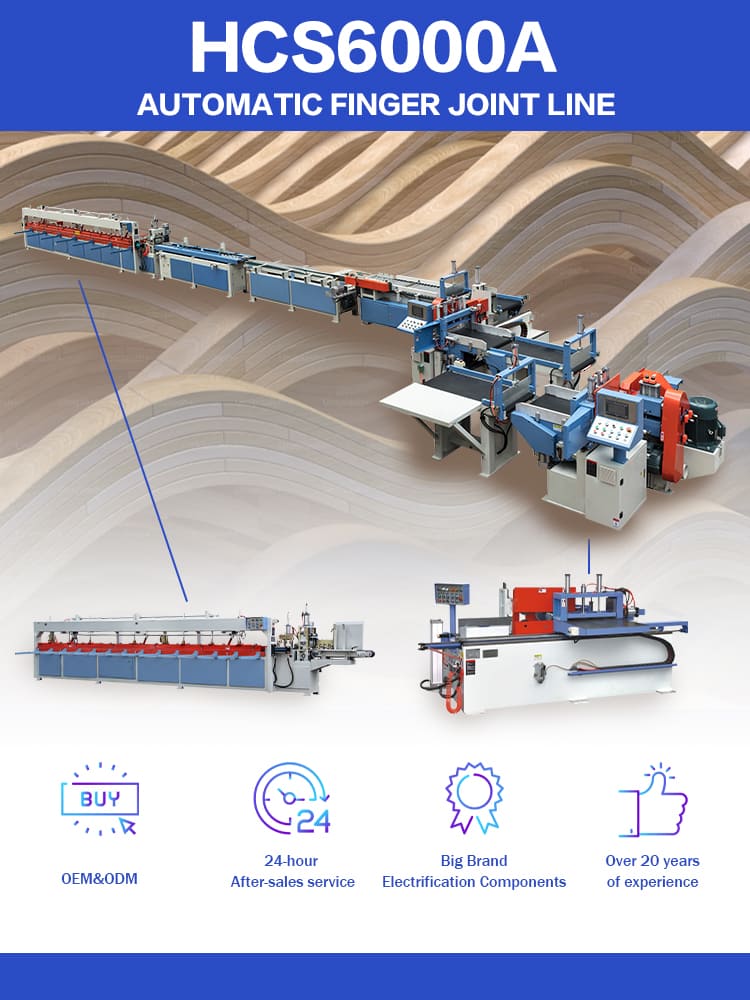

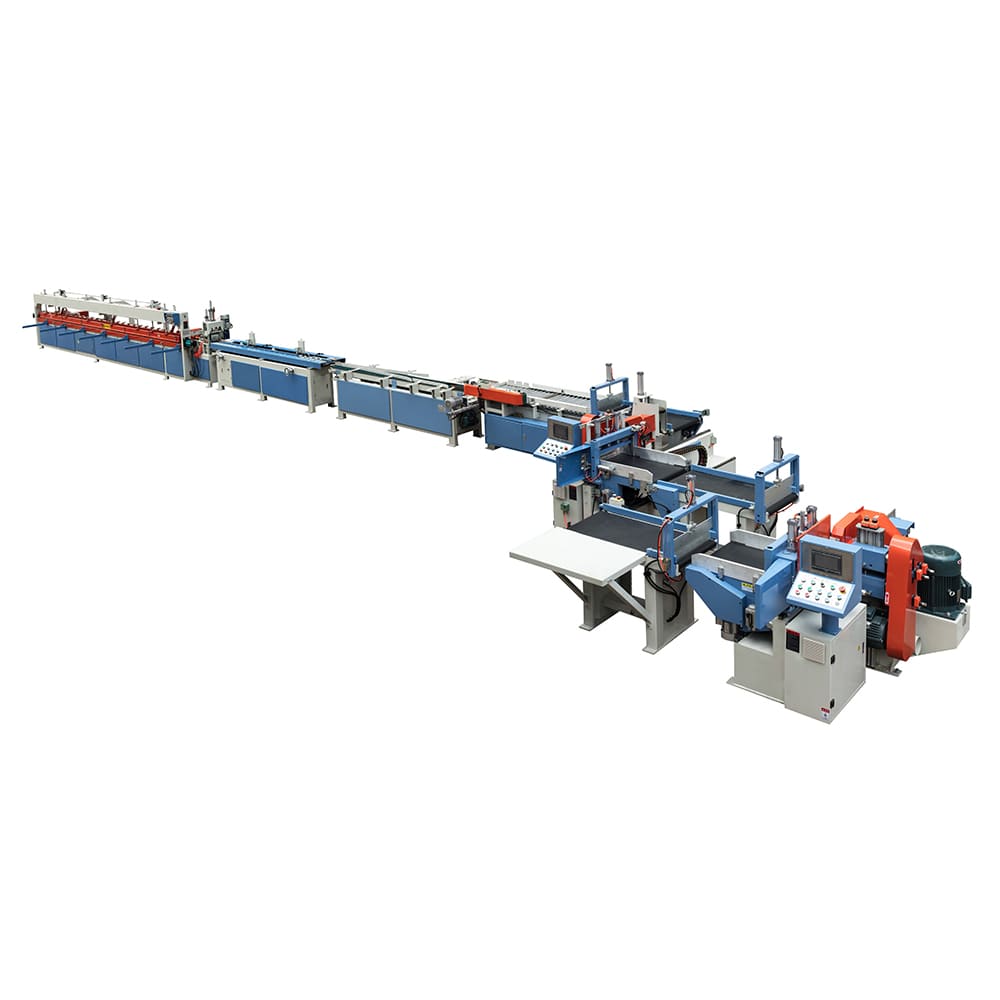

HICAS HCS6000A automatic finger joint machine for sale delivers high-speed wood jointing with precision, enhancing production efficiency by up to 40%. Complies with CE, ISO, and UL standards. Trusted by 500+ global manufacturers for seamless integration, energy efficiency, and minimal maintenance. Request a technical demo today.

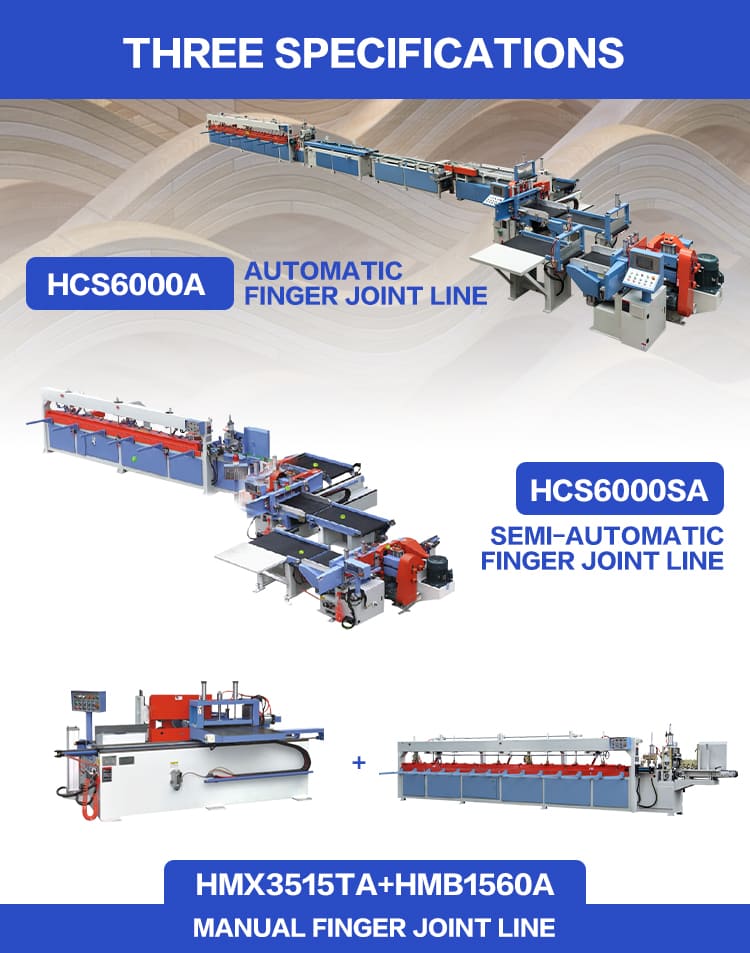

| Model | HMX3515TA | Model | HMB1560A | Model | HCS6000A | HCS6000SA |
| (with automatic gluing function) | ||||||
| Working table size | 760 * 850 mm | Working table size | 6000*500 mm | Operator | 2 | About 4 |
| Working size 600*850mm | ||||||
| Working thickness | 20-80mm | Working thickness | 20-80mm | Theoretical Productivity | 7-8pc 5m/min | |
| 36-42m/min | ||||||
| Working width | 30-150mm | Working width | 30-150mm | Working thickness | 20-80mm | 18-80mm |
| Working length | 150-850mm | Working length | 2100-6000mm | Working width | 30-150mm | 30-150mm |
| Main saw blade spindle diameter | 30mm | Saw blade diameter | 355mm | Max. Section area | 80*150mm | |
| Thickness* width | ||||||
| Scoring saw blade spindle diameter | 30mm | Saw blade spindle speed | 3700RPM | Feeding length | 120-850mm | 120-850mm |
| Shaper spindle diameter | 70mm | Max. Pressing force | 7800kg | Finished assembly length | 2000-6000mm | |
| Shaper finger joint cutter diameter | 160mm | Feeding power | 1.5kw | Shaper working table | 850*600mm | 850*600mm |
| Main saw blade spindle speed | 2840Rpm | Saw blade spindle power | 3kw | Shaper spindle diameter | 70mm | 70mm |
| Shaper cutter inside diameter | ||||||
| Shaper spindle speed | 6000 rpm | Oil pump motor power | 2.2kw | Shaper cutter outside diameter | 160mm | 160mm |
| Shaper spindle power | 11kw | Total power | 6.7kw | Shaper spindle speed | 5000rpm | 5000rpm |
| Main saw spindle power | 4kw | Voltage | 380v 50hz 3phase | Main saw spindle speed | 2840rpm | 2840rpm |
| Score saw spindle power | 0.75kw*2Pcs | Working air pressure | 0.5-0.8 Mpa | Max. Hydraulic pressing force | 7800kg | 7800kg |
| Total power | 16.5kw | Machine size | 8300*1650*1600mm | Shaper machine power | 17.87kw*2 | 17.87kw*2 |
| Voltage | 380v 50hz 3phase | Machine weight | 2650kg | Conveyor power | 0.75+2.25+3kw=6kw | 0.37kw*3=0.81kw |
| Working air pressure | 0.8 Mpa | Pressing machine power | 6.7kw | 6.7kw | ||
| Machine size | 2700*1730*1550mm | Total motor power | 48.4kw | 43.25kw | ||
| Machine weight | 2000kg | Machine voltage | 380v 50hz 3phase | 380v 50hz 3phase | ||
| Working air pressure | 8Bar | 8Bar | ||||
| 1.5m3/min | ||||||
| Pressing method | Cutting first then press | |||||
| Finished wood length tolerance | 1-2mm | |||||
| Machine space | 24610*5220*1400mm | 13000*5220*1400mm | ||||
| Weight | 10000kg | 7000kg |
