SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table

SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table

The SF2000 Automatic Wooden Pallet Deck Nailing Machine boosts pallet production efficiency by up to 40%, reduces labor costs, and ensures precision nailing. Designed for industrial use, it complies with CE standards and integrates a stacking table for seamless workflow optimization in wooden pallet manufacturing.

Get a Quote
  • Product Description
  • Specifications
  • Image Details
  • Related Products
  • About HICAS
  • Packing & Shipping
  • FAQ

Product Description

SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table manufacture
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table factory1. SF2000 wooden pallet deck nailing machine mainly used for pallet face board and stringer board assembly.
2. Working width 800-1500mm
    working length 800-1500mm
    working height 20-110mm
    Power 22kw
    Space 13*5*4m space
    Operator 1-2
3. Efficiency: 50-60 wood/min.
4. This machine consist with 4 stations, Nailing head, Transition station, Stacker, outfeed table.

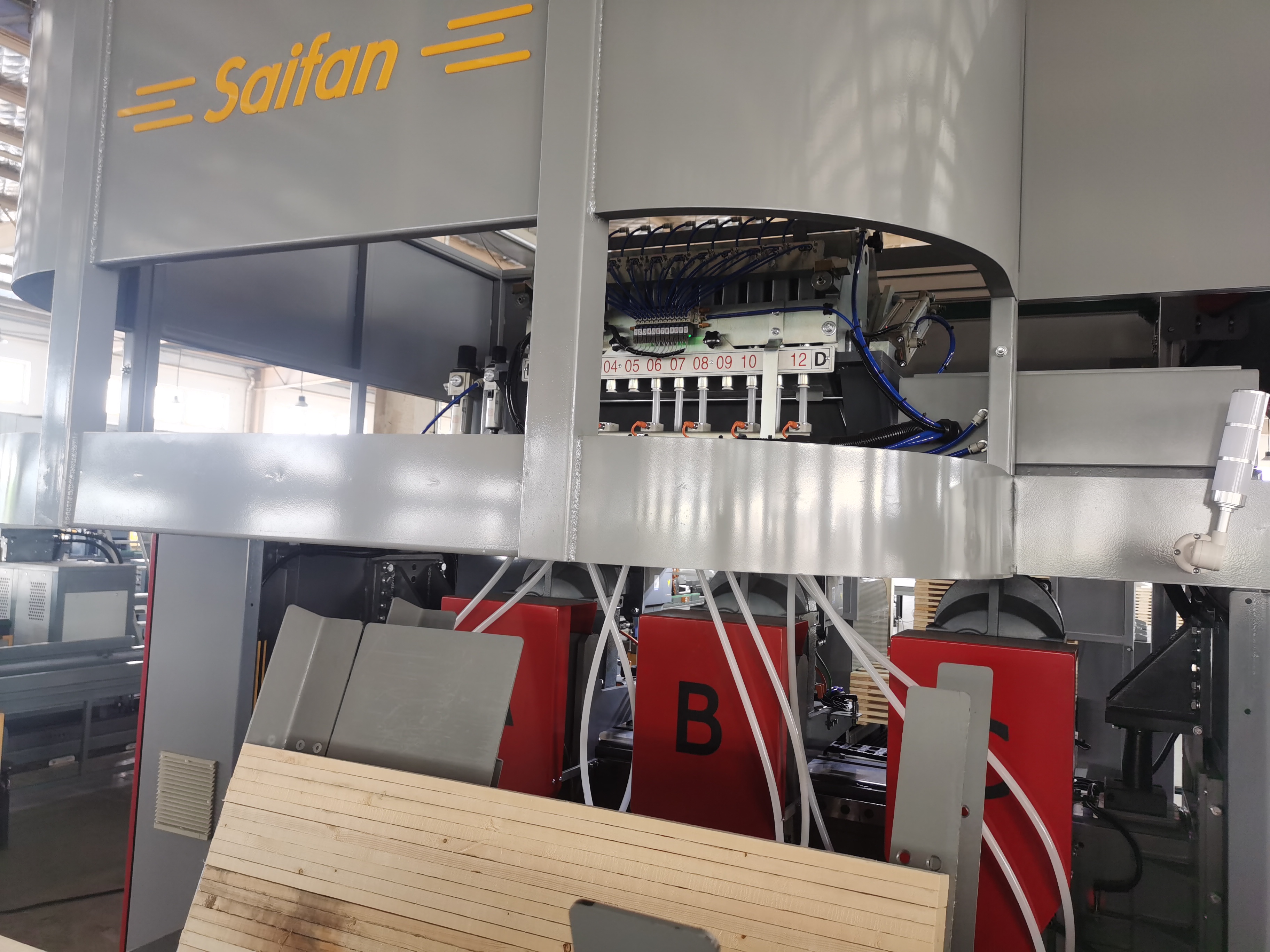

5. The nailing head is servo nailing, with low noise and high speed. The nail gun striker is durable and not easy damage. Each nail channel is equipped with missing nail detection sensor.
6. The machine equipped with an automatic nail feeding system, when add nails into machine no need to stop the machine.
7. Deck board space is program-controlled, with precise positioning and evenly distribution, can adjust easily.

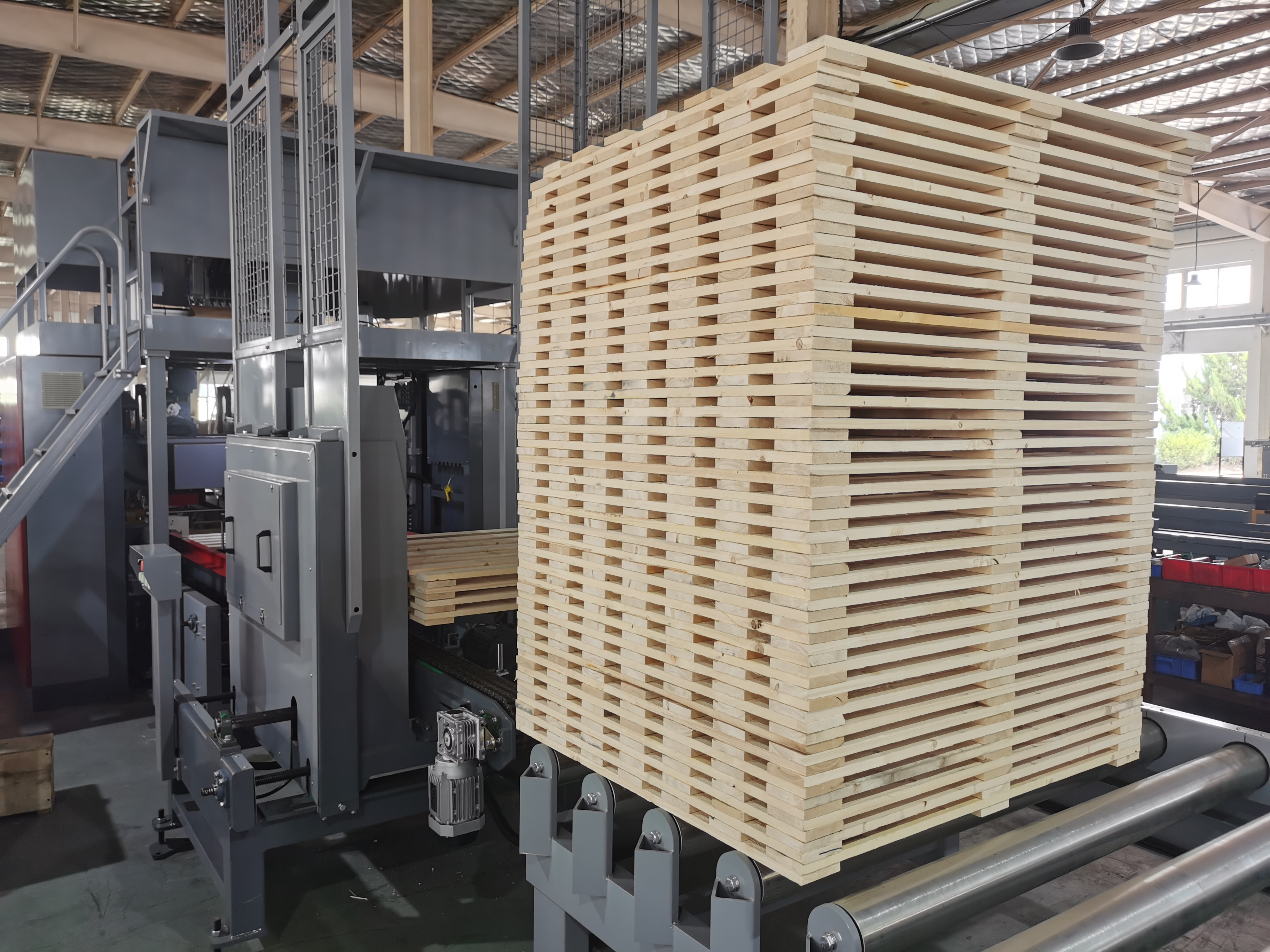

8. The stacker is a mechanical stacker, with stable lifting and high efficiency, and is equipped with a safety fence.
9. The electric outfeed table is 4m length, automatic induction and automatic outfeeding.

Specifications

Model
SF2000
Face board length
800-1500mm
Face board width
70-145mm
Face board thickness
10-25mm
Stringer board length
800-1500mm
Stringer board width
40-145mm
Stringer board thickness
10-89mm
Face board + stringer board total length
20-110mm
Face board position
Program adjustable
Face board width
1-3 types
Nail length
25-90mm
Nail body diameter
2.8-3.2mm
Nail head diameter
6-8mm
Nailing efficiency
50-60 wood/min
Total power
22kw
Face board position accuracy
±2mm
Nailing way
Servo motor control
Nail filling way
Automatic
Nail box quantity
1pc
Nailing gun quantity
12pc
Operator
1-2
Air pressure
0.6-0.8Mpa
Air consumption
80L/Min
Stacker max. height
2.8m
Space
15.1*4.4*4.2m

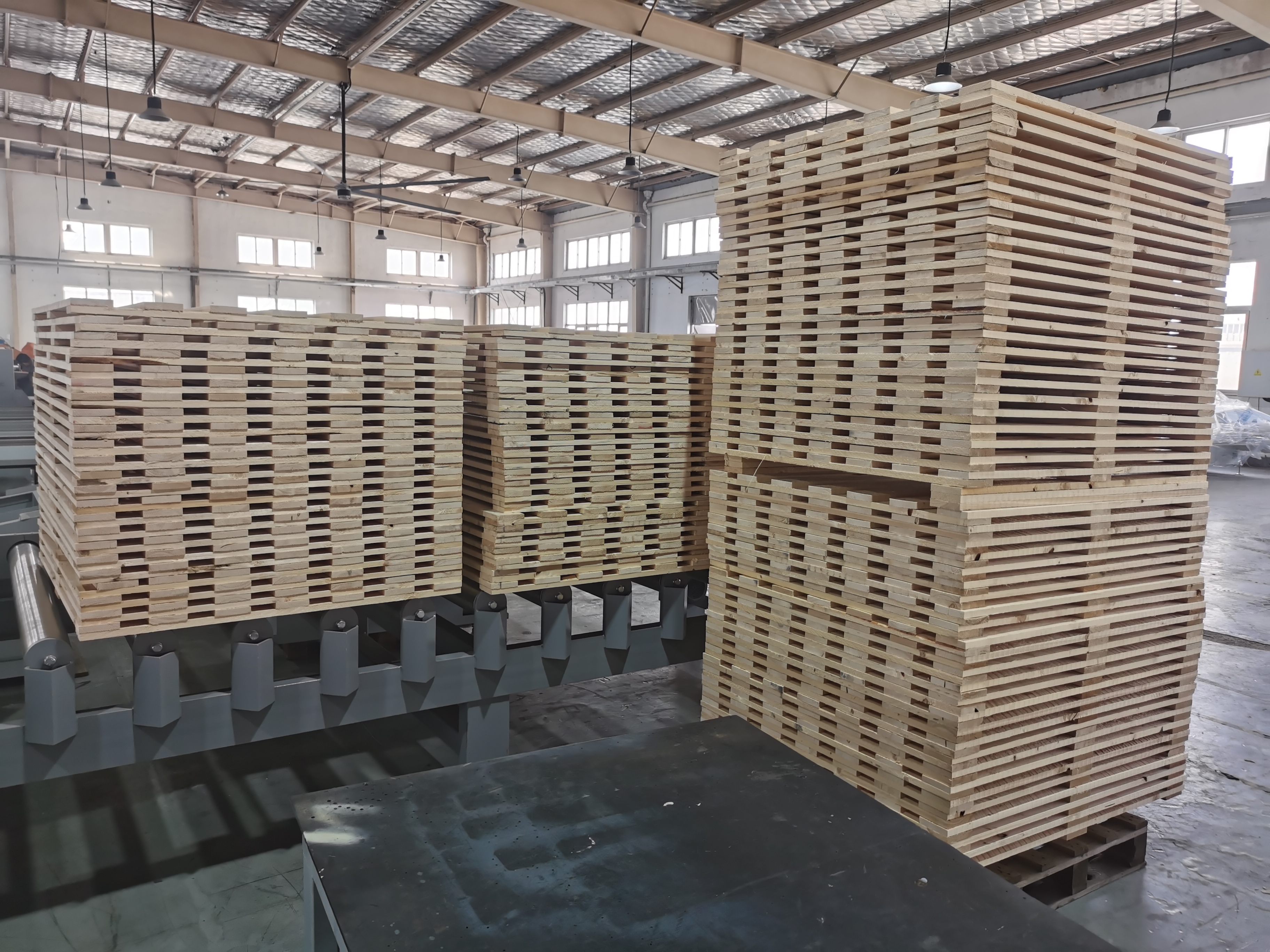

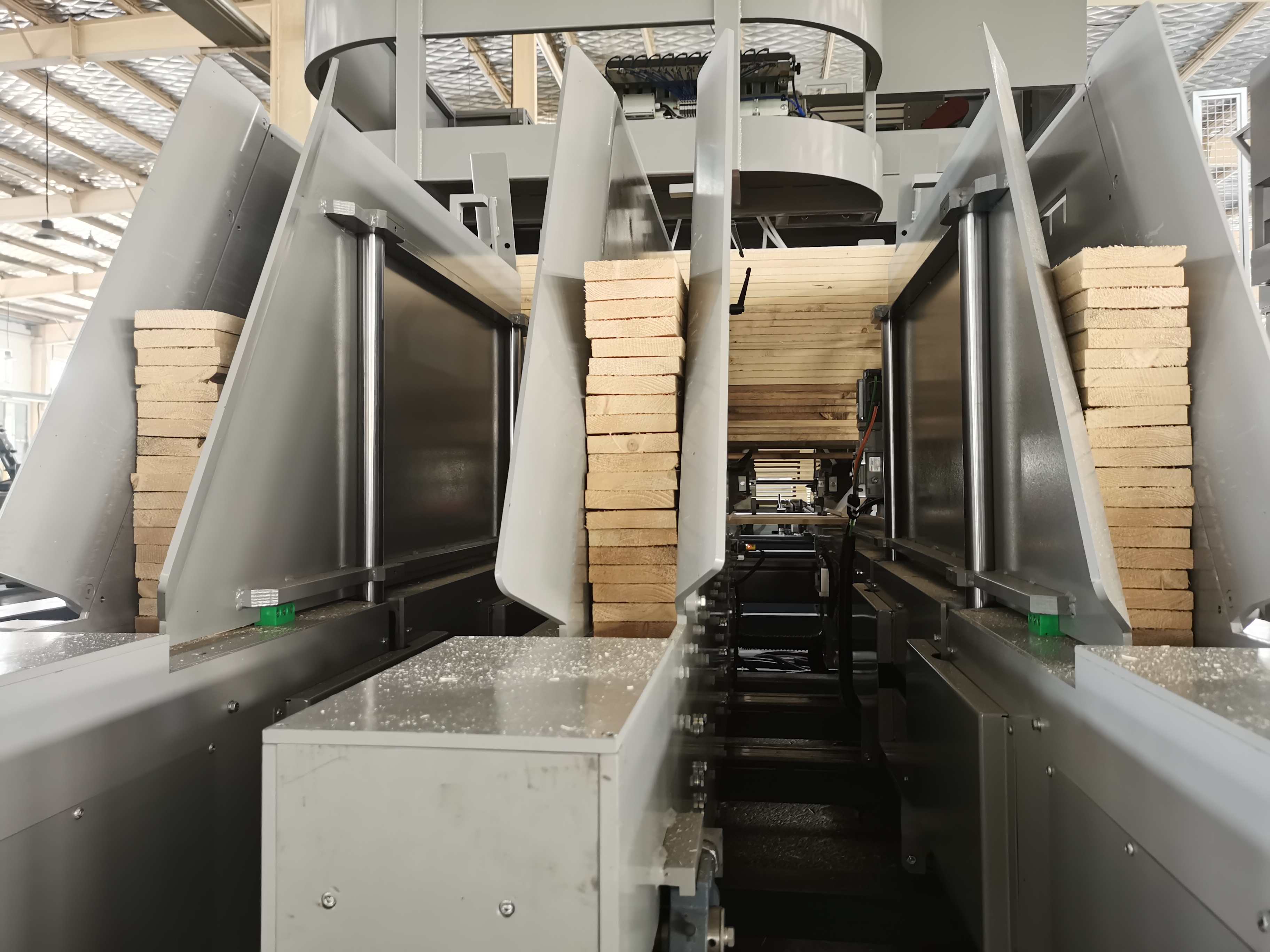

Image Details

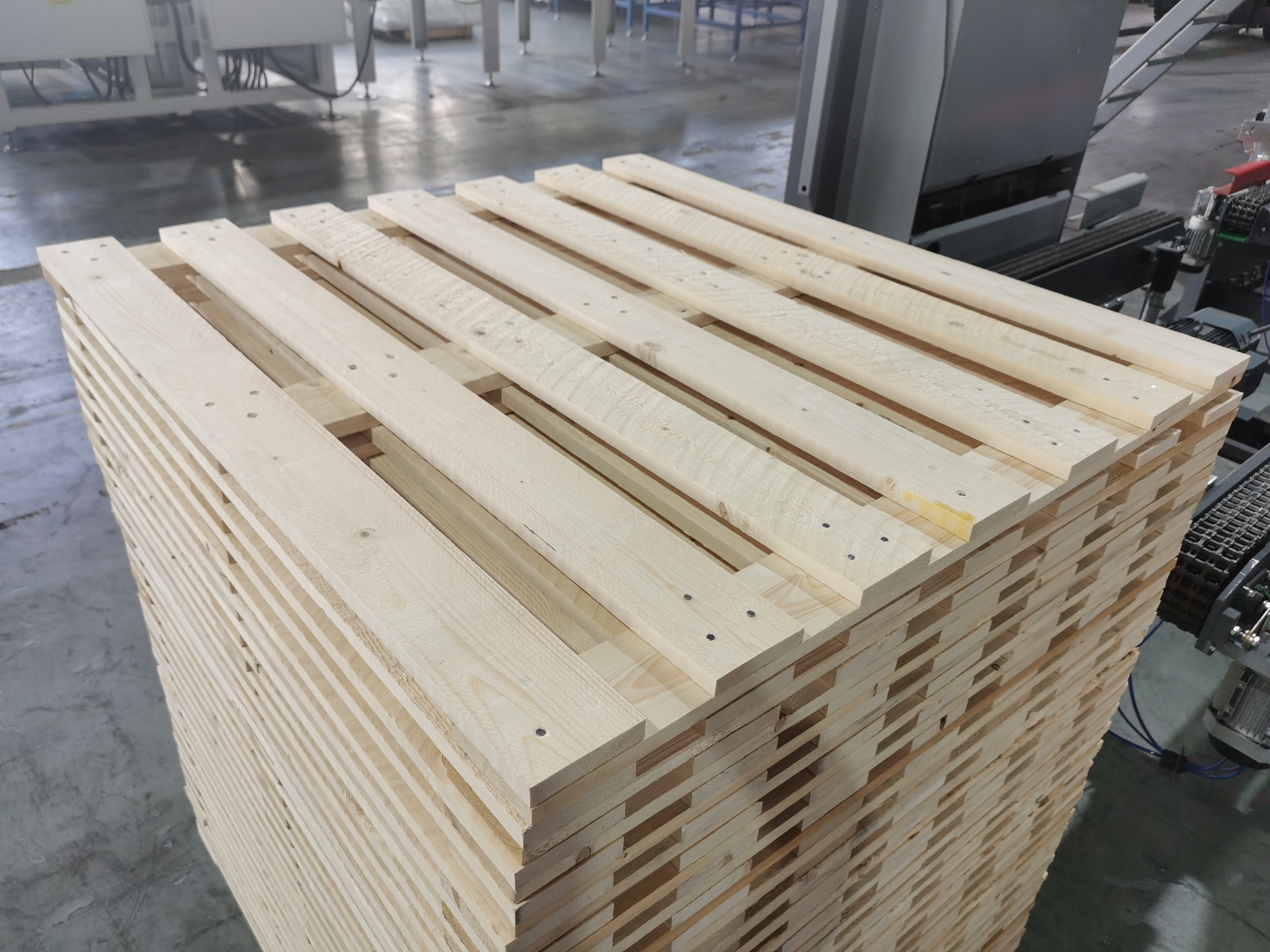

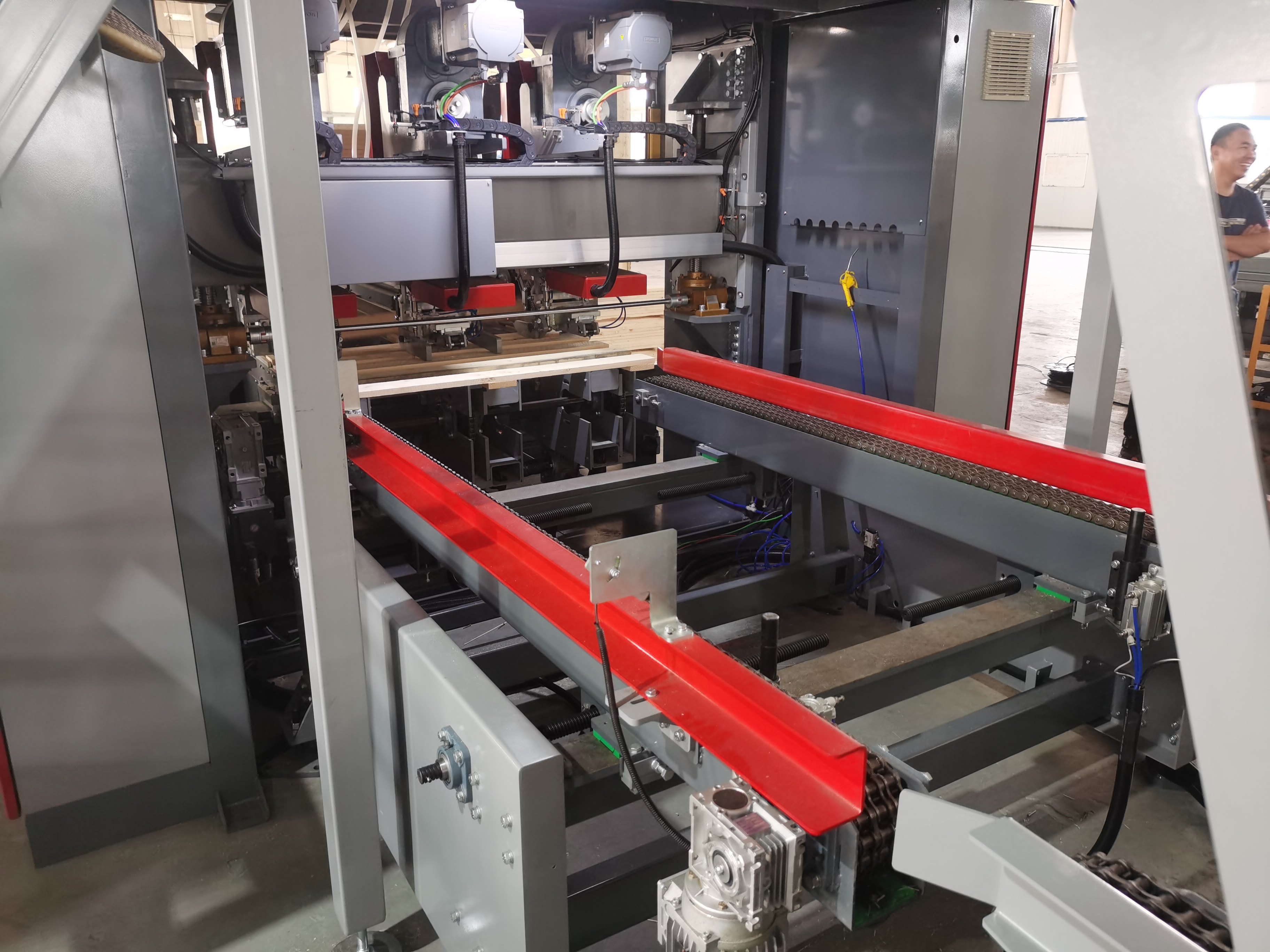

SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table manufacture
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table manufacture
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table factory
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table factory
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table supplier
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table supplier
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table factory
P

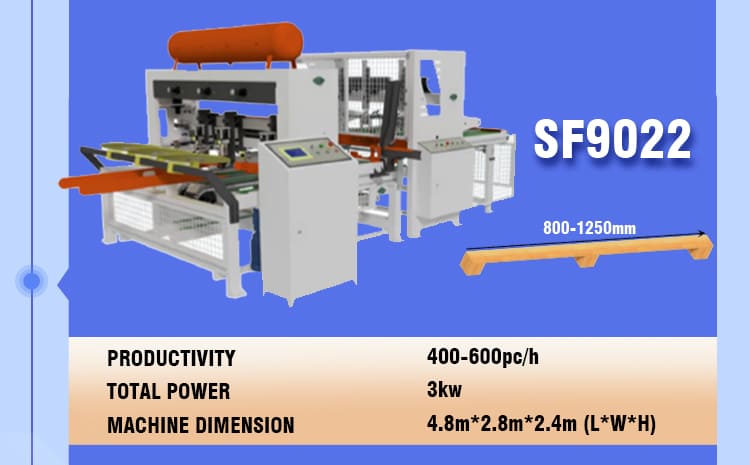

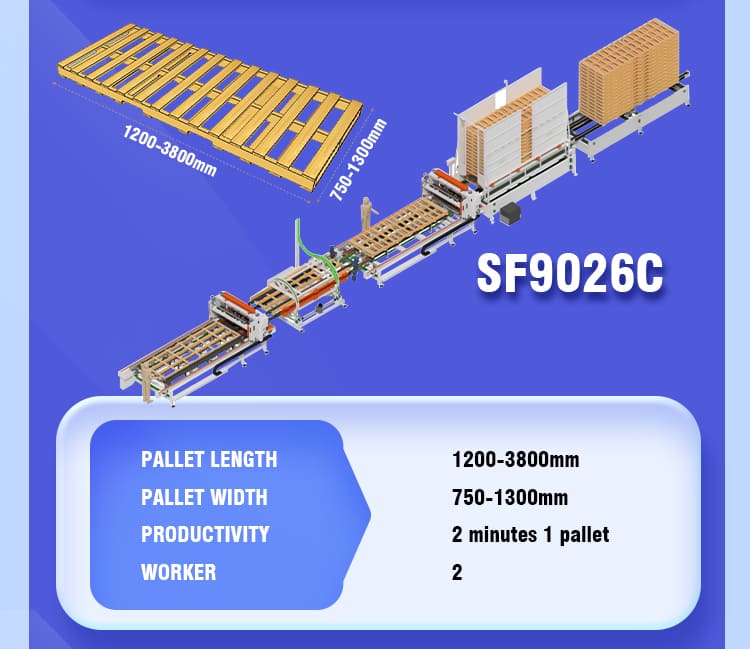

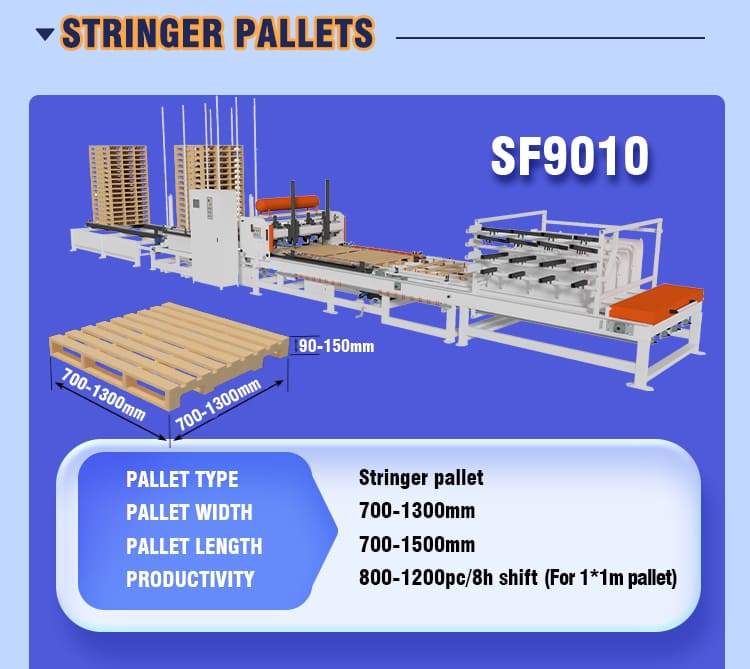

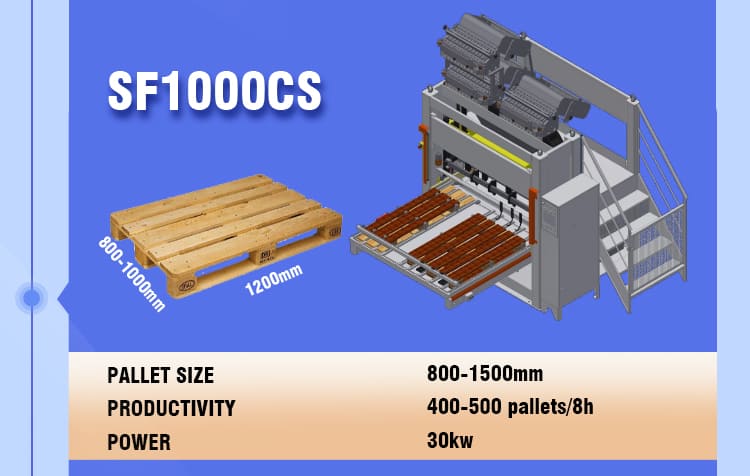

Related Products

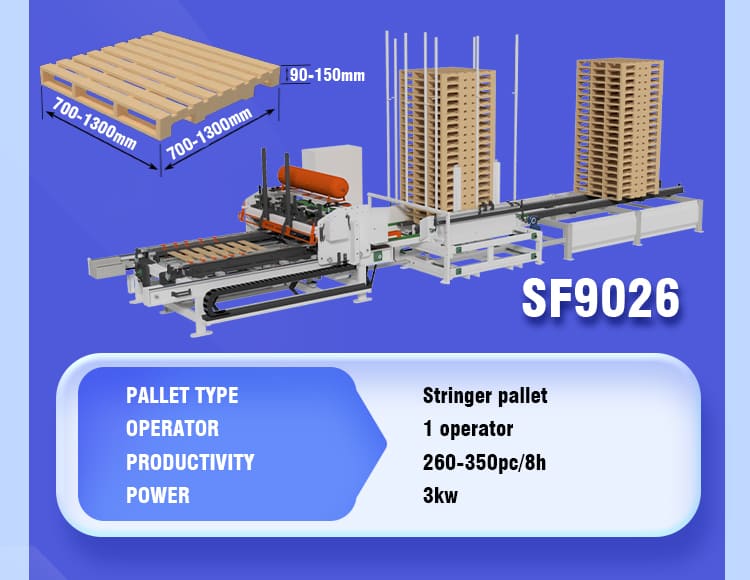

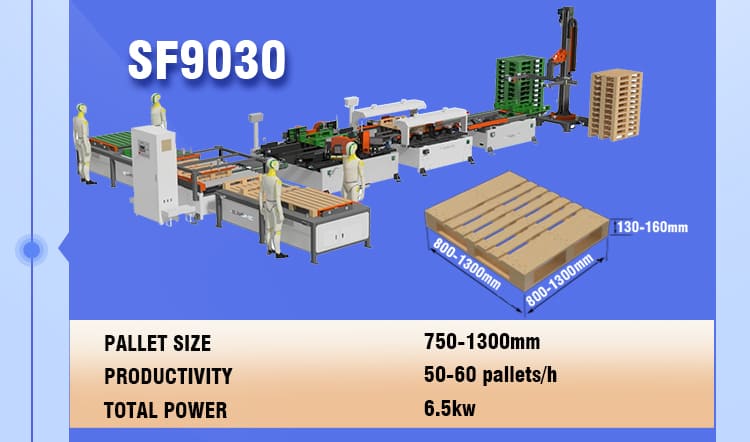

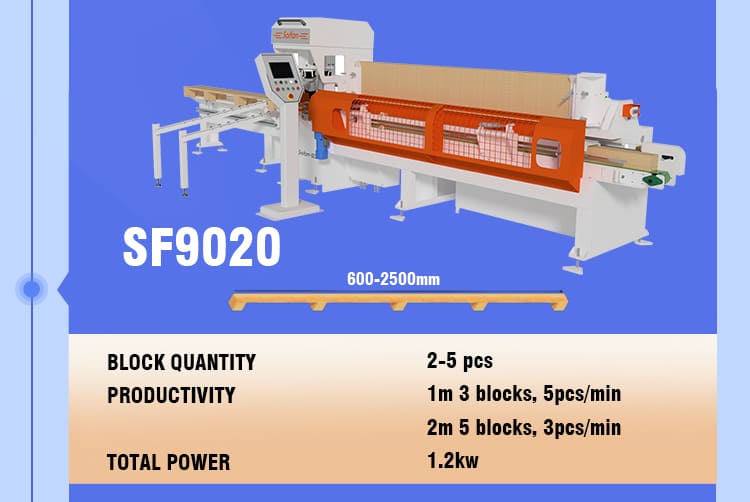

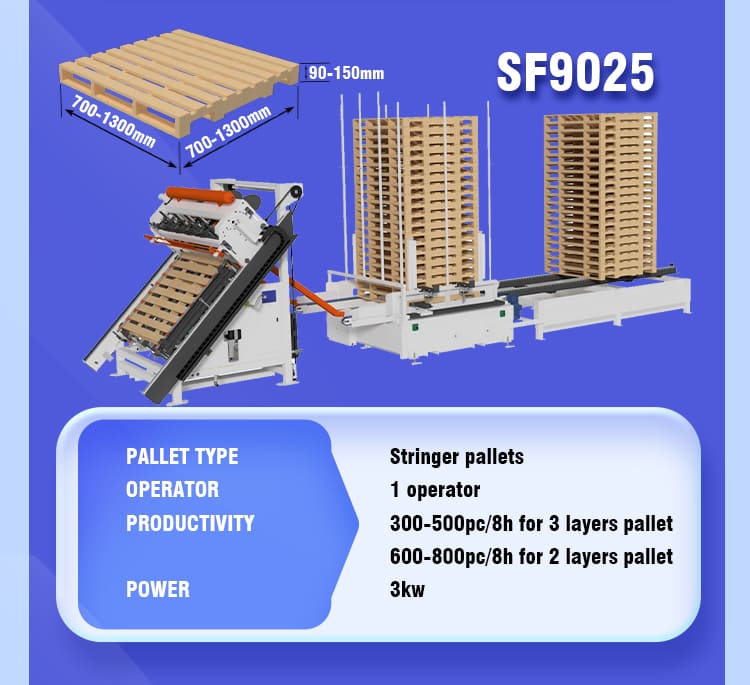

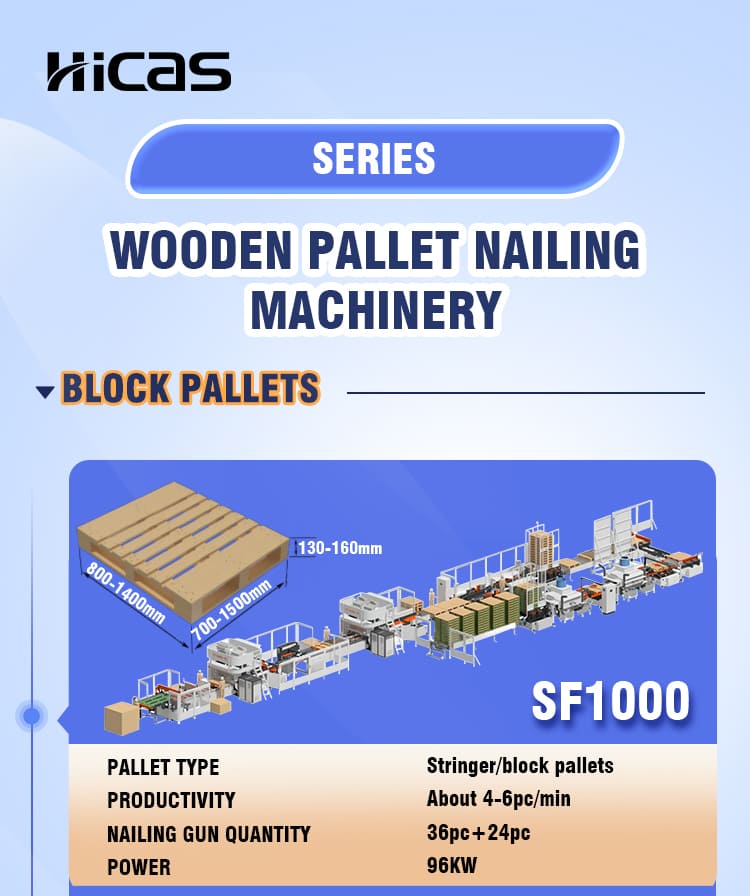

SF1000 Automatic wood pallet nailing making machine production line (1).jpgSF1000 Automatic wood pallet nailing making machine production line (2).jpgSF1000 Automatic wood pallet nailing making machine production line (3).jpgSF1000 Automatic wood pallet nailing making machine production line (4).jpgSF1000 Automatic wood pallet nailing making machine production line (5).jpgSF1000 Automatic wood pallet nailing making machine production line (6).jpgSF1000 Automatic wood pallet nailing making machine production line (7).jpgSF1000 Automatic wood pallet nailing making machine production line (8).jpgSF1000 Automatic wood pallet nailing making machine production line (9).jpgSF1000 Automatic wood pallet nailing making machine production line (10).jpgSF1000 Automatic wood pallet nailing making machine production line (11).jpg

About HICAS

customer service.png
customer visit.png

Packing & Shipping

SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table factory
SF2000 Automatic Wooden Pallet Deck Nailing Machine with Stacking Table details

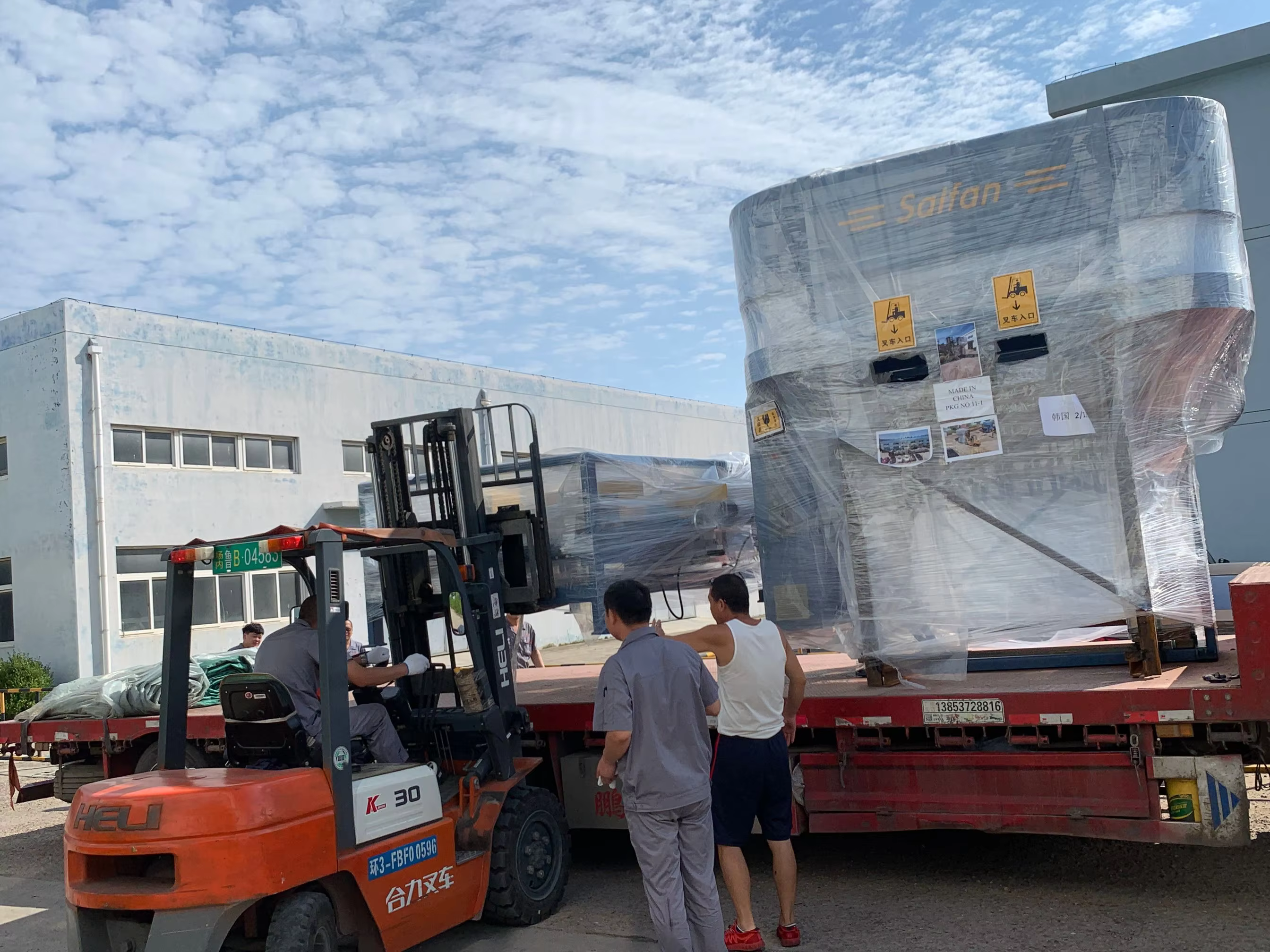

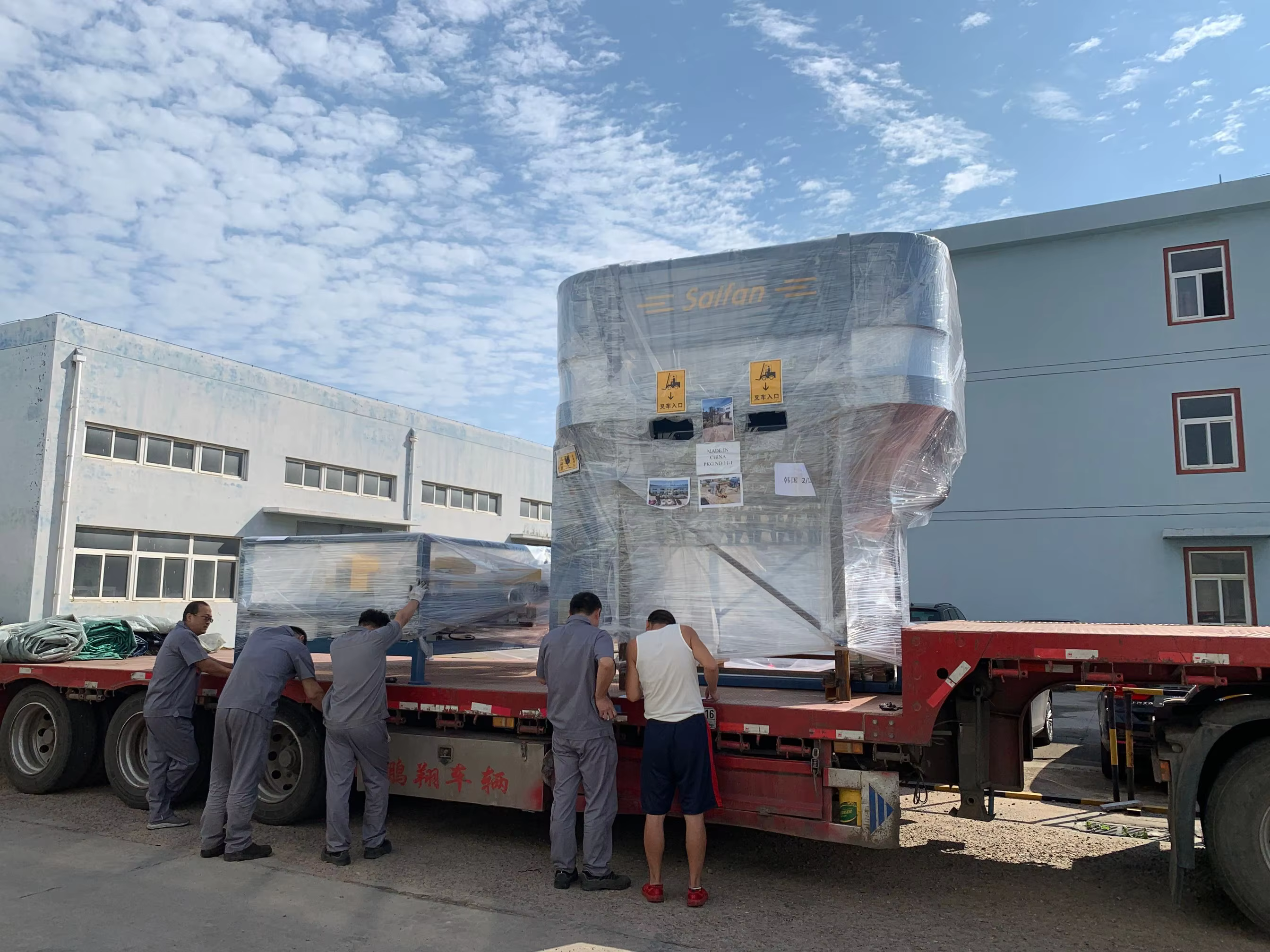

Normally packed with plastic film, then load into normal container and FR container

FAQ

  • Q: Do you offer installation?

    A: Video guidance and English manual can be provided freely, and we provide online support, now all our customers install and operate the machine by themselves with our online support.

  • Q: Where can we get replacement parts?

    A: Most of the spare parts are ready in stock. They will be sent to the buyer directly from our warehouse with original prices.

  • Q: How long can we get replacement parts?

    A: Common spare parts can be delivered by express within one week. Some parts can be purchased locally.

  • Q: What technical support do you offer?

    A: 1. Technical support by phone, email or WhatsApp/Skype around the clock. 2. Friendly English version manual and operation video. 3. Engineer available to service machinery overseas.

  • Q: Do you have any machines in our country?

    A: Our machines have been sold to more than 160 countries all over the world, like Russia, Singapore, Uzbekistan, The USA,Malaysia,Peru, Colombia, Vietnam, Slovakia, etc.

  • Q: Can you customized the machine?

    A: Our machines can be customized made according to buyers’ request.

  • Q: What other machine do you offer?

    A: We provide one-stop shop service of woodworking machines for the buyers. Other kinds of woodworking machines, like sanding machine, CNC router, drilling machine, saw machine can be provided as well.

  • Q: Can you set the system to our language?

    A: Our system supports common languages like Chinese, English, Russian, Spanish.
