SF5000 Automatic Wood Pallet Sort & Repair Line

INSTALLATION & LIFETIME SUPPORT

• English manual + instructional videos + electrical drawings
• Free online HICAS engineer support throughout installation
• On-site installation & training available (engineer travel at cost)
• Spare parts in stock — shipped from warehouse, many sourced locally
• CE certified · ISO9001 · 12-month warranty · 15-20 year service life
• Flexible payment: T/T deposit · LC at sight · SINOSURE supported

SF5000 WOOD PALLET SORT & REPAIR LINE

Sort · Inspect · Repair · Re-stack — Up to 5,000 / Shift

Turn used pallets back into revenue. The SF5000 automates the handling, sorting and re-stacking of used pallets — 3-5× faster than manual lines.

Siemens PLC · Banner + Pepperl+Fuchs industrial sensing · Schneider electrics · automated un-stacking, conveying, turning & re-stacking.

• Up to 5,000 pallets per shift (configurable to your volume)
• 3-5× faster than manual sorting & repair
• Sort, inspect, repair & re-stack — used pallet recovery
• Fully customized line — throughput, stations & layout to spec
• 15-20 year service life

PROVEN WORLDWIDE

HICAS pallet machinery is trusted by customers across 160+ countries worldwide.

Our sorting, repair and recycling lines are field-proven across diverse climates, power grids and used-pallet conditions — built to recover pallets reliably, year after year.

[ Request Customized Quotation → ]

WHY A SORT & REPAIR LINE PAYS FOR ITSELF

3-5× FASTER THAN MANUAL: The SF5000 handles, conveys and re-stacks automatically, processing 3-5× the volume of a manual sorting crew — with a fraction of the labour.

RECOVERS HEAVILY-DAMAGED PALLETS: With integrated repair stations, the line recovers pallets with 60%+ damage that would otherwise be scrapped.

SCALES WITH YOUR BUSINESS: From 200 to 5,000 pallets per shift — the line is built around your volume, not a fixed line configuration.

WHY THE SF5000 SORT & REPAIR LINE

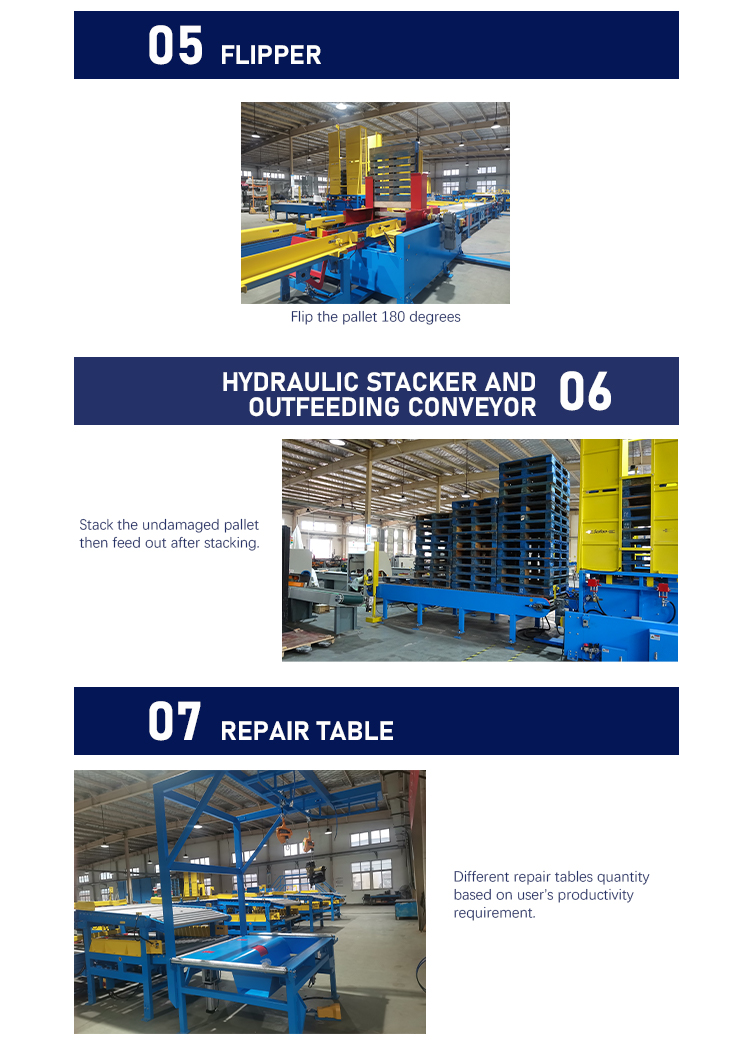

COMPLETE USED-PALLET WORKFLOW: Un-stacking, conveying, turning, inspection, sorting, repair, re-stacking and dust extraction — the full recovery process in one integrated line.

PREMIUM INDUSTRIAL SENSING: Banner + Pepperl+Fuchs sensors — top-tier American and German industrial brands — drive accurate detection and sorting of pallet condition.

SIEMENS SMART CONTROL: Siemens PLC with Schneider electrics runs the line reliably, shift after shift, with industrial-grade components throughout.

CUSTOM-BUILT TO YOUR OPERATION: Throughput (200-5,000/shift), number of repair stations (0-20), conveyor length, footprint and power (up to 100 kW) — all configured to your site.

BUILT FOR 15-20 YEARS: Heavy Q235 / Q345 steel construction engineered for 15-20 years of service, backed by a 1-year warranty and lifetime remote support.

═══════════════════════════════════════════════════════
The Economics of Pallet Recovery
═══════════════════════════════════════════════════════

What this means for you:

• Recover used pallets instead of buying new — cut timber/purchasing spend
• 3-5× throughput at a fraction of manual labour cost
• Recover 60%+ damaged pallets that would otherwise be scrapped
• Scales 200-5,000/shift — sized to your operation

Because the SF5000 is fully customized to your throughput and layout, pricing depends on configuration. Customized quotation, including a recovery-savings calculation for your pallet volume.

[ Request Customized ROI Quotation → ]

BUILT AROUND YOUR THROUGHPUT — NOT A FIXED SPEC

The SF5000 is engineered to your operation:

• Throughput: 200 – 5,000 pallets per shift
• Repair stations: 0 – 20
• Conveyor length & footprint: to your floor plan
• Power: Depends on the production line workstation
• 3-phase, customizable to client's local voltage (e.g., 220V, 380V, 415V, 480V)
• Pallet range: 800 – 1,500 mm, your pallet types

Tell us your volume and your used-pallet mix — we design the line around it.

Q: What does the SF5000 line do?

A: It handles the complete used-pallet recovery workflow — un-stacking, conveying, turning, inspection, sorting, repair, re-stacking and dust extraction.

Q: How many pallets can it process?

A: Configurable from 200 to 5,000 pallets per shift, 3-5× faster than manual sorting and repair.

Q: What pallet sizes and types can it handle?

A: Customizable for pallets from 800-1,500 mm; the line is built around your used-pallet mix.

Q: How damaged a pallet can it recover?

A: With integrated repair stations, pallets with 60%+ damage can be recovered rather than scrapped.

Q: How customizable is the line?

A: Highly — throughput, 0-20 repair stations, conveyor length, footprint, power (up to 100 kW) and 3-phase voltage, customizable to client's local voltage (e.g., 220V, 380V, 415V, 480V)

Q: What voltage does it use?

A: Configurable up to 480V to match your local power supply.

Q: Where can we get replacement parts?

A: Most spare parts are kept in stock and shipped directly from our warehouse; many parts can also be sourced locally.

Q: What support do you provide?

A: Phone / email / WhatsApp support, English manuals and operation videos, plus on-site engineer service available.

Q: Can the system be set to our language?

A: Yes — the system supports common languages including English, Spanish, Russian and Chinese.

Q: Can the machine be customized?

A: Yes — every SF5000 line is custom-built to the buyer's throughput, pallet types and layout.
