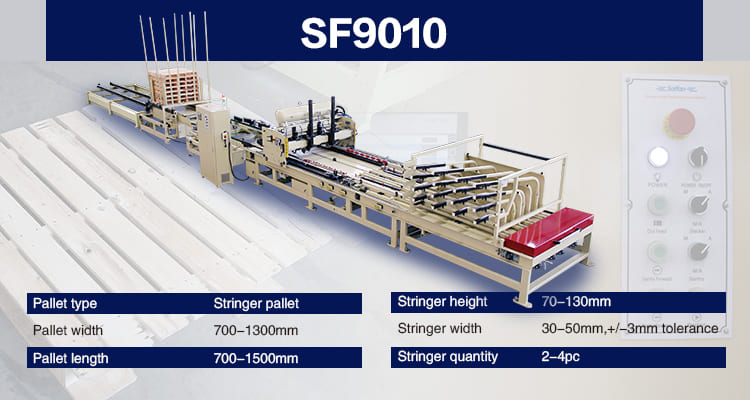

Model
|
SF9010
|
|
Pallet type
|

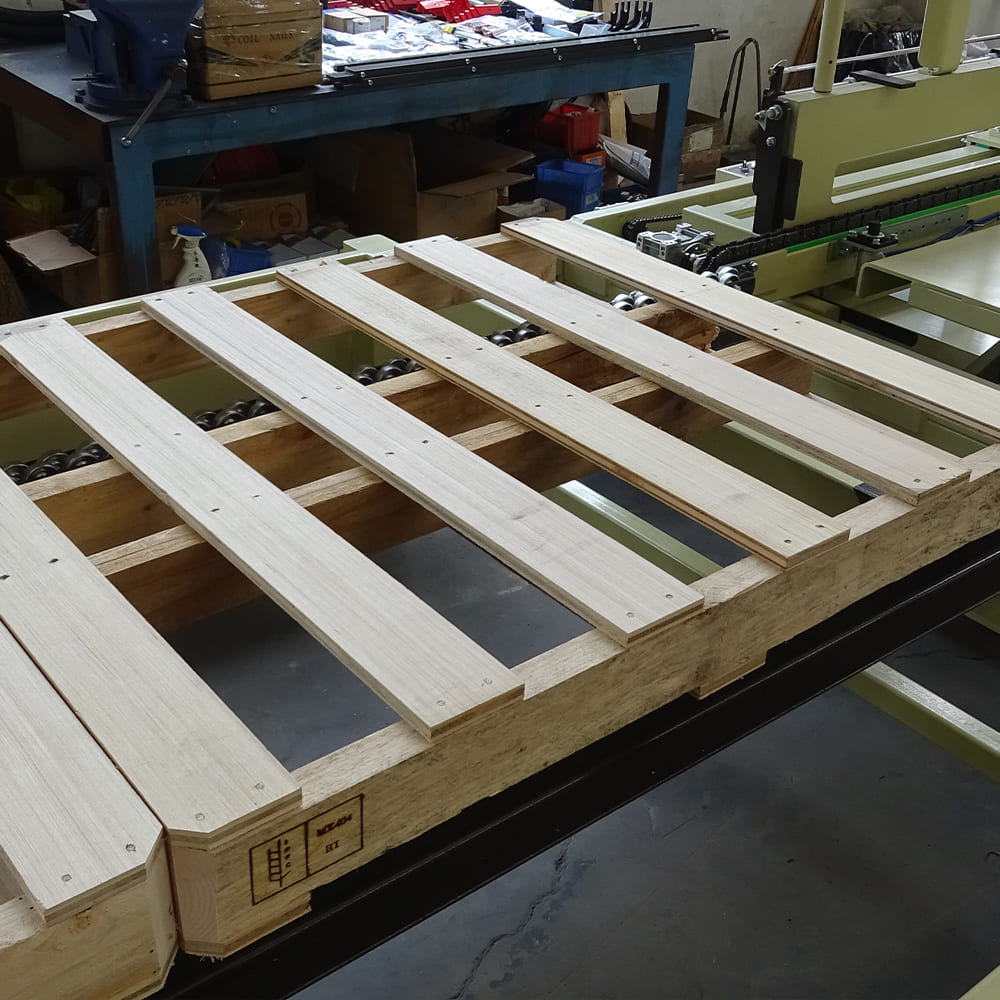

Stringer pallet
|
|
Pallet width
|
700-1300mm
|
|
Pallet length
|
700-1500mm
|
|
Pallet height
|
100-150mm
Stringer height min. 70mm
|
|
Stringer height
|
70-130mm
|
|
Stringer width
|
30-50mm, +/-3mm tolerance
|
|
Stringer quantity
|
2-4pc
|
|
Nailing gun distance
|
Min. 170mm
|
|
Foot & roof board thickness
|
10-25mm
|
|
Productivity
|
800-1200pc/8h shift (For 1*1m pallet)
|
|
Nailing gun
(Brand Everwin or other brand)
|
4pc N70 or N80 (Pls choose one)
1-3pcs nails adjustable, photoelectricity testing for the nailing position.
Nailing gun distance manual adjust
Nailing gun height manual adjust
|
|
Coil nails
|
1000-3000 nails/coil
N70: Nail diameter 2.3-2.8mm, length 45-70mm
N80: Nail diameter 2.5-3.3mm, length 50-80mm
|
|

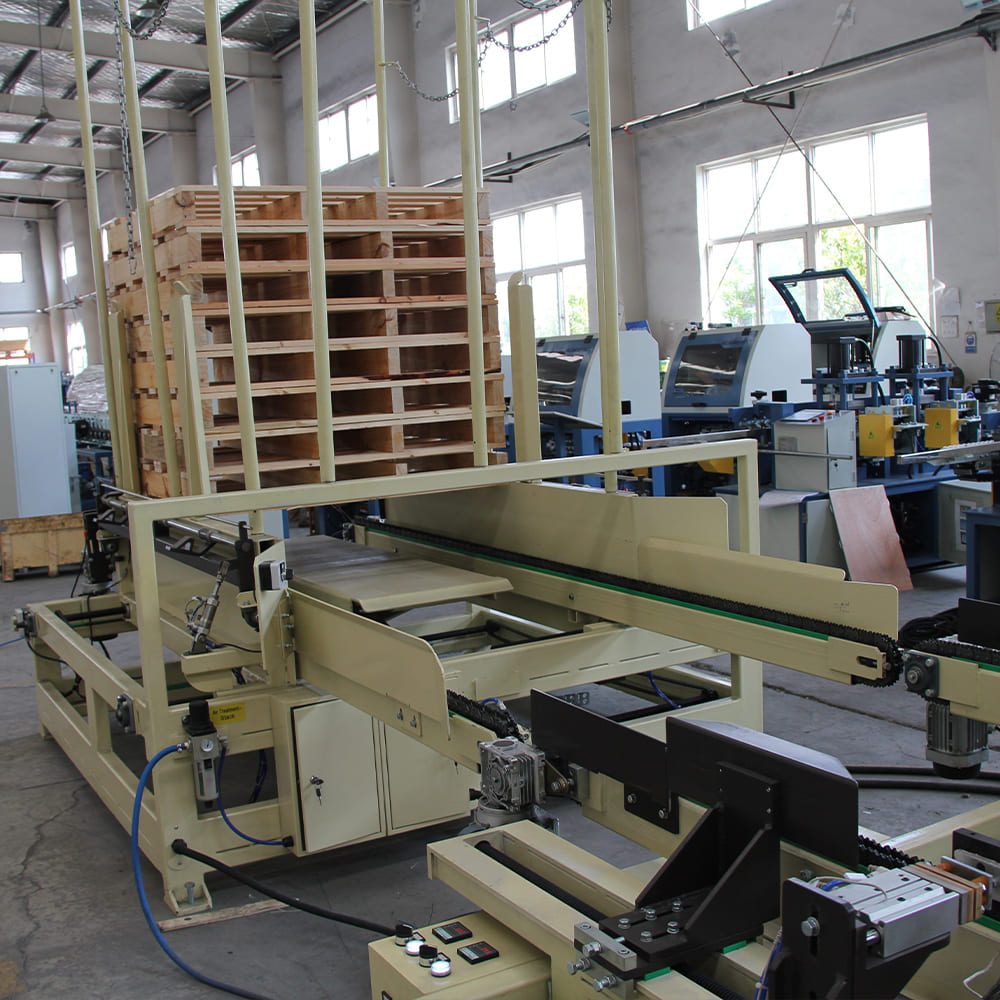

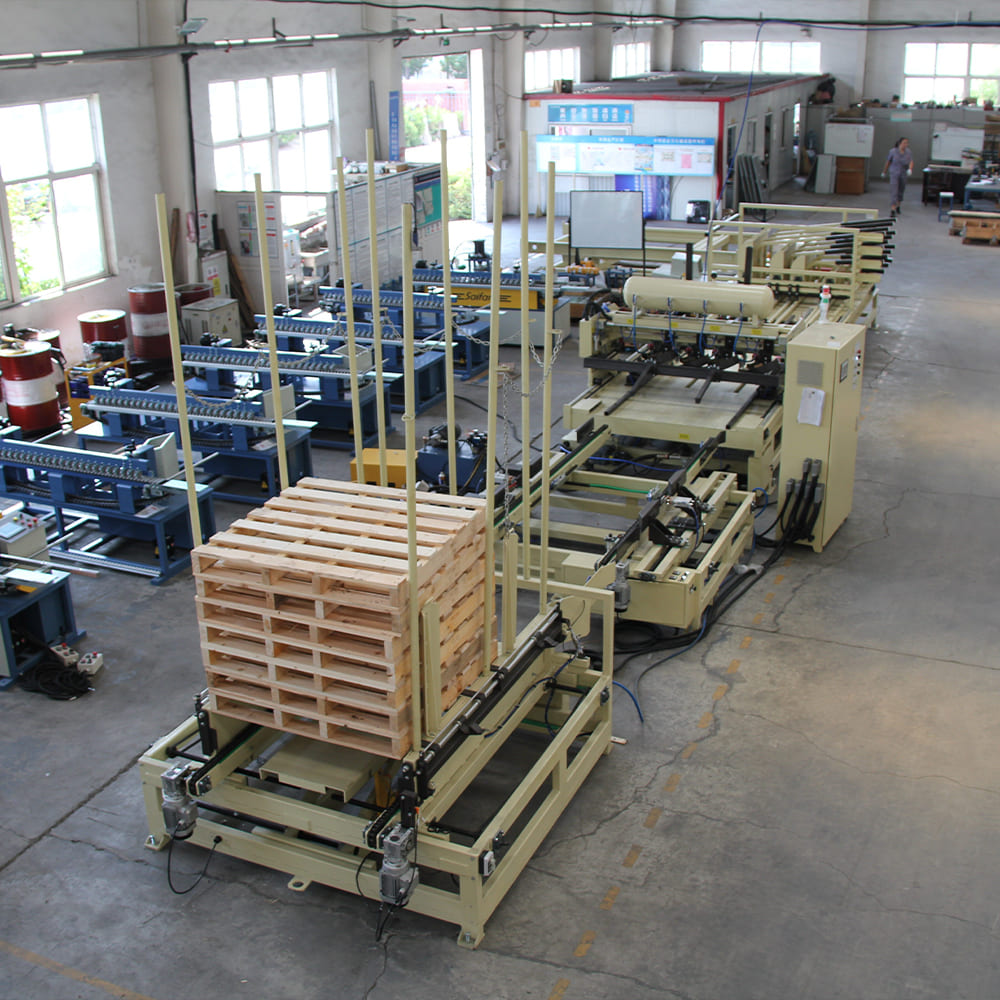

Stacking table
|
Pneumatic table, max. Loading weight 500kg.
Max. Stacking height 2300mm
|
|
Gantry servo motor
|
1.5KW
|
|

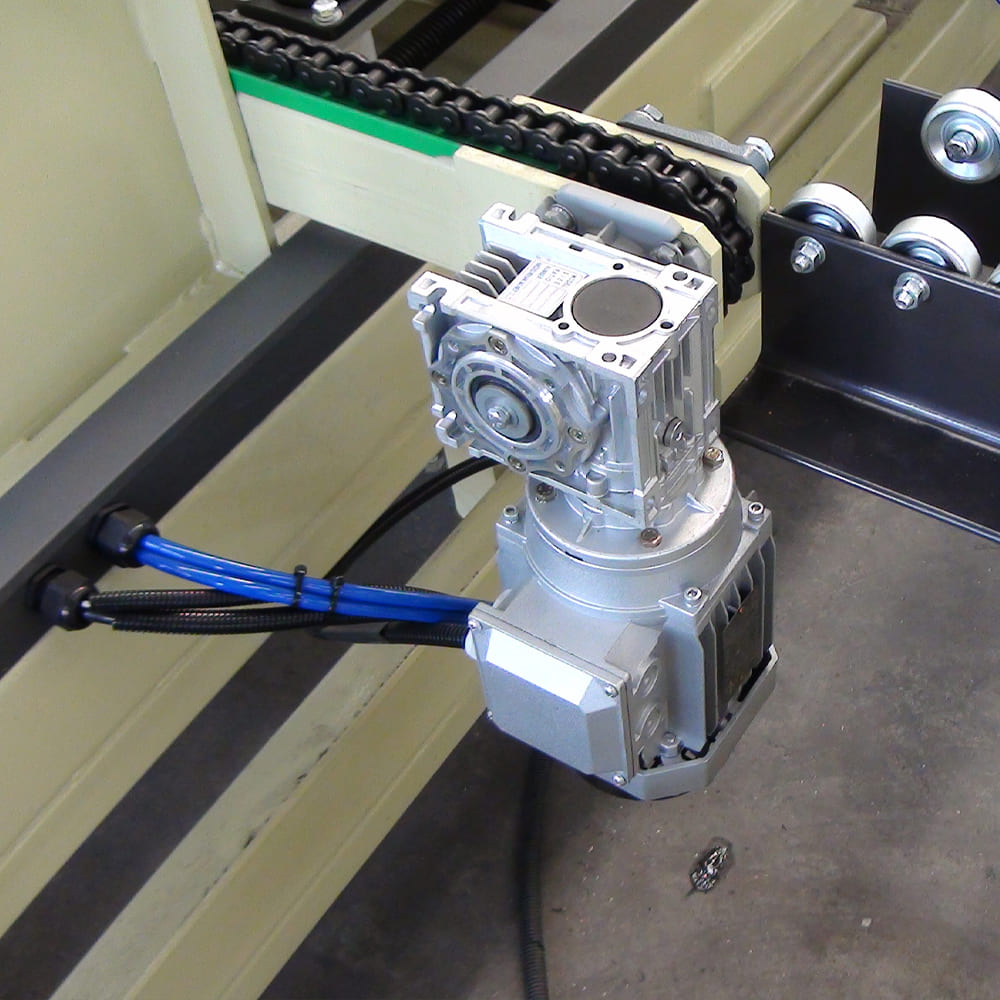

Stack motor
|
0.75kw*2
Hydraulic motor 2.2kw
|
|
Total power
|
5.2kw
|
|
Voltage
|
380v 50HZ 3 phase
|
|
Air pressure
|
7-8 bar
|
|
Air tank volume in machine
|
0.3 cubic meters
|
|
Extra Air tank volume
prepared by buyer
|
2-3 cubic meters
|
|
Air compressor required
|
Min. 2 cubic meters/min
|
|
Electric components
|
Schneider brand
|
|
Pneumatic components
|
AirTac brand
|
|

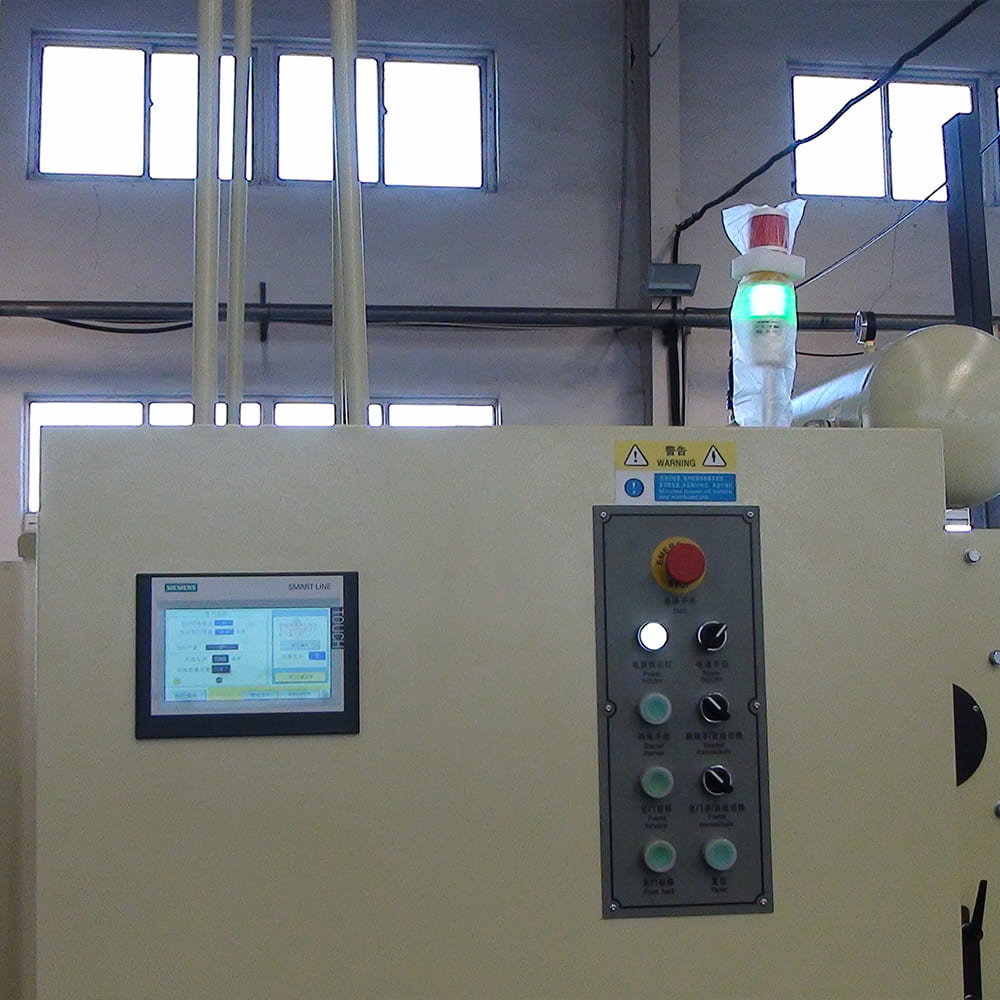

PLC, touch screen
|
Siemens
|
|
Machine dimension
|
14000*2900*3500mm
|
|
Packing size
|
5100*2230*2370mm
2700*2150*1770mm
2700*2220*1750mm
|
|
Machine weight
|
6840kg
|
|
Functions
|
Automatic nailing + stacking table+out-feeding table
|
