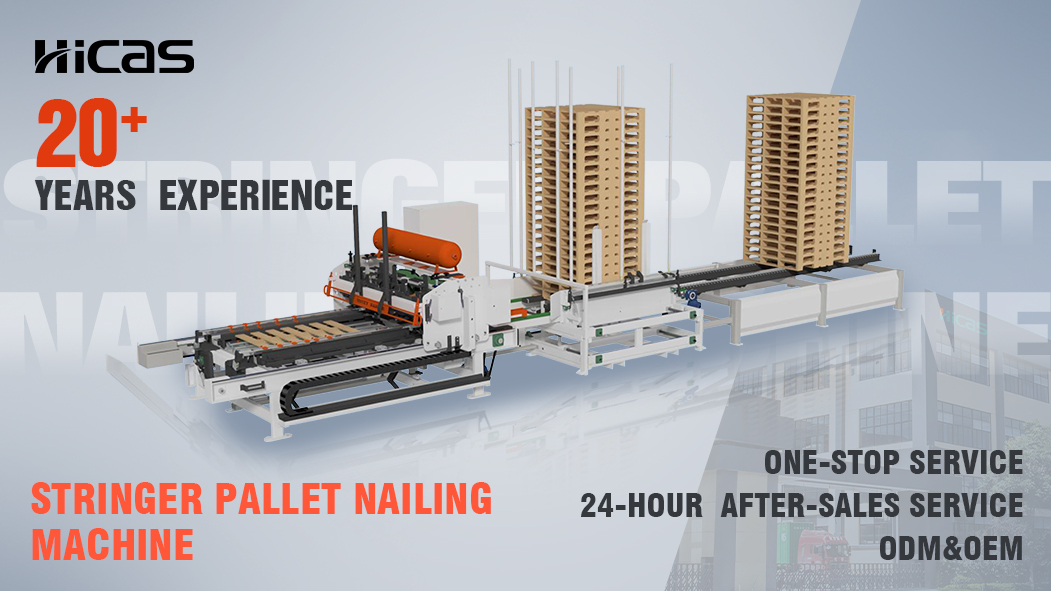

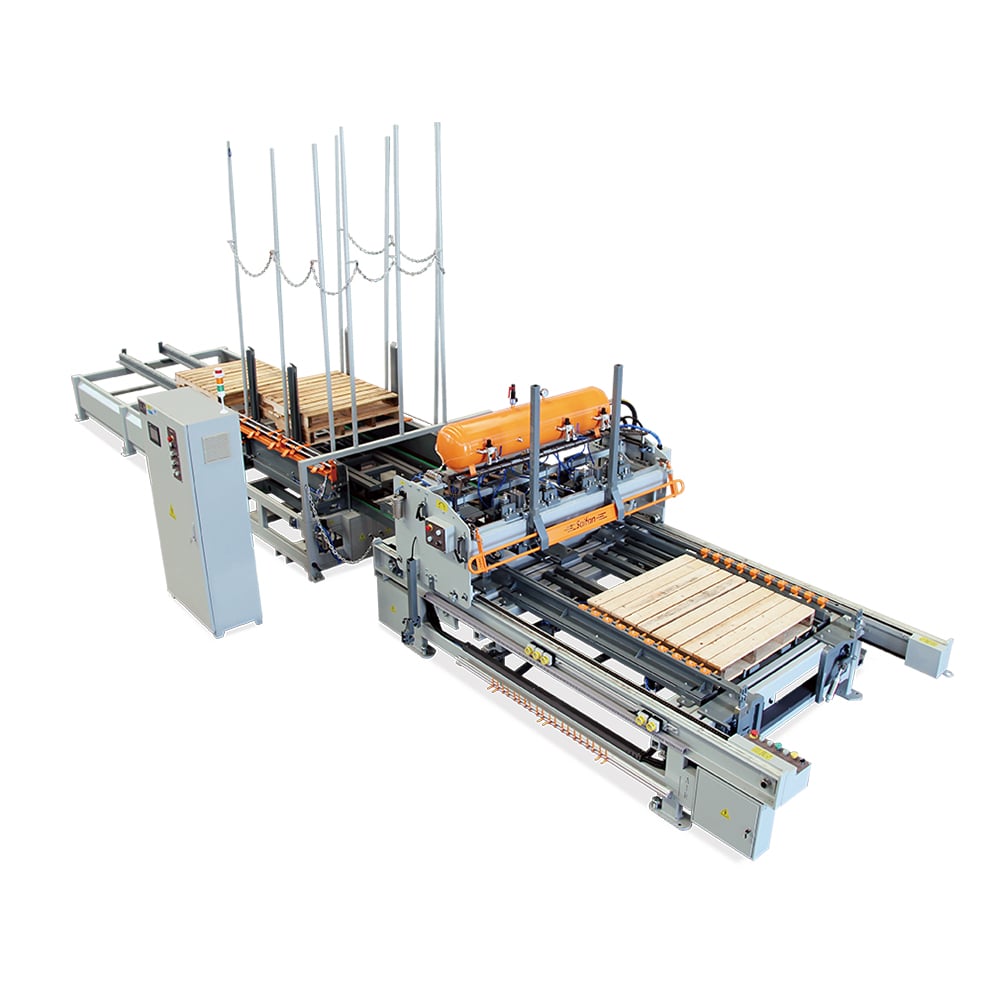

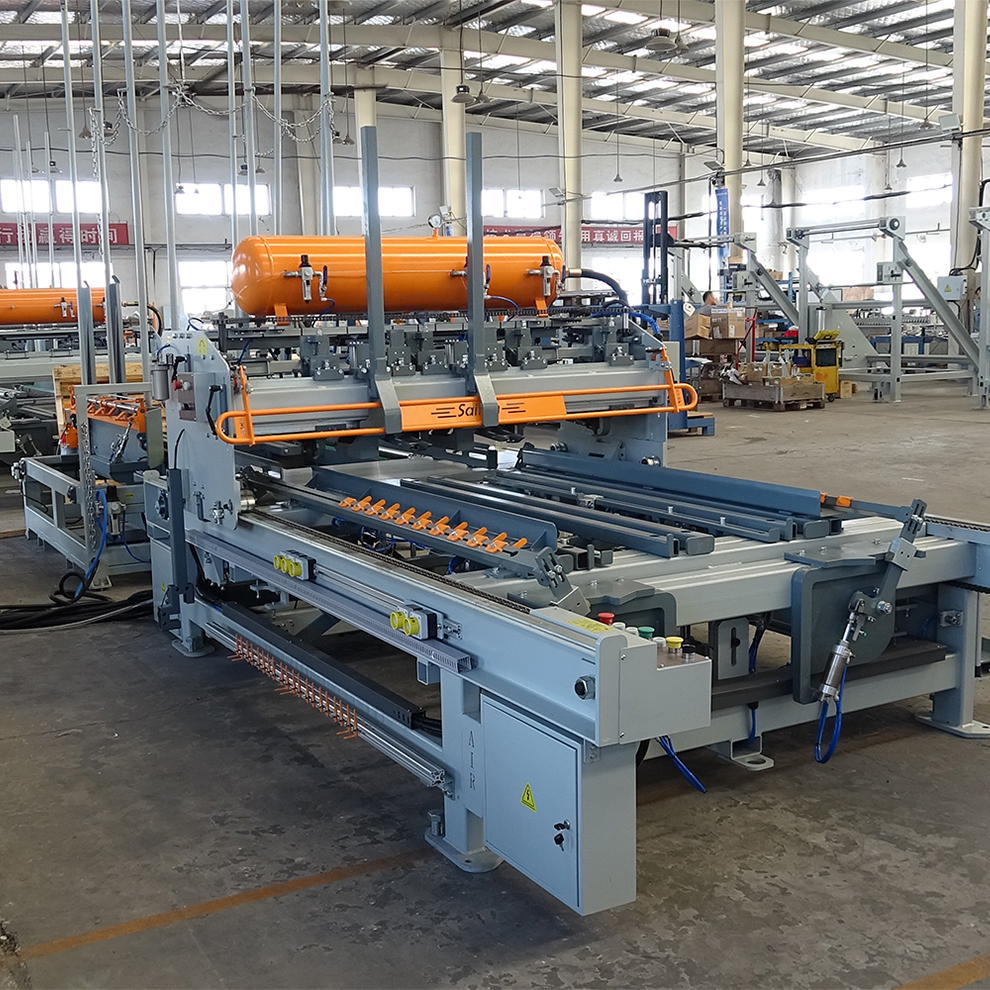

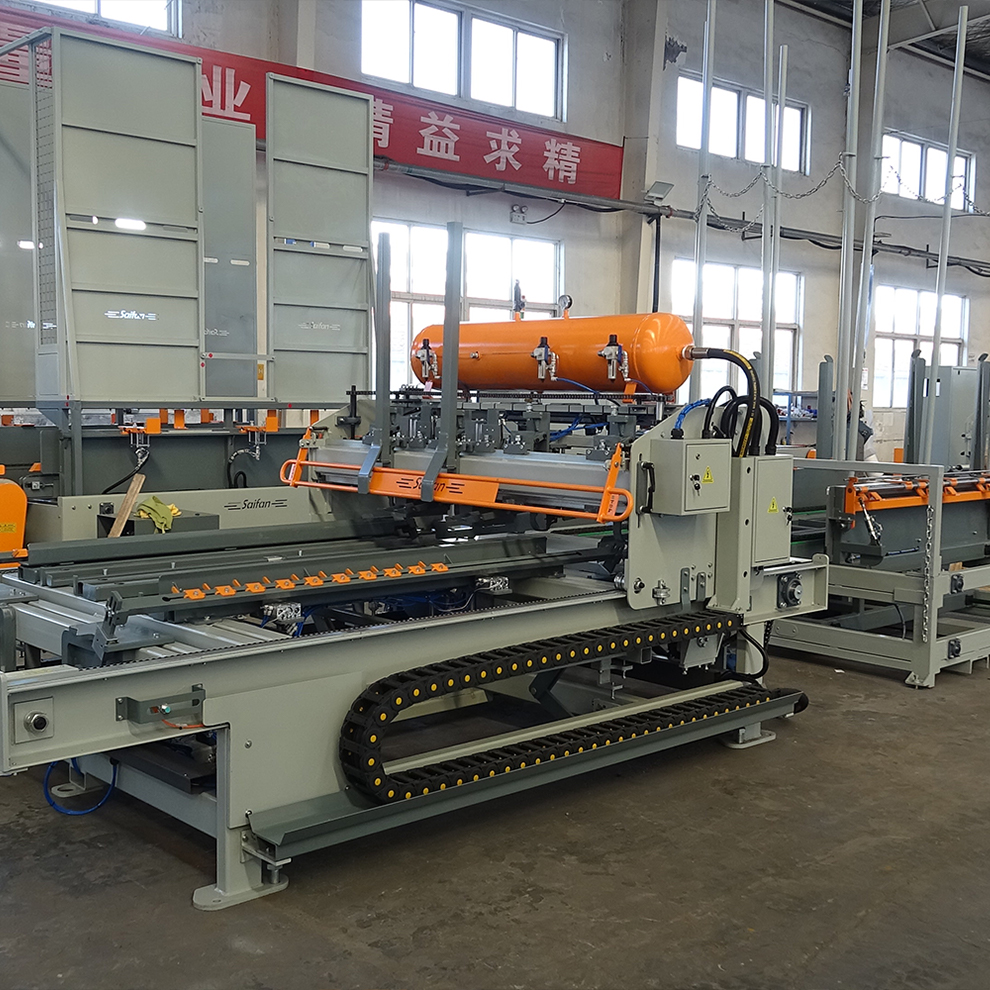

SF9026 Automatic Stringer Pallet Nailing Machine

Installation & Support

• English manual + instructional videos + electrical drawings
• Free online HICAS engineer support throughout installation
• On-site installation & training available (engineer travel at cost)
• CE certified · ISO9001 · 1-year warranty · 10+ year service life
• Flexible payment: T/T 30% deposit · LC at sight · SINOSURE supported

SF9026 AUTOMATIC STRINGER PALLET NAILING MACHINE — Laser Detection · Pressing-Ring · Recycled-Wood Friendly

Build American-style stringer pallets — even from recycled or out-of-tolerance wood — with laser-guided nailing precision.

Laser board detection · pressing-ring structure · Yaskawa servo · Siemens control · Everwin nailers · fast size changeover.

• Laser sensor sets nail count & position automatically
• Pressing-ring handles recycled & big-tolerance wood

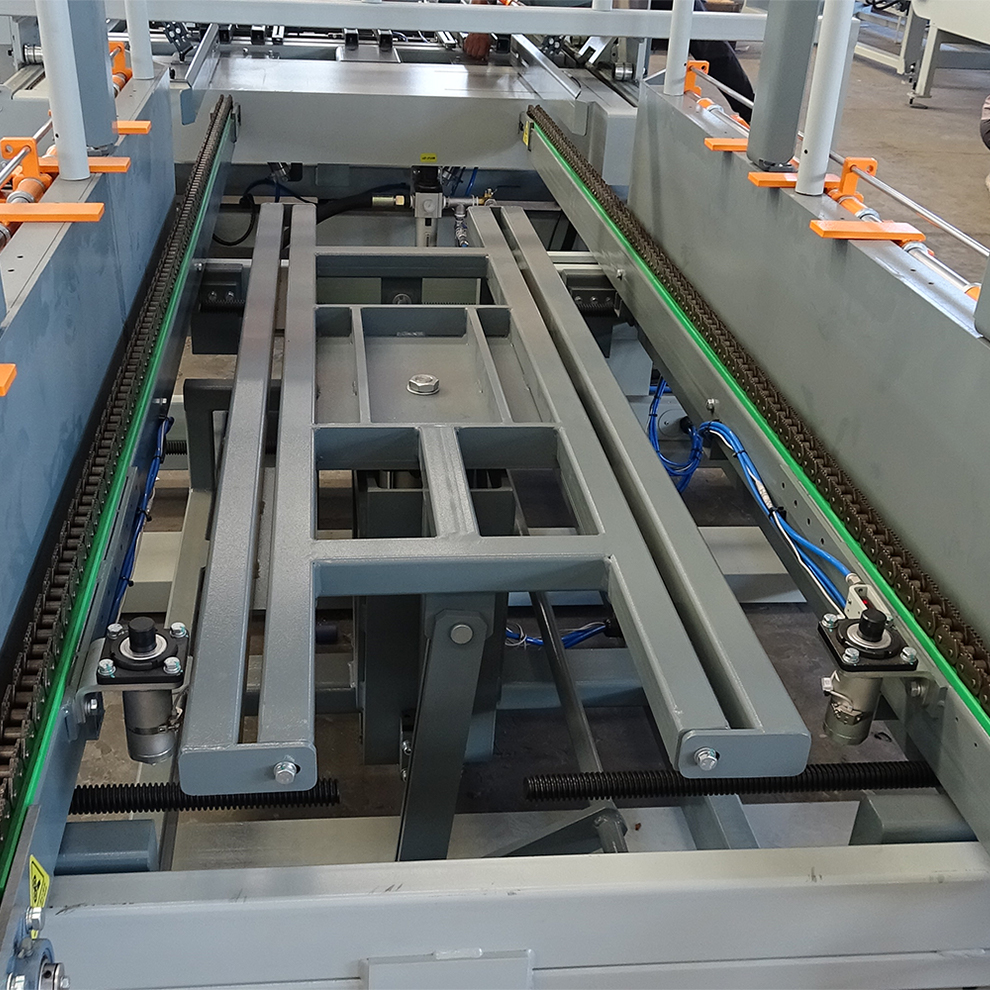

• Stringer & closeboard pallets on one horizontal table
• Fast tool-less size changeover via positioning jigs
• Customizable to larger pallet sizes

[ Request Customized Quotation ]

TWO TECHNOLOGIES THAT SET THE SF9026 APART

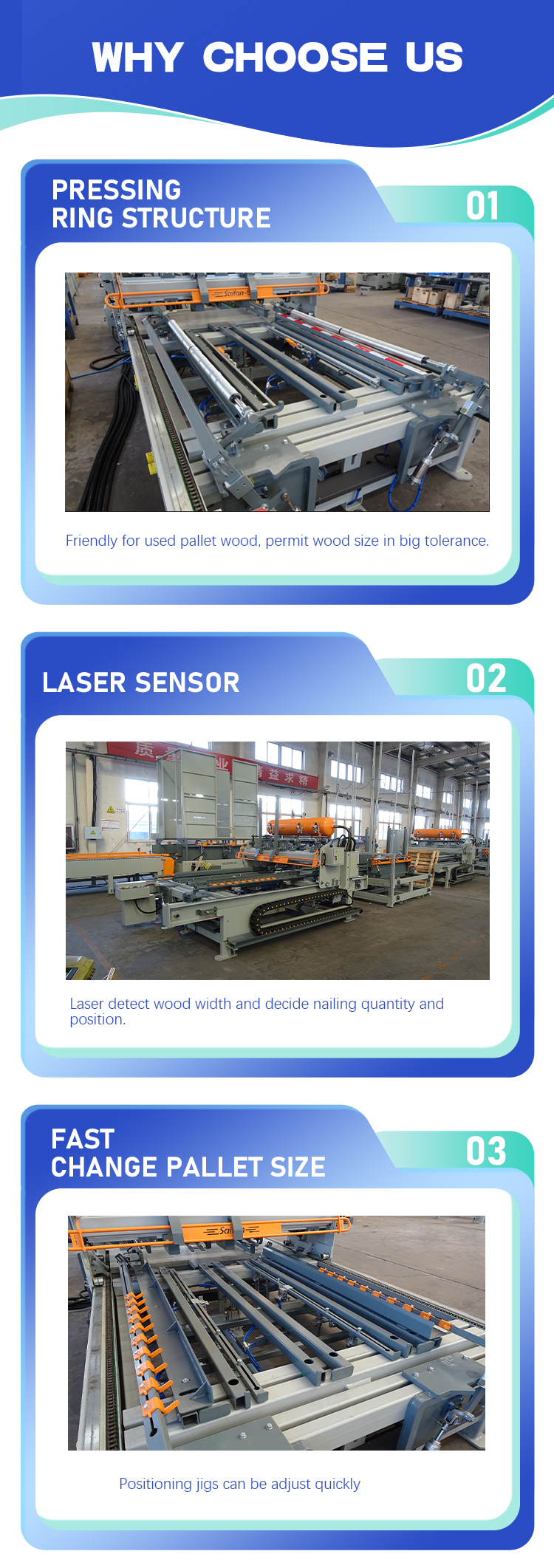

• LASER BOARD DETECTION: A laser sensor measures each board's width and automatically decides the nail quantity and position — accurate nailing without manual setup, even when board widths vary.

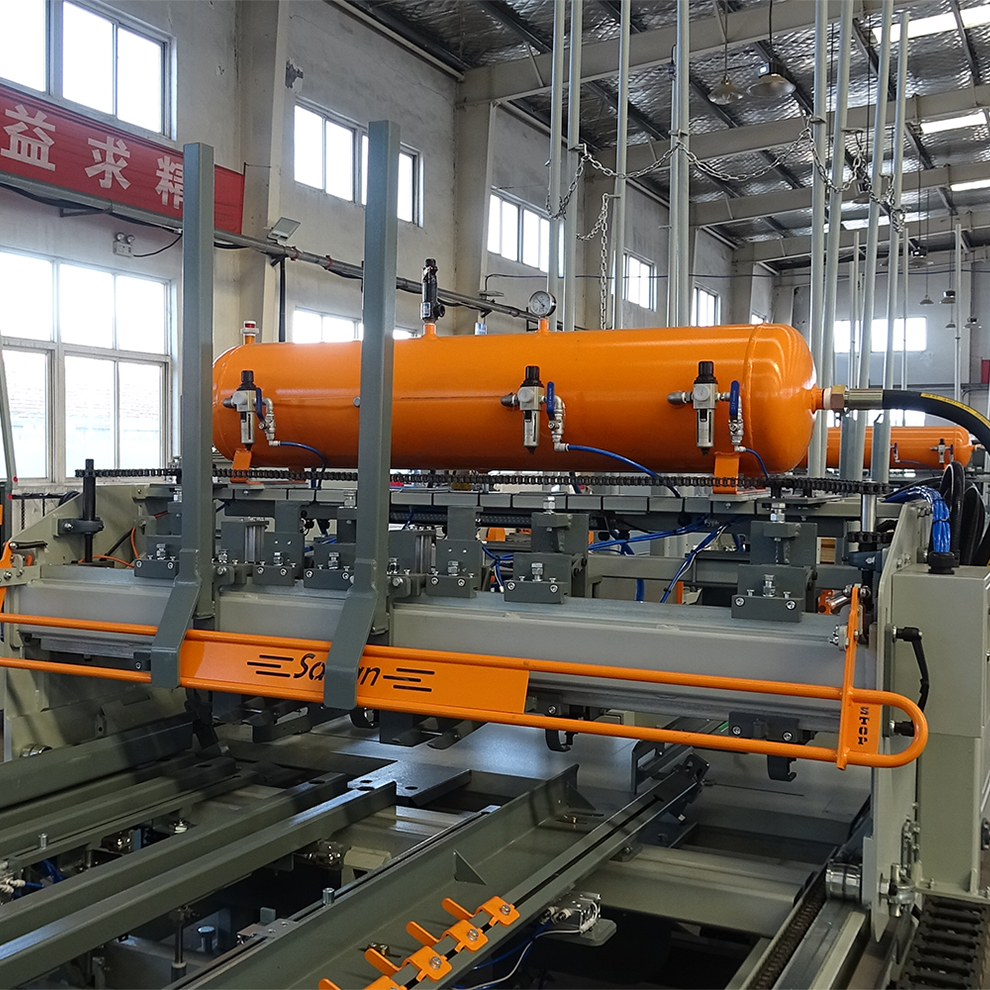

• PRESSING-RING STRUCTURE: The pressing-ring clamps wood that's warped, recycled or out of tolerance — so you can run reclaimed and lower-grade timber that rigid machines reject. Less wood waste, more usable pallets.

Together they make the SF9026 ideal for producers running mixed or recycled timber who still need consistent, accurate pallets.

Voltage Compatibility

Standard 380V/50Hz; multi-voltage configurable to your local power supply (415V / 480V / 60Hz on request).

Pneumatics — Full Transparency

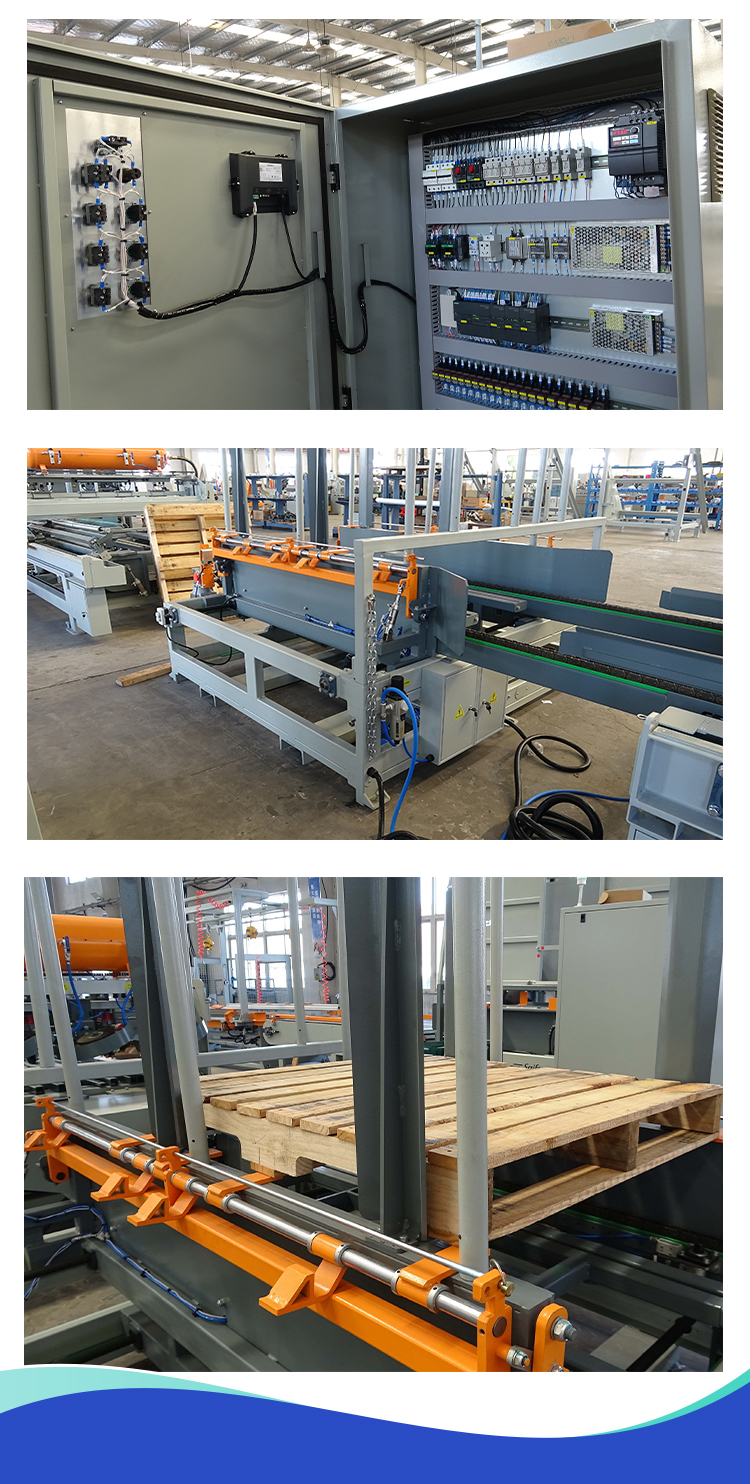

Siemens PLC, Yaskawa servo and Everwin nailers throughout.

Global Track Record

Delivered to pallet producers in Canada, Ireland, Australia, Mexico and New Zealand — field-proven across diverse climates, power grids and timber conditions, including recycled and reclaimed wood.

1. RECYCLED-WOOD FRIENDLY: The pressing-ring structure tolerates large wood-size variation — perfect for recycled and reclaimed timber.
2. LASER-GUIDED ACCURACY: Laser detection sets nailing position and count per board automatically — consistent quality across varied stock.

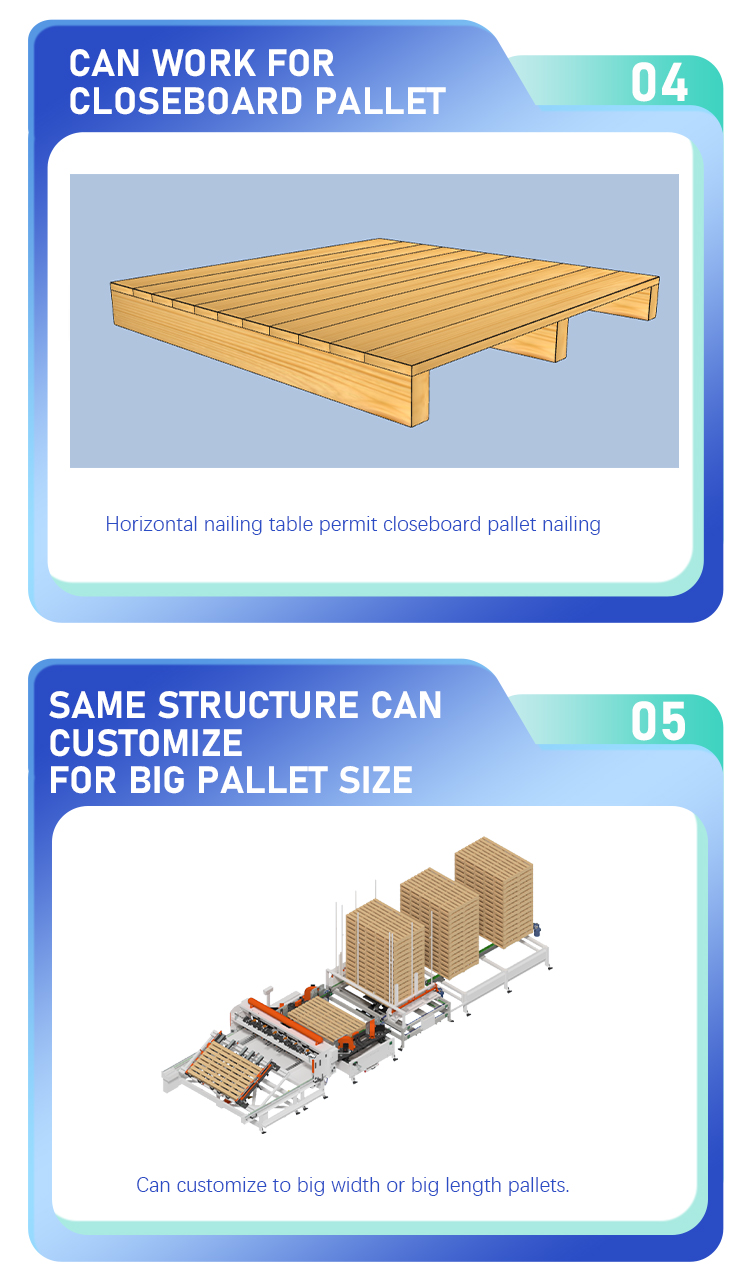

3. STRINGER & CLOSEBOARD ON ONE TABLE: The horizontal nailing table builds both American-style stringer pallets and closeboard pallets.
4. FAST SIZE CHANGEOVER: Quick-adjust positioning jigs switch pallet sizes fast — minimal downtime.
5. PREMIUM COMPONENTS: Siemens PLC · Yaskawa servo · AirTac pneumatics · Everwin nailers · IFM + Autonics sensors.
6. SCALABLE TO LARGER PALLETS: The same structure customizes to bigger widths or lengths — and for extra-long pallets up to 3,800 mm, see our SF9026C with rotary station.

The SF9026's pressing-ring + laser detection let you build accurate stringer pallets from recycled and out-of-tolerance timber — turning lower-cost wood into sellable pallets, with premium Siemens + Yaskawa components at a fraction of European machine cost.

What this means for you:

• Run cheaper recycled timber — pressing-ring tolerates variation
• Consistent quality via laser-guided nailing
• ~55-65% lower 5-year TCO at premium component tier
• Yaskawa + Siemens — savings from manufacturing location, not components

We don't publish equipment prices because configuration affects final cost. Customized quotation within 24 hours, including a full TCO calculation.

[ Request Customized ROI Quotation ]

Q: Can the SF9026 use recycled or reclaimed wood?

A: Yes — the pressing-ring structure tolerates warped and out-of-tolerance wood, making it ideal for recycled timber.

Q: How does the laser detection work?

A: A laser sensor measures each board's width and automatically sets the nail quantity and position for accurate, consistent nailing.

Q: Can it build closeboard pallets too?

A: Yes — the horizontal nailing table handles both stringer and closeboard pallets.

Q: How fast can I change pallet sizes?

A: Quickly — positioning jigs adjust, minimizing downtime.

Q: What components does it use?

A: Siemens PLC, Yaskawa servo, Everwin nailers, IFM + Autonics sensors, and AirTac pneumatics (SMC/Festo upgrade available).

Q: Can it make larger or extra-long pallets?

A: The structure customizes to larger sizes; for extra-long pallets up to 3,800 mm with an automatic rotary station, see our SF9026C.

Q: What voltage does it use?

A: Standard 380V/50Hz, configurable to your local power supply.

Q: What payment terms do you accept?

A: 30% T/T deposit, LC at sight, and SINOSURE export credit insurance.
