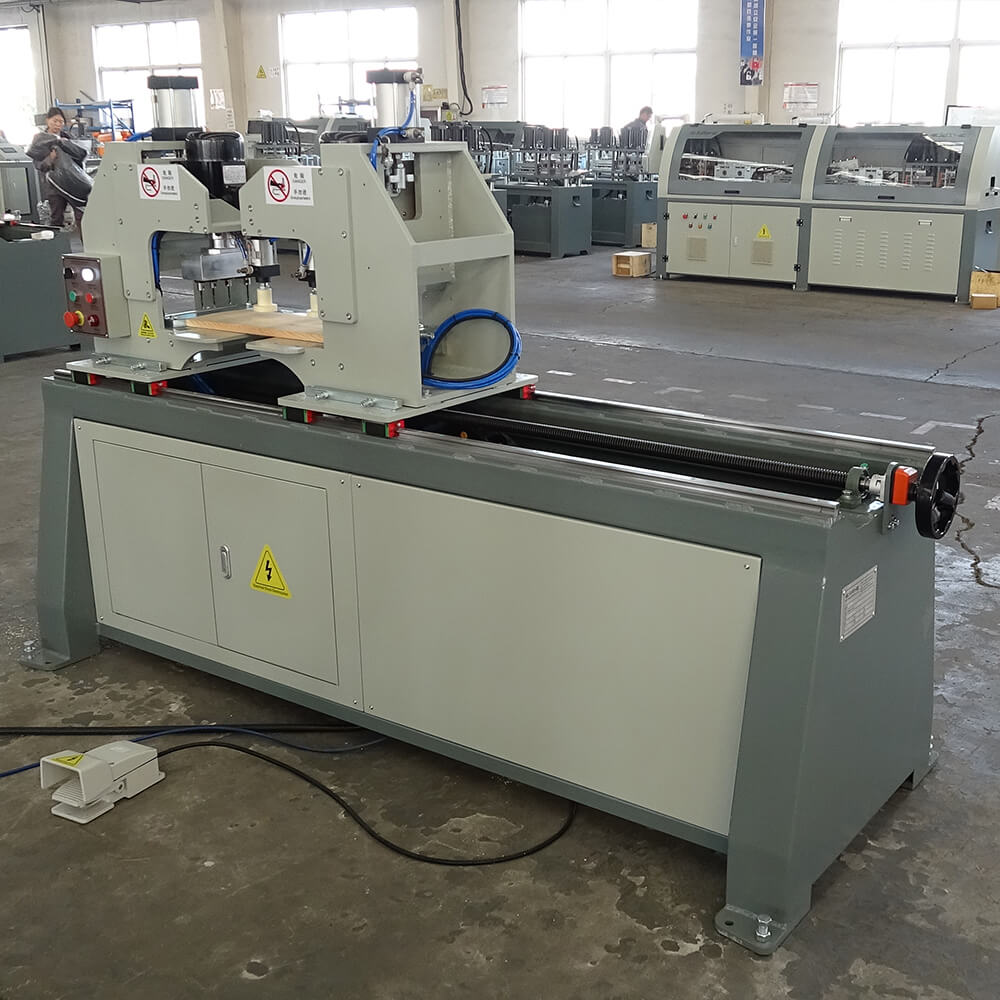

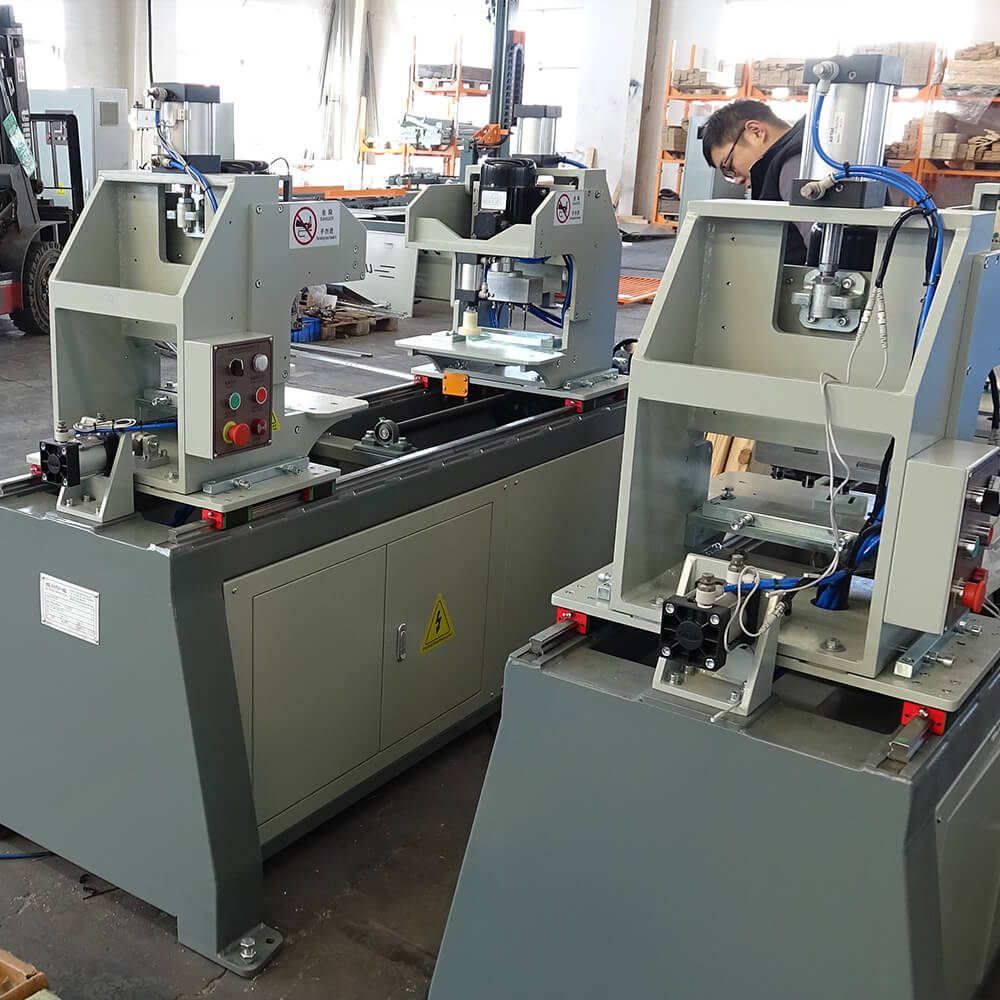

SF4022 AUTOMATIC DOUBLE-HEAD DRILLING MACHINE — Synchronous Dual-Head · CNC Servo Positioning · 200 pcs/h

Drill both ends of a pallet collar board at the same time, with CNC-positioned accuracy — no offset, no rework, no manual measuring.

Siemens PLC · CNC servo positioning · pneumatic clamping · 3 kW dual-head · CE certified · German VerpackG + Spanish EPR registered.

• Synchronous double-head drilling — zero positioning error
• 200 boards/hour (≈1,600/shift), 2× a single-head machine
• 3 kW motor at 2,800 rpm for continuous heavy-duty production
• Compact 590 kg footprint — plug in and produce in 1 day
• EU compliance package: CE + EPR (Germany & Spain)

[ Request Customized Quotation ]

1.ZERO-OFFSET DOUBLE-HEAD DRILLING: Two drilling heads work synchronously under CNC servo positioning — both holes drilled in the same cycle, with no offset between them. No more measuring, marking or manual checks.

2.2× THE OUTPUT OF SINGLE-HEAD MACHINES: At 200 boards per hour (about 1,600 per 8h shift), the SF4022 doubles what a single-head drill produces — and frees an operator for other tasks.

3.BUILT FOR HEAVY-DUTY DUTY CYCLES: A 3 kW motor at 2,800 rpm handles continuous

4.PLUG-AND-PRODUCE IN ONE DAY: Compact 2,200 × 950 × 1,500 mm footprint, 590 kg — fits a standard workshop, ships in a 20ft container, and runs the same day it's powered up.

1.PURPOSE-BUILT FOR PALLET COLLAR BOARDS: Designed specifically for the 195-205 mm × 19-22 mm boards used in EUR pallet collars — not a generic drilling machine retrofitted to the job.

2.CNC SERVO POSITIONING: Premium control architecture for repeatable, accurate hole positioning every cycle.

3.ADJUSTABLE LENGTH 540-1,200 mm: Process standard and custom collar lengths; customization available beyond the standard range.

4.EU COMPLIANCE PACKAGE: CE certified (Cert. No. M.2024.206.C106826), plus German VerpackG and Spanish EPR registration — ready to ship into EU markets without compliance friction.

5.INTEGRATES WITH SF4070 / SF4091 COLLAR LINE: SF4022 drills the holes, SF4070 threads the pins and inserts hinges, SF4091 inserts and fixes the hollow rivets — a complete EUR pallet collar production workflow on Siemens-tier control.

6.COMPACT, LOW-LABOUR: 1 operator, pneumatic clamping, foot-operated drilling — a single workstation that quietly produces 1,600 boards per shift.

SF4022 is the upstream drilling stage of the HICAS EUR pallet collar production family:

• SF4022 — drills the precise 5 mm rivet holes on collar boards (this machine, 200 pcs/h)
• SF4070 — threads the long pins, inserts hinges and stacks the finished collars (4-5 collars/min)
• SF4091 — automatically inserts and fixes the hollow rivets on the hinges with 4-channel leak detection (180-250 pcs/h)

premium-brand control architecture, designed to integrate cleanly into one EUR pallet collar production workflow.

Manual or single-head drilling means double the cycles, measuring on each board, and inevitable offset between the two holes. SF4022 drills both ends in one synchronous pass with CNC-positioned accuracy.

What this means for you:

• Double the drilling output with the same labour
• Zero positioning offset — no rework on the downstream riveting stage
• EU compliance ready — ship without paperwork friction
• CNC servo — premium control at a fraction of European machine cost

We don't publish equipment prices because configuration affects final cost. Customized quotation within 24 hours.

[ Request Customized Quotation ]

Q: What does the SF4022 do?

A: It drills two synchronous holes (one on each end) on EUR pallet collar boards, ready for hinge riveting on the SF4070 / SF4091.

Q: How fast is it?

A: ~200 boards per hour, or about 1,600 per 8h shift — roughly double a single-head drill.

Q: What board sizes does it accept?

A: Length 540-1,200 mm (customizable), width 195-205 mm, thickness 19-22 mm.

Q: What hole diameter and spacing?

A: 5 mm holes at 50 mm fixed distance — the standard EUR pallet collar rivet hole spec.

Q: What components does it use?

A: CNC servo positioning and pneumatic clamping.

Q: Does it pair with the SF4070 / SF4091 collar line?

A: Yes — SF4022 drills the holes, SF4070 threads pins and inserts hinges, SF4091 rivets the hinges. Together they form a complete EUR pallet collar production workflow.

Q: What about EU compliance?

A: CE certified (Cert. No. M.2024.206.C106826), plus German VerpackG and Spanish EPR registration.

Q: What voltage does it use?

A: Standard 380V/50Hz, with 220V/60Hz available as an order option.

Q: What's the lead time?

A: 30-40 days after order confirmation

Q: What payment terms do you accept?

A: 30% T/T deposit, LC at sight
