Automatic pin-threading and stacking for pallet collars — 4-5 collars/min, ±0.5 mm length precision, missing-pin detection, Siemens PLC, Yaskawa servo, 1-2 operators.

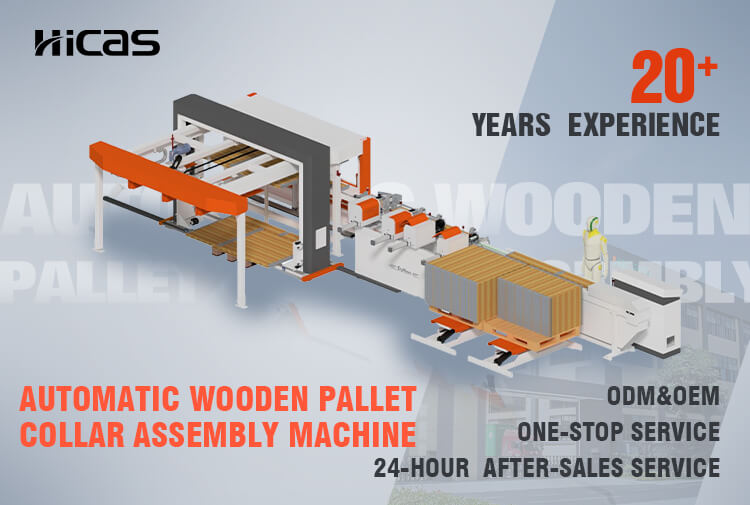

SF4070 PALLET COLLAR PIN THREADING & STACKING MACHINE — 4-5 Collars/min · Siemens PLC · Missing-Pin Detection

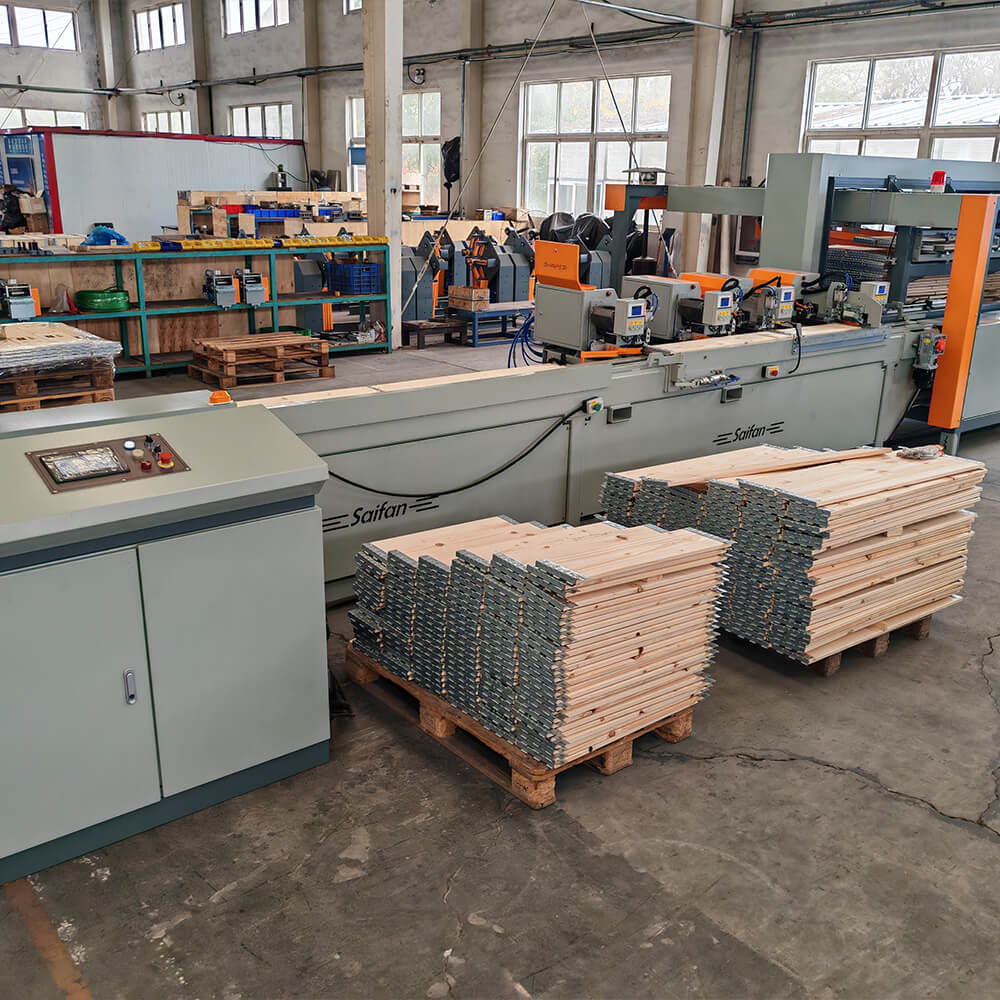

Produce pallet collars automatically — pin threading, hinge insertion and stacking in one machine, with just 1-2 operators.
Siemens PLC · Yaskawa servo · Schneider electrics · 4 pin-threading systems with missing-pin detection · hydraulic pin bending · vertical/zigzag stacking.
[ Request Customized Quotation ]
|
Parameter |
Specification |
|
Model |
SF4070 (pallet collar pin threading & stacking machine) |
|
Application |
Automatic pin threading, hinge insertion & stacking for pallet collars |
|
Productivity |
4 – 5 collars/min |
|
Operators |
1 – 2 |
|
Collar total length |
1,400 – 2,000 mm |
|
Pin distance |
200 – 2,000 mm |
|
Length tolerance |
± 0.5 mm |
|
Pin diameter |
4.0 mm (±0.1 mm) |
|
Pin-threading systems |
4 (with automatic missing-pin detection) |
|
Pin bending |
Hydraulic |
|
Stacking modes |
Vertical / zigzag |
|
Stacking height |
Max. 1,200 mm (including pallet) |
|
PLC |
Siemens |
|
Servo motor |
Yaskawa (Japan) |
|
Electrical components |
Schneider |
|
Total power |
5.25 kW |
|
Voltage |
380V / 50Hz / 3-phase |
|
Machine dimensions |
11,000 × 4,000 × 2,200 mm |
|
Machine weight |
~5,000 kg |
|
Certification |
CE certified · ISO9001 |
|
Warranty |
12 months (excl. wear parts; lifelong responsibility) |
|
Lead time |
90 days |

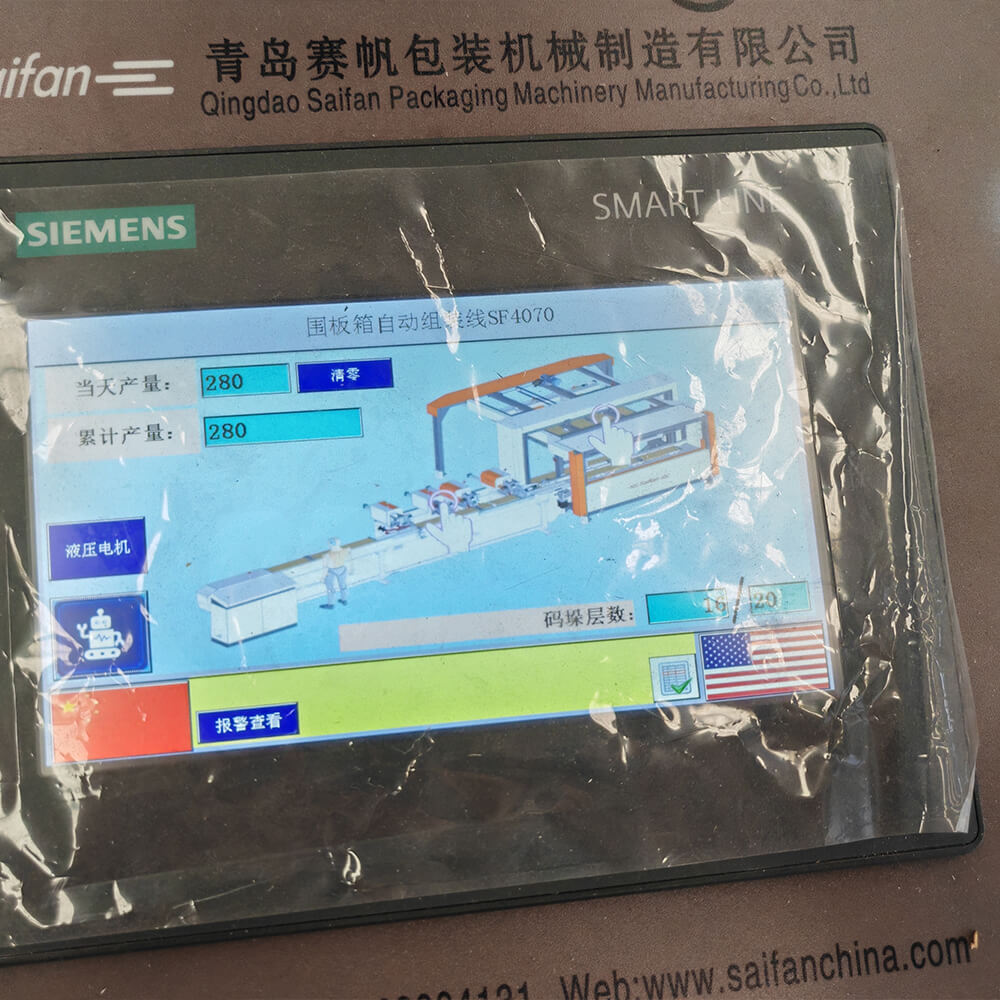

1.PREMIUM CONTROL & DRIVE: Siemens PLC, Yaskawa servo and Schneider electrics — the same control-tier brands opean premium machine builders specify, fully documented in your drawings.

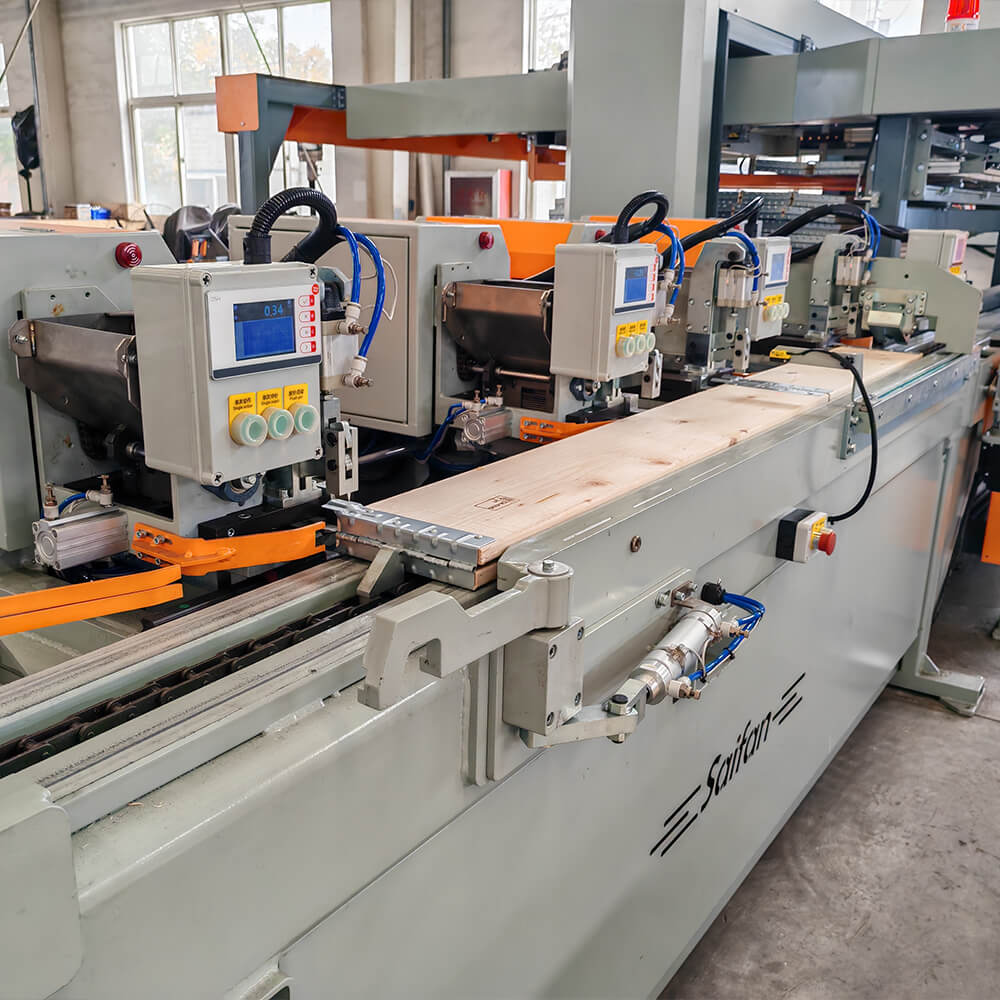

2.4 PIN-THREADING SYSTEMS + MISSING-PIN DETECTION: Four independent threading systems work in parallel, and automatic missing-pin detection ensures every hinge pin is correctly inserted — no defective collars passed downstream.

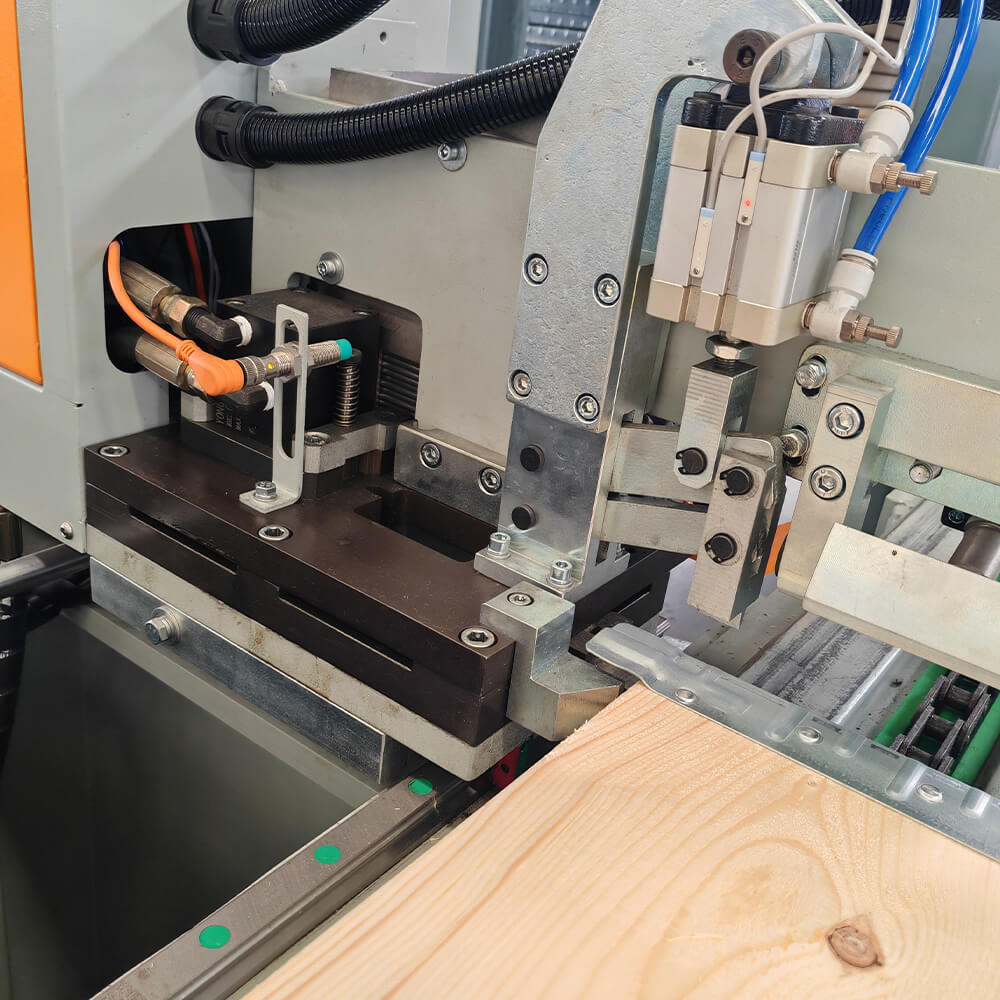

3.HYDRAULIC PIN BENDING: Hydraulic pin-bending mechanism delivers consistent, repeatable bending — accurate hinge geometry every cycle.
4.±0.5 mm LENGTH PRECISION: Collar length tolerance held to ±0.5 mm across the 1,400-2,000 mm range — spec-true collars that stack and fit consistently.
5.5,000 kg HEAVY FRAME: A 5-tonne welded frame runs stable under continuous production and protects long-term accuracy.
|
Parameter |
SF4070 (Assembly Machine) |
SF4060 (Full Production Line) |
|
Scope |
Pin threading + hinge insertion + stacking |
Full line: 8 processes from raw board to finished collar |
|
Best for |
Producers with existing board prep, focusing on automated assembly |
Greenfield collar plants wanting a complete turnkey line |
|
Productivity |
4 – 5 collars/min |
Higher (full-line throughput) |
|
Operators |
1 – 2 |
Higher (full line) |
|
Footprint |
11 × 4 × 2.2 m |
Larger (full line) |
|
PLC |
Siemens |
Siemens |
|
Servo |
Yaskawa |
Yaskawa |
Choose SF4070 if you already cut and prep collar boards and need to automate the assembly stage; choose SF4060 for a complete board-to-finished-collar production line.

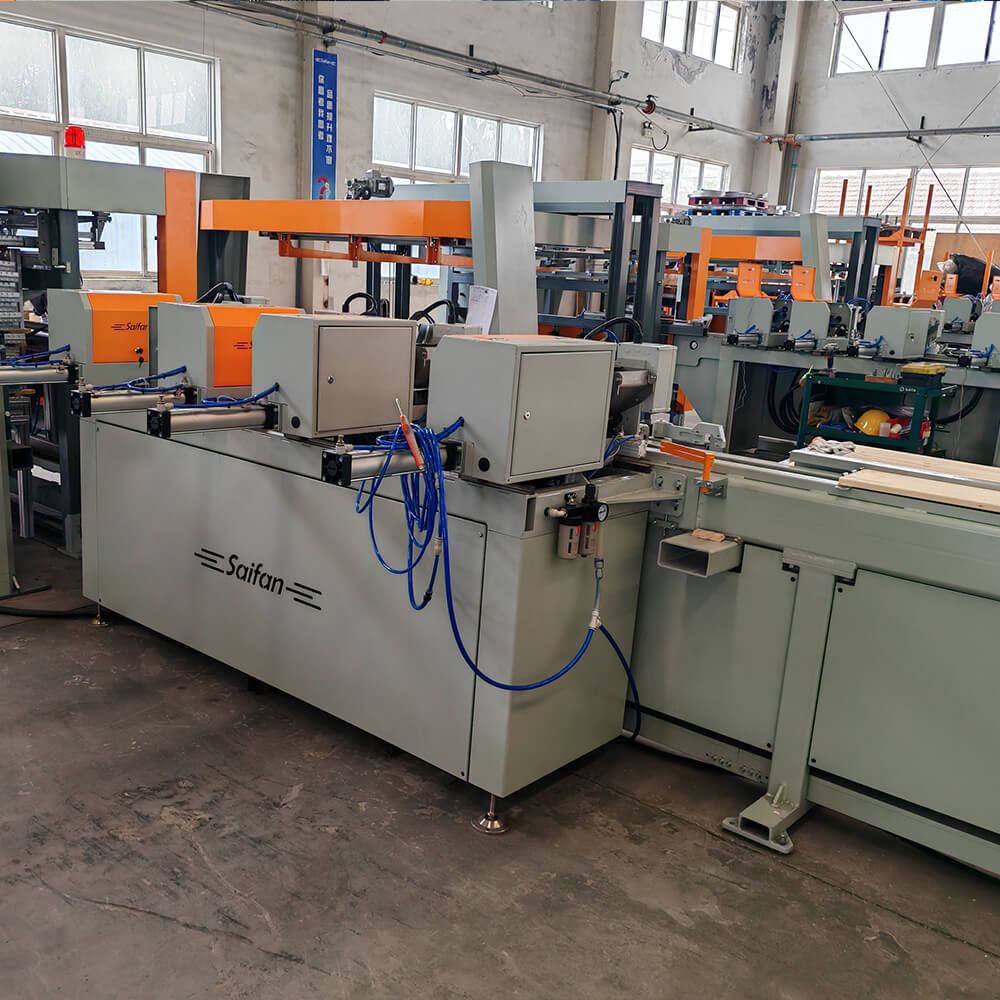

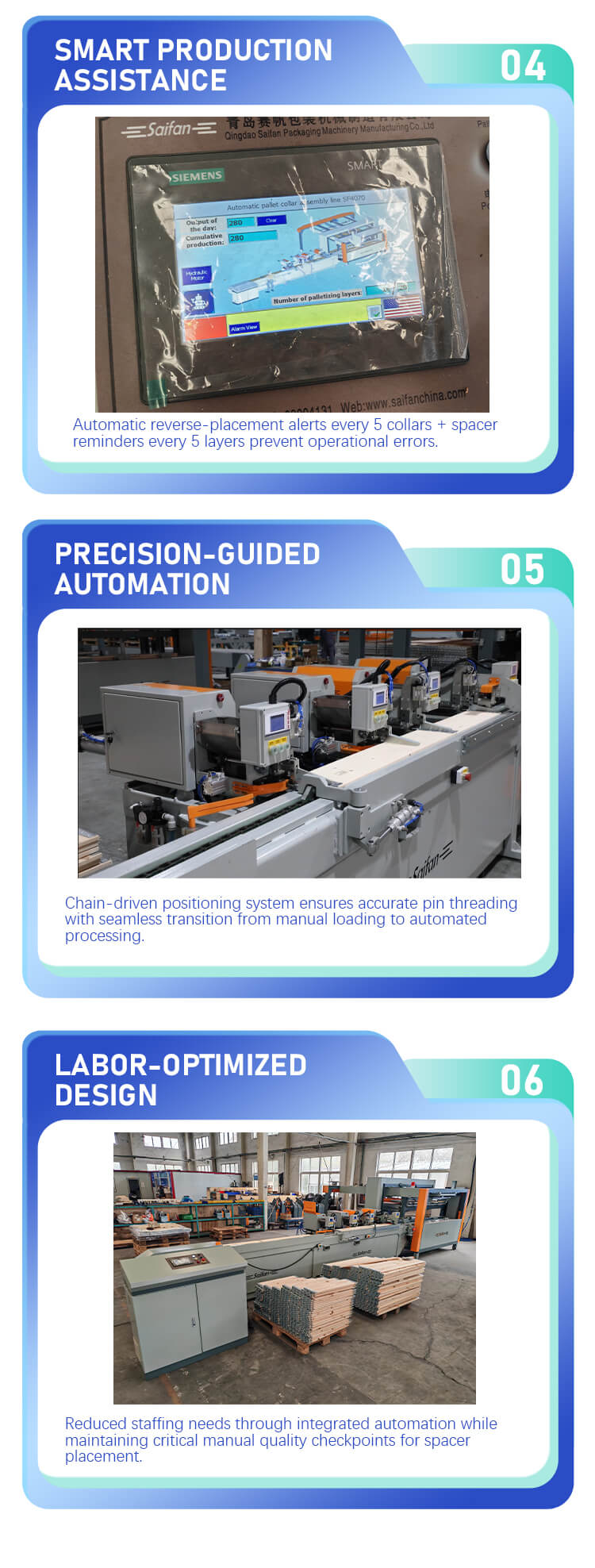

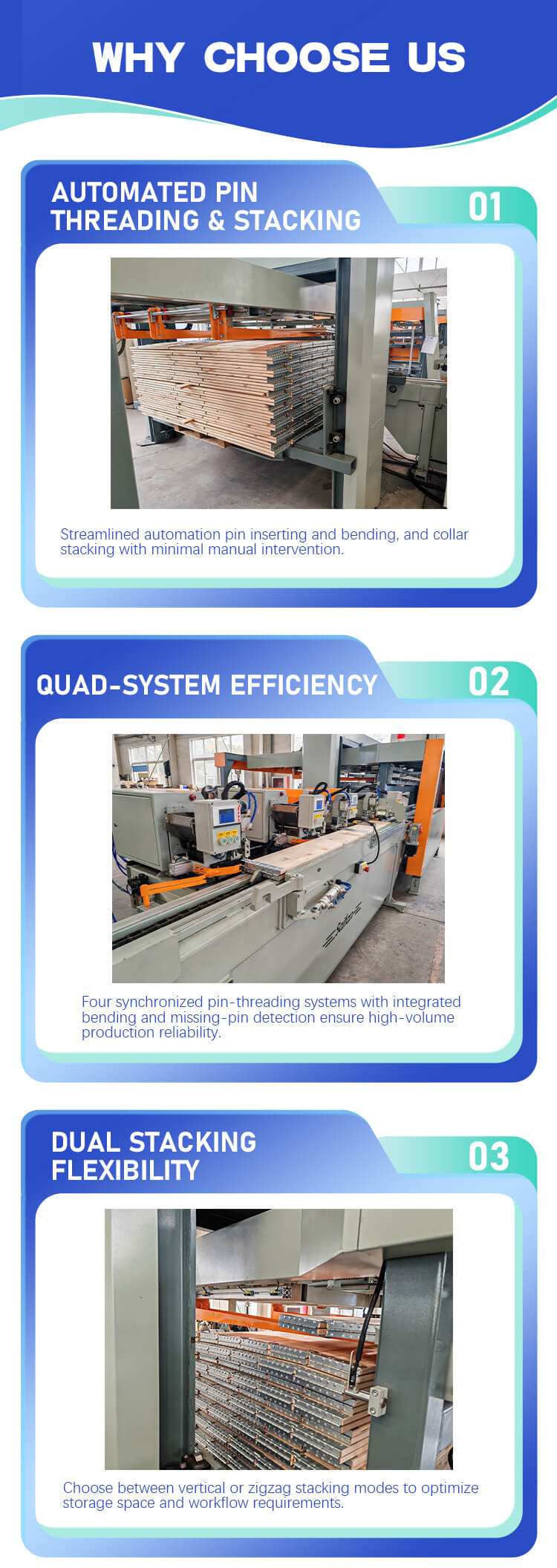

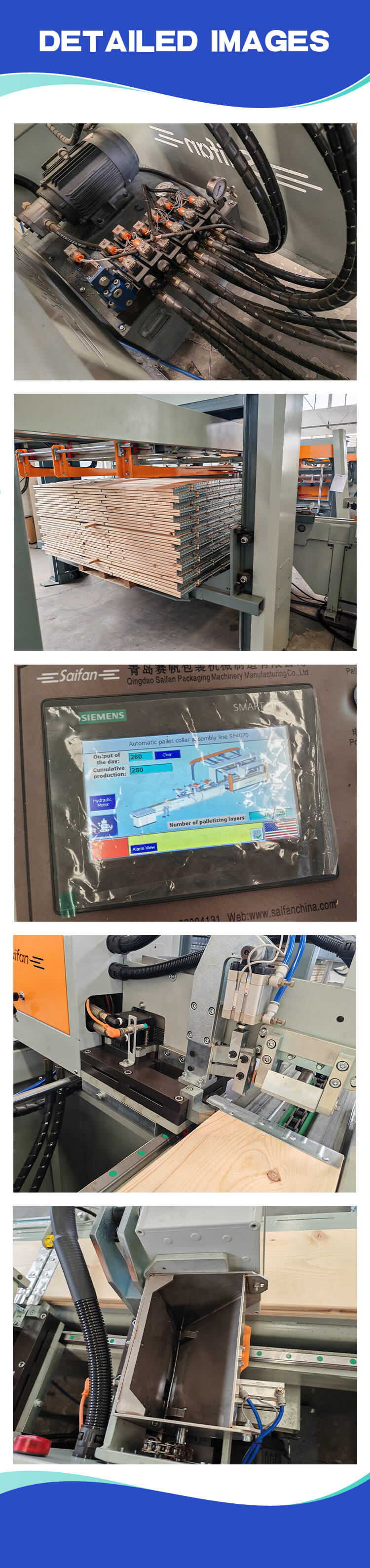

1.AUTOMATIC PIN THREADING + STACKING: After operators place the wood boards, the machine automatically conveys, bends pins, inserts hinges and stacks the finished collars — fully automated assembly.
2.BUILT-IN QUALITY CONTROL: 4 pin-threading systems with missing-pin detection catch defects in-line; ±0.5 mm length precision keeps collars consistent for the downstream pallet customer.

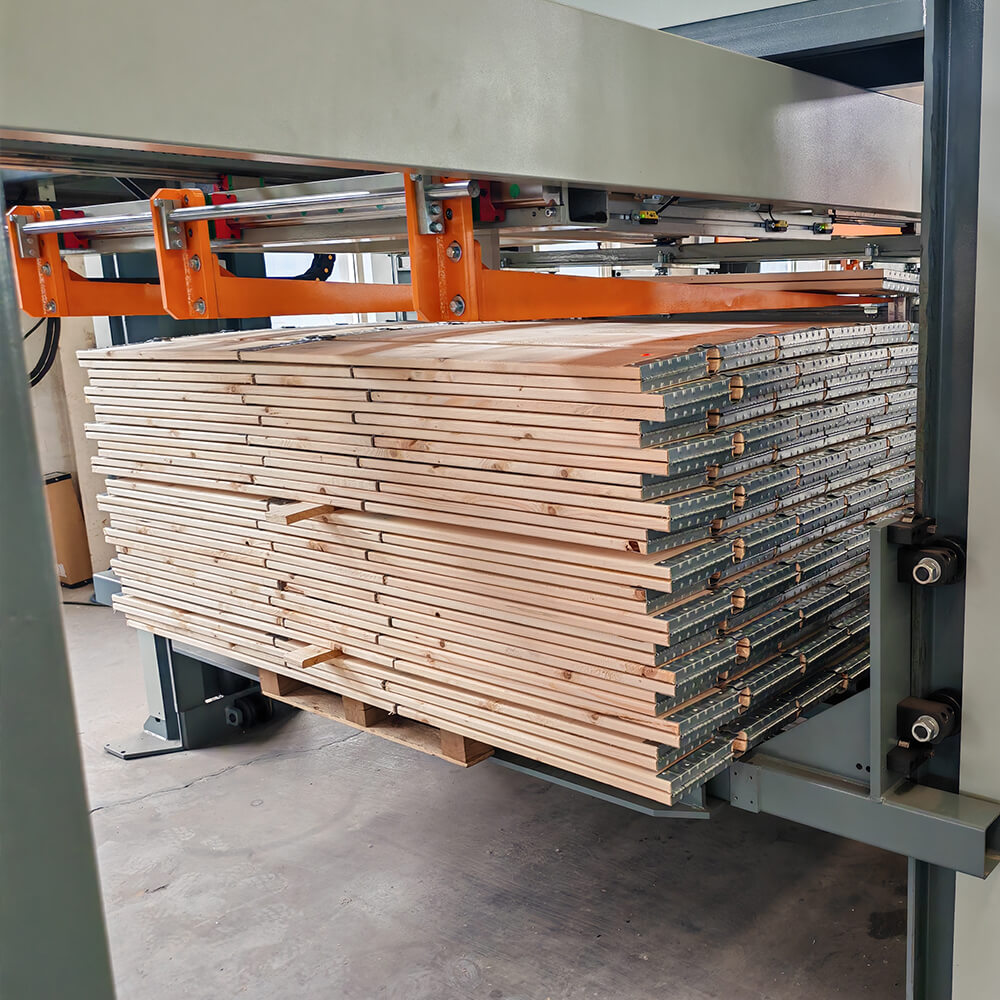

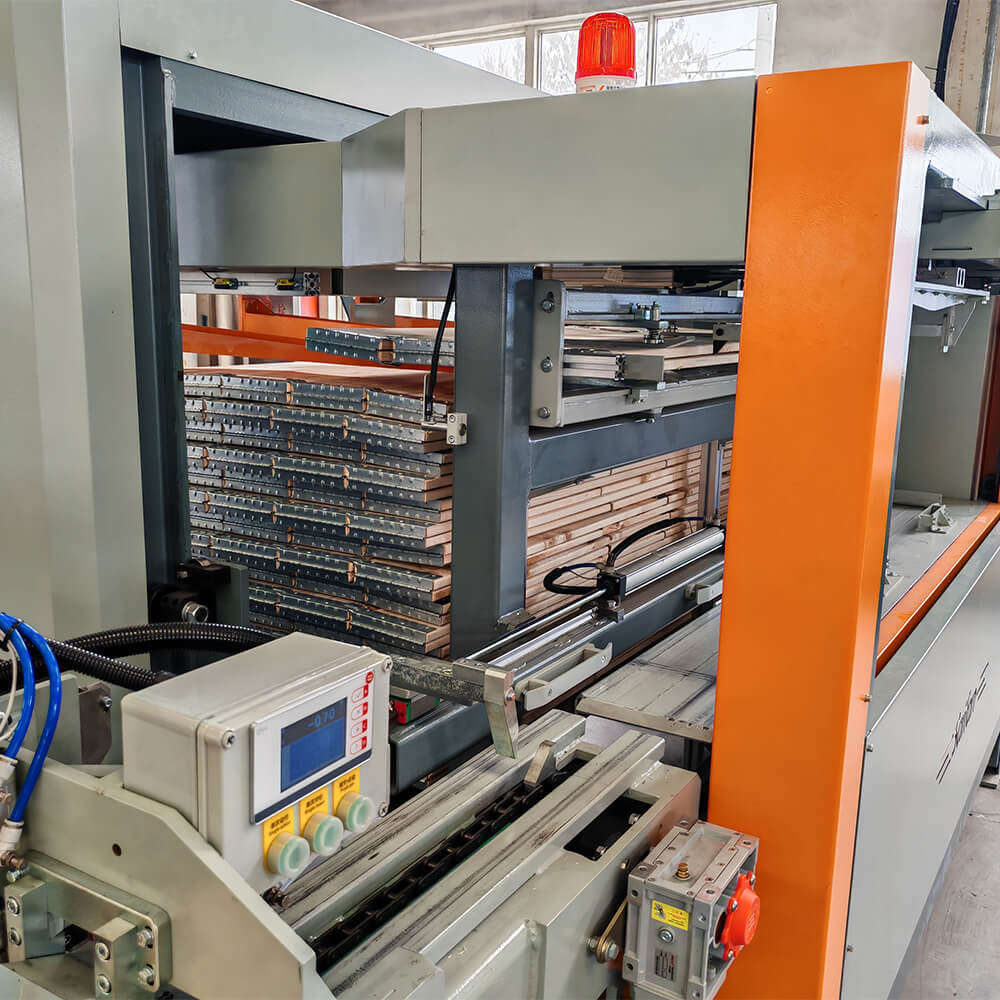

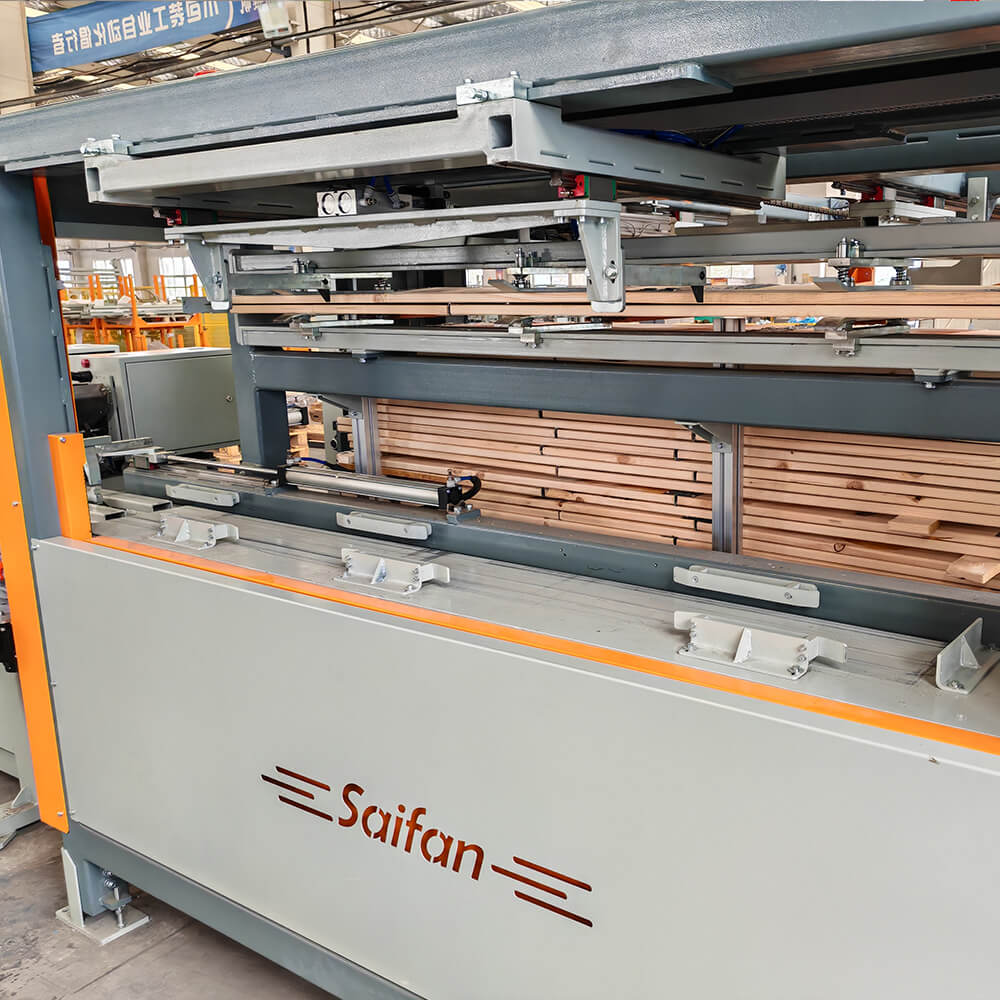

3.DUAL STACKING MODES: Vertical or zigzag stacking to 1,200 mm (including pallet) — adapts to your shipping and storage needs.
4.LOW LABOUR, HIGH OUTPUT: 4-5 collars per minute with only 1-2 operators — the labour saving is the core ROI of this machine.
5.FLEXIBLE COLLAR SIZES: Collars 1,400-2,000 mm total length, pin distance 200-2,000 mm
6.PROVEN PREMIUM COMPONENTS: Siemens / Yaskawa / Schneider — brands you can service locally in ope.
Pallet collars are a high-margin product — but manual assembly is slow and labour-intensive. The SF4070 automates pin threading, hinge insertion and stacking, dropping labour to 1-2 operators and ensuring consistent quality on every collar.
|
Item |
Manual / Semi-Auto Assembly |
HICAS SF4070 |
|
Output |
Lower |
4-5 collars/min |
|
Labour |
Higher (multiple operators) |
1 – 2 operators |
|
Defect control |
Operator-dependent |
Missing-pin detection, in-line |
|
Length precision |
Variable |
±0.5 mm |
|
Stacking |
Manual / separate |
Integrated, vertical or zigzag |
What this means for you:
We don't publish equipment prices because configuration affects final cost. Customized quotation within 24 hours, including a payback calculation against your current manual or semi-auto cost.
[ Request Customized ROI Quotation ]
Q: How fast does the SF4070 produce collars?
A: 4-5 collars per minute, with just 1-2 operators.
Q: What collar sizes does it handle?
A: Total length 1,400-2,000 mm, with pin distance 200-2,000 mm — covering and most common collar specifications.
Q: How accurate are the collars?
A: ±0.5 mm length tolerance, with hydraulic pin bending for consistent hinge geometry.
Q: What is missing-pin detection?
A: 4 pin-threading systems work in parallel, with automatic detection that catches any missing pin in-line — no defective collars passed to the next stage or to your customer.
Q: What stacking modes are available?
A: Vertical and zigzag stacking, up to 1,200 mm stack height (including pallet) — adapt to your shipping or storage needs.
Q: What components does it use?
A: Siemens PLC, Yaskawa servo, Schneider electrics — premium control-tier brands you can service locally in ope.
Q: What's the difference between SF4070 and SF4060?
A: SF4070 is the pin-threading and stacking assembly machine; SF4060 is a full 8-process production line from raw board to finished collar.
Q: What voltage does it use?
A: Standard 380V/50Hz 3-phase, configurable to your market.
Q: What is the delivery time?
A: 90 days from confirmed order.
Q: What payment terms do you accept?
A: 30% T/T deposit, LC at sight, and SINOSURE export credit insurance.
