Builds American-style stringer pallets up to 3,800 mm long — with an automatic 180° rotary station that replaces manual flipping.
Yaskawa servo, Siemens control, Banner sensing. 40% more efficient.
Voltage Compatibility
Voltage configurable up to 480V to match your local power supply (50/60 Hz markets).

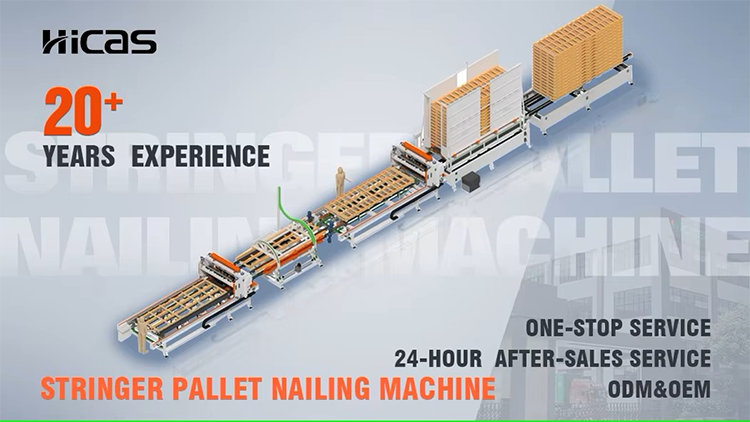

SF9026C STRINGER PALLET NAILING MACHINE WITH ROTARY STATION — Extra-Long up to 3,800 mm, 180° Auto-Rotation, +40% Efficiency
Build extra-long stringer pallets up to 3,800 mm that most machines simply can't handle. An automatic 180° rotary station flips the pallet for you, replacing dangerous manual turning and cutting labour.
Siemens PLC, Yaskawa servo, Banner sensing, AirTac + SMC pneumatics, Everwin nailers, 18-tonne heavy frame.
[ Request Customized Quotation ]
|
Parameter |
Specification |
|
Model |
SF9026C (stringer pallet nailing machine with rotary station) |
|
Pallet type |
American-style stringer pallet |
|
Pallet length |
1,200 – 3,800 mm (extra-long; up to ~4,000 mm custom) |
|
Pallet width |
750 – 1,300 mm |
|
Rotary station |
Automatic 180° roller-clamp rotation |
|
Productivity |
~200 – 250 pcs / 8h shift |
|
Operators |
2 – 3 (depends on pallet style) |
|
Efficiency |
+40% vs manual handling |
|
Nail type |
N70 / N80 (configurable) |
|
PLC |
Siemens |
|
HMI |
Siemens |
|
Servo drive |
Yaskawa (Japan) |
|
Pneumatics |
AirTac + SMC |
|
Nailers |
MAX (JAPEN) |
|
Sensors |
Banner (USA) |
|
Total power |
~10 kW |
|
Air pressure |
0.6 – 0.8 MPa |
|
Machine dimensions |
25,000 × 3,000 × 2,700 mm |
|
Machine weight |
~18,000 kg |
|
Steel frame |
Q235 / Q345 |
|
Voltage |
Configurable up to 480V |
|
Certification |
CE certified · ISO9001 |
|
Warranty |
12 months (excl. nailers & wear parts) |
|
Service life |
10 – 15 years |
|
Lead time |
3 – 8 months (depending on configuration) |
On most stringer machines, workers manually flip heavy half-built pallets to nail the other side — slow, and a real injury risk. The SF9026C does it automatically: a roller-based clamping system grips the pallet and rotates it 180°, so the machine nails both sides with no manual turning.
1.18-TONNE HEAVY FRAME: ~18,000 kg on a Q235/Q345 steel frame, built to nail extra-long pallets without flex or drift.
2.PREMIUM CONTROL & DRIVE: Siemens PLC + Siemens HMI + Yaskawa servo — industrial-tier control and precision positioning.
3.PREMIUM SENSING & PNEUMATICS: Banner (USA) sensors and AirTac + SMC pneumatics — reliable, shift after shift.
4.10-15 YEAR SERVICE LIFE: CE certified, 1-year warranty, lifetime remote support.
1.EXTRA-LONG UP TO 3,800 mm: Purpose-built for long/extra-long stringer pallets (1,200-3,800 mm) standard machines can't make.
2.AUTOMATIC 180° ROTARY STATION: Replaces manual flipping — safer, faster, key to the 40% efficiency advantage.
3.PREMIUM COMPONENTS: Siemens PLC & HMI, Yaskawa servo, Banner sensors, AirTac + SMC pneumatics, Everwin nailers.
4.FLEXIBLE NAILING: N70 / N80 nails, configurable.
5.CONFIGURED FOR YOUR MARKET: Voltage configurable up to 480V.
6.HEAVY-DUTY & PROVEN: 18-tonne frame, 10-15 year service life, 500+ customers worldwide.
The SF9026C builds extra-long pallets up to 3,800 mm AND eliminates manual flipping with an automatic rotary station — a new revenue capability plus a 40% efficiency gain.
|
Item |
Manual/Standard Machine |
HICAS SF9026C |
|
Max pallet length |
~1,300 mm |
Up to 3,800 mm |
|
Pallet flipping |
Manual (slow, injury risk) |
Automatic 180° rotary |
|
Efficiency |
Baseline |
+40% |
|
Servo / control |
Varies |
Yaskawa / Siemens |
|
Sensors / pneumatics |
Varies |
Banner / AirTac + SMC |
|
Frame |
Lighter |
18-tonne Q235/Q345 |
|
Service life |
— |
10 – 15 years |
What this means for you:
We don't publish equipment prices because the extra-long version requires customized framing. Customized quotation within 24 hours.
[ Request Customized ROI Quotation ]
Q: How long a pallet can the SF9026C build?
A: 1,200-3,800 mm, custom up to ~4,000 mm — extra-long pallets most machines can't produce.
Q: What is the rotary station?
A: An automatic 180° roller-clamp station that flips the pallet for two-side nailing — replacing manual flipping, improving safety, driving a 40% efficiency gain.
Q: How is the extra-long version configured?
A: For 3,800 mm pallets the frame is extended and key components customized.
Q: What's the production rate?
A: ~200-250 pallets per 8h shift, 2-3 operators depending on pallet style.
Q: What components does it use?
A: Siemens PLC & HMI, Yaskawa servo, Banner sensors, AirTac + SMC pneumatics, Everwin nailers.
Q: What voltage?
A: Configurable up to 480V.
Q: Delivery time?
A: 3-8 months depending on configuration.
Q: Payment terms?
A: 30% T/T deposit, LC at sight, SINOSURE supported.
